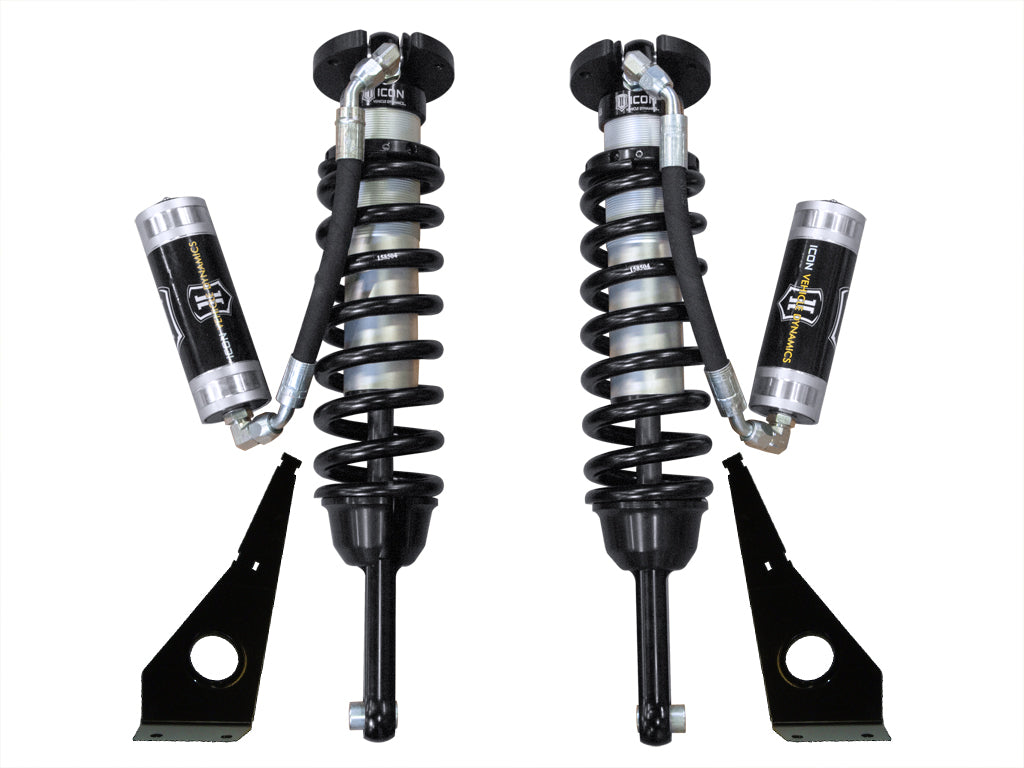

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2005-2023 Toyota Tacoma equipped with the Pro Comp 6” lift kit. These coilovers offer lift height adjustability, allowing fine tuning of ride height or the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tacoma.
Features
- Increased wheel travel and improved ride quality over stock
- Vehicle specific tuned for superior shock damping and control
- Height-adjustable coilovers with application specific length for fitment with Pro Comp 6" lift kits
- Remote reservoirs maintain cooler operating temperatures during extended off-road use
- ICON engineered coil springs
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
- FK rod end bearings for extended longevity and minimal deflection
- Fully rebuildable and re-tunable
TECH NOTE: Coilover length optimized for use with the Pro Comp 6" lift but may also be compatible with others
Specifications
| Reservoir Style |
Remote |
| Self-Leveling |
No |
| Service Parts |
611019 - COILOVER HARDWARE KIT PAIR |
| Service Parts |
252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT |
| Service Parts |
257339 - 7/8 SHAFT 13.25 OAL, 9.00 TRAVEL |
| Service Parts |
611067 - TACOMA/FJ/4RNR LOWER CO BRG/SPCR KIT |
| Service Parts |
254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL |
| Service Parts |
252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0) |
| Service Parts |
252001 - 2.5 FIXED SPANNER WRENCH |
| Service Parts |
191016 - 7.5" FINNED RESI UPGRADE KIT |
| Service Parts |
252003 - SEAL INSTALL TOOL 2.5/3.0 |
| Shaft Diameter |
0.875 IN |
| Shock Absorber Body End Measuring Point |
Top of Upper Mount Plate |
| Shock Absorber Rod End Measuring Point |
Center of Eylet |
| Spring Rate Type |
Linear |
| Travel Length |
4.96 IN |
| Upper Mount Type |
Mounting Plate |
| Valving Type |
Digressive |
| Add-On Part |
252012 - -4 TO -10 HOSE SHIELD KIT |
| Add-On Part |
198001 - BILLET SPANNER WRENCH KIT |
| Add-On Part |
198000 - 2 PIN COILOVER SPANNER WRENCH KIT |
| Add-On Part |
191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25) |
| Adjustable Damping |
NO |
| Body Diameter |
2.5 IN |
| Coil Over Springs Included |
Yes |
| Compressed Length |
21.82 IN |
| Cylinder Color |
Silver |
| Cylinder Finish |
Cadmium Plated |
| Damping Type |
Oil |
| Extended Length |
26.77 IN |
| Gas Charged |
yes |
| Lower Mount Type |
Eyelet |
| Material |
Aluminum |
