ICON Part # ICO164502

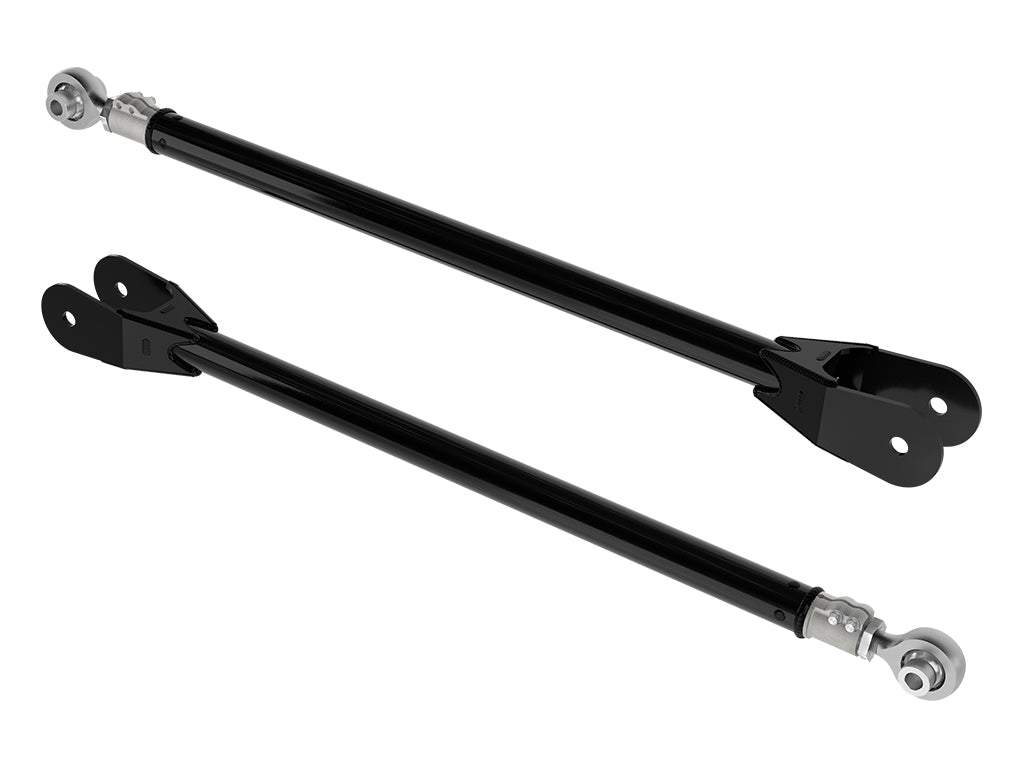

ICON 2005+ Ford Super Duty Front Lower Adjustable Link Kit - 164502

Earn 3,204 Dino Dollars, double for Black NovemberHow it works

Before you order

Customers also viewed

4.8 on Google1,004 store reviews
Canadian since 2005Mississauga, Ontario

These lower links are an essential component of the ICON 2005-2025 Ford Super Duty 4-Link Conversion System. This 4-Link system not only gives your Ford Super Duty an aggressive look, it enhances the articulation of the front suspension by eliminating bushing bind and improves handling of the truck by maintaining consistent caster angles through the entirety of the front suspension travel range. The large, deflective radius arm bushings are replaced with competition grade, PTFE lined spherical bearings in each link. This harder surface minimizes deflection to further increase the overall handling characteristics for maximum predictability and suspension responsiveness. Additionally, the ICON double adjusters in the lower links allows tuning of caster angle while the links are installed on the vehicle, easing the front-end alignment process.

The 4-link brackets, upper links, and lower links are sold separately, allowing the 4-link system to be customized for your specific Ford Super Duty year range.

Features
  • 4-Link system maintains consistent caster angles through suspension travel for superior handling characteristics
  • Improves front end articulation and overall drivability
  • Allow on-vehicle caster adjustment via ICON double adjusters in lower links

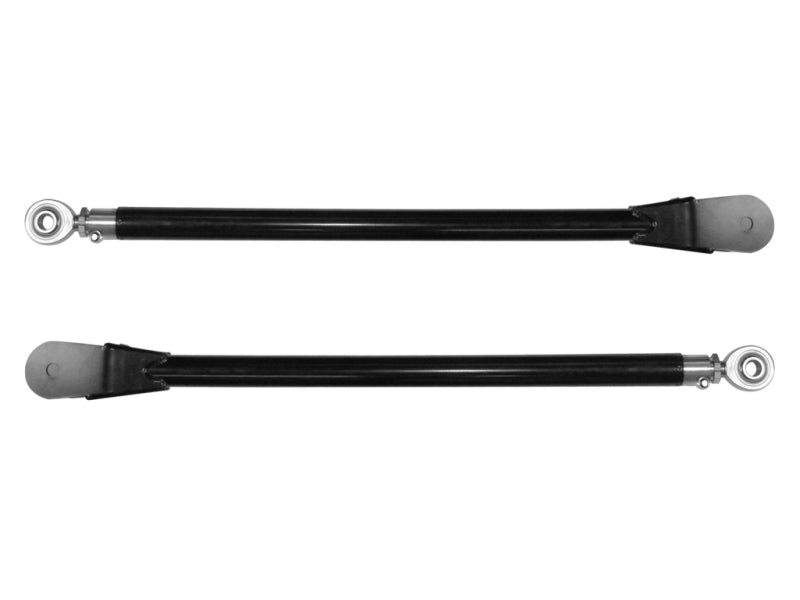

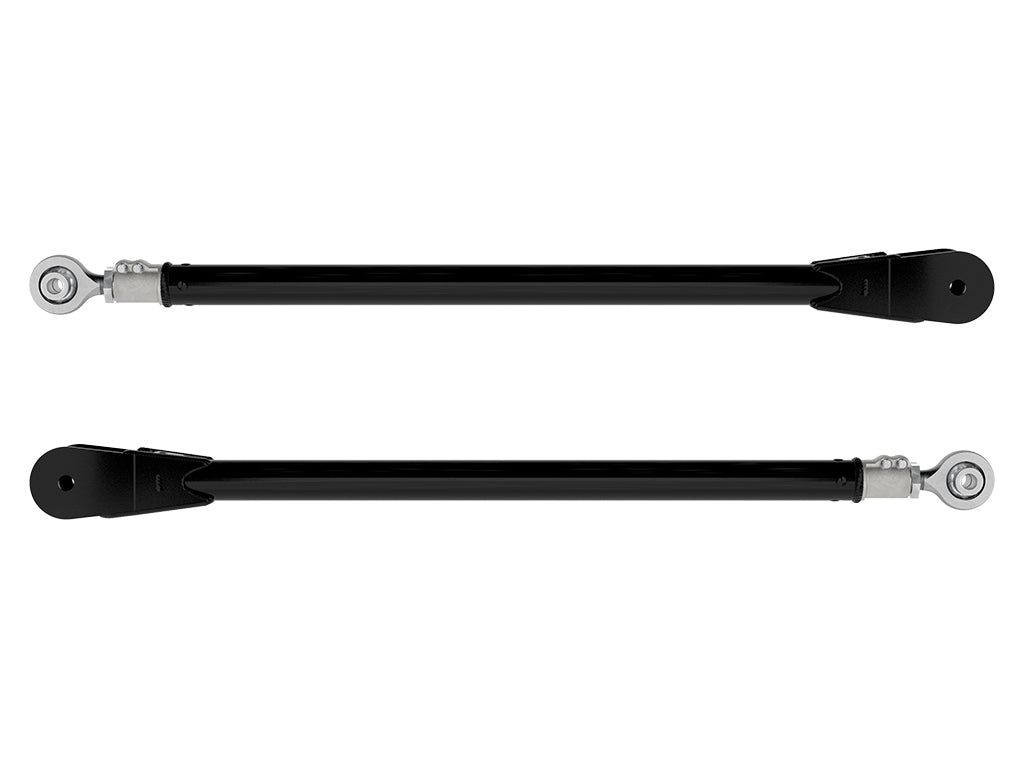

  • Lower links are constructed from CNC machined 2” x .188” wall DOM steel tubing
  • PTFE lined FK spherical bearings eliminate deflection
  • Corrosion resistant semi-gloss black powder coat finish
  • Fabricated components covered under ICON's Limited Lifetime Warranty

Factory Wheels & Tires Fitment: Yes

Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset

Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset

Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset

Recommended Aftermarket Tires: Up to 37" x 12.50"

APPLICATION NOTE #1: Only fits 4WD models

TECH NOTE: Compatible with 2.5"-7" of front lift

TECH NOTE: 2005-2010 models require ICON 4-Link brackets part number 164500 and ICON upper links part number 164501 for complete installation.

TECH NOTE: 2011-2016 models require ICON 4-Link brackets part number 164503 and ICON upper links part number 164501 for complete installation.

TECH NOTE: 2017-2022 models require ICON 4-Link brackets part number 164504 and ICON upper links part number 164501 for complete installation.

TECH NOTE: 2023-2025 models require ICON 4-Link brackets part number 64053 and ICON upper links part number 64052 for complete installation.

Specifications
Color Black
End 2 Type Rod End Bearing
Material DOM Steel
Tubing Color Black
Tubing Material Steel
Add-On Part 164501 - 05-22 FSD FRONT UPPER LINKS
Add-On Part 164504 - 17-22 FSD 4-LINK FRAME BRACKET KIT
Add-On Part 164500 - 05-10 FSD 4 LINK FRAME BRACKET KIT
Add-On Part 164503 - 11-16 FSD 4 LINK FRAME BRACKET KIT
Add-On Part 64052 - 23-25 FSD FRONT UPPER LINKS
Add-On Part 64053 - 23-25 FSD 4-LINK FRAME BRACKET KIT
