ICON 2005+ Ford F-250/F-350 Super Duty 4WD 7in Front 2.5 Series Shocks VS IR - Pair - 67620P
Photo - Primary
Photo - Primary
Logo Image

ICON Part # ICO67620P

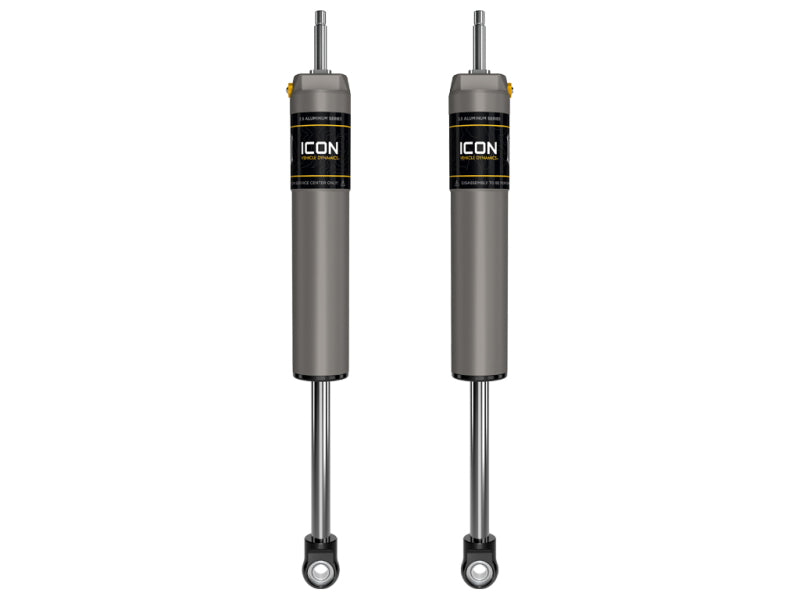

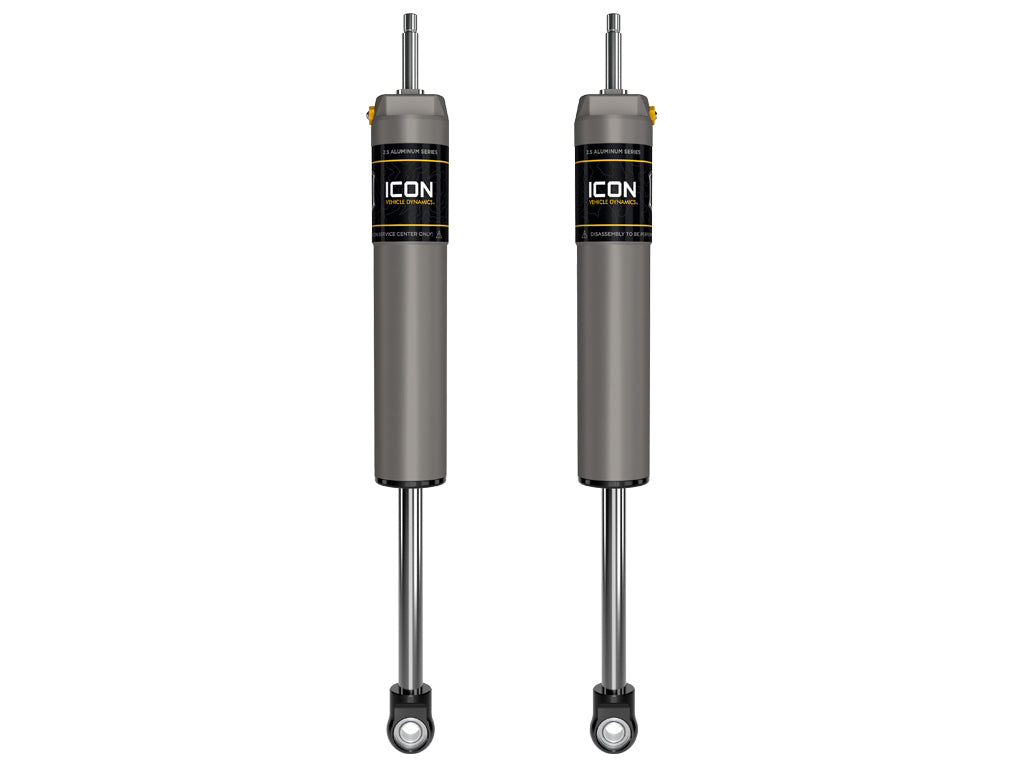

ICON 2005+ Ford F-250/F-350 Super Duty 4WD 7in Front 2.5 Series Shocks VS IR - Pair - 67620P

$1,136.80 CAD
<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>

Before you order

Canadian since 2005 Questions? Email sales@raptorracing.com

ICON Vehicle Specific (V.S.) 2.5 Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Series shocks are 100% rebuildable and 100% revalveable. The larger diameter and oil volume of ICON 2.5 IR Series shocks provide better ride quality and heat dissipation properties than the standard 2.0 Aluminum Series IR Shocks. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDC Valve) or the Omega Series bypass shocks.

Features
  • One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
  • Increase in strength and heat dissipation when compared to ICON V.S. 2.0 Series shocks
  • Nitrogen charged monotube design with internal reservoir
  • CAD plated, precision machined 1026 DOM steel shock body for maximum durability and corrosion resistance
  • Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
  • 6061 aircraft grade aluminum CNC machined components
  • PTFE lined spherical bearings and application specific mounting hardware
  • 100% Revalveable
  • 7/8” diameter induction hardened, chrome plated shock shaft
  • 100% Rebuildable
  • Polyurethane bushings and forged steel mounting stems for OE factory type fitment

APPLICATION NOTE #1: Only fits 4WD models

APPLICATION NOTE #150: Shocks are fully serviceable

TECH NOTE: Compatible with 7" of front lift over stock

Specifications
Active or Passive Suspension Passive
Adjustable Compression No
Adjustable Damping No
Adjustable Rebound No
Attributed Description ICON Vehicle Dynamics; Shock Absorber; Adjustable: No; Boot Included: No; Coil Over Springs Included: No; Dust Shield: No; Gas Charged: Yes; Lower Mount Type: Eyelet; Shock Absorber Body End Measuring Point: Center of Eyelet; Shock Absorber Rod End Measuring Point: Center of Eyelet; Upper Mount Type: Eyelet; Remote Reservoir: No; Body Diameter: 2 IN; Compressed Length: 16.100 IN; Fully Open Length: 26.17 IN; Shock Stroke: 10.07 IN; Travel Length: 10.07 IN
Cylinder Color Gray
Cylinder Diameter 2.5 IN
Cylinder Material Aluminum
Damping Type Oil
External Reservoir NO
Reservoir Type Internal
Service Parts 611006 - 9/16 HD STEM BUSHING KIT
Service Parts 252001 - 2.5 FIXED SPANNER WRENCH
Service Parts 252003 - SEAL INSTALL TOOL 2.5/3.0
Service Parts 252010 - 2.5 IFP REBUILD KIT
Service Parts 257340 - 7/8 SHAFT 14.25 OAL, 10.00 TRAVEL
Service Parts 252004 - ECONOMY NEEDLE CHARGING TOOL
Service Parts 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
Service Parts 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
Shaft Diameter 0.875 IN
Shaft Material Chrome
Valving Type Digressive
Documents
