ICON Part # ICOK214523P

ICON 14-18 Ram 2500 4WD 4.5in Stage 3 Suspension System (Performance) - K214523P

Earn 8,901 Dino Dollars on this order. How it works

Before you order

Customers also viewed

Canadian since 2005 Questions? Email sales@raptorracing.com

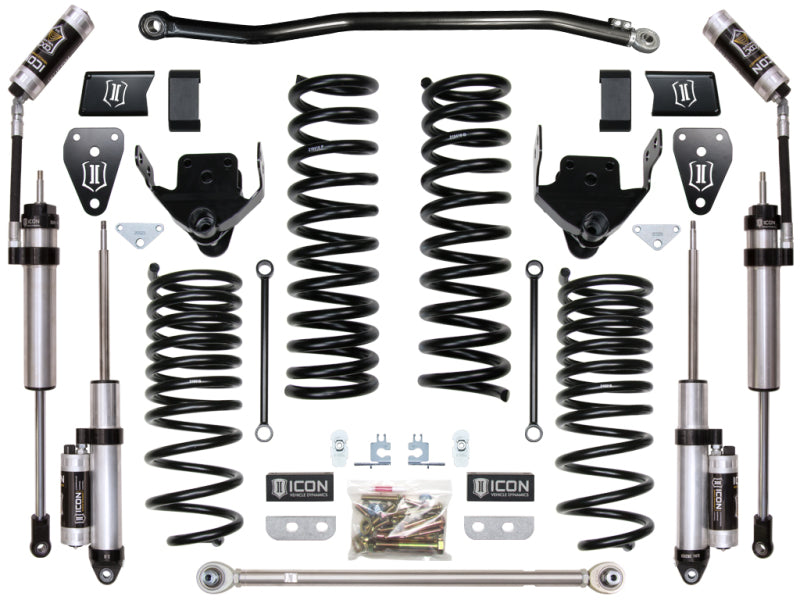

ICON Vehicle Dynamics suspension systems for the 2014-2026 Ram 2500 4WD were designed with exceptional performance and ride quality in mind. This Stage 3 system includes ICON-engineered 4.5” dual rate coil springs, high-strength laser cut bracketry, billet bump stop spacers, fabricated rear coil spacers, and all hardware necessary for a complete install. Vehicle-specific ICON 2.5 Aluminum Series remote reservoir shocks help deliver balanced performance front to rear, while CDC (Compression Damping Control) Valve technology allows the user to adjust compression characteristics of the shocks with the turn of a knob. These features make this Stage 3 system a huge upgrade for 2014-2026 Ram 2500 4WD trucks that are not only used for daily driving and towing, but spirited off-road driving as well.

Installation Instructions
Installation Instructions
Installation Instructions
Installation Instructions
Installation Instructions
Installation Instructions
Installation Instructions
Installation Instructions
Installation Instructions
Installation Instructions

  • ICON-engineered dual rate front coil springs deliver 4.5" of front lift and exceptional vehicle control over varying terrain
  • 2.5 Aluminum Series piggyback reservoir rear shocks compliment rear coils in both length and damping tune for increased rear wheel travel and suspension performance
  • Level stance from front to rear of vehicle
  • Allows use of larger, more aggressive wheel tire combinations up to 37" diameter
  • Vehicle specific tuned front 2.5 Aluminum Series remote reservoir shocks provide superior damping and ride quality
  • All shock absorbers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
  • Increased wheel travel and suspension performance over stock
  • Adjustable front and rear track bars realign axles and improve strength
  • PTFE lined spherical track bar bearings eliminate bushing deflection for improved handling characteristics
  • Precision CNC laser cut, fabricated radius arm drop brackets correct suspension geometry
  • Performance triple rate rear coil springs provide 2" of rear lift and more compliant ride quality

  • Bushing(s) Included: Yes
  • Coil Spring Color: Black
  • Coil Spring End 1 Type: Open
  • Coil Spring Material: Steel
  • Adjustable Compression: Yes
  • Adjustable Damping: Yes
  • Coil Spring End 2 Type: Closed
  • Coil Spring Maximum Inside Diameter: 4.53 in.
  • Coil Spring Maximum Outside Diameter: 6.16 in.
  • Coil Spring Wire Diameter: .812 in.
  • Coils Quantity Front: 2
  • Coils Quantity Rear: 2
  • Damping Adjustment Type: Manual
  • Front Shock Body Diameter: 2.5 in.
  • Front Spring Rate: 412 lb/in
  • Front Spring Rate Type: Progressive Dual Rate
  • Rear Reservoir Style: Piggyback
  • Rear Spring Rate: 230 lb/in
  • Rear Spring Rate Type: Progressive Triple Rate
  • Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required)
  • Shocks Included: Yes
  • Spring Color: Black
  • Spring Rate: 230 lb/in
  • Maximum Lift Height Front: 4.5 in.
  • Maximum Lift Height Rear: 2 in.
  • Minimum Lift Front: 2.5 in.
  • Mounting Hardware Included: Yes
  • OEM Wheels & Tires Fitment: Yes
