ICON Part # ICOK64563

ICON 11-16 Ford F250/F350 4.5in Stage 4 Suspension System - K64563

Earn 9,904 Dino Dollars on this order. How it works

Before you order

Customers also viewed

Canadian since 2005 Questions? Email sales@raptorracing.com

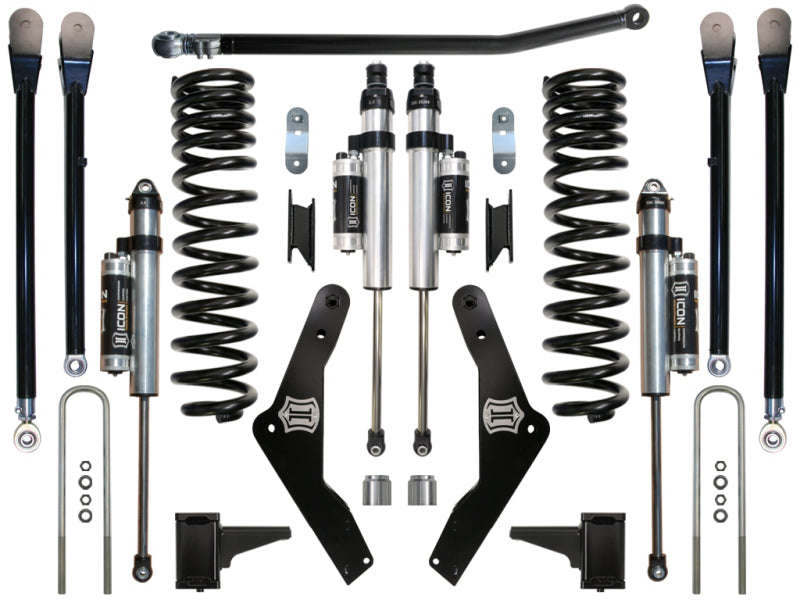

This 4.5" System for the 2011-2016 Super Duty is one the best riding suspension systems ICON has ever developed. This system has been engineered using the highest quality materials and components. The dual rate front coil springs combined with our ICON 2.5 Aluminum Series CDCV shocks give these trucks the performance they so desperately need. This system comes complete with front coils, shocks, radius arm drop down brackets, rear blocks and U-bolts and our patented adjustable track bar giving the front end of these trucks perfect track alignment. The Stage 4 system also includes shocks that feature the ICON Compression Damping Control Valve (CDCV) and our 4-Link kit for the ultimate in shock technology and suspension technology.

Installation Instructions
Installation Instructions
Installation Instructions
Installation Instructions
Installation Instructions
Installation Instructions
Installation Instructions
Installation Instructions

  • 50% increase in wheel travel
  • Less body-roll than stock truck
  • 4.5" more travel from ride height to front bump stops
  • Dual rate coil spring
  • Clears 35" tall tires & 37" tall tires w/ minor trimming
  • No change in towing capacity
  • No drive shaft modifications needed
  • Corrosion resistant anodized aluminum shock bodies with 7/8" shafts (2.5 Aluminum Series shocks)

  • Coils Quantity Front: 2
  • Front Shock Body Diameter: 2.5 in.
  • Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
  • Maximum Lift Height Front: 4.5 in.
  • Front Spring Rate: 460 lb/in
  • Maximum Lift Height Rear: 5 in.
  • Spring Color: Black
  • Coil Spring Color: Black
  • Coil Spring End 1 Type: Closed
  • Coil Spring End 2 Type: Closed
  • Damping Adjustment Type: Manual
  • Front Reservoir Style: Piggyback
  • Rear Reservoir Style: Piggyback
  • Front Spring Rate Type: Progressive Dual Rate
  • Spring Material: Steel
  • Bushing(s) Included: Yes
  • Mounting Hardware Included: Yes
  • Shocks Included: Yes
  • Adjustable Compression: Yes
  • Adjustable Damping: Yes
  • Dual Rate Coil Springs: Yes
  • OEM Wheels & Tires Fitment: Yes
