SKU: SKU: HKS32018-AZ010
Earn [points_amount] when you buy this item.

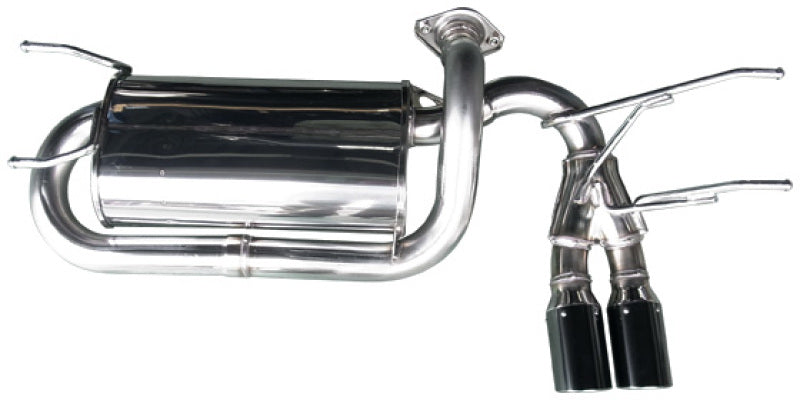

HKS LEGAMAX Premium ROADSTER ND5RC
A standard sports muffler that combines a sound that gives you a more uplifting feeling with everyday use.

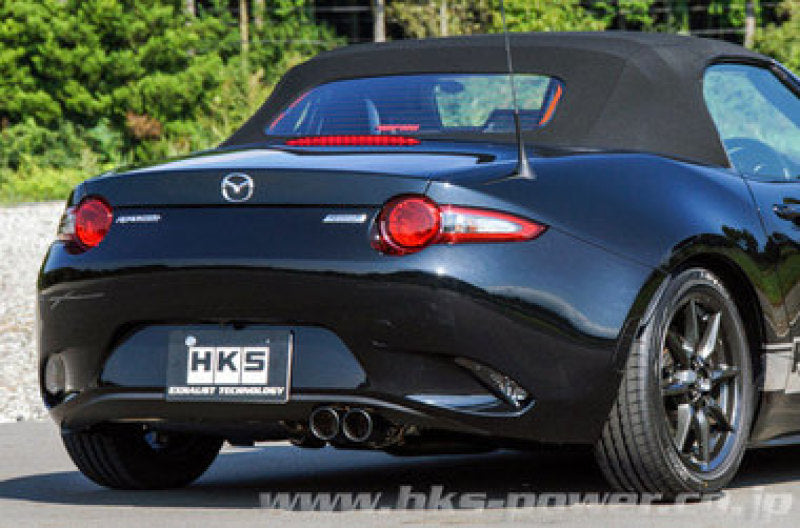

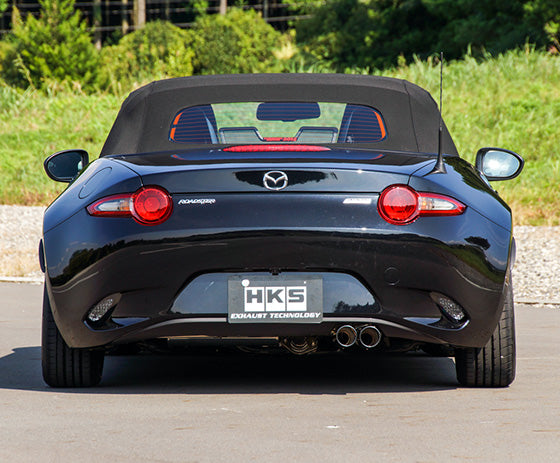

The stock version has a wide clearance between the tail and the bumper, and the small tail compared to the size of the notch tends to look like it is floating, but the size of the notch and the well-balanced φ75 tail are placed in dual positions, and the black chrome color that is close to the color of the bumper gives it a tightened feel. The
stock version has a sporty sound quality, but we added a little sound pressure to make it enjoyable on both everyday and winding roads.
The moderate bass makes the muffler stand out, and the extended treble makes it uplifting, but it is also easy to use on a daily basis.
| Certification number | JQR10151206 |
|---|
| Model name | Roadster |
|---|---|
| Model | ND5RC |
| Engine type | P5-VPR |
| Model year | 15/05 - 23/12 |
| Muffler shape |
KC-1 (LEGAMAX Premium) |
|
|---|---|---|
| Main Material | S304 | |
| Tail Outer Diameter | 75 x 2 | |
| Intermediate Pipe Diameter | 54-50 (※1) | |
| Nearby exhaust noise | normal | 86 |
| HKS | 92 | |
| Regarding ground clearance when installed (※2) | Number | 184mm |
| Kit target area | Main muffler flange | |
| remarks | The vehicle's minimum ground clearance is 140mm with the second catalyst heat shield. | |
| HKS product weight | 9.26kg | |
・Compatible with both AT and MT from 2018/07 (5BA-ND5RC).
・Cannot be installed on MAZDA SPEED vehicles with rear underskirt (insufficient clearance).
・Not compatible with 6MT vehicles (P5-VPR) with i-ELOOP + i-stop (idling stop) from 2018/06 (DBA-ND5RC).
*1: Regarding intermediate pipes,
the Φ number of the intermediate pipe diameter in the muffler is the Φ number of the thickest part in the structure (excluding the shell and the outer diameter of the tail).
*2: When the HKS muffler is installed, the part with the smallest clearance between the HKS muffler (all parts included in the kit) and the road surface is listed. Therefore, it may differ from the minimum ground clearance of the vehicle itself.
The data is basically for vehicles with normal suspension, but please note that some data is for use in combination with low-down springs or height-adjustable suspension kits.
Note: Hooks, brackets, and stays are subject to change without notice.
*Exhaust volume at idling
