SKU: SKU: HKS80330-AT002
Application
Specifications

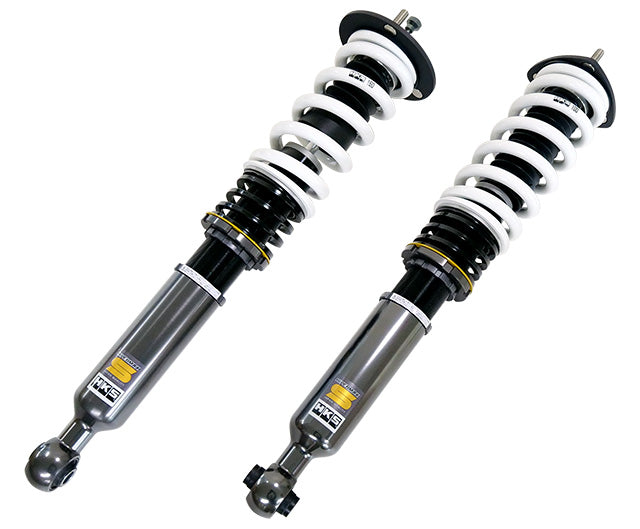

IS F USE20 A New Dimension of Driving Comfort Application Engine 2UR-GSE Model Year 07/12 - 14/05 Remarks Specification FRONT REAR Damping force adjustment 30 steps 30 steps Base valve - - Height adjustable lower bracket 〇 〇 Upper mount Rubber Rubber Inverted/Normal type Normal Normal Damper/Spring layout Coilover Coilover Spring rate change at factory Impossible Impossible Damping force adjustment with wire - 〇 Helper spring (Spring rate N/mm) 〇 (19.8) 〇 (19.8) Ride Height mm Factory *2 Test data Adjustable range High - Low *3 Drivable range High - Low *4 FRONT Ride height *1 670 ← 687 ～ 634 687 ～ 634 Against stock -17 ← 0 ～ -53 0 ～ -53 REAR Ride height *1 648 ← 667 ～ 590 667 ～ 590 Against stock -19 ← 0 ～ -77 0 ～ -77 *1. Height from road surface to fender arch. *2. Height at factory is the data tested at HKS with the setting of Full Kit. (HKS’ recommended setting.) *3. Adjustable range (However, the lowest value may not be road legal. Even within the adjustable range, car body, arm etc. may contact. In such case, it will be hard to drive. Damper oil leakage or any other problems caused by low ride height setting from the factory setting will void the warranty of the product.) *4. Drivable range that there is no contact of car body or arms etc. (However, change of tire/wheel size may cause a problem.) Caution). Actual data depends on each vehicle. Kit information Spring of Full Kit
Source: HKS Japan · Detail page
