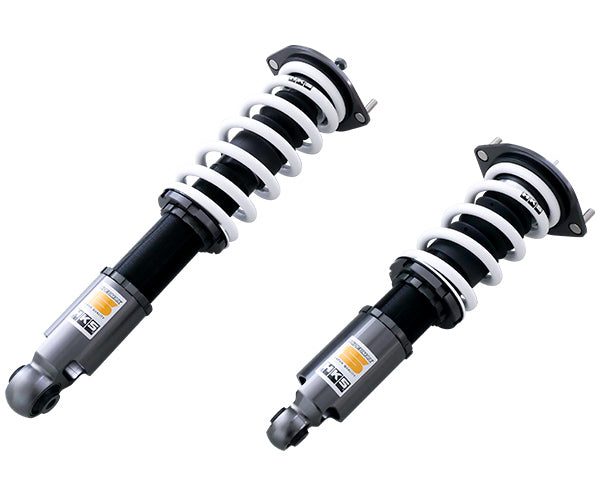

SKU: SKU: HKS80300-AZ008
S (-2025)
Application
Specifications

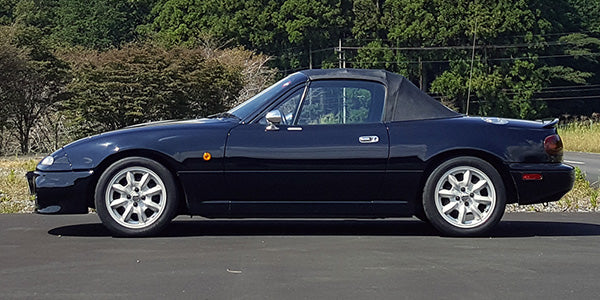

ROADSTER NA6CE Going beyond just ride comfort or handling performance, a new standard of "Driving Comfort" aims for comfort in ride but also in the peace of mind generated by handling performance and drivability . An uncompromising balance which delivers on all the demands of street driving. The model in the photo is NA6CE. Application Engine B6-ZE Model Year 89/09 - 93/07 Remarks Specification FRONT REAR Damping force adjustment 30 steps 30 steps Base valve - - Height adjustable lower bracket 〇 〇 Upper mount Rubber Rubber Inverted/Normal type Normal Normal Damper/Spring layout Coilover Coilover Spring rate change at factory Impossible Impossible Damping force adjustment with wire - 左のみ Helper spring (Spring rate N/mm) - - Ride Height mm Factory *2 Test data Adjustable range High - Low *3 Drivable range High - Low *4 FRONT Ride height *1 612 ← 624 ～ 573 624 ～ 573 Against stock -11 ← 1 ～ -50 1 ～ -50 REAR Ride height *1 616 ← 639 ～ 580 639 ～ 580 Against stock -23 ← 0 ～ -59 0 ～ -59 *1. Height from road surface to fender arch. *2. Height at factory is the data tested at HKS with the setting of Full Kit. (HKS’ recommended setting.) *3. Adjustable range (However, the lowest value may not be road legal. Even within the adjustable range, car body, arm etc. may contact. In such case, it will be hard to drive. Damper oil leakage or any other problems caused by low ride height setting from the factor
