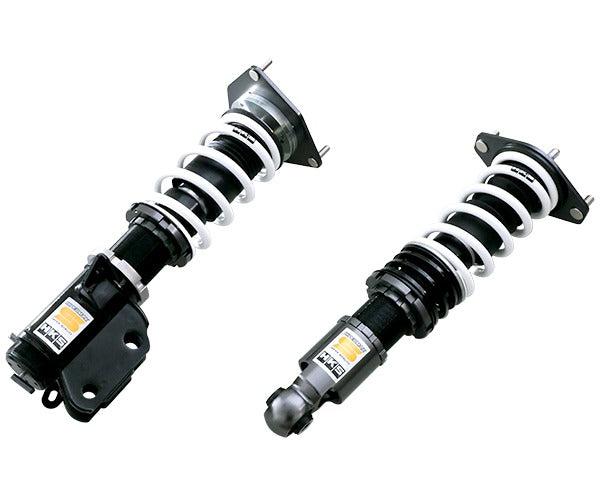

HKS 2022+ Subaru BRZ Hipermax S ZD8 - Full Kit - 80300-AF020

S (-2025)

Application

• Engine: FA24
• Code No.: 80300-AF020

Specifications

BRZ ZD8 Going beyond just ride comfort or handling performance, a new standard of "Driving Comfort" aims for comfort in ride but also in the peace of mind generated by handling performance and drivability . An uncompromising balance which delivers on all the demands of street driving. Application Engine FA24 Model Year 21/08 - Remarks Specification FRONT REAR Damping force adjustment 30 steps 30 steps Base valve - - Height adjustable lower bracket 〇 〇 Upper mount Spherical bearing Rubber Inverted/Normal type Inverted Normal Damper/Spring layout Coilover Coilover Spring rate change at factory Possible Possible Damping force adjustment with wire - - Helper spring (Spring rate N/mm) - 〇 (19.8) Ride Height mm Factory *2 Test data Adjustable range High - Low *3 Drivable range High - Low *4 FRONT Ride height *1 640 [638] 643 [←] 671 [665] ～ 610 [605] 671 [665] ～ 610 [605] Against stock -31 [-27] -28 [←] 0 [0] ～ -61 [-60] 0 [0] ～ -61 [-60] REAR Ride height *1 645 [643] ← [←] 673 [670] ～ 609 [607] 673 [670] ～ 609 [607] Against stock -28 [-27] ← [←] 0 [0] ～ -64 [-63] 0 [0] ～ -64 [-63] [ ] is the ride height data of MT model. Front upper limit measured value: 669 *Please lengthen Shock Body Length to match the lower limit. Rear upper limit measured value: 668 *Please lengthen Shock Body Length without engagement failure to match the lower limit. *1. Height from road surface to fender arch. *

Source: HKS Japan · Detail page
