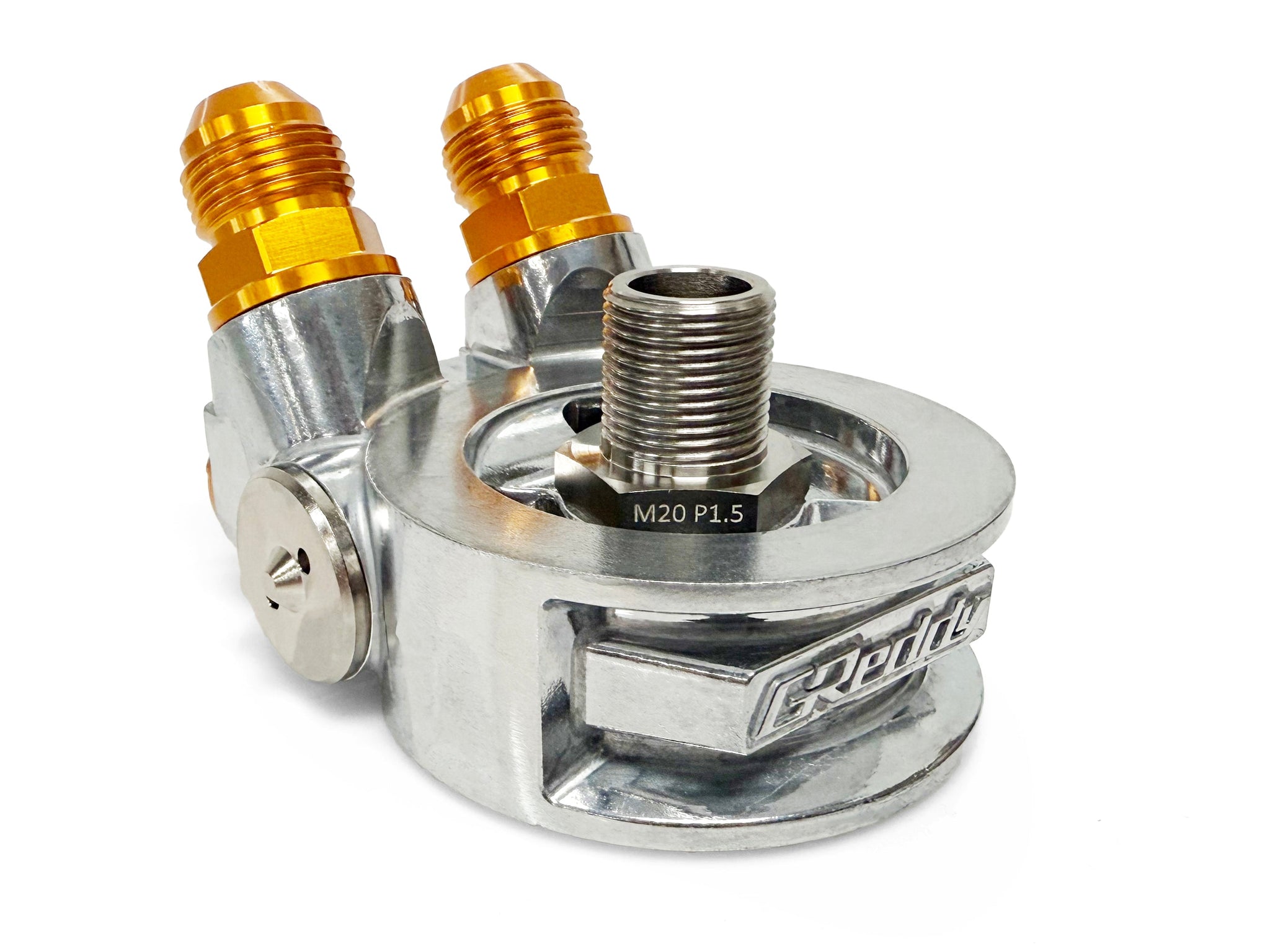

GReddy OIL COOLER STD BLOCK M20x1.5 10-AN - 12401190

Updated and revised Type E Oil Cooler Block - Standard Block Adapter Model

GReddy Universal Oil Block with AN -10 Fittings with built-in GReddy Thermostat (70-80 C)

Ideal for custom Oil Cooler Kit applications.

12401187 - Block 3/4-16UNF (Filter 3/4-16UNF)* - Make: most Toyota, Scion, Lexus and Nissan, Infiniti (was 124001123)
       or

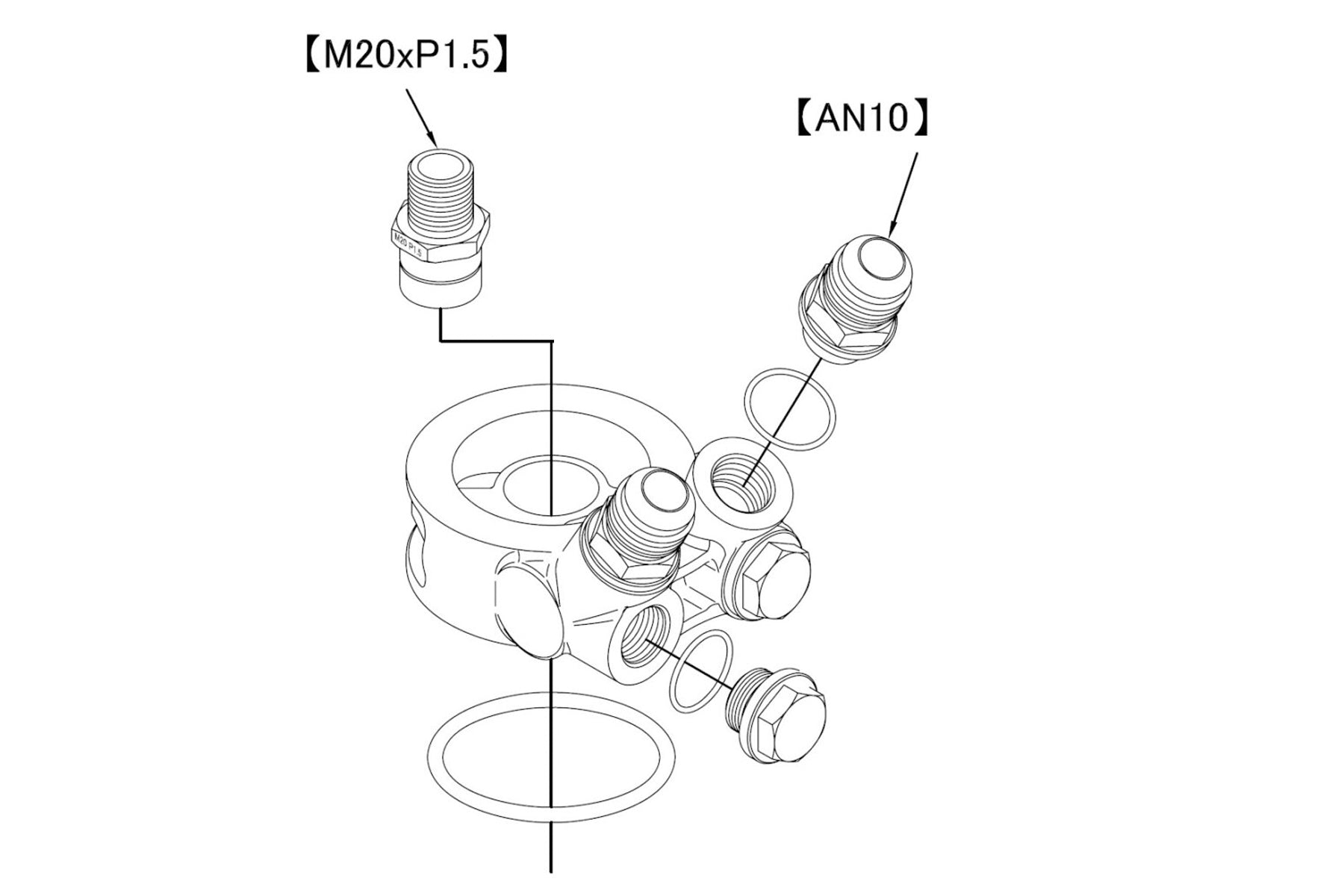

12401190 - Block M20xP1.5 (Filter M20xP1.5)** - Make: most Acura, Honda, Mitsubishi, Subaru and some Nissan, Infiniti  (was 124001119 or 124001126)

 (12401194 - High Block M20xP1.5 (Filter M20xP1.5)**late model Subaru and some late model Honda

* see the GReddy blog for more

*FILTER 3/4 x 16UNF use GReddy Sized Oil Filters: OX-01 P/N 13901101, OX-02 P/N 13901102, OX-03 P/N 13901103, OX-06 P/N13901106 (3/4"x16UNF) or AE86 - 4AG sized Oil Filter.

**FILTER M20 x P1.5 use GReddy Sized Oil Filters:  OX-04 P/N 13901104, or OX-5 P/N 13901105

Use P/N 16400720 for 1/8PT ports to use with Pressure & Temperature Sensors

Product features

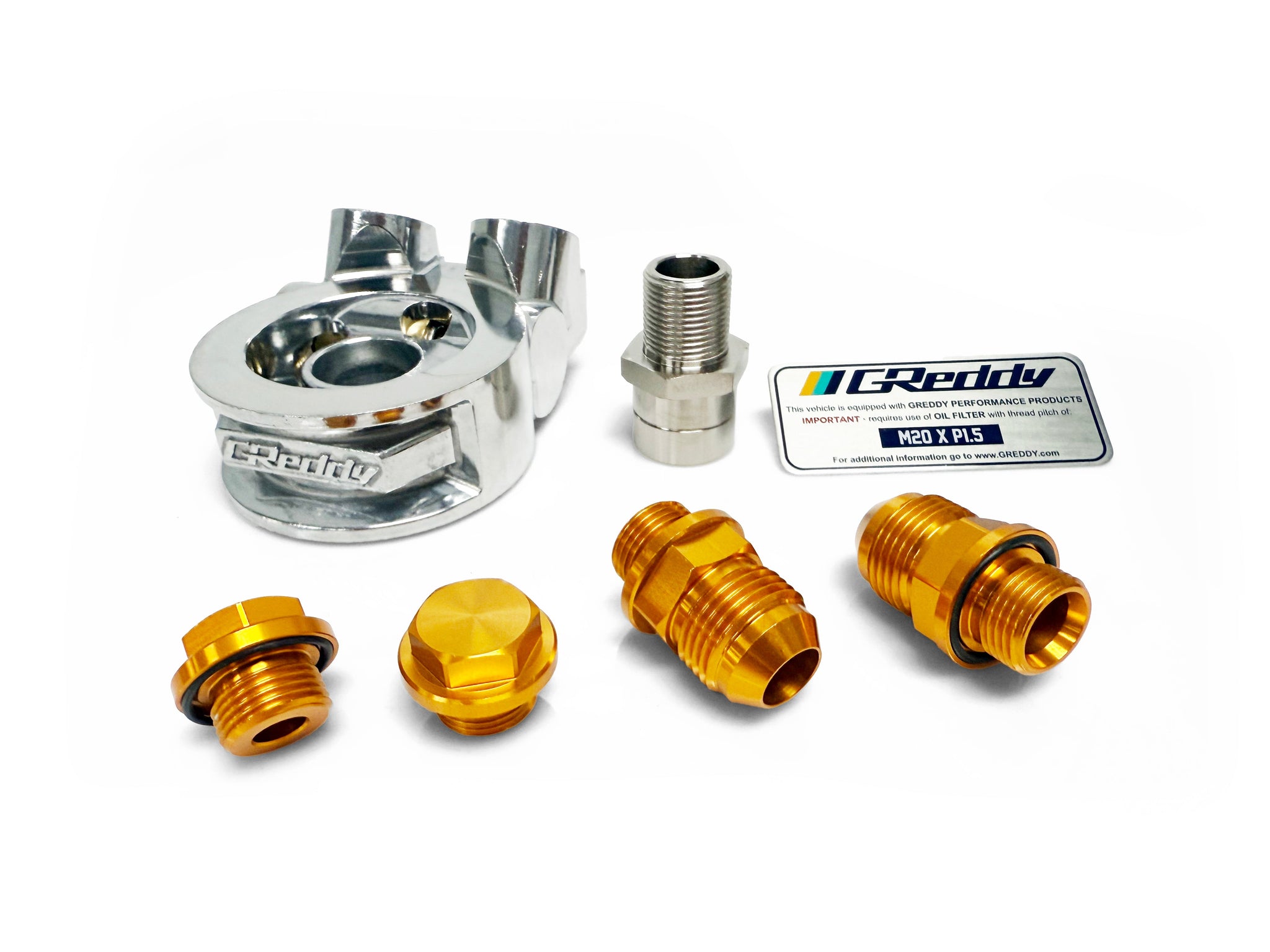

◆ Replacement thermostatic oil cooler block adapter for std. GReddy oil cooler kits

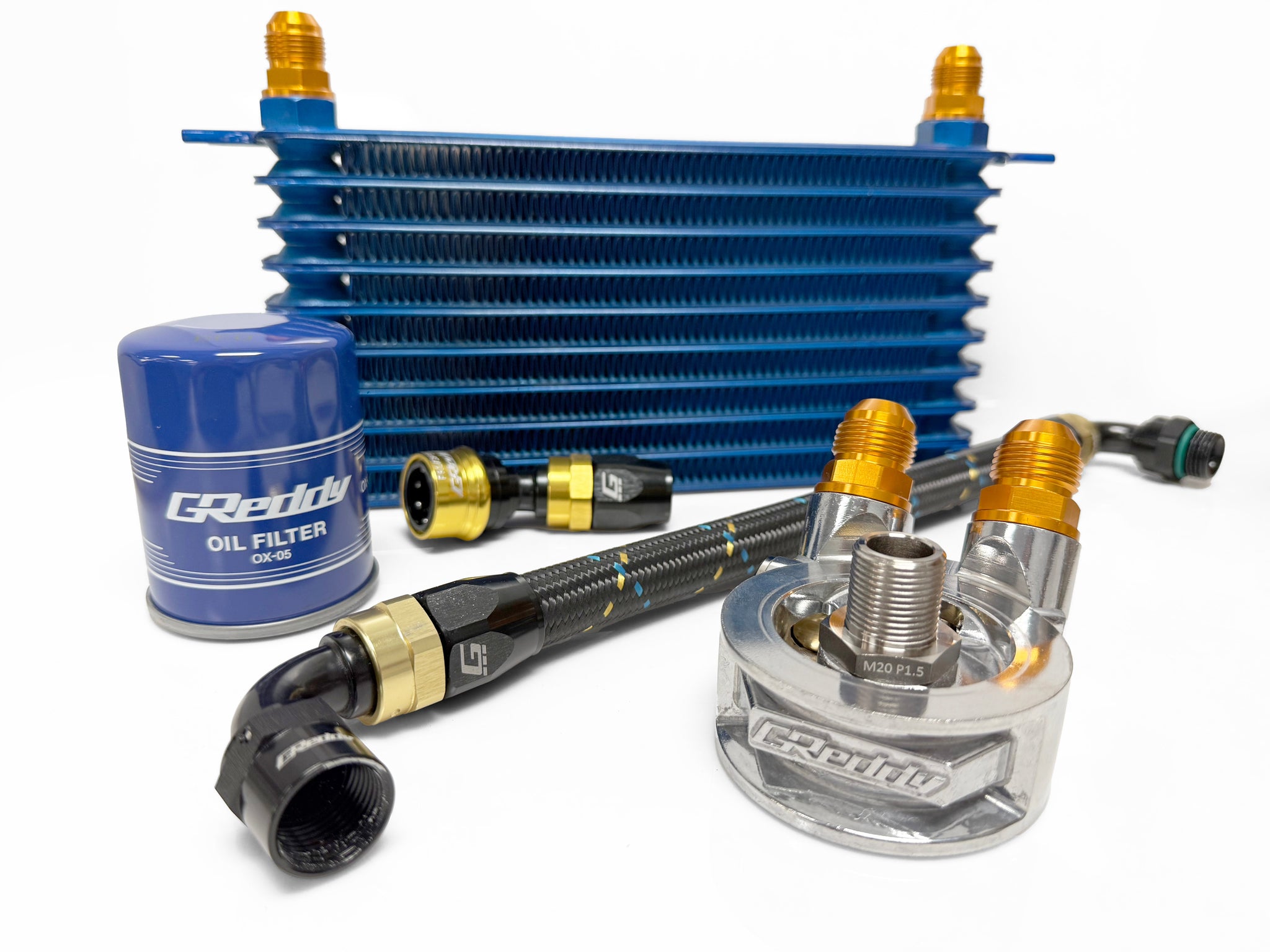

◆ Key component to build your very own custom GReddy oil cooler kit.

◆ The design of the oil block with built-in thermostat has been improved & updated, and the oil flow path has been reviewed to optimize the flow rate at low and high temperatures.

◆ Use factory replacement oil filter or matching GReddy oil filter per application.
* Oil filters with an outer diameter of Φ80 or less, O-ring inner diameters of Φ52 or more ~ outer diameters of Φ76 or less can be installed.

◆ Optional Oil block STD high type12401194is a 20mm high mount type of oil block STD. Compared to the spacer type, the installation work has been simplified, and the weight has been reduced. In addition, by making the mounting surface Φ70, it is possible to accommodate special mounting seating surfaces.
* Except for the lift-up part, it has the same design as the oil block STD. Please pay attention to the surrounding clearance.

◆ The updated screw size is engraved on the center bolt so that it can be identified at a glance.

Replacement Parts for this and Type E Oil Block (HERE)
