GReddy Nissan RB26 88mm 1.2mm Metal Head Gasket - 13521304

Compatible models
Nissan Skyline / Stagea
Vehicle model: BNR32, BCNR33, BNR34, WGNC34
Engine model: RB26DETT
Year: 1989.8-2002.8

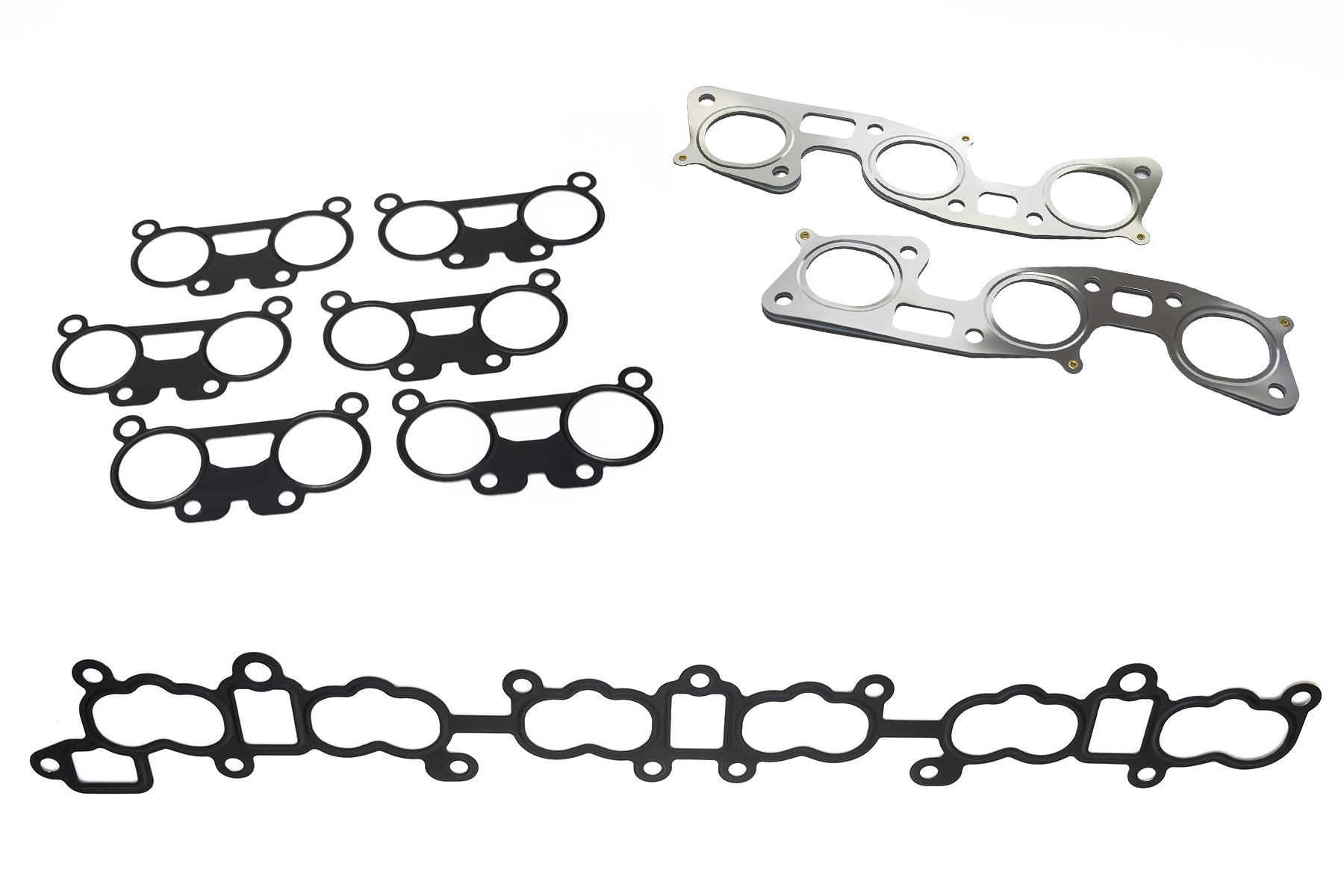

13525650 - GReddy RB26 Metal 3 Gasket Set
                      (ITB Throttle, Intake Manifold, Exhaust manifold Gaskets)

Gasket Specifications:

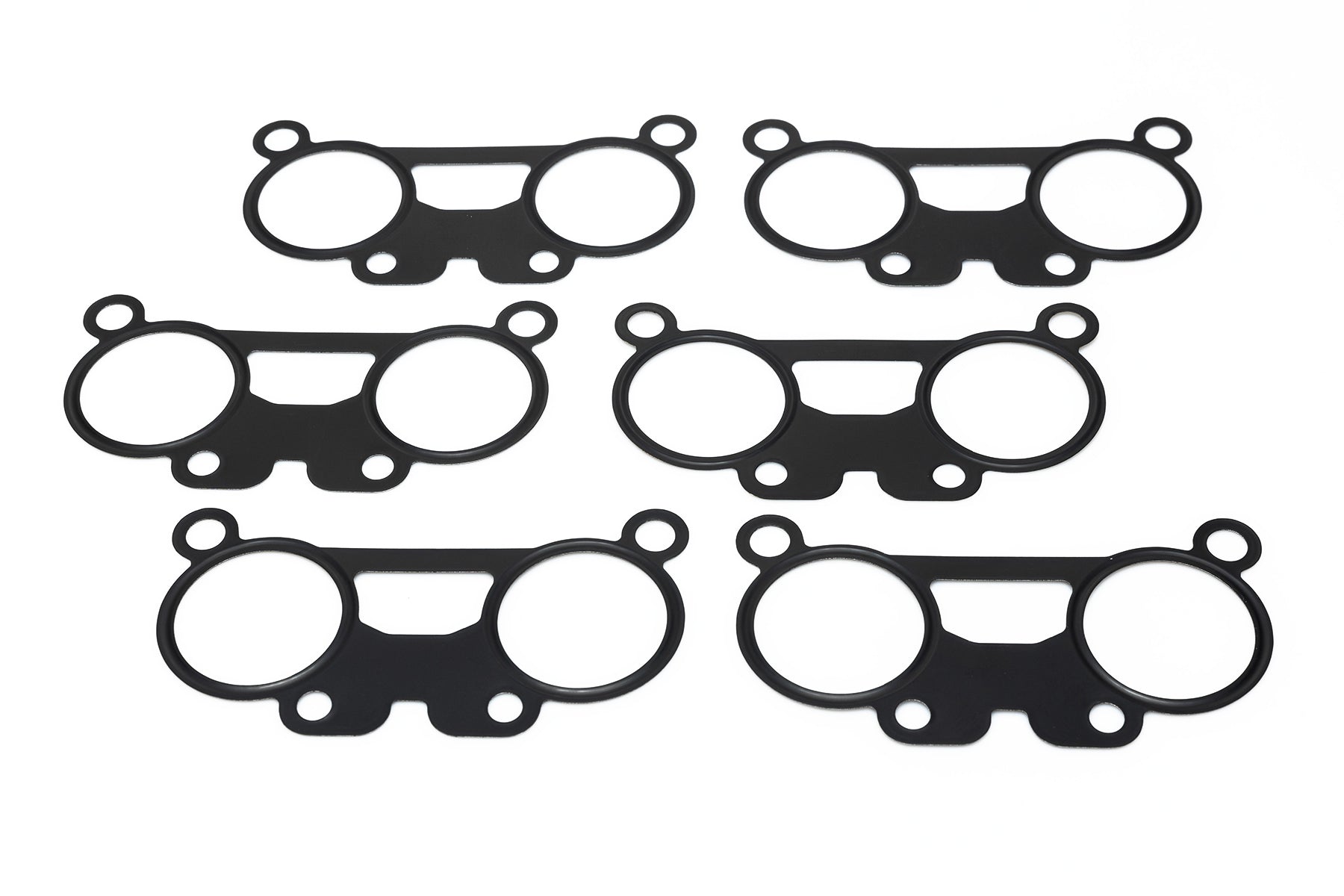

13525700 - NISSAN RB26 ITB METAL THROTTLE GASKETS(6pc set)
・1-layer bead type
・1 set of 6 sheets
・GReddy logo included
・Fluororubber coating (Perflon)

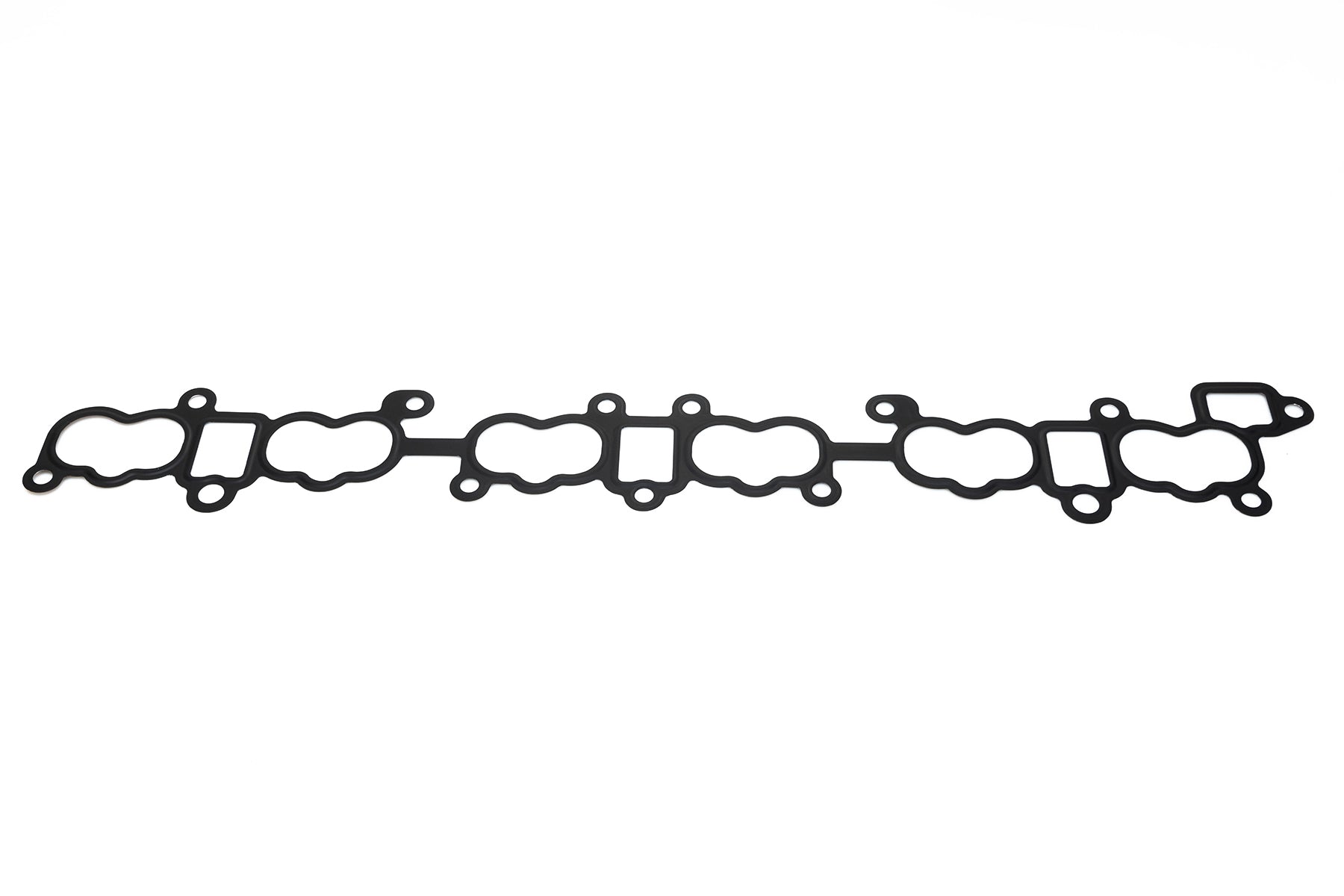

13525702 – NISSAN RB26 METAL INTAKE MANIFOLD GASKET(1pc)
・Single-layer bead type
・One sheet per unit
・Fluororubber coating (Perflon)

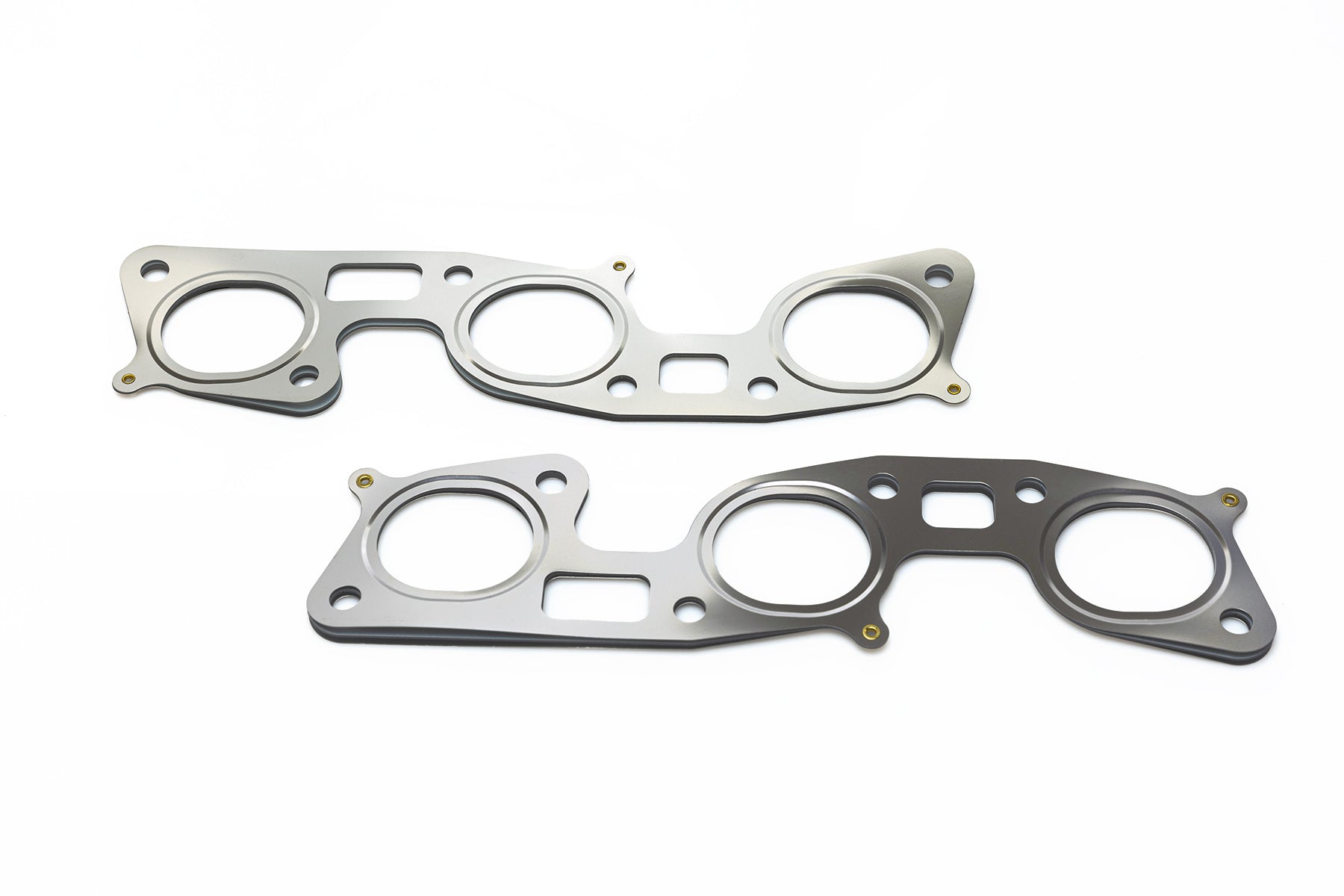

13526100 – NISSAN RB26 METAL EXHAUST MANIFOLD GASKETS (2pc set)
・3-layer bead type
・1 set of 2 sheets
・GReddy logo included

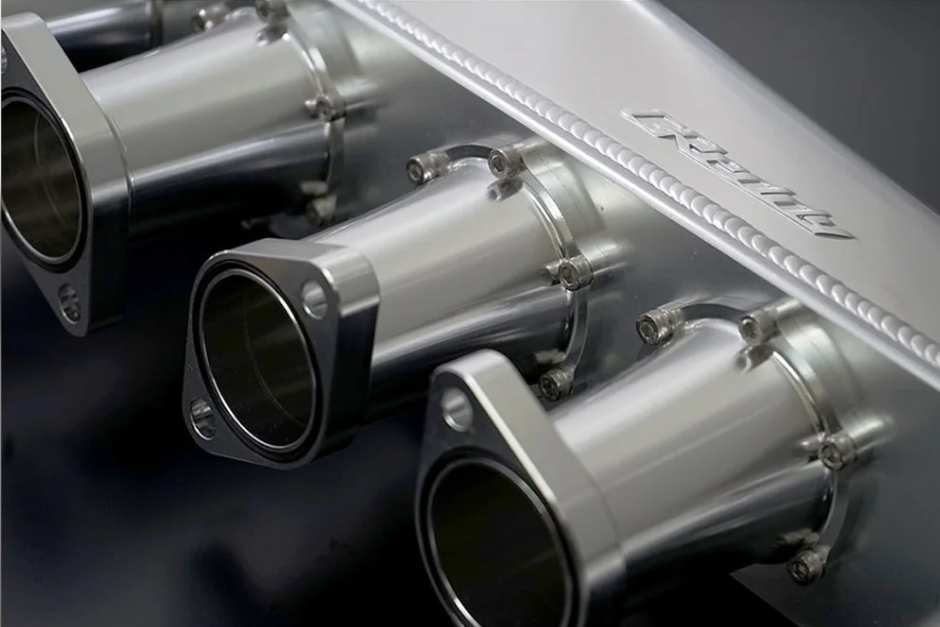

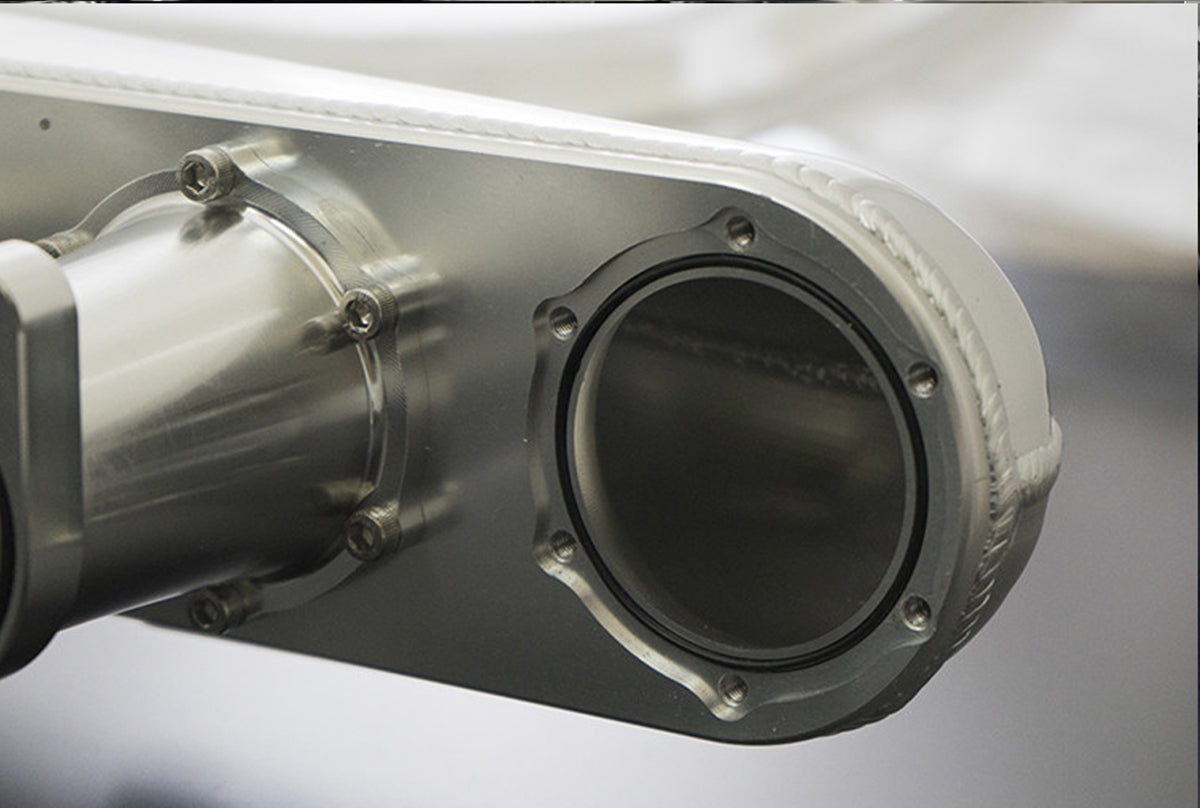

* 13522307-O  - Replacement O-rings for GReddy GT-R(13522307) (6x O-rings between runners and plenum)

* 99900059   - Replacement O-rings for GReddy GT-R(13522307) (6x O-rings between head and runners)

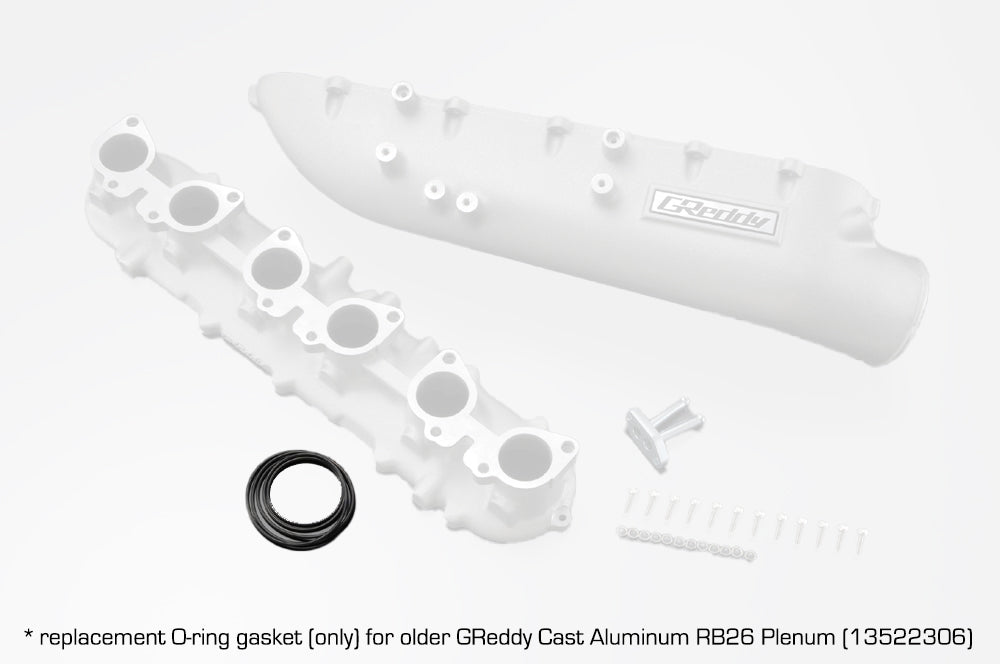

* 99900037  - Replacement O-ring gasket for older GReddy cast-Aluminum RB26 Plenum(13522306)

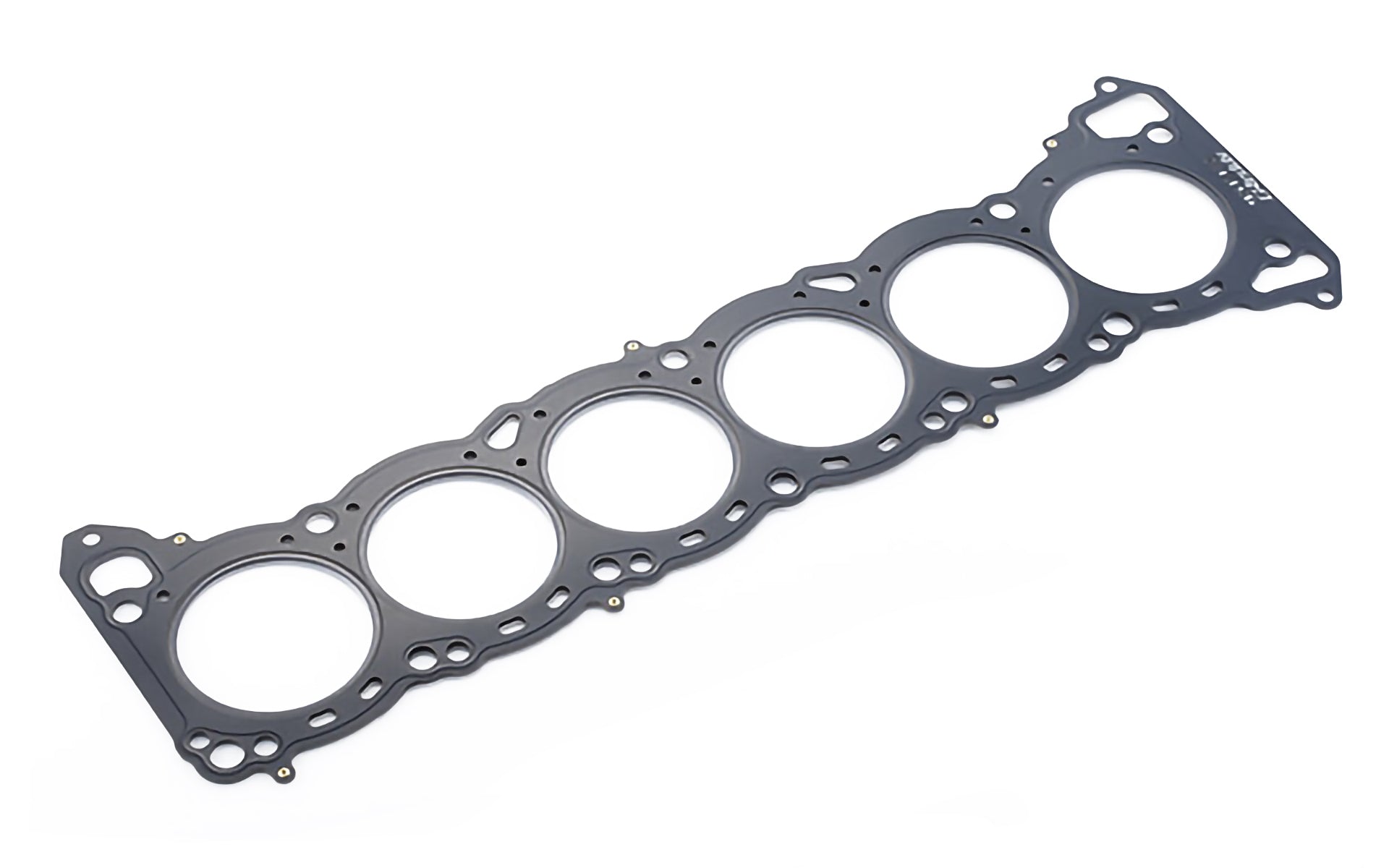

RB26 GREDDY METAL HEAD GASKETS
13521302 – NISSAN RB26 METAL HEAD GASKET - Bore:87.0mm, Thickness: 1.2mm
13521303 – NISSAN RB26 METAL HEAD GASKET - Bore:87.0mm, Thickness: 1.4mm

13521304 – NISSAN RB26 METAL HEAD GASKET - Bore:88.0mm, Thickness: 1.2mm
13521305 – NISSAN RB26 METAL HEAD GASKET - Bore:88.0mm, Thickness: 1.4mm

GReddy Metal Head Gasket for RB26
Ensures high surface pressure and prevents combustion gas pressure from escaping.

Product features
High surface pressure is ensured by using a grommet type. Prevents combustion gas pressure from escaping due to high boost.

Specification

■Grommet type metal head gasket
■Bore diameter φ87.0 (piston diameter φ86.0 to 86.5), φ88.0 (piston diameter φ87.0 to 87.5)
■Thickness 2 types: 1.2 mm and 1.4 mm
