SKU: SKU: GRE11540031
11540037 GReddy Turbine Kit FD3S TD06SH 20G for V-layout
* For use specifically with GReddy V-mount intercooler / radiator
Specification
・ V layout STD kit only
・ Genuine catalyst can be installed
・ Air pump cannot be installed
* Genuine exhaust manifold gasket and nut (exhaust manifold) are required for installation.

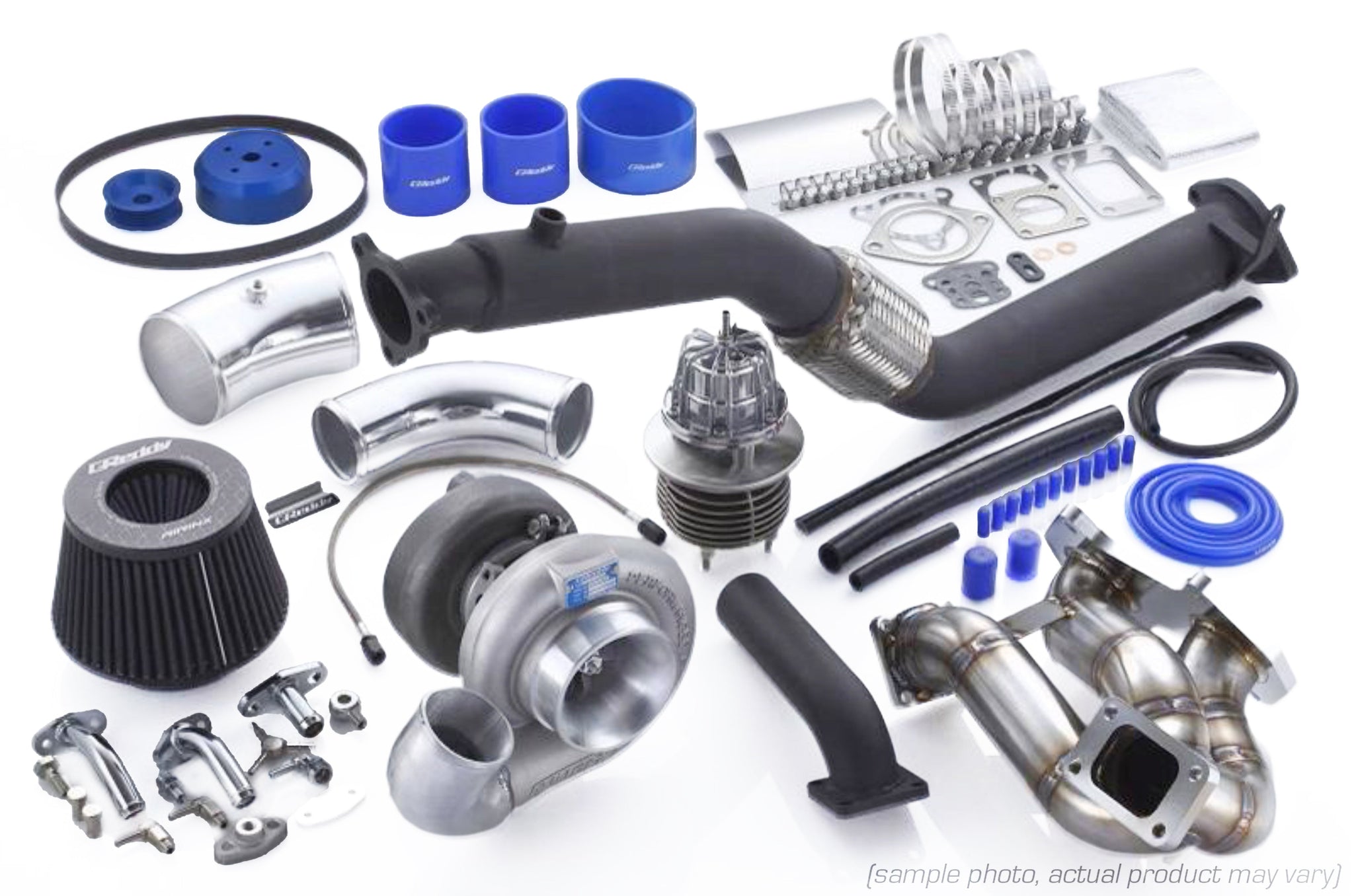

≪ Product Includes≫
・Turbine: TD06SH 25G-16㎠
・Exhaust manifold: 60φ3mm thick SUS elbow
・Wastegate: Thailand C High Flow (Set boost pressure 78kPa~)
・Compression tube
・Suction tube ・AIRINX M100
≪ Compatibility with our own products≫
| CODE | Names of parts | suitability |
|---|---|---|
| 12040703 |
GReddy FD3S V-Layout STD Kit V-2 |
〇 |
| 12040704 |
GReddy FD3S V-Layout M/C Pre Full Kit V-2 |
× |
| 12040705 |
GReddy FD3S V-Layout After M/C Full Kit V-2 |
× |
| 12040710 |
GReddy FD3S V-Layout Intercooler-less |
× |
| 12040711 |
GReddy FD3S V-Layout Radiator-less STD |
〇 |
| 12040712 |
GReddy FD3S V Layout Radiator-less M/C Front Full Pipe |
× |
| 12040713 |
GReddy FD3S V Layout Radiator-less M/C Rear Full Pipe |
× |
Model : FD3S
Engine Model : 13B-REW
Model : 91.11~02.08
Turbine Kit
TRUST CODE : 11540037
