GReddy 89-02 Nissan Skyline GT-R Trust Intercooler T-24F Kit - 12020223

Make: Nissan
Model: Skyline GT-R (R32 / R33 / R34)
Year: 1989-05

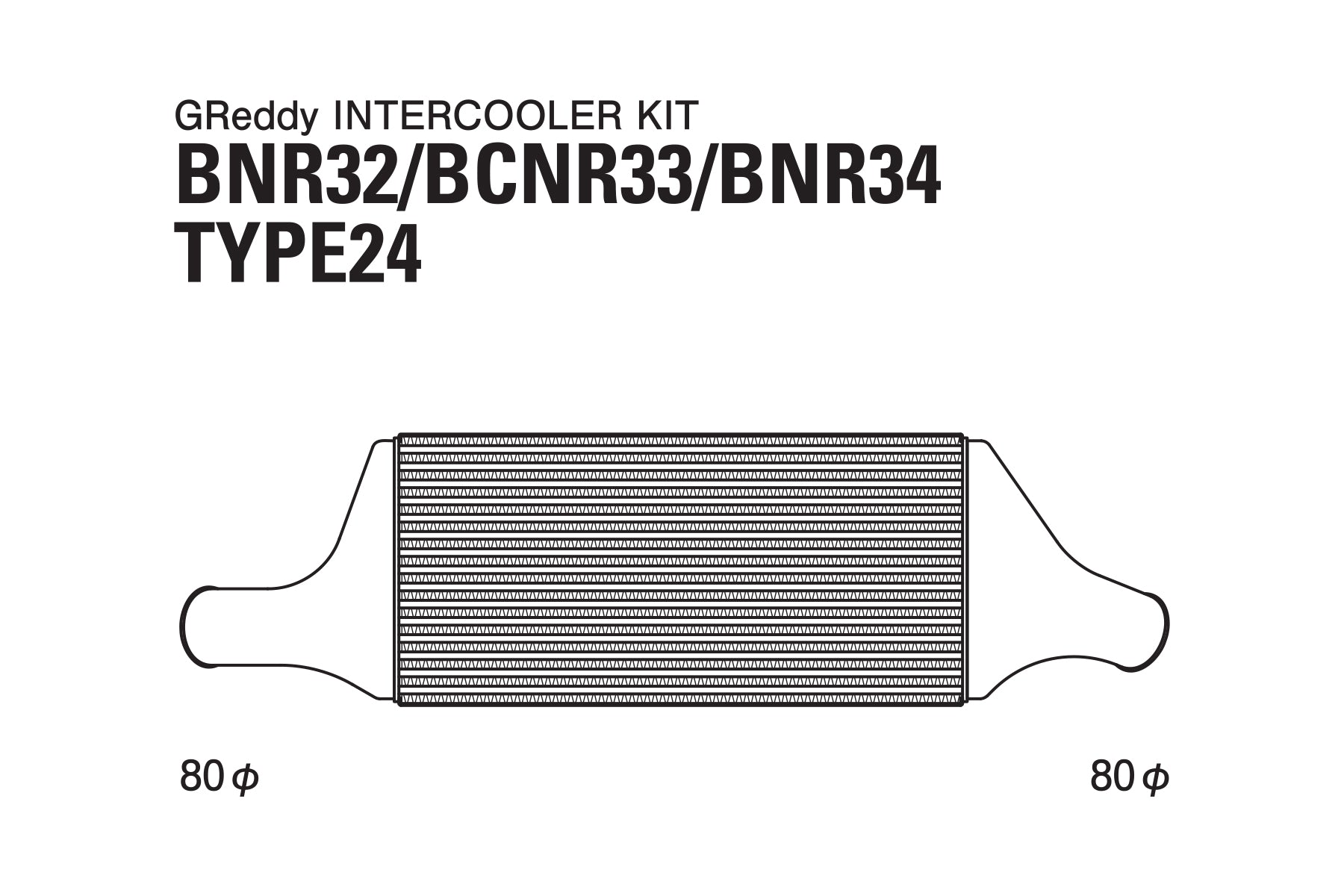

Genuine replacement TYPE24F IC outlet diameter 80Φ

Specification

• Core type: TYPE24F
• Core size: H284/L600/W66
• Installation position: genuine replacement

Remarks

• Compatible with genuine turbine & GReddy turbine kit.
• Common to R32, 33, and 34. For MT only.
• * O/C kit can be installed at the same time
• * Pipe SET can be installed at the same time
• *Reinforce processing required
• *Bumper processing required

Chassis: BNR32 / BCNR33 / BNR34
Engine: RB26DETT

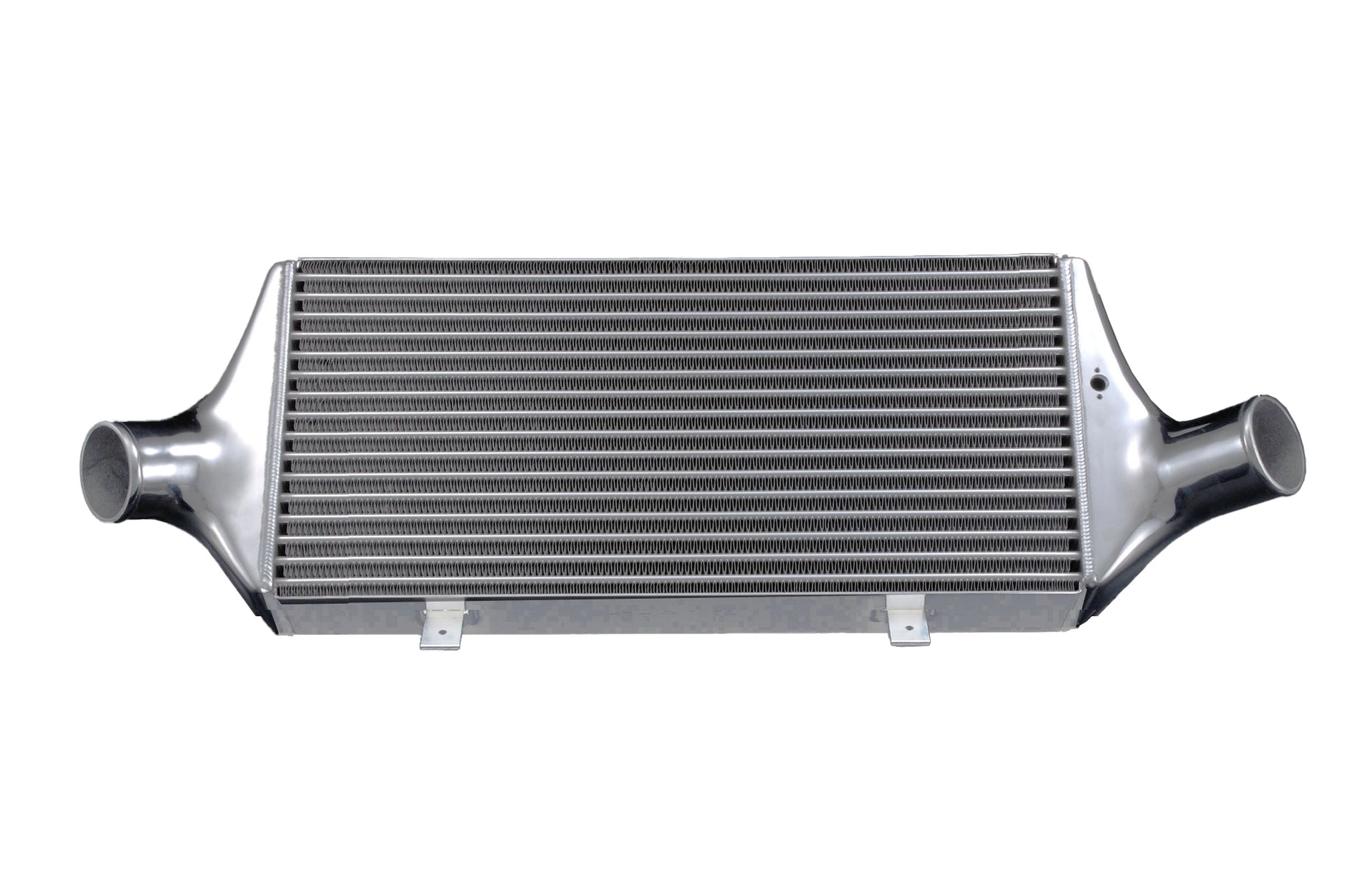

Type:  Larger Type 24 (L600mm X H284mm X W66mm) intercooler core with cast GReddy endtanks, especially designed for the RB26DETT of the BNR32 Skyline GT-R.  80mm inlet and outlet.  - for stock intake plenum.


Product features

• Emphasizes cooling efficiency, maximizes charging efficiency, and supports high power and high boost.
• The SPEC-R HG has the side tank and aluminum pipe buffed to a mirror finish, while the SPEC-R has a barrel finish. In addition, the core is CCP treated to improve corrosion resistance.
• The inner fin uses an offset inner fin. The SPEC-R, which aims for high power and high boost, uses an "offset inner fin."
• Optimized pressure loss and cooling effect to support high-level high boost tuning.

GReddy Type-F cores feature a high heat-dissipating "off-set, inner-fin" technology.  They are recommended for medium to high boost levels on higher horsepower or upgraded turbo engines.  The larger internal surface area provides a superior cooling efficiency for radiating excessive heat and minimizing heat soak.  The GReddy Type-F intercooler is a light-weight tube and fin design.

*For competition (race) use ONLY. Check legality of aftermarket products with your local state, county, city authorities before purchasing.
**This product is illegal to be driven on public roads in the USA.
