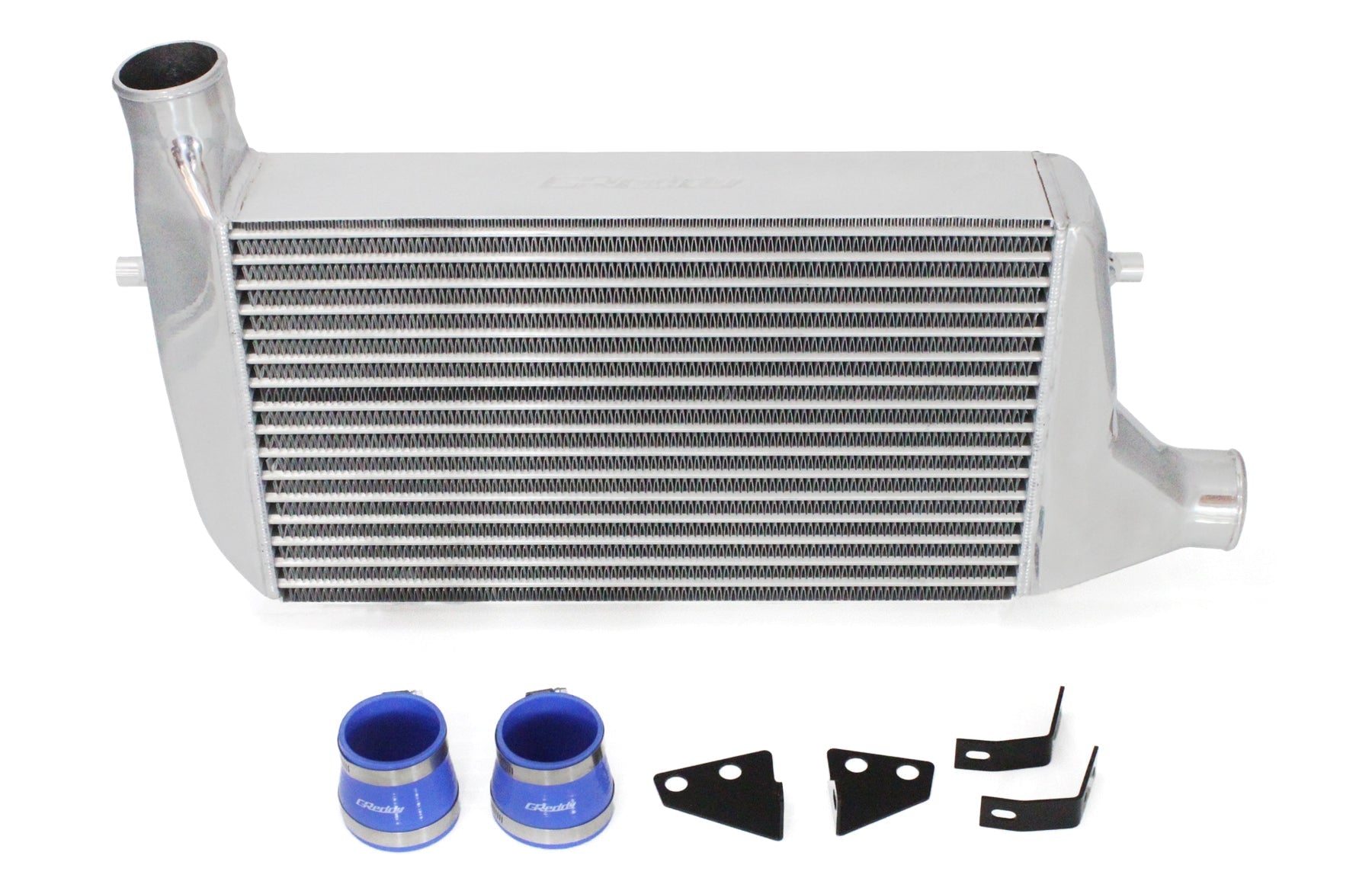

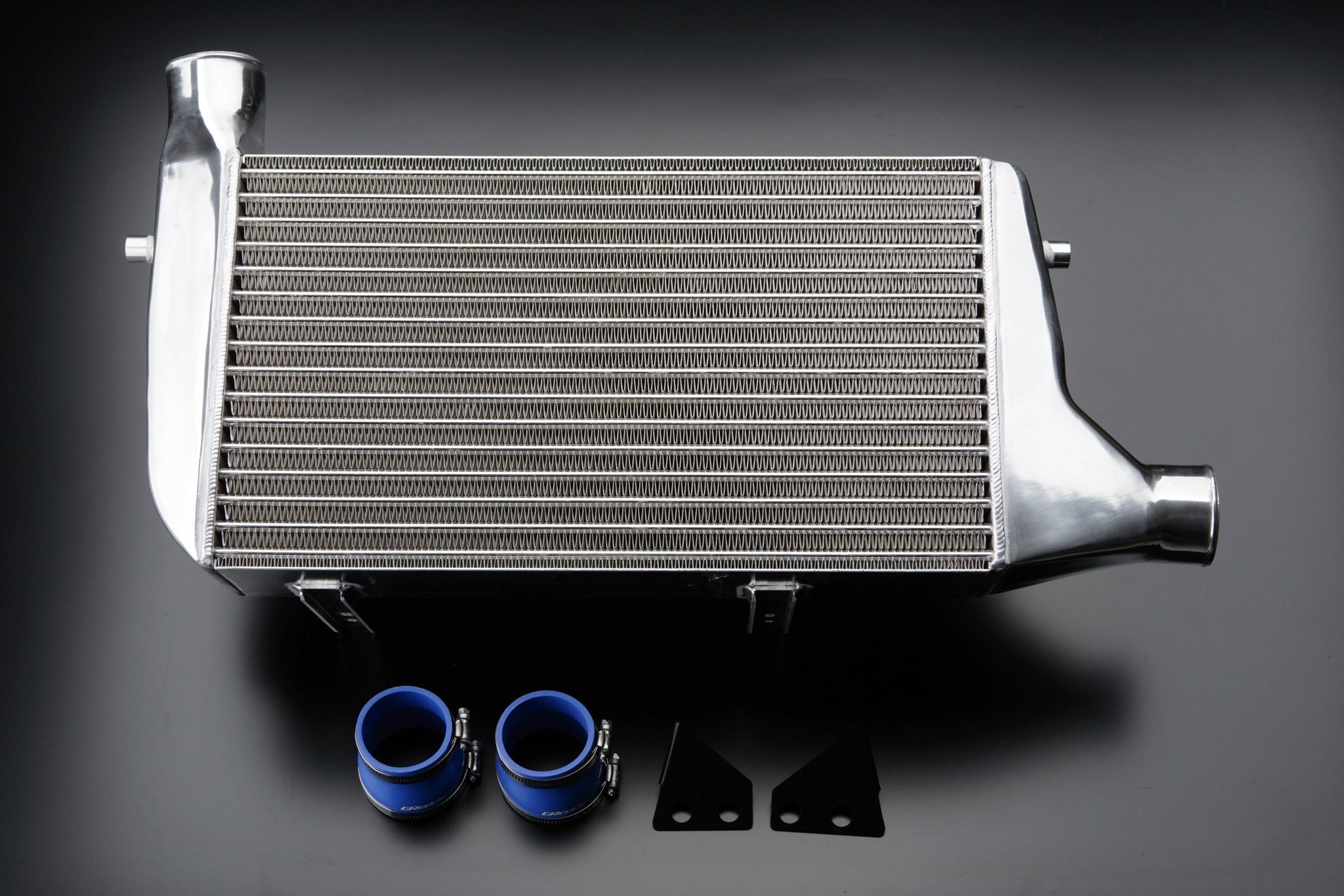

GReddy 08+ Mitsubishi Evo (CZ4A) Type 33F Intercooler Kit - 12030436

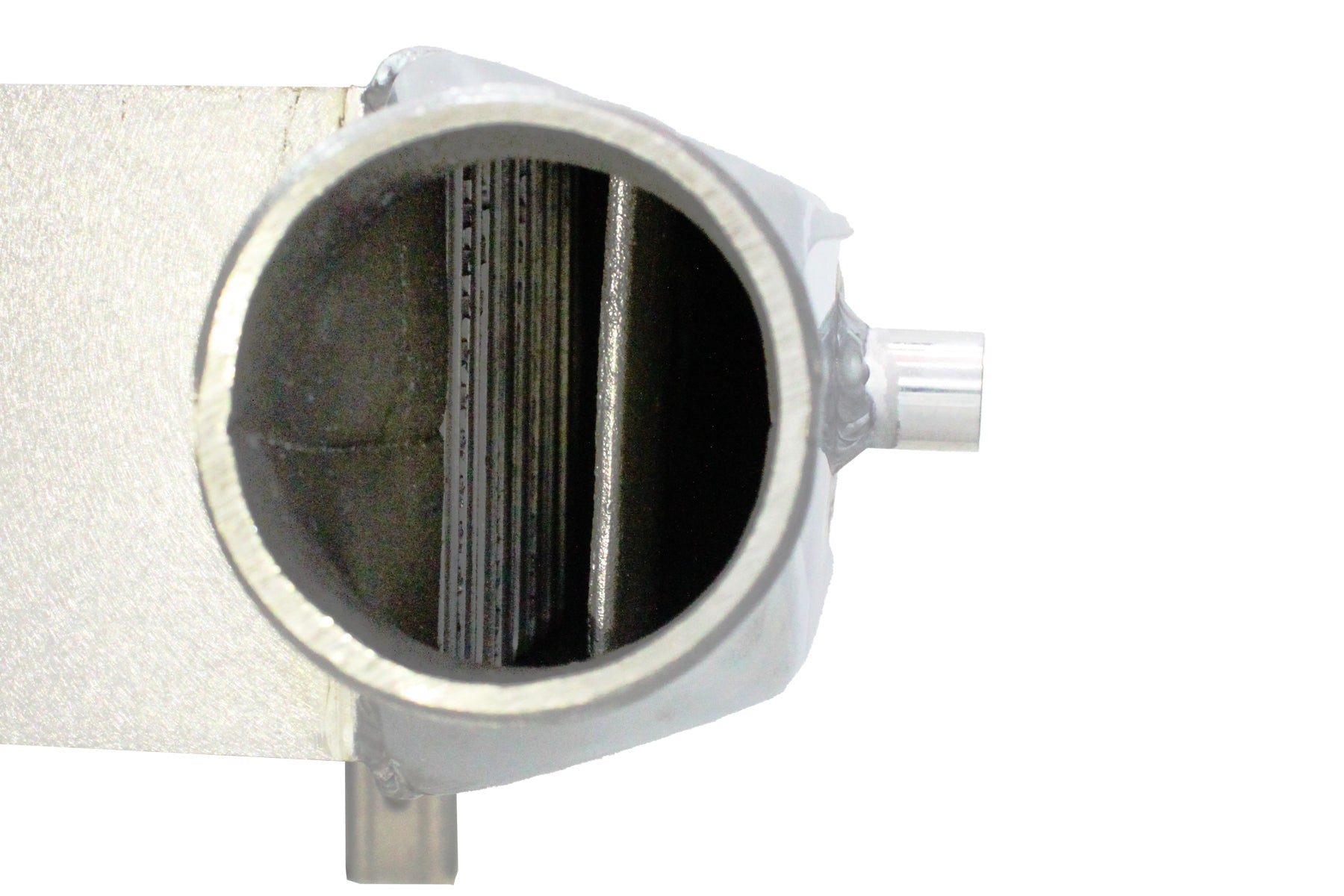

• Divided inlet end tank for full usage of the intercooler core.

Sports turbine - full tune class recommended Intercooler with high cooling efficiency

Product features

• Emphasis is placed on cooling efficiency to maximize filling efficiency, and high power and high boost are supported.
• The inner fin uses an offset inner fin, and the SPEC-R, which aims for high power and high boost, uses an "offset inner fin".
• Optimized pressure drop and cooling for high-level high-boost tunes.

Specifications

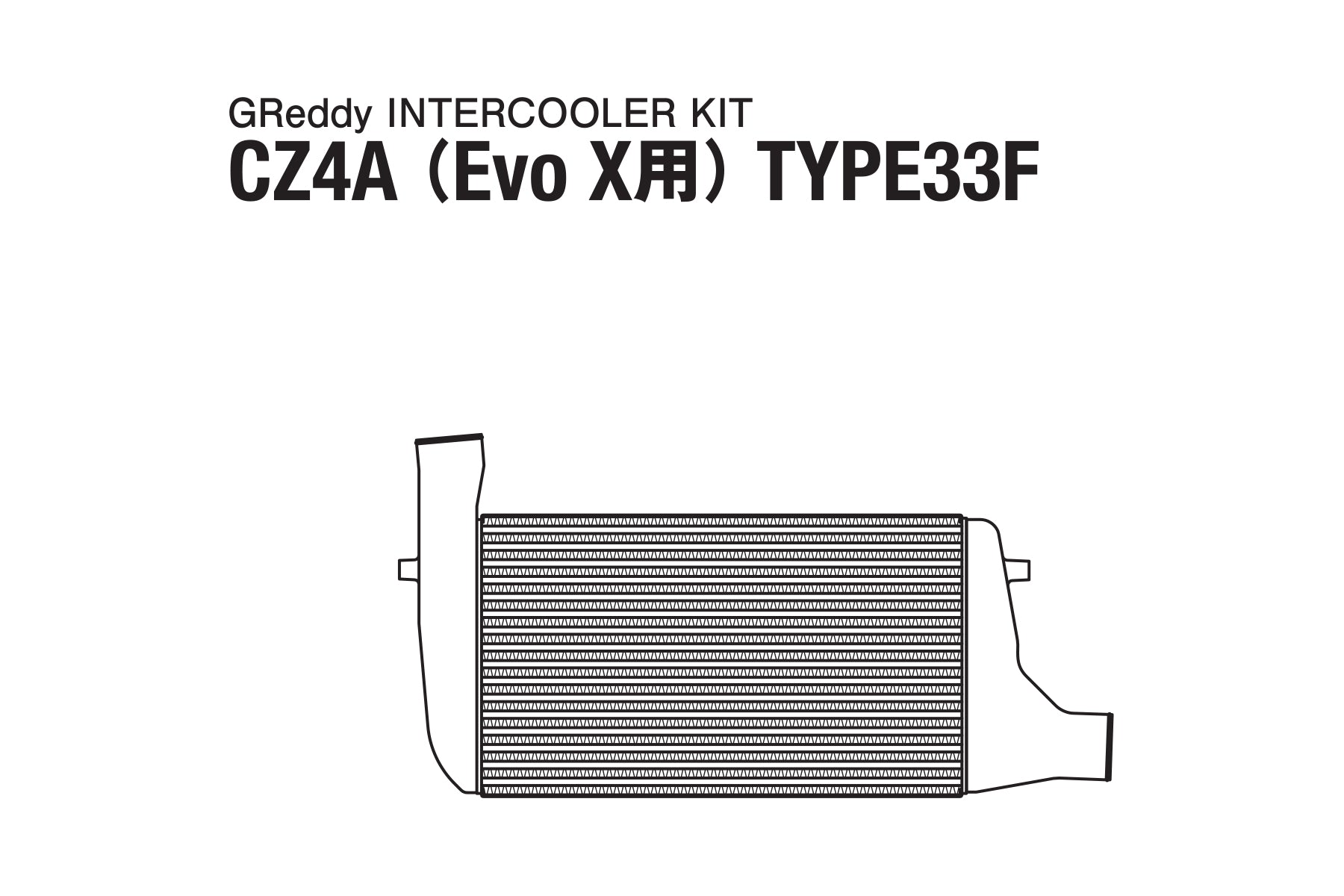

• Core Type: TYPE33F
• Core size: H300/L525/W100

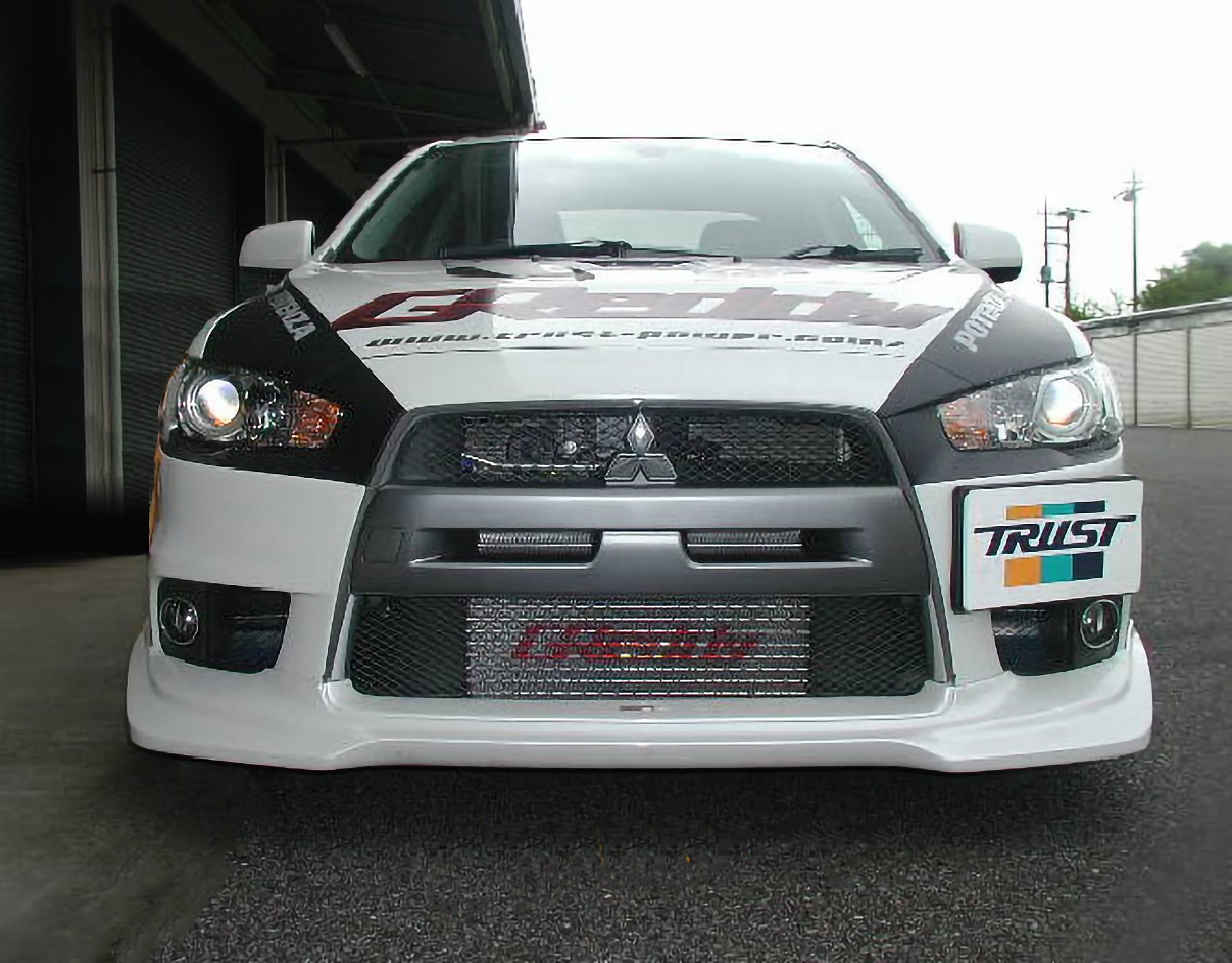

• Mounting position: in front of radiator

Remarks

• For stock turbines only.
  (Ducting) 09.10 Conformity confirmed after MC.
• SST oil cooler can be installed.
• * O/C kit can be installed at the same time
• * Simultaneous installation of pipe SET is possible.
• * Bumper processing required

【Compatible model】Mitsubishi Lancer Evolution X.

Model: CZ4A
Year: 07.10~
CODE:12030433

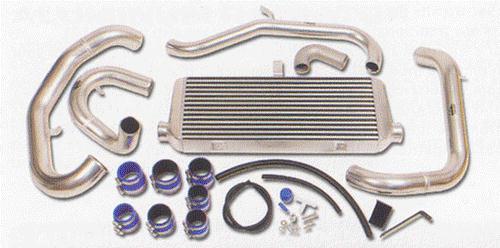

GReddy Intercooler Kits
The addition of an efficient, light-weight tube and fin GReddy intercooler is one of the best ways to safely increase horsepower in a turbocharged engine. By reducing the engine's inlet temperatures, a denser air charge will enter the engine; this can make more horsepower at the same boost level and even more power at higher boost levels. Even if there is a factory-installed intercooler, generally these stock units are not ideal even for factory boost levels. They are usually mounted in awkward locations and become very susceptible to heat saturation. They are not ideal for increased boost levels.

GReddy Type-F cores feature a high heat-dissipating "off-set, inner-fin" technology.  They are recommended for medium to high boost levels on higher horsepower or upgraded turbo engines.  The larger internal surface area provides a superior cooling efficiency for radiating excessive heat and minimizing heat soak.  The GReddy Type-F intercooler is a light-weight tube and fin design.

*For competition (race) use ONLY. Check legality of aftermarket products with your local state, county, city authorities before purchasing.
**This product is illegal to be driven on public roads in the USA.
