500lph Universal In-Tank Brushless Fuel Pump Kit
Installation Features
Includes everything needed to install a brushless high flow fuel pump in an OE module
Requires the use of a bypass style regulator and return line
Some modifications required
Pulse Width Modulation Compatibility (PWM)
Compatible with most aftermarket ECU's with PWM output frequency
Compatible from 100Hz to 2500Hz
- AEM
- ECU Masters
- Fueltech
- Haltech
- Holley
- Link Engine Management
- Megasquirt

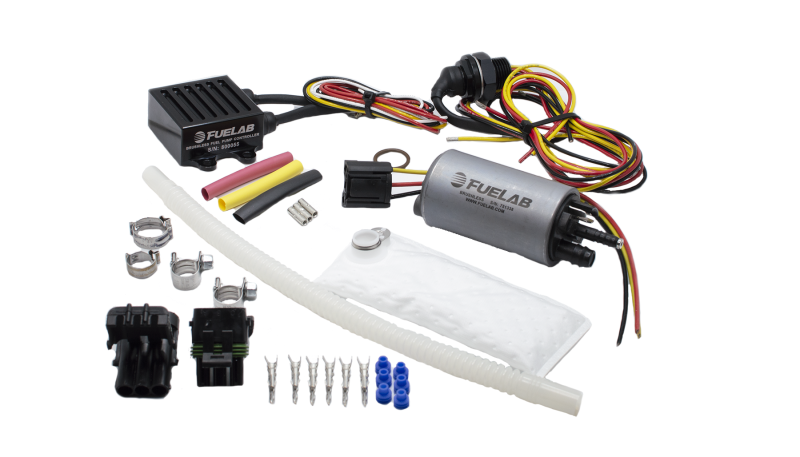

Complete Kit Includes
- 49614 500lph Brushless Pump with 9mm Barb Outlet/6mm Barb Siphon
- 72002 PWM Brushless Pump Controller
- 74101 3 Wire Hermetic Bulkhead Feed Thru
- Pre-Filter
- Wire Lead Harness
- 2 Sets Weatherpak Connectors
- Convoluted Tubing
- Clamps
- Butt Splices
- Heat Shrink Tube
Specifications
-
Capacity: 500LPH
-
Fuel Compatibility: Gas, Diesel, Ethanol, Methanol
-
Sold As: Kit
-
Warranty: Limited Lifetime Warranty
-
Country of Origin: USA
-
Weight: 2.3 lb
