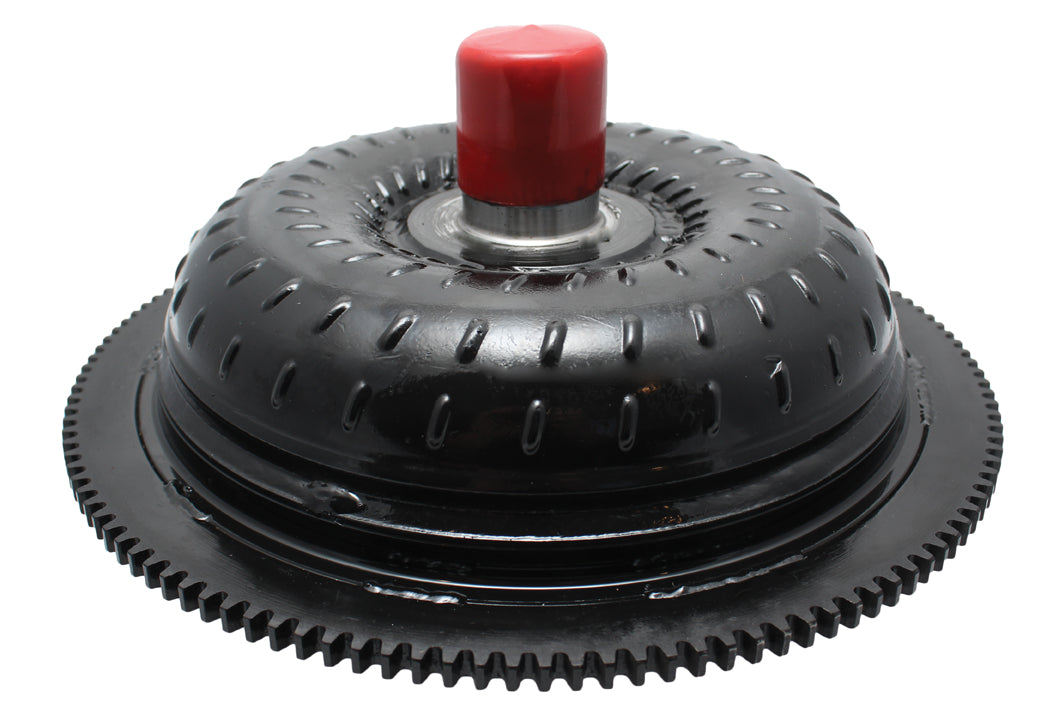

TORQUE CONVERTER
If you use your ride as both a daily driver and weekend racer, you'll want the strength and reliability of FTI Performance SR Series torque converters. They're engineered entirely in-house at FTI and built to handle above-average power. These units feature TIG-welded furnace-brazed fins, a heavy-duty race sprag, and a hardened steel impellor. SR Series non-lockup converters include Triple Torrington bearings and a billet front cover for extra toughness. Each completed torque converter is pressure-checked and computer-balanced to ensure quality. Order the parameters desired and the model recommended for your transmission application.
CONVERTER_TRANSMISSION Installation.pdf
Specifications
-
Pilot Diameter: 1.810 in
-
Torque Converter Bolt Circle (in.): 11.250 inches
-
Spline Quantity: 24
-
Stall Speed Rating RPM Range: 3000
-
Diameter (in.): 9.500 in
-
Torque Converter Use: Drag Race / Mud Race / Off-Road
-
Anti-Ballooning PLate: No (Has anti-ballooning Flanged Hub)
