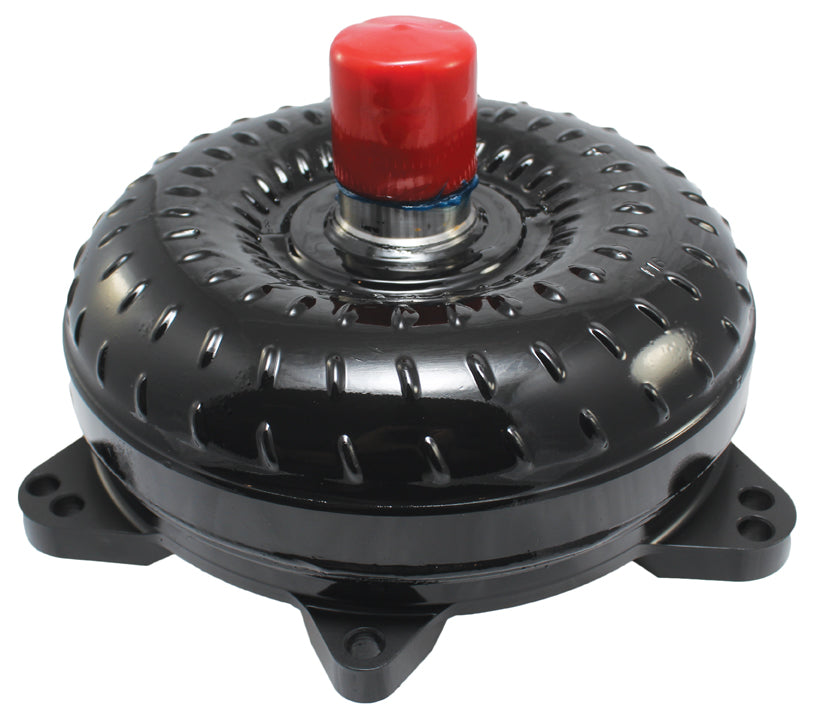

Torque Converter
If you use your ride as both a daily driver and weekend racer, you'll want the strength and reliability of FTI Performance SR Series torque converters. They're engineered entirely in-house at FTI and built to handle above-average power. These units feature TIG-welded furnace-brazed fins, a heavy-duty race sprag, and a hardened steel impellor. SR Series non-lockup converters include Triple Torrington bearings and a billet front cover for extra toughness. Each completed torque converter is pressure-checked and computer-balanced to ensure quality. Order the parameters desired and the model recommended for your transmission application.
CONVERTER_TRANSMISSION Installation.pdf
Specifications
-
Pilot Diameter: 1.703 in
-
Torque Converter Bolt Circle: 10.750/11.062/11.500 in
-
Spline Quantity: 30
-
Stall Speed Rating: 3000RPM
-
Outside Diameter: 9.500 in
-
Anti-Ballooning: Anti-Ballooning Flanged Hub
-
Torque Converter Use: Street/Strip
-
Slotted Center Hub: Yes
-
Mounting Hardware Included: Yes
