SKU: SKU: FOX981-20-137-3
FOX devotes countless hours of research and development to design race-winning suspension that withstands incredible punishment and provides consistent performance you can rely on. Regardless of whether you are flying high over the desert or struggling to stick to a rock face on an off-camber climb, our shocks will give you the damping performance, suspension control and proper spring rate to get the job done.
Rebuildable and serviceable. Custom valving options available.

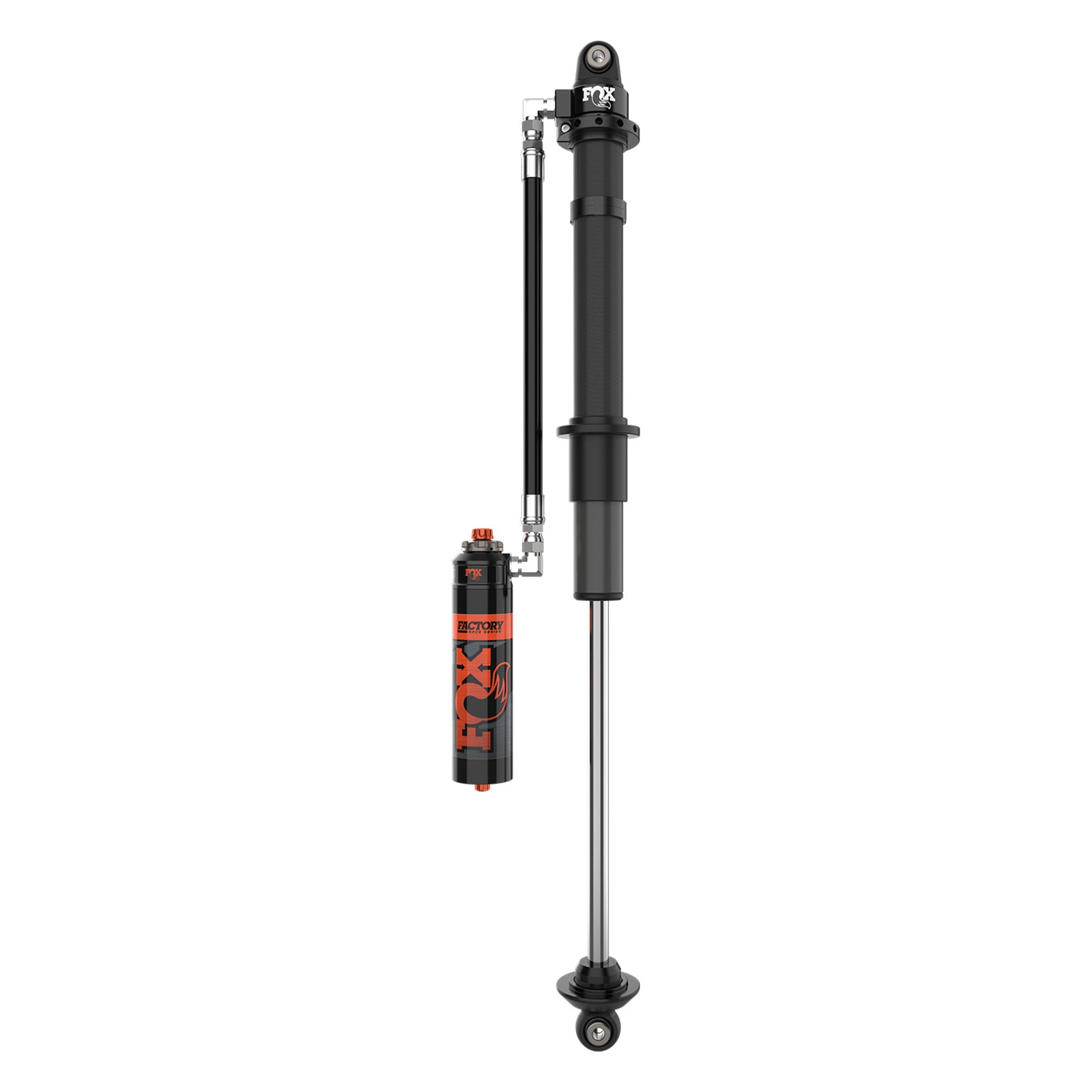

Factory Race Series coil-over shocks are the foundation of race-winning suspension, providing a primary means to suspend the vehicle paired with adjustable preload and dual-rate spring crossover rings to dial in the perfect ride.
| Series | Factory Race |
| Body Diameter (in) | 2 |
| Body Material | Steel |
| Bottom Mount | Eyelet |
| Top Mount | Eyelet |
| Compressed Length (in) | 21.5 IN |
| Extended Length (in) | 35.42 IN |
| Mounting | 1/2 x 1-1/2 |
| Reservoir Dimensions | 2.55 x 8.00 |
| Reservoir Type | Rotating Remote |
| Shaft Size (in) | 7/8 IN |
| Travel (in) | 13.92 IN |
| Type | Coil-Over |
| Eyelet Length (in) | 2 IN |
| Valving | 807-24-066 |
| Seal Kit | 803-04-033 |
| Hose | -8 x 18.00 |
| Adjuster Type | DSC - Dual Speed Compression |
| Body Finish | FOX Grey Cerakote |
| Travel (rounded) | 14 |
