Ford Racing - Coyote Cast Iron Race Block - M-6010-M50X

SKU: SKU: FRPM-6010-M50X

<p>Earn%20[points_amount]%20when%20you%20buy%20this%20item.</p>
This item is classified as Oversized and may incur an additional handling fee at checkout depending on your shipping location. No additional fees apply for pickup orders. You may be contacted for additional fees.
Oversize Debug
Tier code
Tier priority
Tier max weight (lb)
Tier max girth (in)
Product weight (lb)
L × W × H (in)
Girth L + 2×(W+H)
Requires acktrue

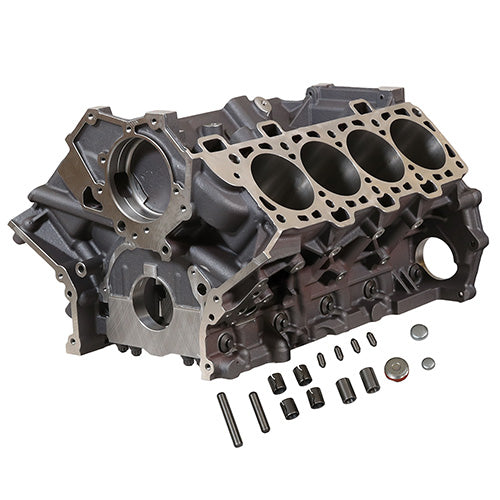

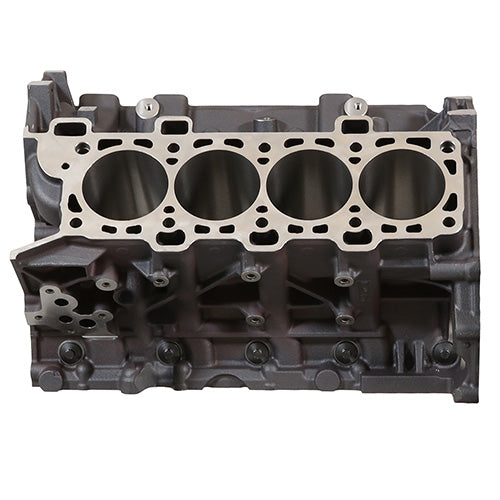

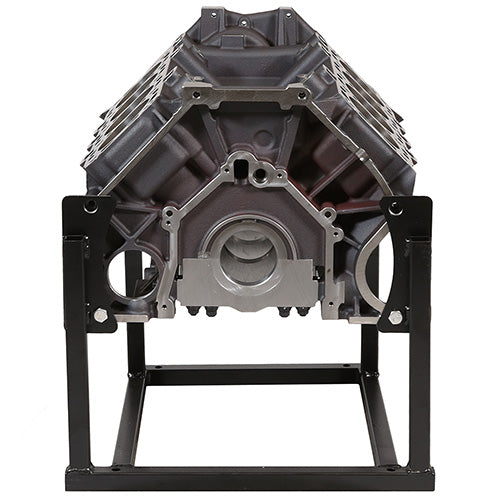

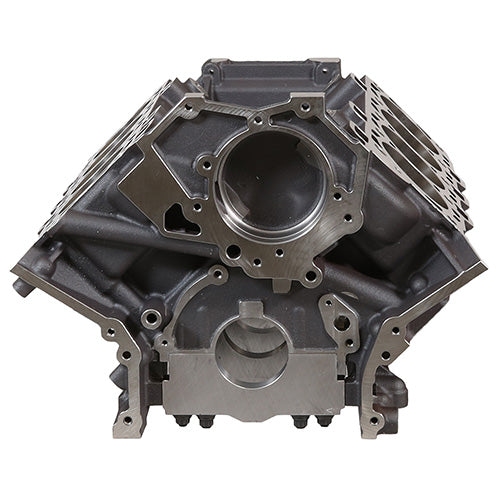

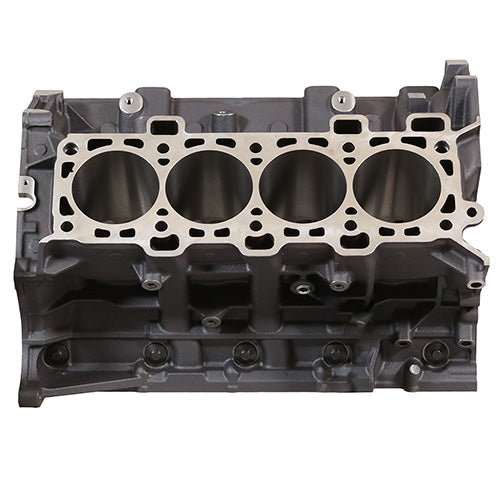

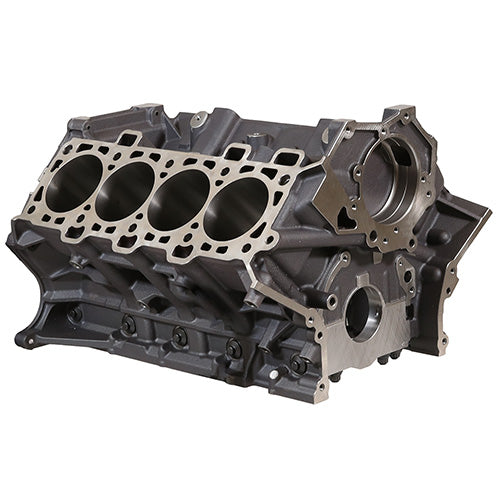

Coyote Cast Iron Race Block — manufactured by Ford Performance Parts (Ford Motor Company).

Ford Performance cast iron version of the Coyote engine block. Cast from a proprietary grade class 50 iron. Designed for extra strength for max-effort / boosted Coyote engine builds.

  • Deck height: 227 mm (8.937")
  • Rough bore can be finished to 93 mm (3.661") GEN 3 size
  • Maximum bore: 95.0 mm (3.740")
  • Maximum stroke: 99 mm (3.897")
  • Maximum displacement: 5.6L
  • Standard Coyote 100 mm bore spacing
  • Lengthened bores for added strength
  • Revised deck design for added strength around the water jackets
  • Designed for 12 mm ARP head stud kit 456-4303
  • Head bolt holes are NOT machined for the production length head bolts.
  • Material available to drill and tap for production length head bolts
  • Billet steel 6 bolt main caps with ARP hardware
  • Accepts Gen 1 and Gen 2 Coyote 5.0L cylinder heads
  • Accepts Gen 1, Gen 2, and Gen 3 GT350 5.2L cylinder heads
  • Requires head gasket to match cylinder head
  • Weight = 203# when finished to a 94mm bore
  • Recommended forged steel crankshafts M-6303-M52B or M-6303-M52P
    Part Type
    Engine: Engine Blocks
    Warranty Availability
    Available
    Package Dimensions
    25" x 24" x 31"
    Package Weight
    228 lb(s)
    UPC Code
    756122014042
    Country of Origin
    United States

    Genuine Ford Performance Parts — backed by Ford Motor Company's factory engineering and warranty.
