PowerFlex - Ford Mustang (2015+) Rear Subframe Front Bushing (Street)

SKU: SKU: Powerflex-PFR19-1724

Earn [points_amount] when you buy this item.

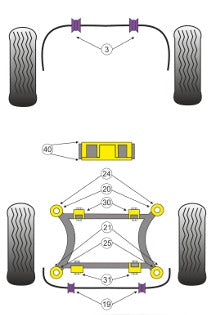

Diagram Reference #24

Ford Mustang (2015+) Rear Subframe Front Bushing (Street)

This part replaces OEM part number FR3C-5872-A PIA1

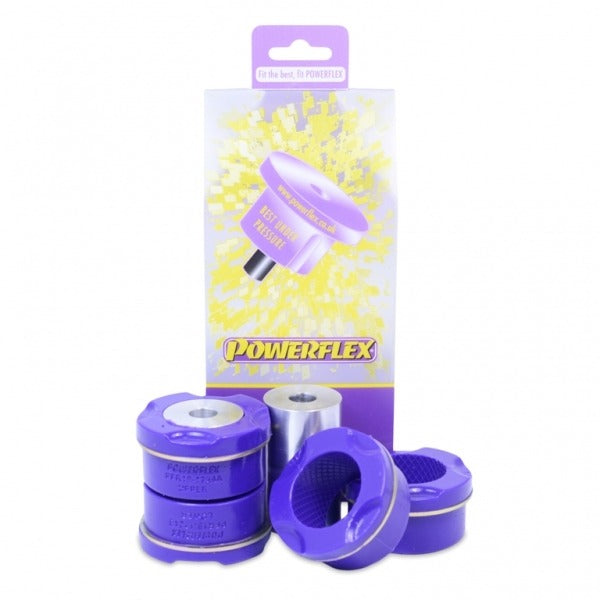

Contents (parts per pack):
2x A Bushings 2x B Bushings
2x Aluminum Sleeves 1 x Grease
Please read the complete fitting instructions and check package components before fitment.
These fitting instructions are to be used as a guide and in conjunction with workshop manual.
It is recommended that:
-All work to be carried out by a licensed technician;
-All safety precautions adhered to;
-Wheel alignment to be checked and adjusted as required after any suspension work.
-All fasteners must be tensioned to manufacturers torque settings.
Fitting Instructions:
1. Remove the rubber bushings from the front mounts of the rear sub frame of the car.
2. Clean any dirt or debris from around the bore of the bush mounts.
3. Fit A bushing from the top and Fit B bushing from the bottom of the mount Fig A.
4. Apply some of the supplied grease in the bore of the bushings and push the aluminum sleeves into the
bore of the bushings Fig A.
5. Refit subframe and tension all hardware to manufacturers recommended torque settings.
