PowerFlex - Ford Mustang (2015+) Rear Differential Mount Front Bushing Insert (Race)

SKU: SKU: Powerflex-PFR19-1730B

Earn 1 Point on this purchase. Learn more

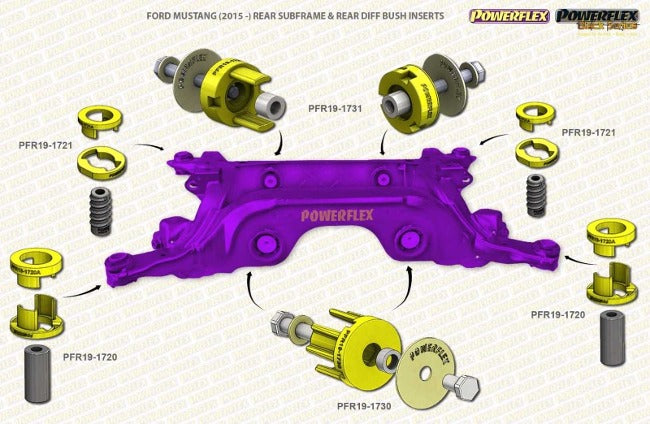

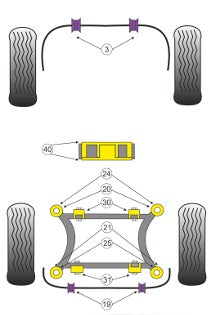

Diagram Reference #30
Ford Mustang (2015+) Rear Differential Mount Front Bushing Insert (Race)

These parts fit as inserts for OEM part number C757B.

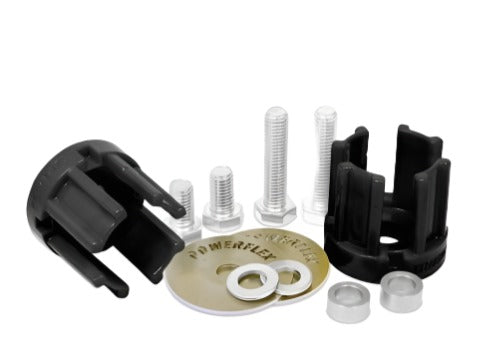

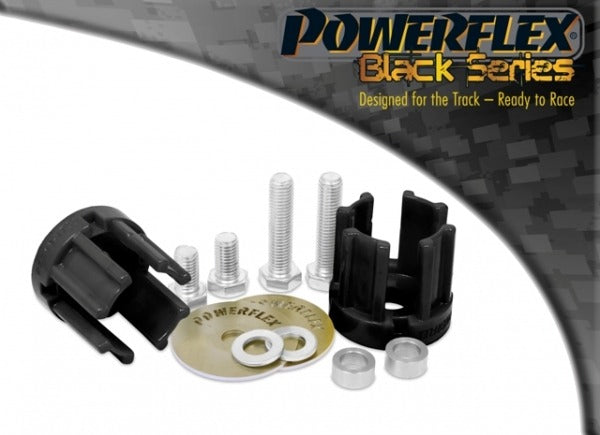

Contents (parts per pack):
2x Inserts 2x Stainless steel sleeves 2x Large Washers
2x Small Washers 2x Long Bolts 2x Short Bolts 1 xGrease
Please read the complete fitting instructions and check package components before fitment. These fitting instructions are to be used as a guide and in conjunction with workshop manual.
How to install your Gen 6 Mustang rear differential mount front bushing inserts:
1. Support rear subframe and diff. Loosen rear subframe bolts and completely remove front subframe bolts to access the diff mounts.
2. Undo the bolt connecting the diff to the subframe. Bolt may have to be cut if removal is restricted by the drive shaft.
3. Clean any dirt or debris from around the rubber bush and voidings.

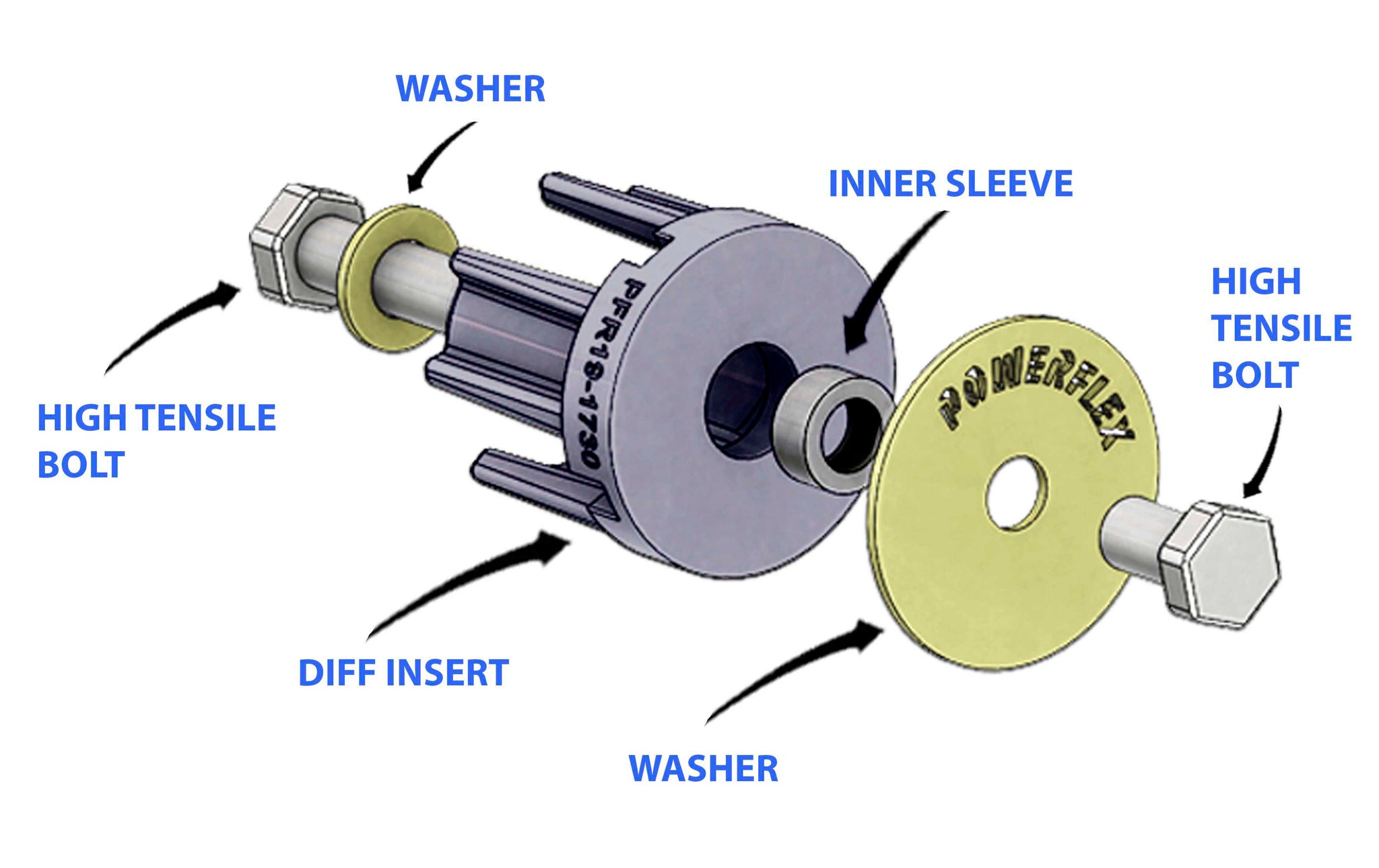

4. Push stainless steel sleeve into the bore of the insert and apply some of the supplied grease to the inner surface of the insert.
5. Fit Insert into the rubber bush from the front of the diff. Use the supplied large sized washer and shorter lengh bolt to secure insert from the front side of the diff. Fig A.
6. Use the supplied longer length bolt and smaller size washer to re-bolt diff to the subframe. Fig B. Repeat process on the other side of the diff.
7. Refit the front subframe bolts and tension all hardware to manufacturers recommended torque settings.

Installation Instructions

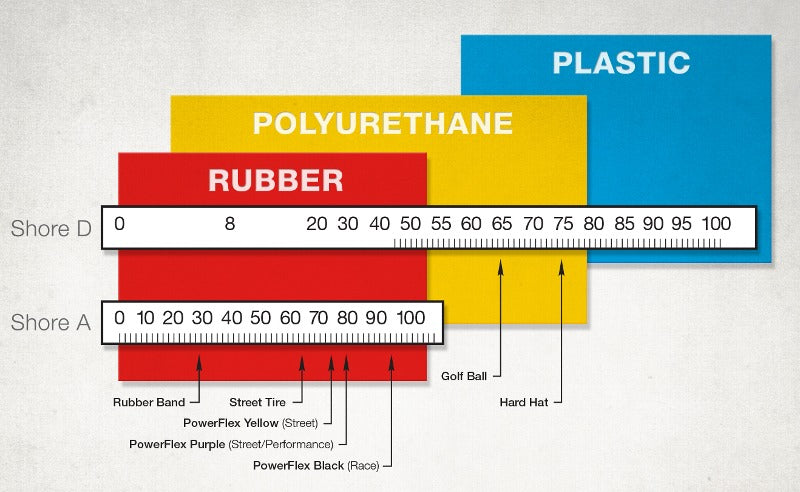

How to choose your bushings durometer
