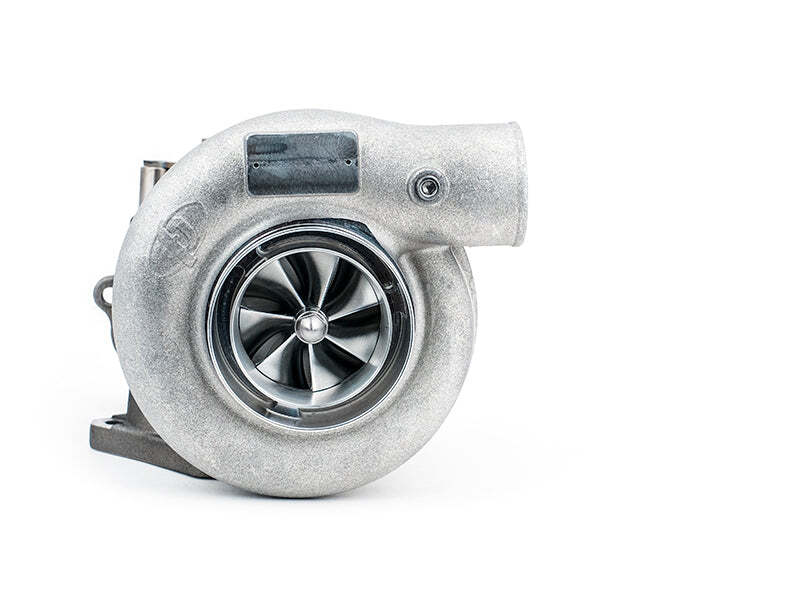

Forced Performance Subaru WRX/STI XR Blk 82HTZ Turbo 84mm CH10CM Turbine Hsg Internal WG w/Oil Line - 2027060

• Compressor wheel - 82HTZ
• Flow rating - 71LB per minute
• CW Measurements - 59.1MM Inducer / 82MM Exducer
• TW Measurements - 67.7MM Inducer / 62.2MM Exducer
• Compressor Housing - 84MM FAP Cover
• Turbine Housing - FP 10CM Turbine Housing
• CHRA - Xona Rotor
• Oil Line - Included
• Gasket Set - Included

The

FP Black™

turbocharger features the 82mm

HTZ™

compressor section with Forced Performance's 84MM

Flow Advancement Port™

compressor cover coupled to the 10cm

turbine section. The

flows 71LB a minute and is capable of producing upwards of 575WHP.

Internal gate turbos are available with either the stock canister style 15 PSI actuator, or you can upgrade to an 18 PSI TiAL MVI actuator.

In addition to the things you know and love about the journal bearing Black, this unit utilizes Forced Performance's Xona Ball Bearing CHRA for increased durability in situations where you might see low oil flow such as road racing or autocross applications. XR turbos have an M12x1.25 oil inlet in the bearing housing, allowing use of Forced Performance's Oil Feed line.

Attention

THIS PRODUCT IS FOR COMPETITION USE ONLY. ALL OTHER USES ARE CONTRARY TO FEDERAL LAW. IF YOU INTEND TO USE THIS PRODUCT FOR HIGHWAY OR NON-COMPETITION OFF-ROAD PURPOSES DO NOT PURCHASE OR INSTALL THIS PRODUCT. THIS PRODUCT IS NOT FOR SALE OR USE IN CALIFORNIA ON ANY TYPE OF EMISSION CONTROLLED VEHICLE.
