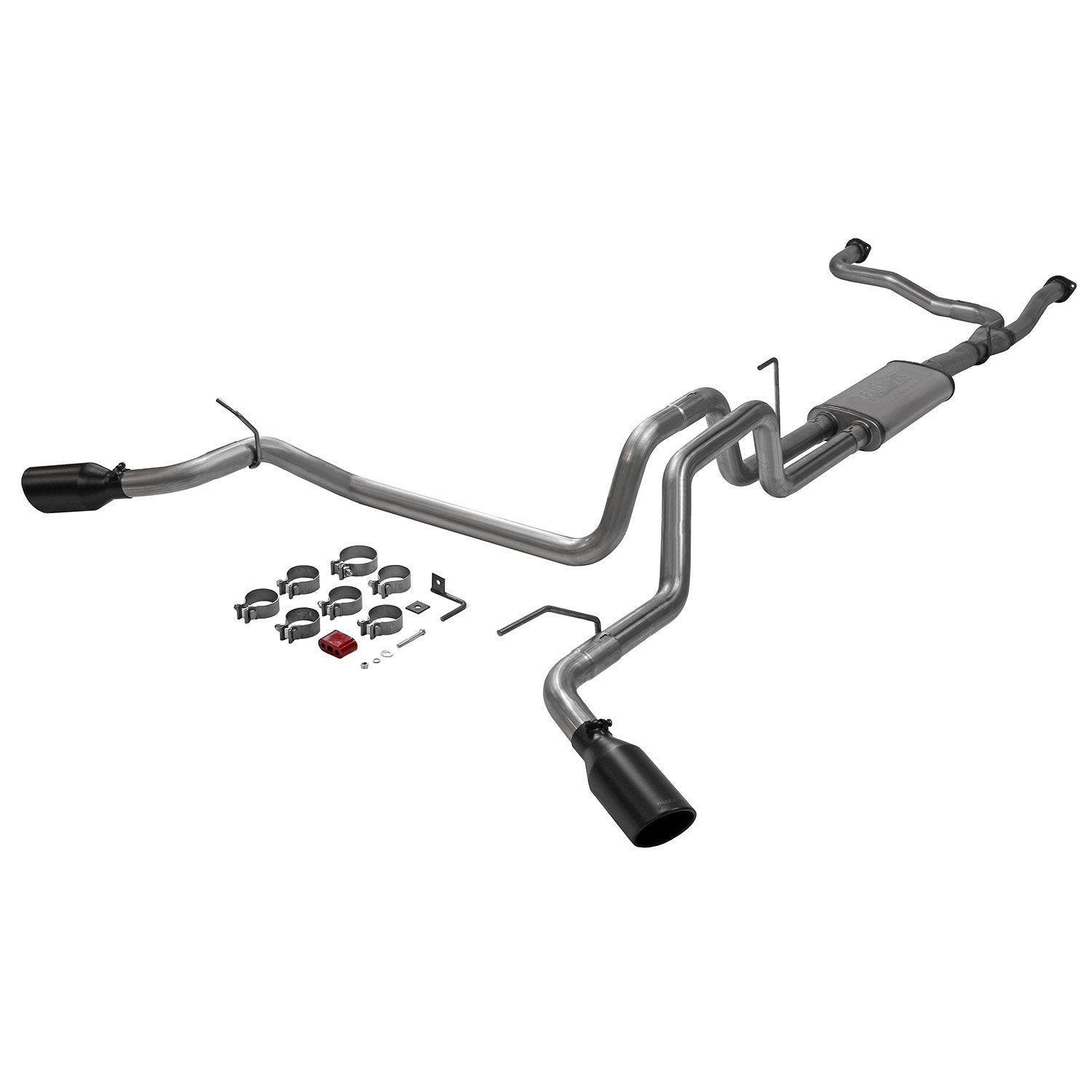

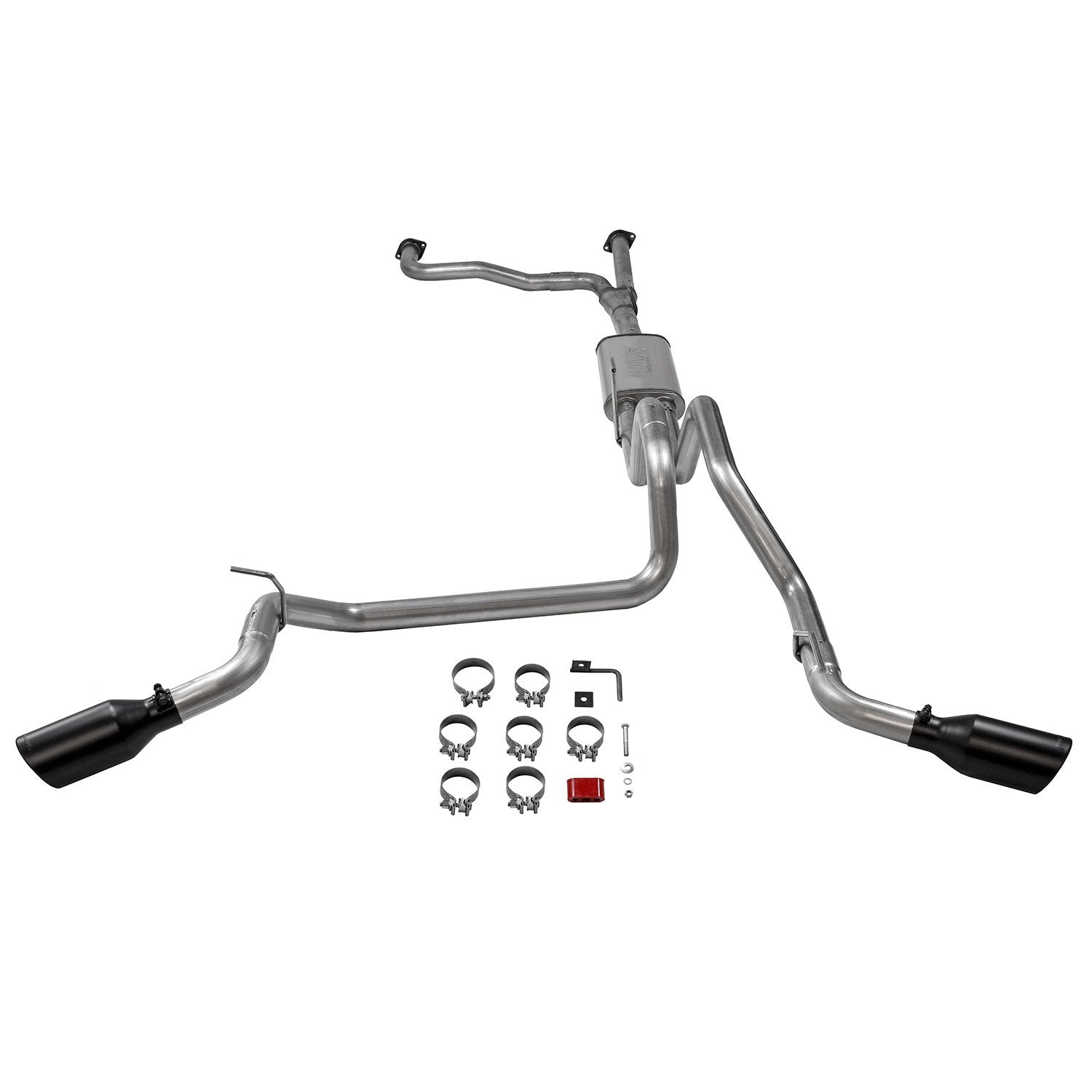

This Flowmaster® Flow FX® cat-back exhaust system for the 2004-2015 Nissan Titan with the 5.6-liter engine is manufactured using durable 409 stainless steel throughout and features dual 2.5-inch mandrel bent pipes for better exhaust gas flow, and a Flow FX "straight-through" muffler is used for a moderate sound level and maximum performance. Gain up to 4 hp and 5 lbs-ft of torque at the rear wheels over stock. This system exits out the sides with dual 4.5-inch black ceramic tips for added style and a custom look. The system uses all the existing factory hanger locations and includes installation instructions and all necessary hardware for an easy installation that you can do at home. Backed by Flowmaster's Lifetime Limited Warranty.
Features
- Dual 2.50-inch mandrel bent 16-gauge 409 stainless steel tubing maximizes exhaust flow and improves durability

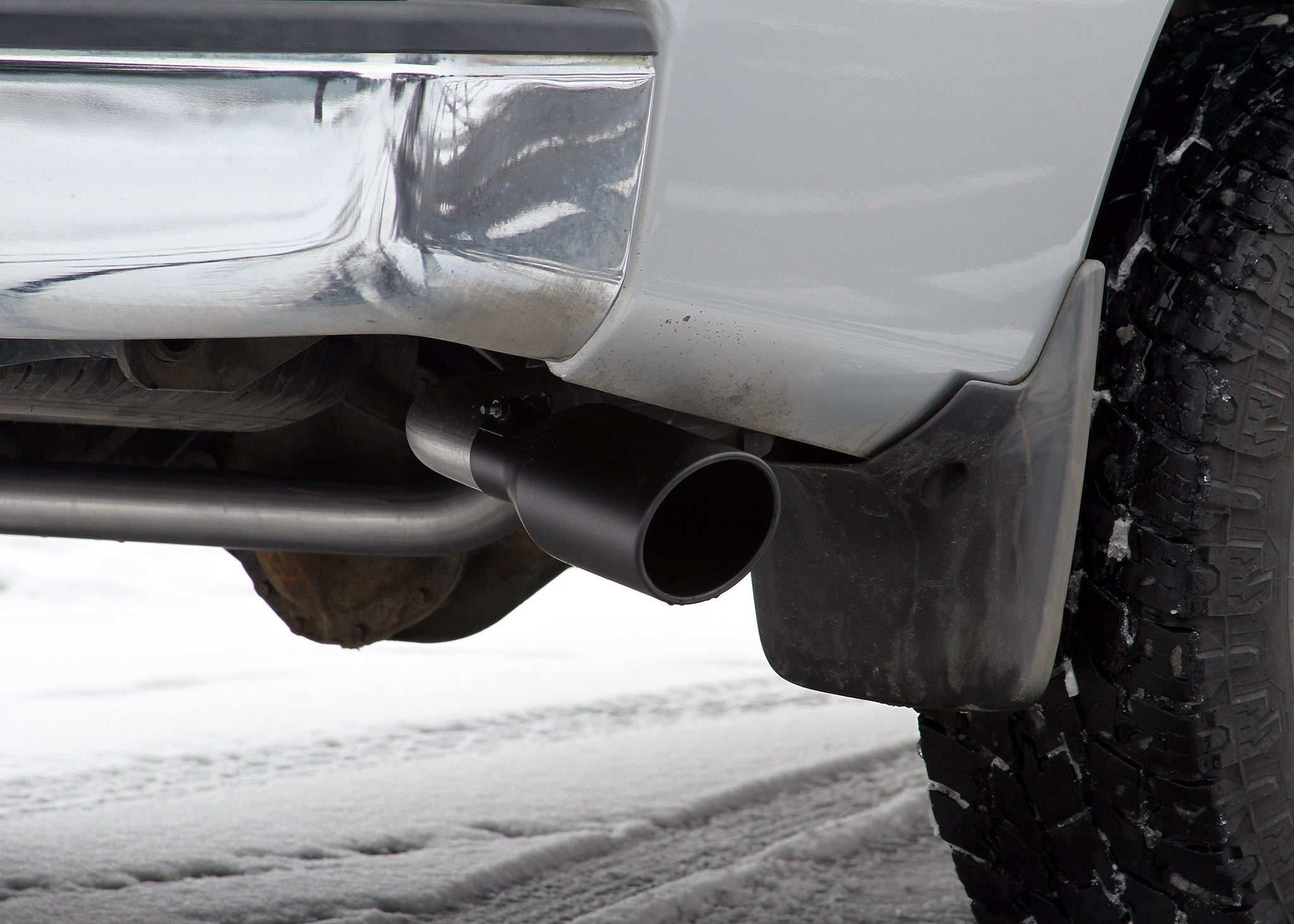

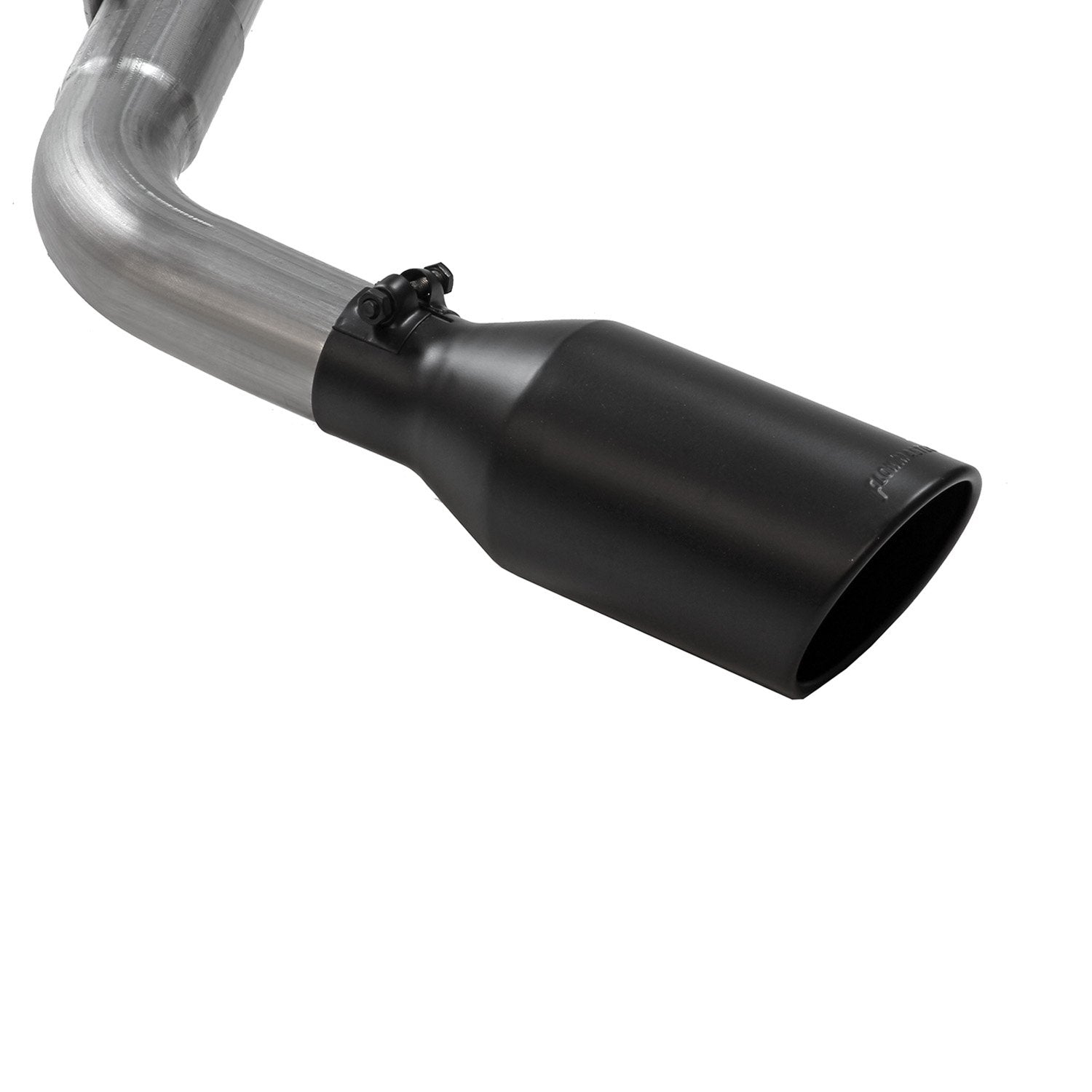

- Dual 4.50-inch black ceramic coated tips exiting before the rear tire add a custom look to the truck

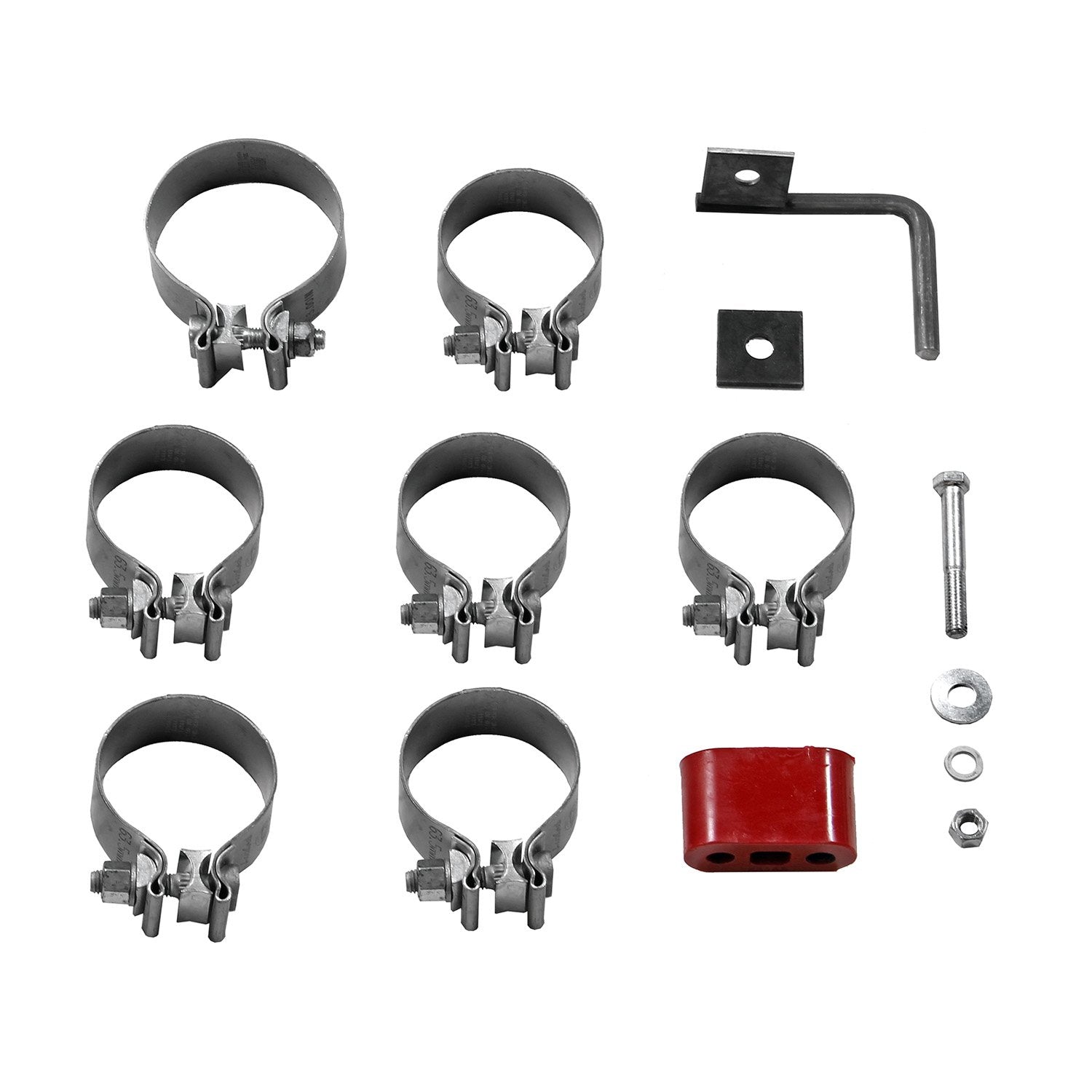

- Includes complete hardware and factory styled hangers in the stock locations for an easy installation

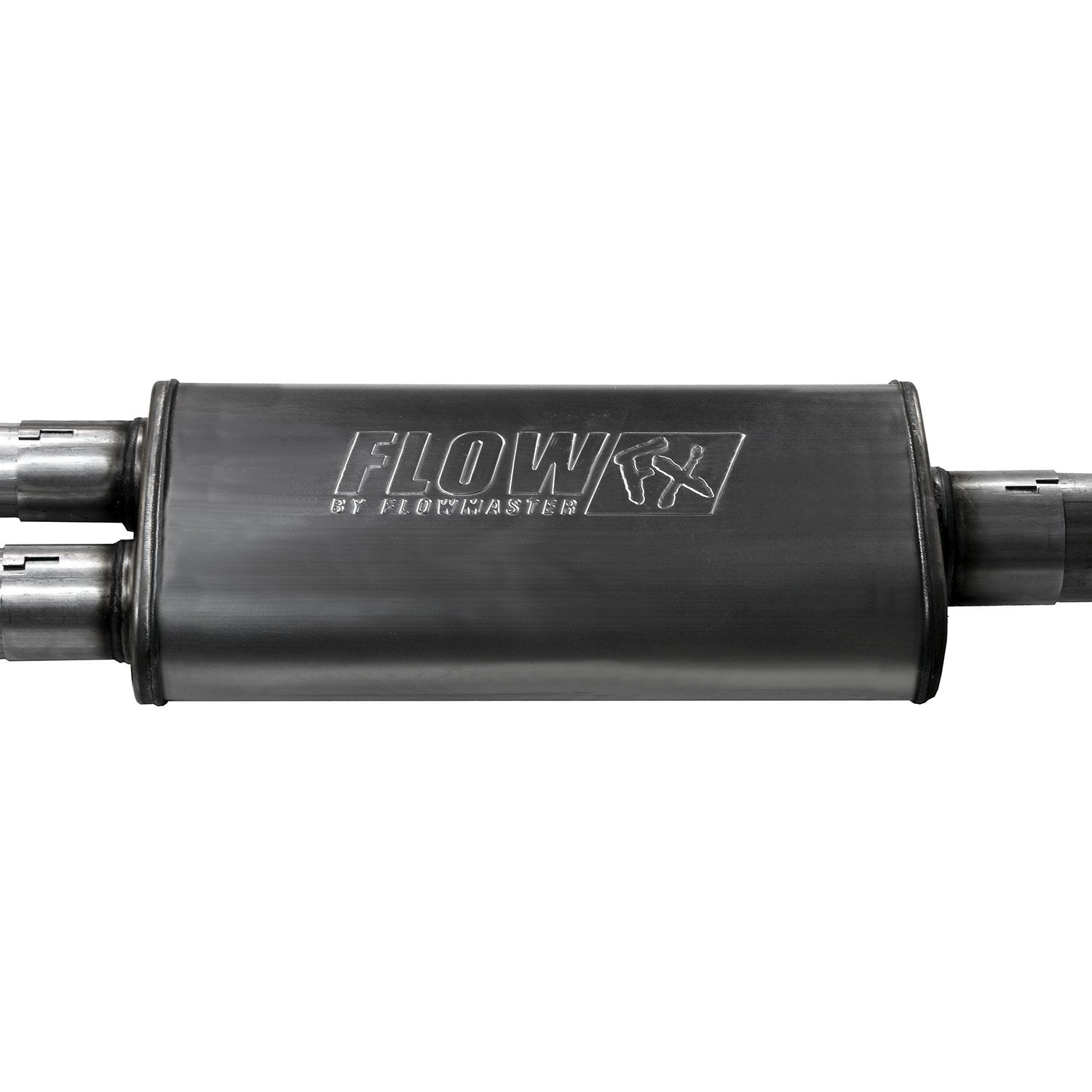

- Flow FX “straight through” performance muffler delivers a deep, aggressive to moderate performance tone and improves exhaust flow
- Flowmaster’s Lifetime Limited Warranty
- Gain up to 4 hp and 5 lbs-ft of torque at the rear wheels
- Scavenger Series Y-Pipe increases exhaust pulse velocity and improves torque
Specifications
| California Proposition 65 |
Yes |
| California Proposition 65 Chemical Name |
Chromium (hexavalent compounds) |
| California Proposition 65 Chemical Name |
Nickel (Metallic) |
| CARB (California) Compliant |
Yes |
| Catalytic Converter Included |
No |
| Catalytic Converter Quantity |
0 |
| Category |
Exhaust |
| Clamps Included |
Yes |
| Emission Code |
5 |
| Exhaust Series |
Flow FX |
| Exhaust Tip Cut |
Angle |
| Exhaust Tip Diameter |
4.50 IN |
| Exhaust Tip Edge |
Rolled |
| Exhaust Tip Finish |
Black Ceramic Coating |
| Exhaust Tip Length |
11.00 IN |
| Exhaust Tip Material |
304 Stainless Steel |
| Exhaust Tip Quantity |
2 |
| Exhaust Tip Shape |
Round |
| Exit Style |
Dual Out Side |
| Finish |
Natural |
| Grade Type |
Performance |
| Hangers Included |
Yes |
| Main Piping Diameter |
2.50 IN |
| Mount Type |
Uses Factory Hangers |
| Muffler Body Length |
18.00 IN |
| Muffler Body Material |
409 Stainless Steel |
| Muffler Body Shape |
Oval |
| Muffler Color |
Silver |
| Muffler Finish |
Natural |
| Muffler Included |
Yes |
| Muffler Inlet Inside Diameter |
3.00 IN |
| Muffler Inlet Location |
Center |
| Muffler Outlet Diameter |
2.50 IN |
| Muffler Outlet Location |
Dual |
| Muffler Overall Length |
24.00 IN |
| Muffler Part Number |
Kit Only |
| Muffler Quantity |
1 |
| Muffler Series |
Flow FX |
| Muffler Type |
Absorption |
| part type |
Exhaust System |
