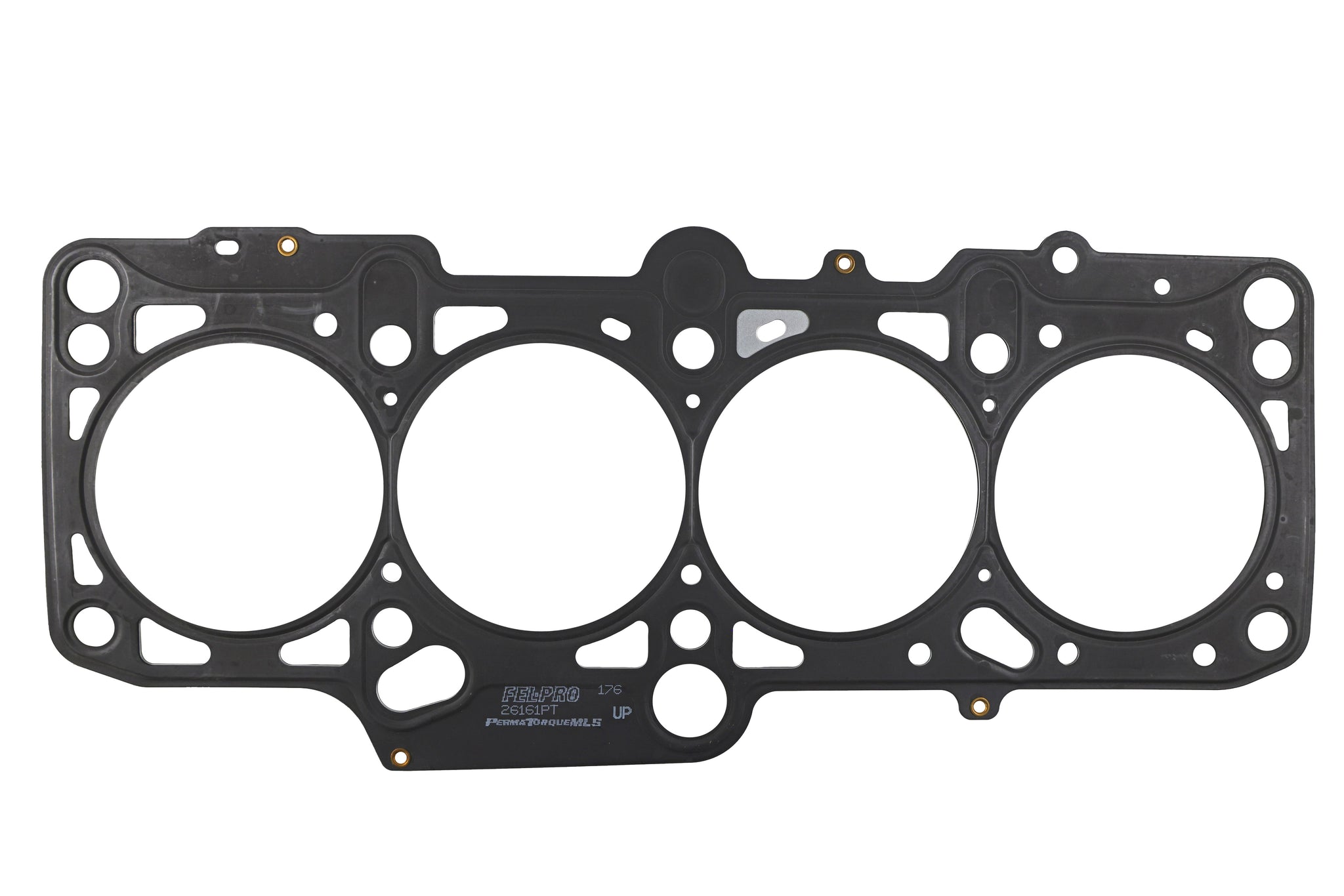

Fel-Pro Volkswagen Jetta 26161 PT PermaTorque Engine Cylinder Head Gasket - 26161PT

FEL-PRO 26161 PT PermaTorque Engine Cylinder Head Gasket for Volkswagen Jetta

Features

• PROPRIETARY COATING -- Exclusive coating helps withstand rougher sealing surface finishes up to 80 Ra
• SUPERIOR SEAL -- Precise embossed sealing beads at all vital areas to eliminate leak paths
• MULTI-LAYERED STEEL CONSTRUCTION -- Multiple layers of stainless steel maintain sealing stress and accommodate head lift
• UNIQUE COMBUSTION SEAL -- Accommodates high cylinder pressures and head movement encountered with engines
• DESIGNED FOR IMPERFECT SEALING SURFACES -- Engineered and manufactured specifically for the repair environment to help seal imperfect sealing surfaces

Specifications

• Material: PermaTorque MLS
• Thickness: 0.048 IN
• Grade Type: Premium
• Cylinder Bore Diameter: 3.290 IN
• Gasket Sealant Included: No
• Head Gasket Bore: 3.29 IN
• Head Gasket Manufactured Thickness: 0480"

Application

• 1998-2005 Volkswagen Beetle (Liter: 2.0 & Engine(cc): 1984 & Engine(ci): 121 & Cylinder: 4 & Block: L & Bore(in): 3.25 & Bore(mm): 82.5 & Stroke(in): 3.65 & Stroke(mm): 92.8 / Qualifier: with PermaTorqueMLS LaserWeld Technology, Original Equipment (OE) Part Number 06A-103-383L, 06A-103-383AN, Head Bolts Not Included, Head Bolt Replacement Recommended); 1999-2015 Volkswagen Jetta (Engine Designation: AEG, BEV, BBW, AZG, AVH, CBPA & Liter: 2.0 & Engine(cc): 1984 & Engine(ci): 121 & Cylinder: 4 & Block: L & Bore(in): 3.25 & Bore(mm): 82.5 & Stroke(in): 3.65 & Stroke(mm): 92.8 / Qualifier: with PermaTorqueMLS LaserWeld Technology, Original Equipment (OE) Part Number 06A-103-383L, 06A-103-383AN, Head Bolts Not Included, Head Bolt Replacement Recommended); 1999-2006 Volkswagen Golf (Liter: 2.0 & Engine(cc): 1984 & Engine(ci): 121 & Cylinder: 4 & Block: L & Bore(in): 3.25 & Bore(mm): 82.5 & Stroke(in): 3.65 & Stroke(mm): 92.8 / Qualifier: with PermaTorqueMLS LaserWeld Technology, Original Equipment (OE) Part Number 06A-103-383L, 06A-103-383AN, Head Bolts Not Included, Head Bolt Replacement Recommended)
