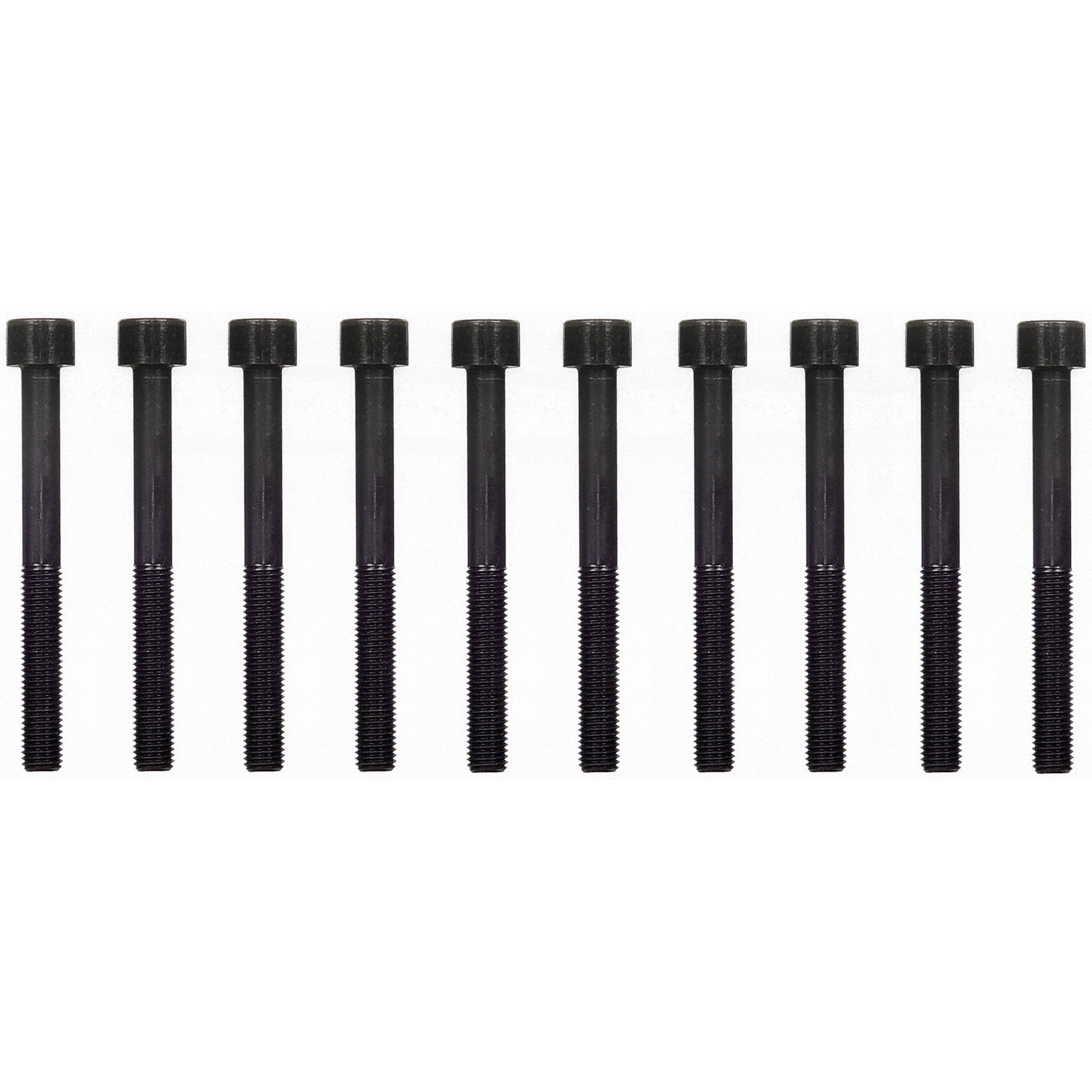

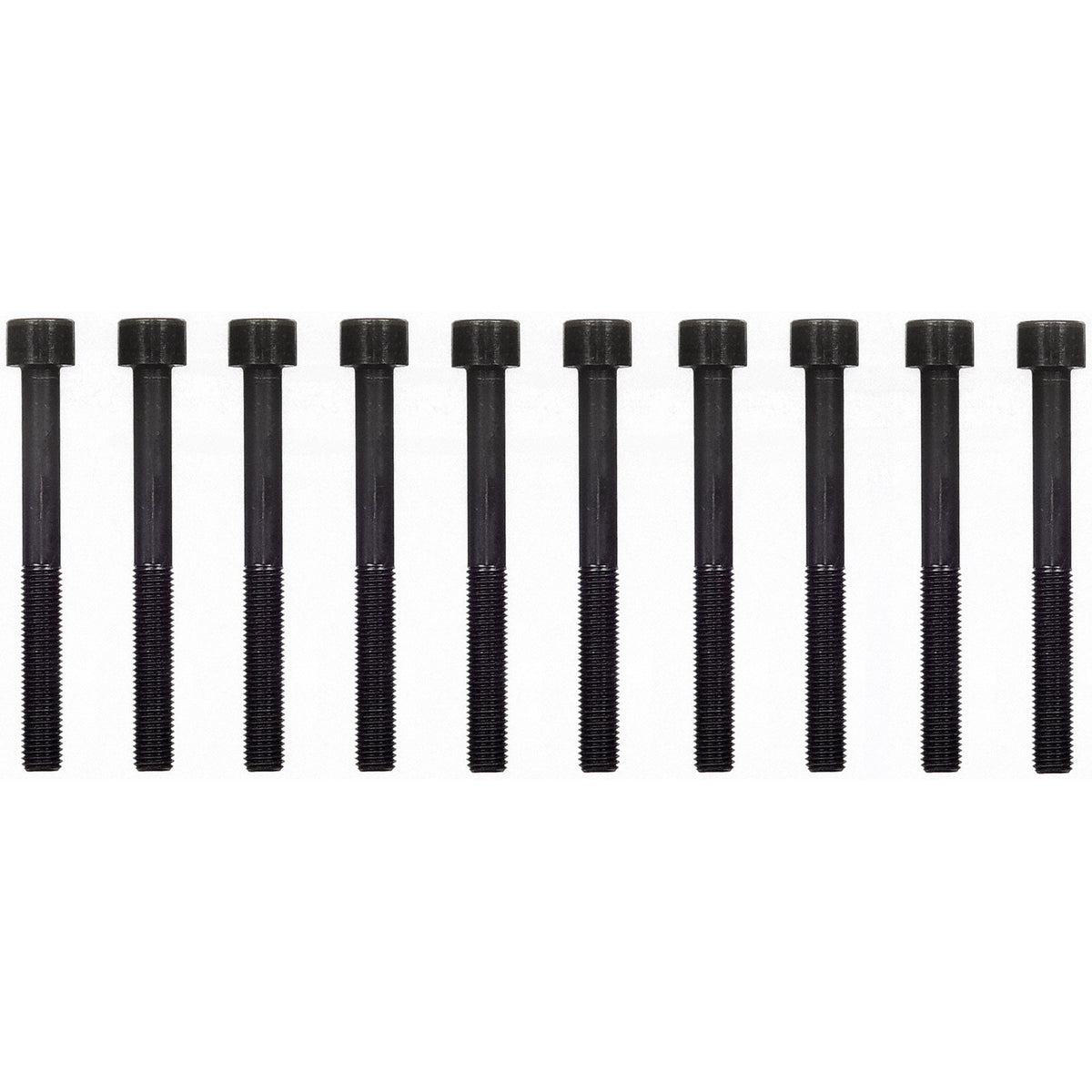

Fel-Pro Mazda Protege ES 74020 Engine Cylinder Head Bolt Set - ES74020

FEL-PRO ES 74020 Engine Cylinder Head Bolt Set for Mazda Protege

Features

• Meets or exceeds all original equipment specifications
• Application specific design to ensure a perfect fit
• Avoid risk associated with re-use of T-T-Y (torque to yield) head bolts
• Validated for fit, form and function
• Unsurpassed quality you can trust

Specifications

• Head Drive Type: Socket Cap
• Thread Diameter: 11 MM, 11.0 MM
• Bolt Diameter: 11.0 MM
• Reusable: No
• Grade Type: Premium
• Assembly Lubricant Included: No
• Bolt Thread Length: 49.0 MM
• Bolt Thread Pitch: 1.50
• Bolt Critical Length: 104.0 MM
• Bolt Head Size: 10 MM
• Part Design Or Feature Or Use: Replacement required

Application

• 1993-1997 Ford Probe (Liter: 2.0 & Engine(cc): 1989 & Engine(ci): 122 & Cylinder: 4 & Block: L & Bore(in): 3.27 & Bore(mm): 83.0 & Stroke(in): 3.62 & Stroke(mm): 92.0 / Qualifier: Head Bolts Must be Replaced); 1993-1997 Mazda MX-6 (Liter: 2.0 & Engine(cc): 1991 & Cylinder: 4 & Block: L & Bore(in): 3.27 & Bore(mm): 83.0 & Stroke(in): 3.62 & Stroke(mm): 92.0 / Qualifier: Head Bolts Must be Replaced); 1993-2002 Mazda 626 (Liter: 2.0 & Engine(cc): 1991 & Cylinder: 4 & Block: L & Bore(in): 3.27 & Bore(mm): 83.0 & Stroke(in): 3.62 & Stroke(mm): 92.0 / Qualifier: Head Bolts Must be Replaced); 2001-2003 Mazda Protege (Liter: 2.0 & Engine(cc): 2000, 1998 & Engine(ci): 122 & Cylinder: 4 & Block: L & Bore(in): 3.34, 3.39 & Bore(mm): 84.8, 86.0 & Stroke(in): 3.46, 3.39 & Stroke(mm): 88.0, 86.0 / Qualifier: Head Bolts Must be Replaced); 2002-2003 Mazda Protege5 (Liter: 2.0 & Engine(cc): 2000 & Cylinder: 4 & Block: L & Bore(in): 3.34 & Bore(mm): 84.8 & Stroke(in): 3.46 & Stroke(mm): 88.0 / Qualifier: Head Bolts Must be Replaced)
