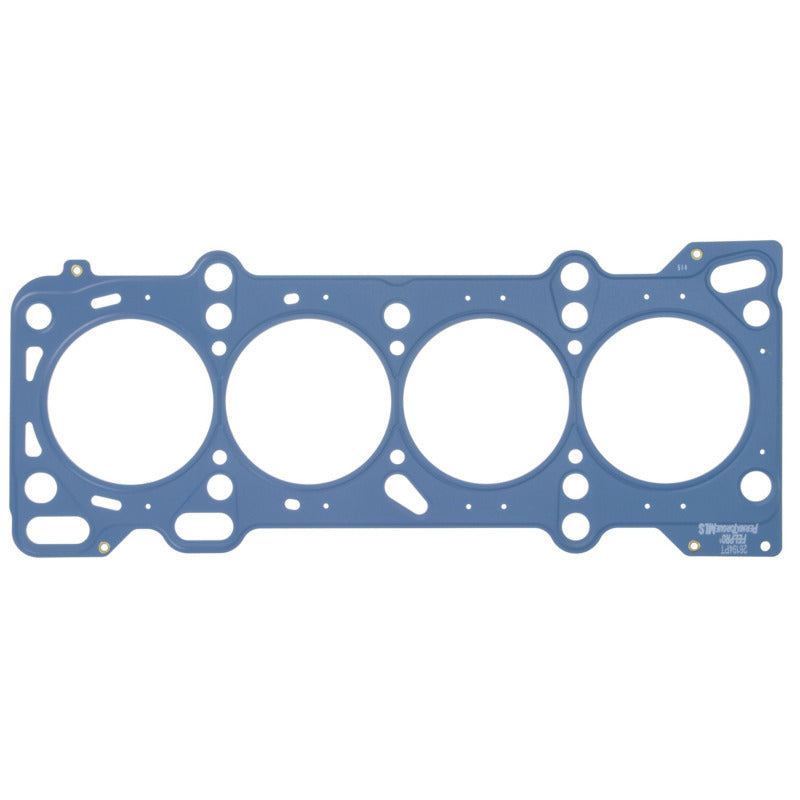

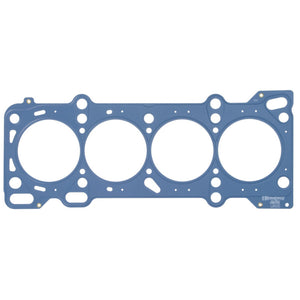

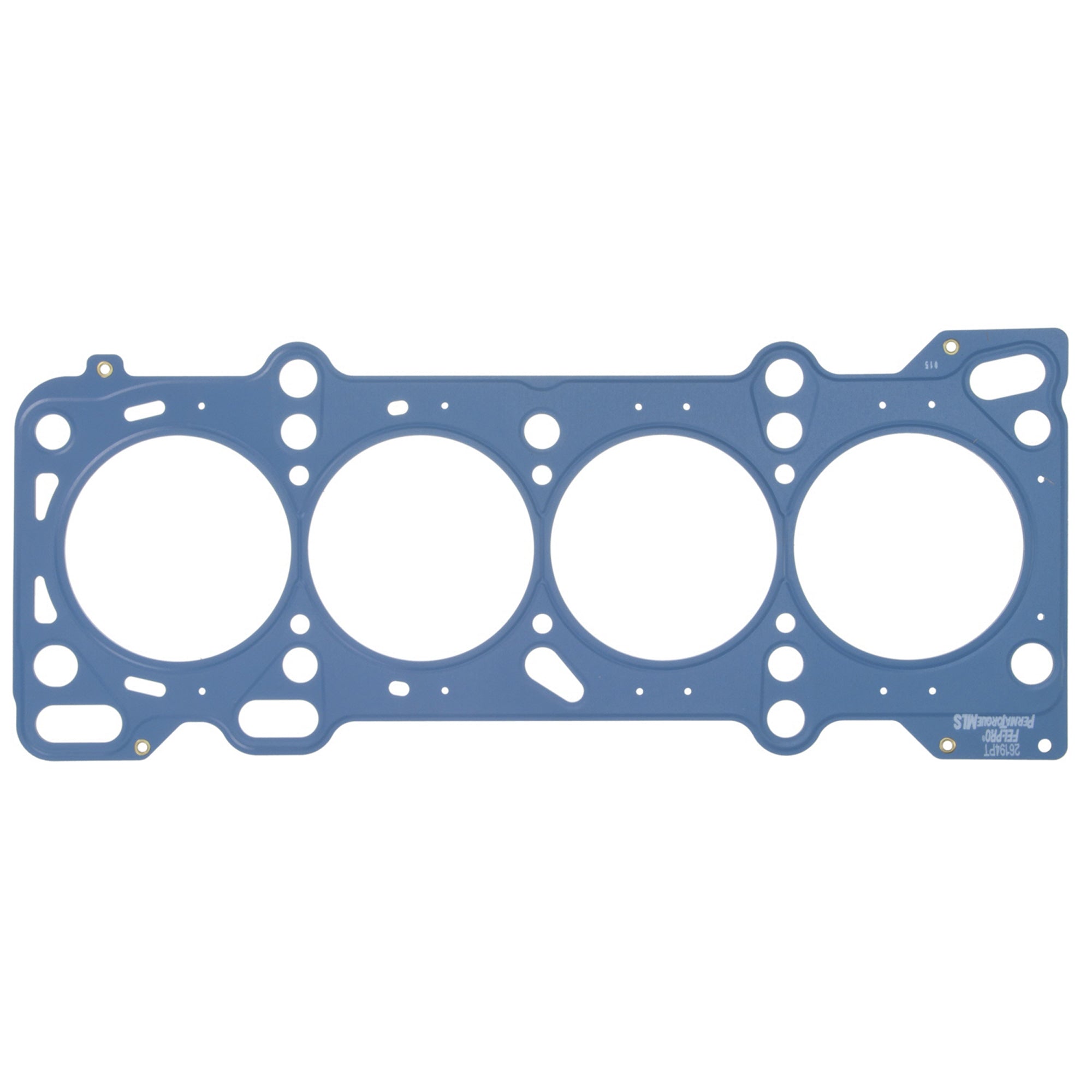

Fel-Pro Mazda Protege 26194 PT PermaTorque Engine Cylinder Head Gasket - 26194PT

FEL-PRO 26194 PT PermaTorque Engine Cylinder Head Gasket for Mazda Protege

Features

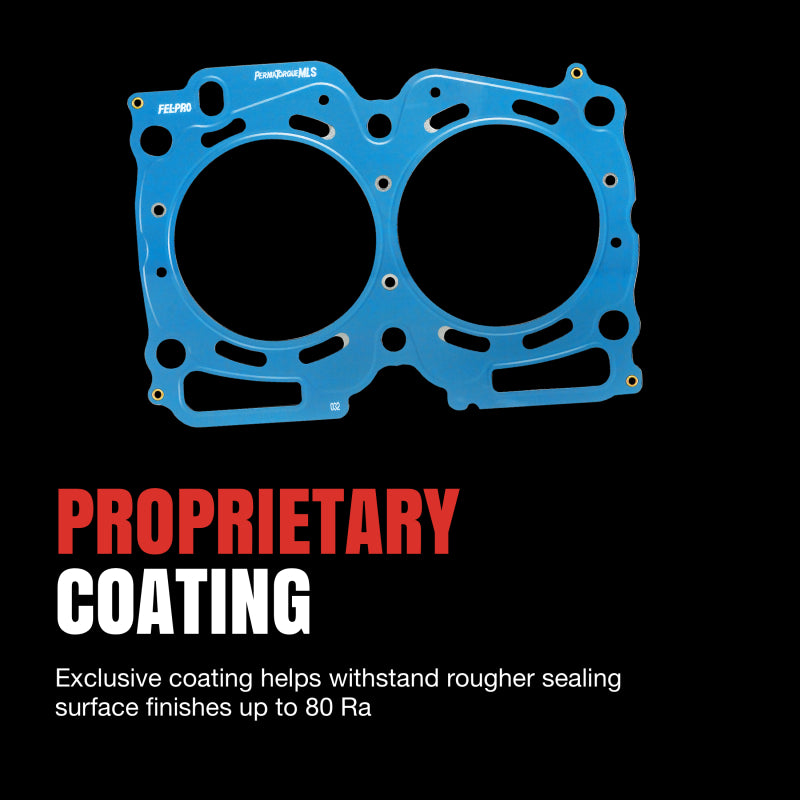

• PROPRIETARY COATING -- Exclusive coating helps withstand rougher sealing surface finishes up to 80 Ra

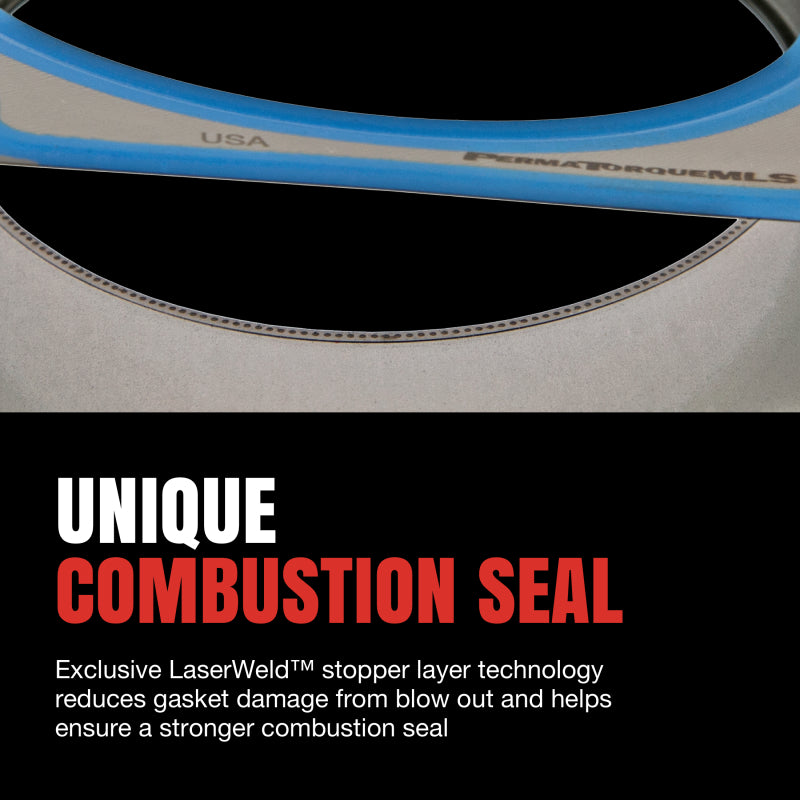

• UNIQUE COMBUSTION SEAL -- Exclusive LaserWeld stopper layer technology reduces gasket damage from blow out and helps ensure a stronger combustion seal
• MULTI-LAYERED STEEL CONSTRUCTION -- Multiple layers of stainless steel maintain sealing stress and accommodate head lift

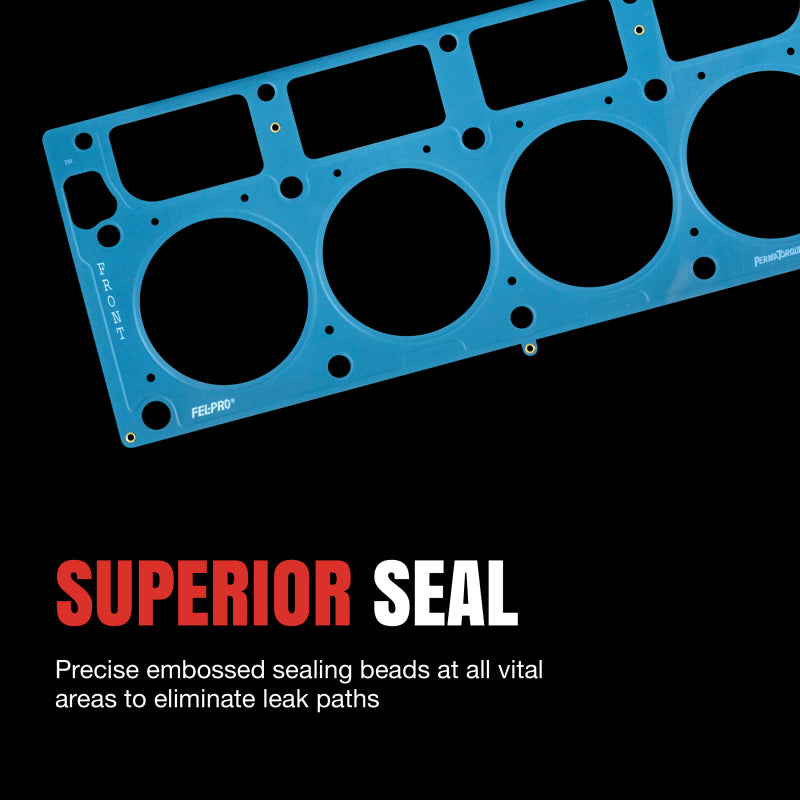

• SUPERIOR SEAL -- Precise embossed sealing beads at all vital areas to eliminate leak paths
• HANDLES EXTREME ENGINE CONDITIONS -- Engineered and manufactured to inhibit over-compression of embossments to maintain a superior seal under peak combustion pressures and temperatures

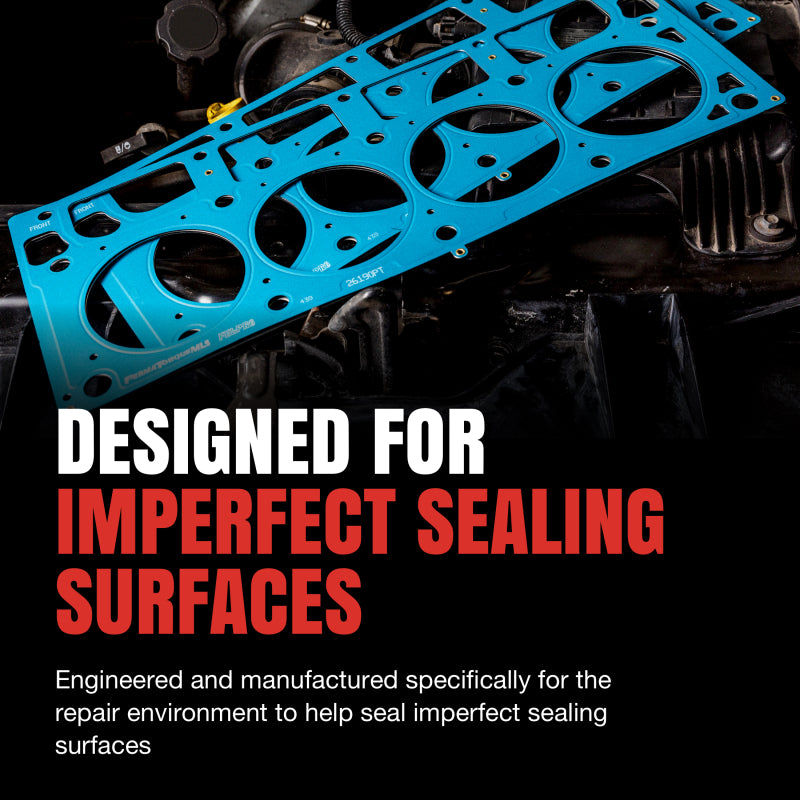

• DESIGNED FOR IMPERFECT SEALING SURFACES -- Engineered and manufactured specifically for the repair environment to help seal imperfect sealing surfaces

Specifications

• Material: PermaTorque MLS
• Thickness: 0.024 IN
• Grade Type: Premium
• Cylinder Bore Diameter: 3.330 IN
• Gasket Sealant Included: No
• Head Gasket Bore: 3.33 IN
• Head Gasket Manufactured Thickness: 0240"

Application

• 2000-2002 Mazda 626 (Liter: 2.0 & Engine(cc): 1991 & Cylinder: 4 & Block: L & Bore(in): 3.27 & Bore(mm): 83.0 & Stroke(in): 3.62 & Stroke(mm): 92.0 / Qualifier: Head Bolts Must be Replaced, with PermaTorqueMLS LaserWeld Technology, Head Bolts Not Included); 2001-2003 Mazda Protege (Liter: 2.0 & Engine(cc): 2000, 1998 & Engine(ci): 122 & Cylinder: 4 & Block: L & Bore(in): 3.34, 3.39 & Bore(mm): 84.8, 86.0 & Stroke(in): 3.46, 3.39 & Stroke(mm): 88.0, 86.0 / Qualifier: Head Bolts Must be Replaced, with PermaTorqueMLS LaserWeld Technology, Head Bolts Not Included); 2002-2003 Mazda Protege5 (Liter: 2.0 & Engine(cc): 2000 & Cylinder: 4 & Block: L & Bore(in): 3.34 & Bore(mm): 84.8 & Stroke(in): 3.46 & Stroke(mm): 88.0 / Qualifier: Head Bolts Must be Replaced, with PermaTorqueMLS LaserWeld Technology, Head Bolts Not Included)
