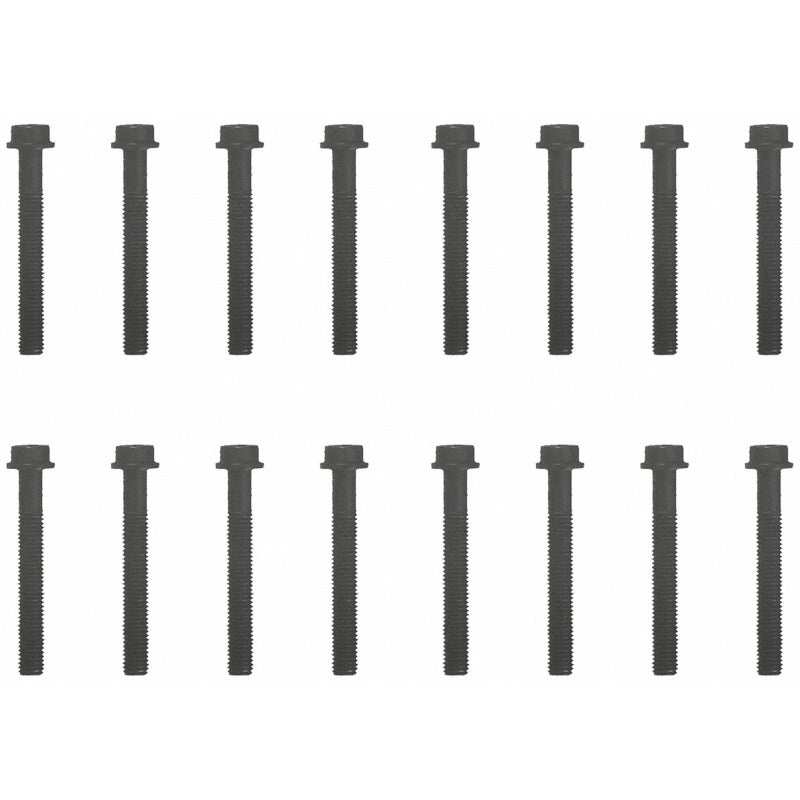

Fel-Pro Ford Ranger ES 72794 Engine Cylinder Head Bolt Set - ES72794

FEL-PRO ES 72794 Engine Cylinder Head Bolt Set for Ford Ranger

Features

• Meets or exceeds all original equipment specifications
• Application specific design to ensure a perfect fit
• Avoid risk associated with re-use of T-T-Y (torque to yield) head bolts
• Validated for fit, form and function
• Unsurpassed quality you can trust

Specifications

• Head Drive Type: Hex
• Thread Diameter: 12 MM, 12.0 MM
• Bolt Diameter: 12.0 MM
• Reusable: No
• Grade Type: Premium
• Assembly Lubricant Included: No
• Bolt Thread Length: 65.0 MM
• Bolt Thread Pitch: 1.75
• Bolt Critical Length: 87.0 MM
• Bolt Head Size: Torx 55
• Part Design Or Feature Or Use: Replacement recommended

Application

• 1990-1997 Ford Aerostar (Liter: 4.0 & Engine(ci): 245 & Cylinder: 6 & Block: V & Bore(in): 3.95 & Bore(mm): 100.3 & Stroke(in): 3.32 & Stroke(mm): 84.3 / Qualifier: Replacement recommended); 1986-1990 Ford Bronco II (Liter: 2.9 & Engine(ci): 177 & Cylinder: 6 & Block: V & Bore(in): 3.66 & Bore(mm): 93.0 & Stroke(in): 2.83 & Stroke(mm): 72.0 / Qualifier: Replacement recommended); 1991-2000 Ford Explorer (Cylinder Head: OHV & Liter: 4.0 & Engine(ci): 245 & Cylinder: 6 & Block: V & Bore(in): 3.95 & Bore(mm): 100.3 & Stroke(in): 3.32 & Stroke(mm): 84.3 & Engine VIN: X / Qualifier: Replacement recommended); 1986-2000 Ford Ranger (Liter: 2.9, 4.0 & Engine(ci): 177, 245 & Cylinder: 6 & Block: V & Bore(in): 3.66, 3.95 & Bore(mm): 93.0, 100.3 & Stroke(in): 2.83, 3.32 & Stroke(mm): 72.0, 84.3 / Qualifier: Replacement recommended); 1988-1989 Merkur Scorpio (Liter: 2.9 & Engine(ci): 177 & Cylinder: 6 & Block: V & Bore(in): 3.66 & Bore(mm): 93.0 & Stroke(in): 2.83 & Stroke(mm): 72.0 / Qualifier: Replacement recommended); 1991-1994 Mazda Navajo (Liter: 4.0 & Engine(ci): 245 & Cylinder: 6 & Block: V & Bore(in): 3.95 & Bore(mm): 100.3 & Stroke(in): 3.32 & Stroke(mm): 84.3 / Qualifier: Replacement recommended); 1994-2000 Mazda B4000 (Liter: 4.0 & Engine(ci): 245 & Cylinder: 6 & Block: V & Bore(in): 3.95 & Bore(mm): 100.3 & Stroke(in): 3.32 & Stroke(mm): 84.3 / Qualifier: Replacement recommended)
