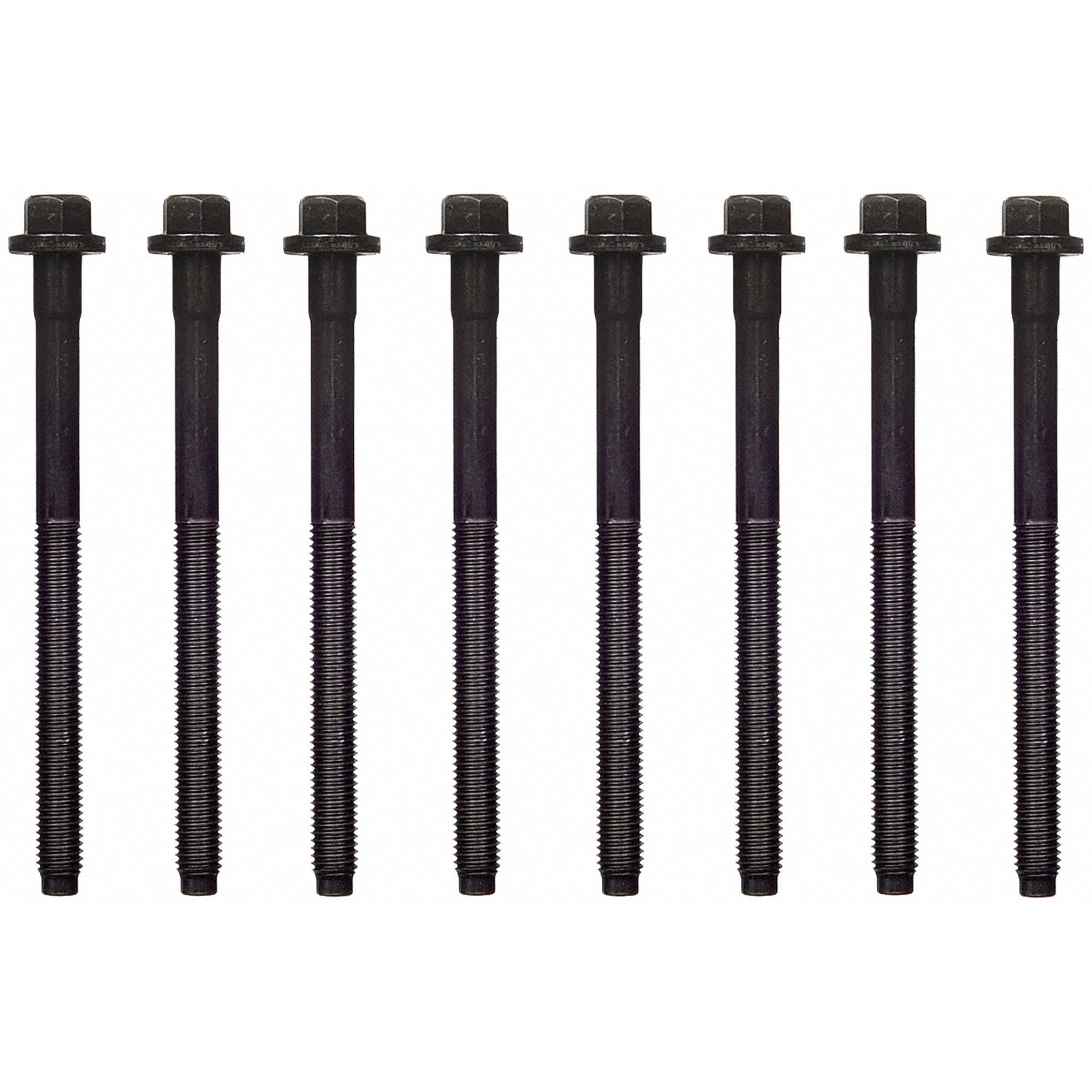

Fel-Pro Ford Ranger Engine Cylinder Head Bolt Set - ES72174

• Head Drive Type: Hex
• Thread Diameter: 10 MM, 10.0 MM
• Bolt Diameter: 10.0 MM
• Reusable: No
• Grade Type: Premium
• Assembly Lubricant Included: No
• Bolt Thread Length: 75.0 MM
• Bolt Thread Pitch: 1.50
• Bolt Critical Length: 128.0 MM
• Bolt Head Size: 13 MM
• Part Design Or Feature Or Use: Replacement required

Application

• 1998-2008 Ford Ranger (Liter: 3.0 & Engine(cc): 2986 & Engine(ci): 182 & Cylinder: 6 & Block: V & Bore(in): 3.5039 & Bore(mm): 89.0 & Stroke(in): 3.1496 & Stroke(mm): 80.0 / Qualifier: From 07/14/1998, Head Bolts Must be Replaced); 1998-2007 Ford Taurus (Cylinder Head: OHV & Liter: 3.0 & Engine(cc): 2986 & Engine(ci): 182 & Cylinder: 6 & Block: V & Bore(in): 3.5039 & Bore(mm): 89.0 & Stroke(in): 3.1496 & Stroke(mm): 80.0 & Engine VIN: U, 2, 1 / Qualifier: From 07/14/1998, Head Bolts Must be Replaced); 1998-2000 Ford Windstar (Liter: 3.0 & Engine(cc): 2986 & Engine(ci): 182 & Cylinder: 6 & Block: V & Bore(in): 3.5039 & Bore(mm): 89.0 & Stroke(in): 3.1496 & Stroke(mm): 80.0 / Qualifier: From 07/14/1998, Head Bolts Must be Replaced); 1998-2005 Mercury Sable (Cylinder Head: OHV & Liter: 3.0 & Engine(cc): 2986 & Engine(ci): 182 & Cylinder: 6 & Block: V & Bore(in): 3.5039 & Bore(mm): 89.0 & Stroke(in): 3.1496 & Stroke(mm): 80.0 & Engine VIN: U, 2 / Qualifier: From 07/14/1998, Head Bolts Must be Replaced); 1998-2008 Mazda B3000 (Liter: 3.0 & Engine(cc): 2986 & Engine(ci): 182 & Cylinder: 6 & Block: V & Bore(in): 3.5039 & Bore(mm): 89.0 & Stroke(in): 3.1496 & Stroke(mm): 80.0 / Qualifier: From 07/14/1998, Head Bolts Must be Replaced)
