Fel-Pro Ford Fusion 26522 PT PermaTorque Engine Cylinder Head Gasket - 26522PT

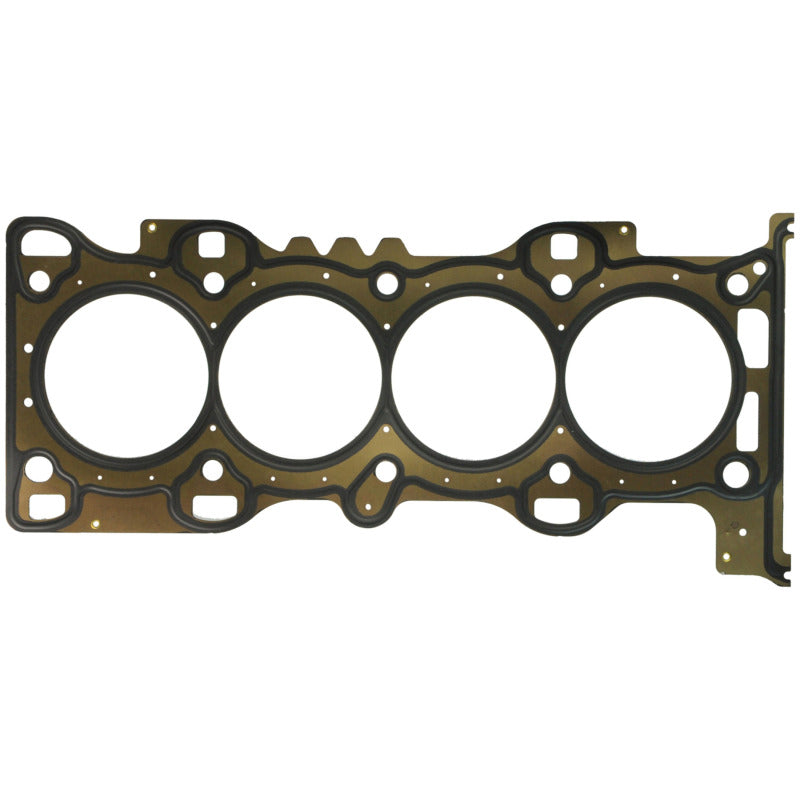

FEL-PRO 26522 PT PermaTorque Engine Cylinder Head Gasket for Ford Fusion

Features

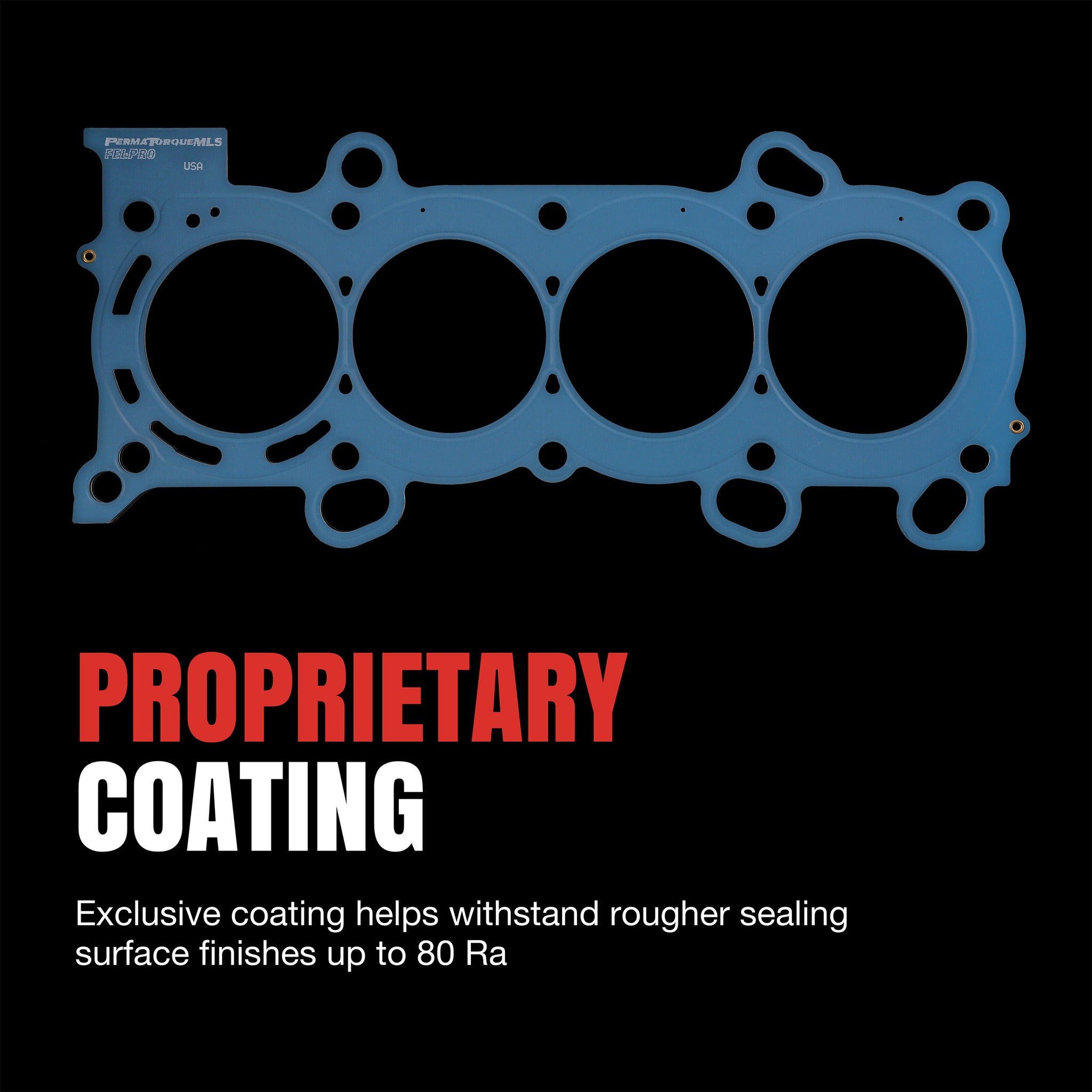

• PROPRIETARY COATING -- Exclusive coating helps withstand rougher sealing surface finishes up to 80 Ra

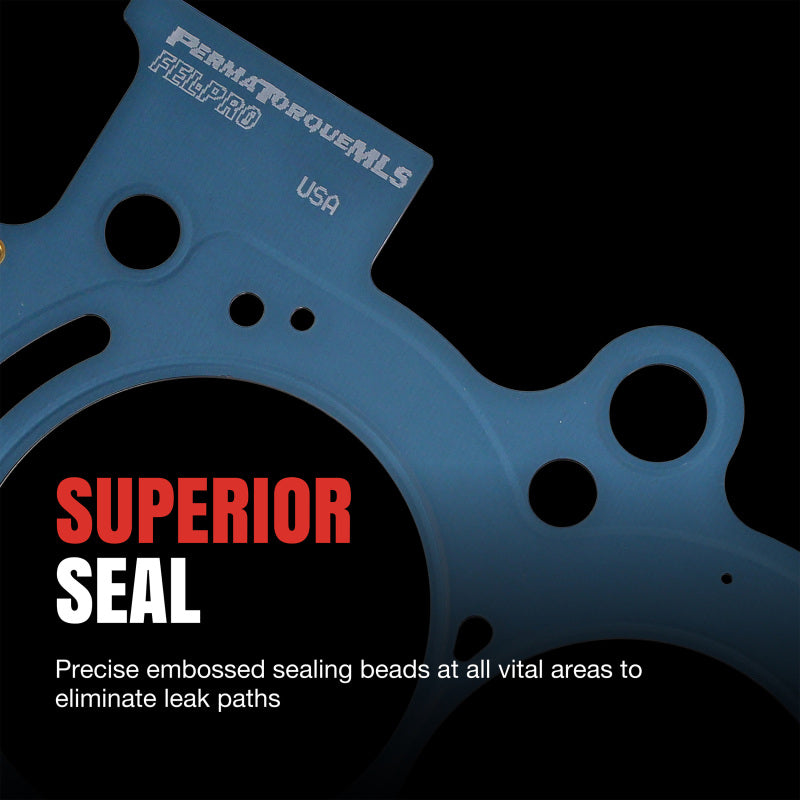

• SUPERIOR SEAL -- Precise embossed sealing beads at all vital areas to eliminate leak paths

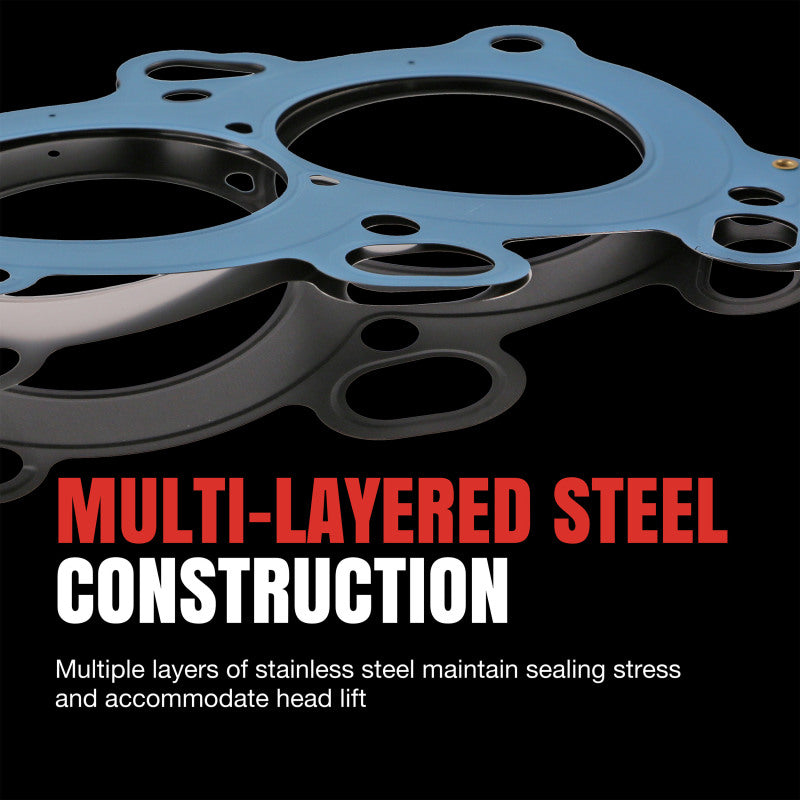

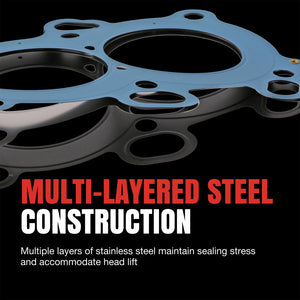

• MULTI-LAYERED STEEL CONSTRUCTION -- Multiple layers of stainless steel maintain sealing stress and accommodate head lift
• UNIQUE COMBUSTION SEAL -- Accommodates high cylinder pressures and head movement encountered with engines

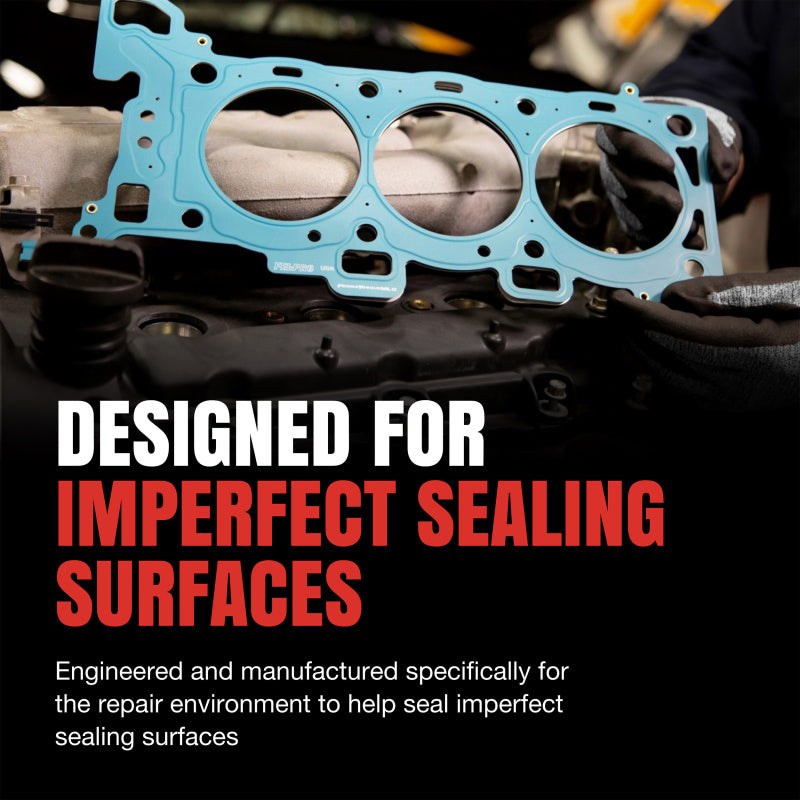

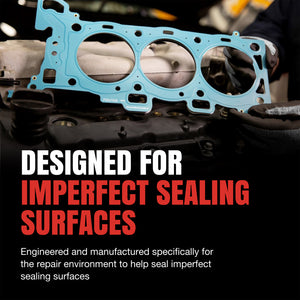

• DESIGNED FOR IMPERFECT SEALING SURFACES -- Engineered and manufactured specifically for the repair environment to help seal imperfect sealing surfaces

Specifications

• Material: Multi-layer steel
• Thickness: 0.021 IN
• Grade Type: Premium
• Cylinder Bore Diameter: 3.568 IN
• Gasket Sealant Included: No
• Head Gasket Bore: 3.568 IN

Application

• 2021-2022 Ford Transit Connect (Liter: 2.5 & Engine(cc): 2488 & Engine(ci): 152 & Cylinder: 4 & Block: L & Bore(in): 3.50 & Bore(mm): 88.9 & Stroke(in): 3.94 & Stroke(mm): 100.1); 2010 Ford Fusion (Liter: 2.5 & Engine(cc): 2488 & Engine(ci): 152 & Cylinder: 4 & Block: L & Bore(in): 3.50 & Bore(mm): 88.9 & Stroke(in): 3.94 & Stroke(mm): 100.1); 2009-2012 Ford Escape (Liter: 2.5 & Engine(cc): 2488 & Engine(ci): 152 & Cylinder: 4 & Block: L & Bore(in): 3.50 & Bore(mm): 88.9 & Stroke(in): 3.94 & Stroke(mm): 100.1); 2009-2011 Mercury Mariner (Liter: 2.5 & Engine(cc): 2488 & Engine(ci): 152 & Cylinder: 4 & Block: L & Bore(in): 3.50 & Bore(mm): 88.9 & Stroke(in): 3.94 & Stroke(mm): 100.1); 2010 Mercury Milan (Liter: 2.5 & Engine(cc): 2488 & Engine(ci): 152 & Cylinder: 4 & Block: L & Bore(in): 3.50 & Bore(mm): 88.9 & Stroke(in): 3.94 & Stroke(mm): 100.1); 2010-2013 Mazda 6 (Liter: 2.5 & Cylinder: 4 & Block: L); 2010-2013 Mazda 3 (Liter: 2.5 & Cylinder: 4 & Block: L); 2012-2015 Mazda 5 (Liter: 2.5 & Cylinder: 4 & Block: L); 2010-2012 Mazda CX-7 (Liter: 2.5 & Cylinder: 4 & Block: L)
