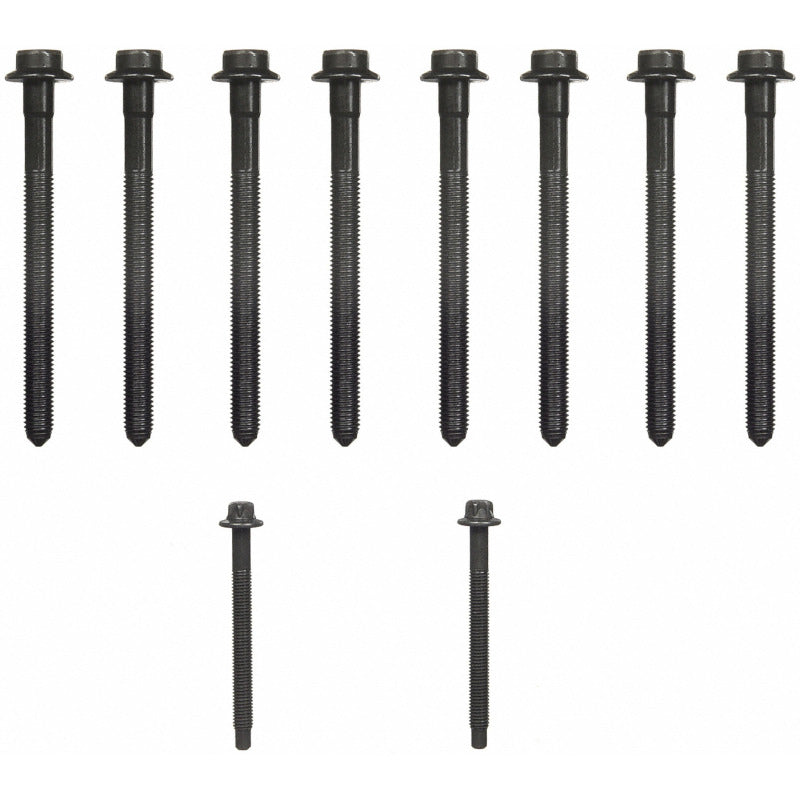

Fel-Pro Ford Explorer ES 72171 Engine Cylinder Head Bolt Set - ES72171

FEL-PRO ES 72171 Engine Cylinder Head Bolt Set for Ford Explorer

Features

• Meets or exceeds all original equipment specifications
• Application specific design to ensure a perfect fit
• Avoid risk associated with re-use of T-T-Y (torque to yield) head bolts
• Validated for fit, form and function
• Unsurpassed quality you can trust

Specifications

• Head Drive Type: Hex
• Thread Diameter: 12 MM, 12.0 MM, 8.0 MM
• Bolt Diameter: 12mm (Bolt 1); 8mm (Bolt 2) MM
• Reusable: No
• Grade Type: Premium
• Assembly Lubricant Included: No
• Bolt Thread Length: 106mm (Bolt 1); 69mm (Bolt 2) MM
• Bolt Thread Pitch: 1.75 (Bolt 1); 1.25 (Bolt 2)
• Bolt Critical Length: 139mm (Bolt 1); 85mm (Bolt 2) MM
• Bolt Head Size: Torx 55 (Bolt 1); Torx 55 (Bolt 2)
• Part Design Or Feature Or Use: Replacement required

Application

• 2005-2009 Land Rover LR3 (Liter: 4.0 & Engine(ci): 245 & Cylinder: 6 & Block: V & Bore(in): 3.95 & Bore(mm): 100.3 & Stroke(in): 3.32 & Stroke(mm): 84.3 / Qualifier: Head Bolts Must be Replaced); 2001-2003 Ford Explorer Sport (Liter: 4.0 & Engine(ci): 245 & Cylinder: 6 & Block: V & Bore(in): 3.95 & Bore(mm): 100.3 & Stroke(in): 3.32 & Stroke(mm): 84.3 / Qualifier: Head Bolts Must be Replaced); 2001-2010 Ford Explorer Sport Trac (Liter: 4.0 & Engine(ci): 245 & Cylinder: 6 & Block: V & Bore(in): 3.95 & Bore(mm): 100.3 & Stroke(in): 3.32 & Stroke(mm): 84.3 / Qualifier: Head Bolts Must be Replaced); 1997-2010 Ford Explorer (Cylinder Head: SOHC & Liter: 4.0 & Engine(ci): 245 & Cylinder: 6 & Block: V & Bore(in): 3.95 & Bore(mm): 100.3 & Stroke(in): 3.32 & Stroke(mm): 84.3 & Engine VIN: E / Qualifier: Head Bolts Must be Replaced); 2005-2010 Ford Mustang (Liter: 4.0 & Engine(ci): 245 & Cylinder: 6 & Block: V & Bore(in): 3.95 & Bore(mm): 100.3 & Stroke(in): 3.32 & Stroke(mm): 84.3 / Qualifier: Head Bolts Must be Replaced); 2001-2011 Ford Ranger (Liter: 4.0 & Engine(ci): 245 & Cylinder: 6 & Block: V & Bore(in): 3.95 & Bore(mm): 100.3 & Stroke(in): 3.32 & Stroke(mm): 84.3 / Qualifier: Head Bolts Must be Replaced); 1998-2010 Mercury Mountaineer (Liter: 4.0 & Engine(ci): 245 & Cylinder: 6 & Block: V & Bore(in): 3.95 & Bore(mm): 100.3 & Stroke(in): 3.32 & Stroke(mm): 84.3 / Qualifier: Head Bolts Must be Replaced); 2001-2010 Mazda B4000 (Liter: 4.0 & Engine(ci): 245 & Cylinder: 6 & Block: V & Bore(in): 3.95 & Bore(mm): 100.3 & Stroke(in): 3.32 & Stroke(mm): 84.3 / Qualifier: Head Bolts Must be Replaced)
