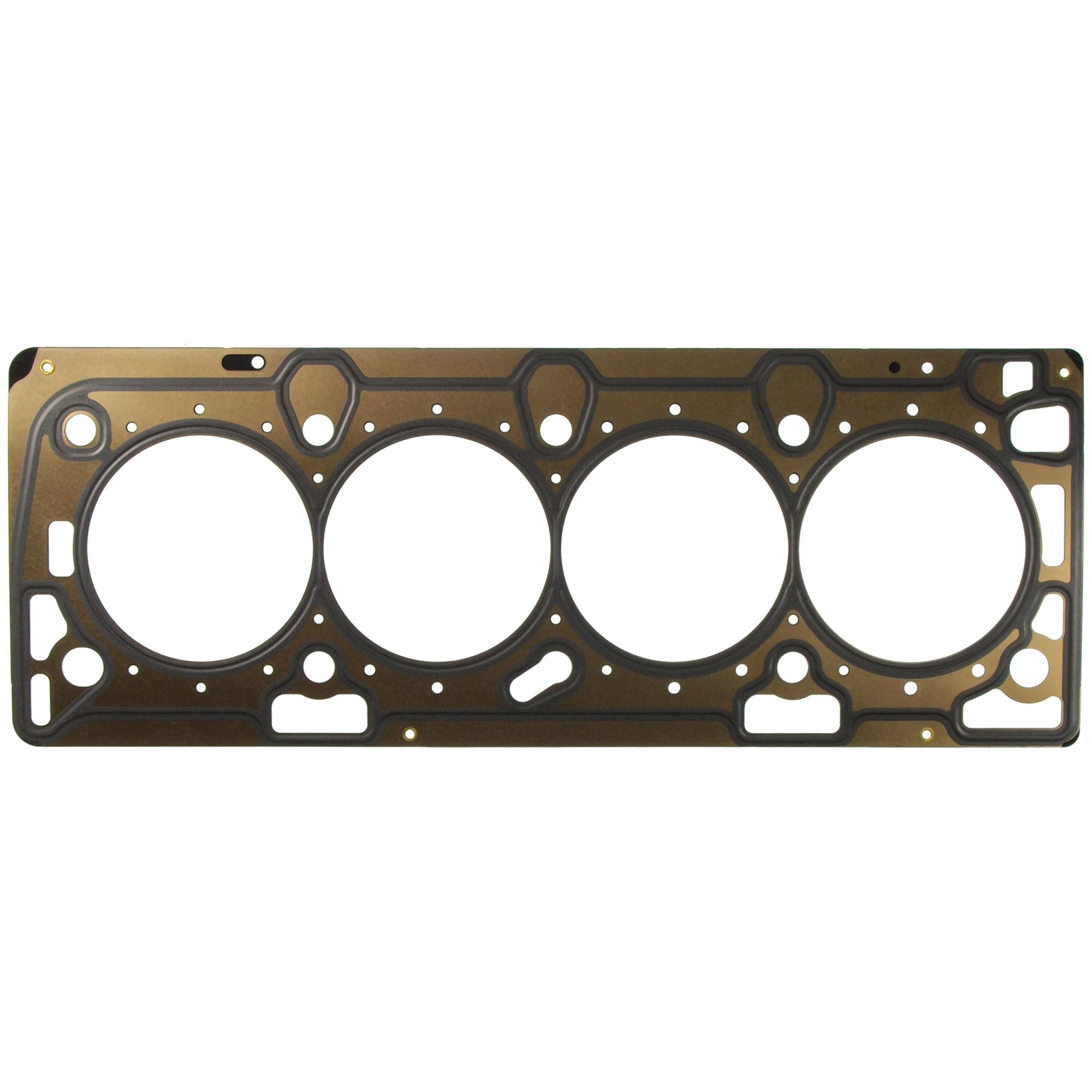

Fel-Pro Chevrolet Cruze 26516 PT PermaTorque Engine Cylinder Head Gasket - 26516PT

FEL-PRO 26516 PT PermaTorque Engine Cylinder Head Gasket for Chevrolet Cruze

Features

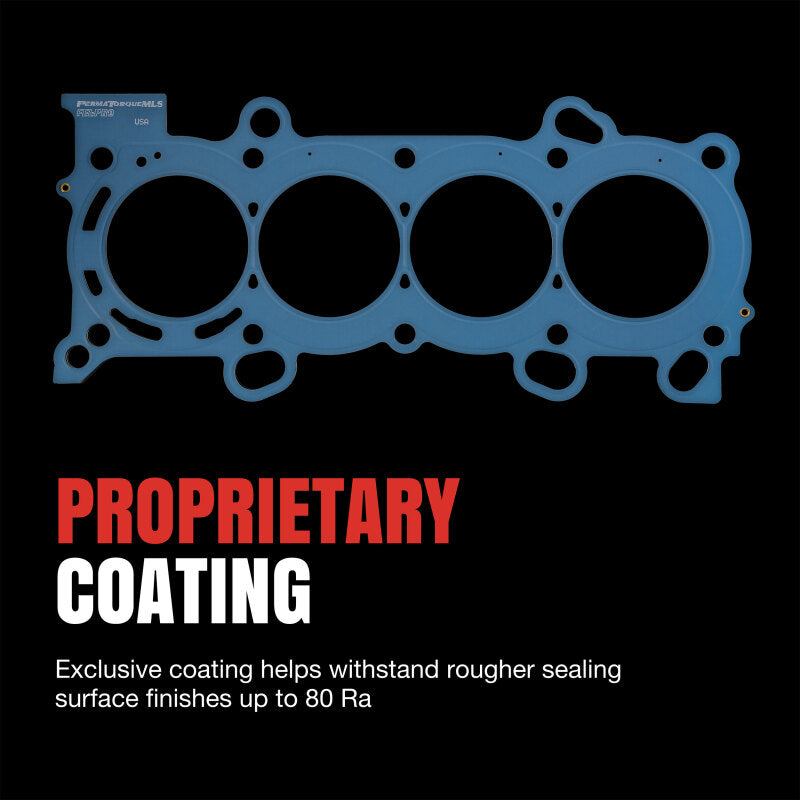

• PROPRIETARY COATING -- Exclusive coating helps withstand rougher sealing surface finishes up to 80 Ra

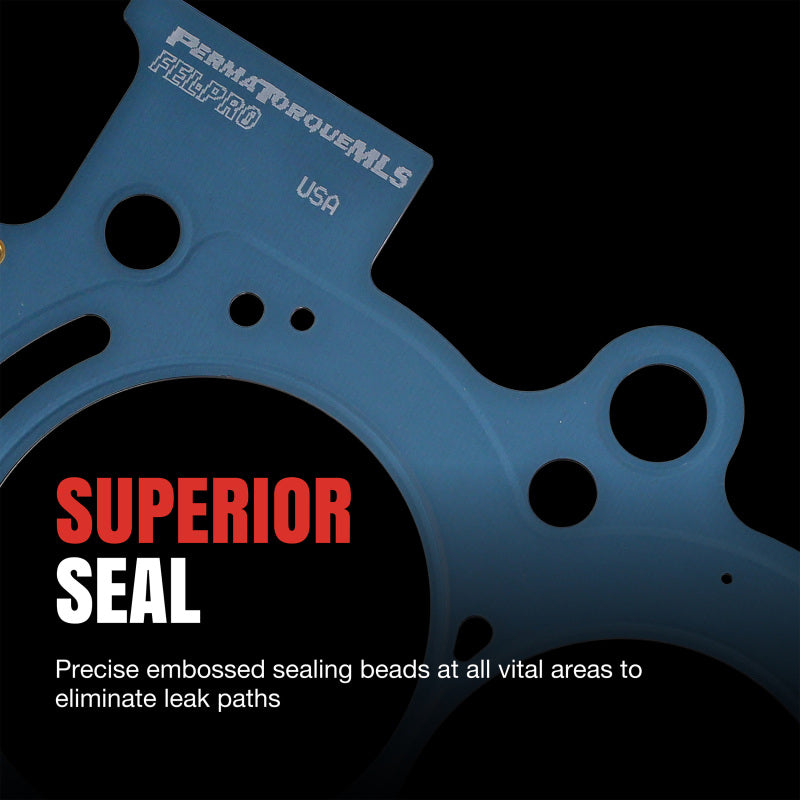

• SUPERIOR SEAL -- Precise embossed sealing beads at all vital areas to eliminate leak paths

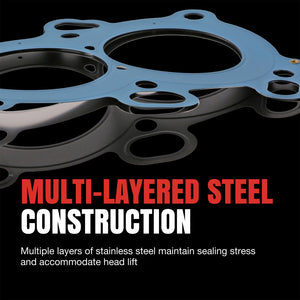

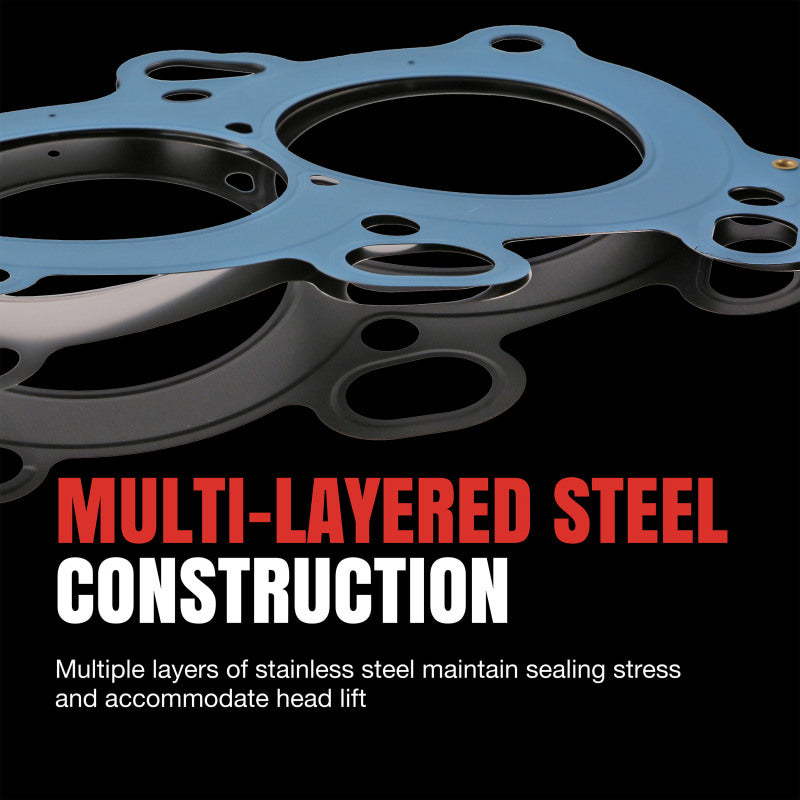

• MULTI-LAYERED STEEL CONSTRUCTION -- Multiple layers of stainless steel maintain sealing stress and accommodate head lift
• UNIQUE COMBUSTION SEAL -- Accommodates high cylinder pressures and head movement encountered with engines
• DESIGNED FOR IMPERFECT SEALING SURFACES -- Engineered and manufactured specifically for the repair environment to help seal imperfect sealing surfaces

Specifications

• Material: PermaTorque MLS
• Thickness: 060 IN
• Grade Type: Premium
• Cylinder Bore Diameter: 3.228 IN
• Gasket Sealant Included: No
• Head Gasket Bore: 3.228 IN

Application

• 2011-2016 Chevrolet Cruze (Liter: 1.8 & Engine(cc): 1796 & Engine(ci): 110 & Cylinder: 4 & Block: L & Bore(in): 3.17 & Bore(mm): 80.5 & Stroke(in): 3.47 & Stroke(mm): 88.2 / Qualifier: Head Bolts Not Included, Head Bolt Replacement Recommended, PermaTorqueMLS Head Gasket(s) Included); 2012-2018 Chevrolet Sonic (Liter: 1.8 & Engine(cc): 1796 & Engine(ci): 110 & Cylinder: 4 & Block: L & Bore(in): 3.17 & Bore(mm): 80.5 & Stroke(in): 3.47 & Stroke(mm): 88.2 / Qualifier: Head Bolts Not Included, Head Bolt Replacement Recommended, PermaTorqueMLS Head Gasket(s) Included); 2009-2011 Chevrolet Aveo (Liter: 1.6 & Engine(cc): 1598 & Engine(ci): 98 & Cylinder: 4 & Block: L & Bore(in): 3.11 & Bore(mm): 79.0 & Stroke(in): 3.21 & Stroke(mm): 81.5 / Qualifier: Head Bolts Not Included, Head Bolt Replacement Recommended, PermaTorqueMLS Head Gasket(s) Included); 2016 Chevrolet Cruze Limited (Liter: 1.8 & Engine(cc): 1796 & Engine(ci): 110 & Cylinder: 4 & Block: L & Bore(in): 3.17 & Bore(mm): 80.5 & Stroke(in): 3.47 & Stroke(mm): 88.2 / Qualifier: Head Bolts Not Included, Head Bolt Replacement Recommended, PermaTorqueMLS Head Gasket(s) Included); 2009-2011 Chevrolet Aveo5 (Liter: 1.6 & Engine(cc): 1598 & Engine(ci): 98 & Cylinder: 4 & Block: L & Bore(in): 3.11 & Bore(mm): 79.0 & Stroke(in): 3.21 & Stroke(mm): 81.5 / Qualifier: Head Bolts Not Included, Head Bolt Replacement Recommended, PermaTorqueMLS Head Gasket(s) Included); 2009 Pontiac G3 Wave (Liter: 1.6 & Engine(cc): 1598 & Engine(ci): 98 & Cylinder: 4 & Block: L & Bore(in): 3.11 & Bore(mm): 79.0 & Stroke(in): 3.21 & Stroke(mm): 81.5 / Qualifier: Head Bolts Not Included, Head Bolt Replacement Recommended, PermaTorqueMLS Head Gasket(s) Included); 2009-2010 Pontiac G3 (Liter: 1.6 & Engine(cc): 1598 & Engine(ci): 98 & Cylinder: 4 & Block: L & Bore(in): 3.11 & Bore(mm): 79.0 & Stroke(in): 3.21 & Stroke(mm): 81.5 / Qualifier: Head Bolts Not Included, Head Bolt Replacement Recommended, PermaTorqueMLS Head Gasket(s) Included)
