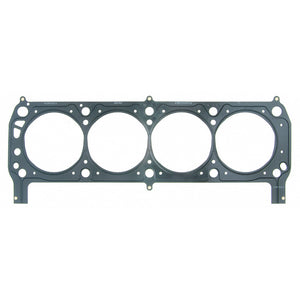

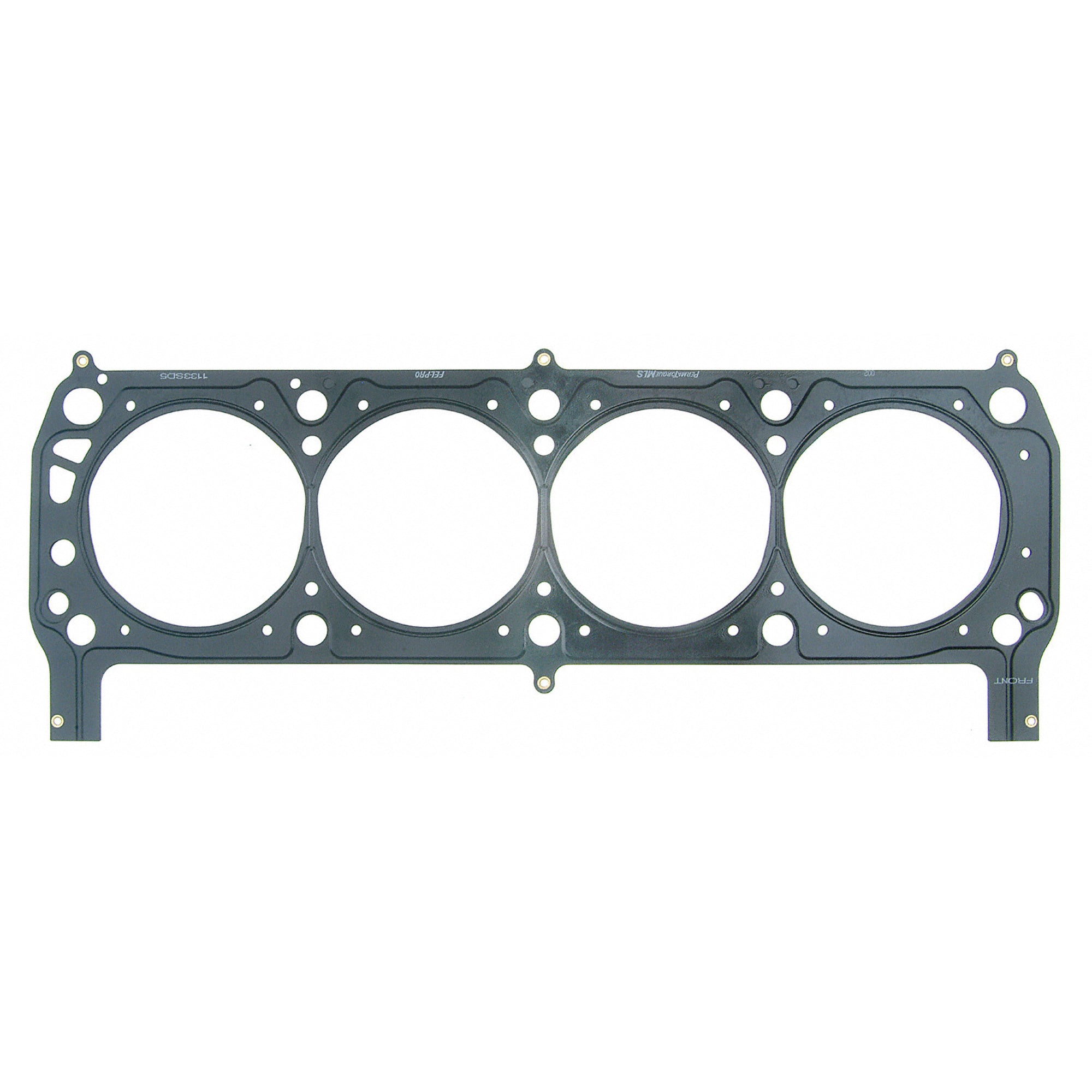

Fel-Pro 1133 SD-5 Severe Duty Engine Cylinder Head Gasket - 1133SD5

FEL-PRO 1133 SD-5 Severe Duty Engine Cylinder Head Gasket

Features

• Fel-Pro Performance head gaskets accommodate the high cylinder pressures and cylinder head movement associated with performance engines
• The latest development in Fel-Pro Performance head gasket technology is the PermaTorqueMLS (multi-layer steel) series
• Strategically located sealing beads surround the combustion chamber and coolant passages concentrating clamp load to prevent leakage
• Retains sealing integrity in engines that experience significant scrubbing and movement due to dissimilar materials (such as aluminum heads on a cast iron
• Not intended for use in emission controlled vehicles

Specifications

• Material: PermaTorque MLS
• Thickness: 0.052 IN
• Grade Type: Performance
• Cylinder Bore Diameter: 4.100 IN
• Gasket Sealant Included: No
• Engine Displacement: 260, 289, 302, 351W Windsor
• Combustion Chamber Volume (CC): 10.800
• Application Notes: Will also fit Yates cylinder head
• Product Notes: 4 active layers; 1 shim layer
• Engine Family: Ford V8 Windsor Small Block
• Manufacturer: Ford Performance
• Bore Size (in.): 4.100 IN
• Combustion Seal Design: MLS bore bead

Application

• Ford V8 Small Block, 260, 289, 302 (Exc. Boss), 351W Engines
