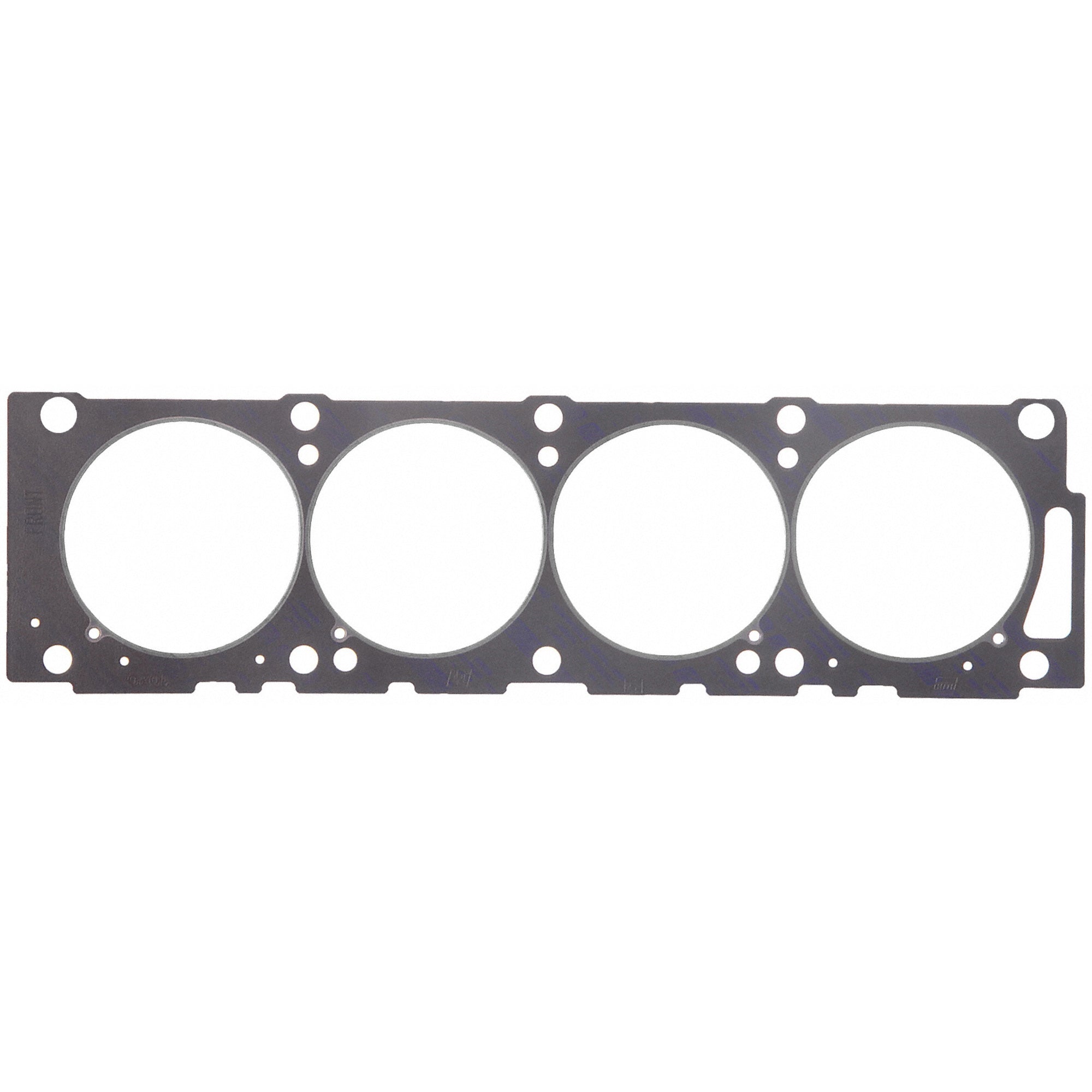

Fel-Pro 1020 Steel core laminate Engine Cylinder Head Gasket

FEL-PRO 1020 Steel core laminate Engine Cylinder Head Gasket

Features

• Fel-Pro Performance head gaskets accommodate the high cylinder pressures and cylinder head movement associated with performance engines
• Inserted within a stainless steel armor surrounding each cylinder, wire ring design provides highly concentrated sealing around the combustion chamber
• Raises combustion sealing force to roughly three times that of standard head gaskets
• Steel wire rings for the greatest combustion seal strength
• Not intended for use in emission controlled vehicles

Specifications

• Material: Steel core laminate
• Thickness: 0.041 IN
• Grade Type: Performance
• Cylinder Bore Diameter: 4.400 IN
• Gasket Sealant Included: No
• Engine Displacement: 360, 390, 390GT, 406, 427, 428, 428CJ, 428SCJ
• Combustion Chamber Volume (CC): 10.100
• Application Notes: Exc. 352 Engs
• Product Notes: Minimal brinelling of aluminum heads
• Engine Family: Ford V8 FE Big Block
• Manufacturer: Ford Performance
• Bore Size (in.): 4.400 IN
• Combustion Seal Design: Pre-flattened steel wire

Application

• FOP Performance V8, 360 (5.9L), 390 (6.4L), 406 (6.6L), 427 (7.0L), 428 (7.0L), 428CJ (7.0L), 428SCJ (7.0L); Steel wire
