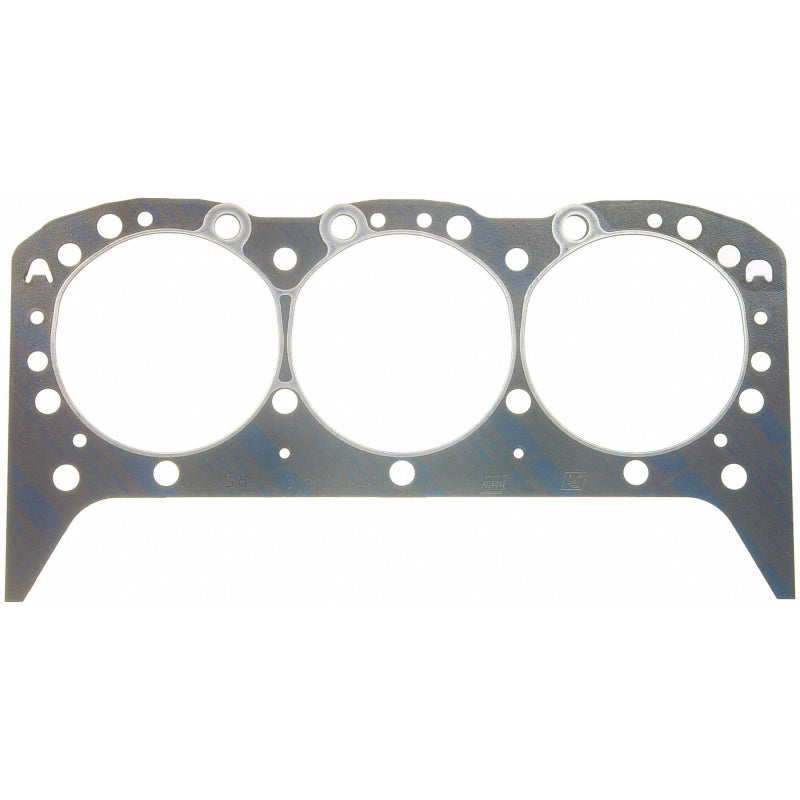

Fel-Pro 1002 Steel core laminate Engine Cylinder Head Gasket

FEL-PRO 1002 Steel core laminate Engine Cylinder Head Gasket

Features

• Fel-Pro Performance head gaskets accommodate the high cylinder pressures and cylinder head movement associated with performance engines
• Inserted within a stainless steel armor surrounding each cylinder, wire ring design provides highly concentrated sealing around the combustion chamber
• Raises combustion sealing force to roughly three times that of standard head gaskets
• Steel wire rings for the greatest combustion seal strength
• Not intended for use in emission controlled vehicles

Specifications

• Material: Steel core laminate
• Thickness: 0.041 IN
• Grade Type: Performance
• Cylinder Bore Diameter: 4.166 IN
• Gasket Sealant Included: No
• Engine Displacement: 229 (3.8L), 262 (4.3L)
• Combustion Chamber Volume (CC): 9.100
• Product Notes: Minimal brinelling of aluminum heads
• Engine Family: Chevrolet V6
• Manufacturer: GM Performance
• Bore Size (in.): 4.166 IN
• Combustion Seal Design: Pre-flattened steel wire

Application

• GMP Performance V6, 200 (3.3L), 229 (3.8L), 262 (4.3L); Steel wire
