FAST Wiring Harness FAST Main Drag - 301106

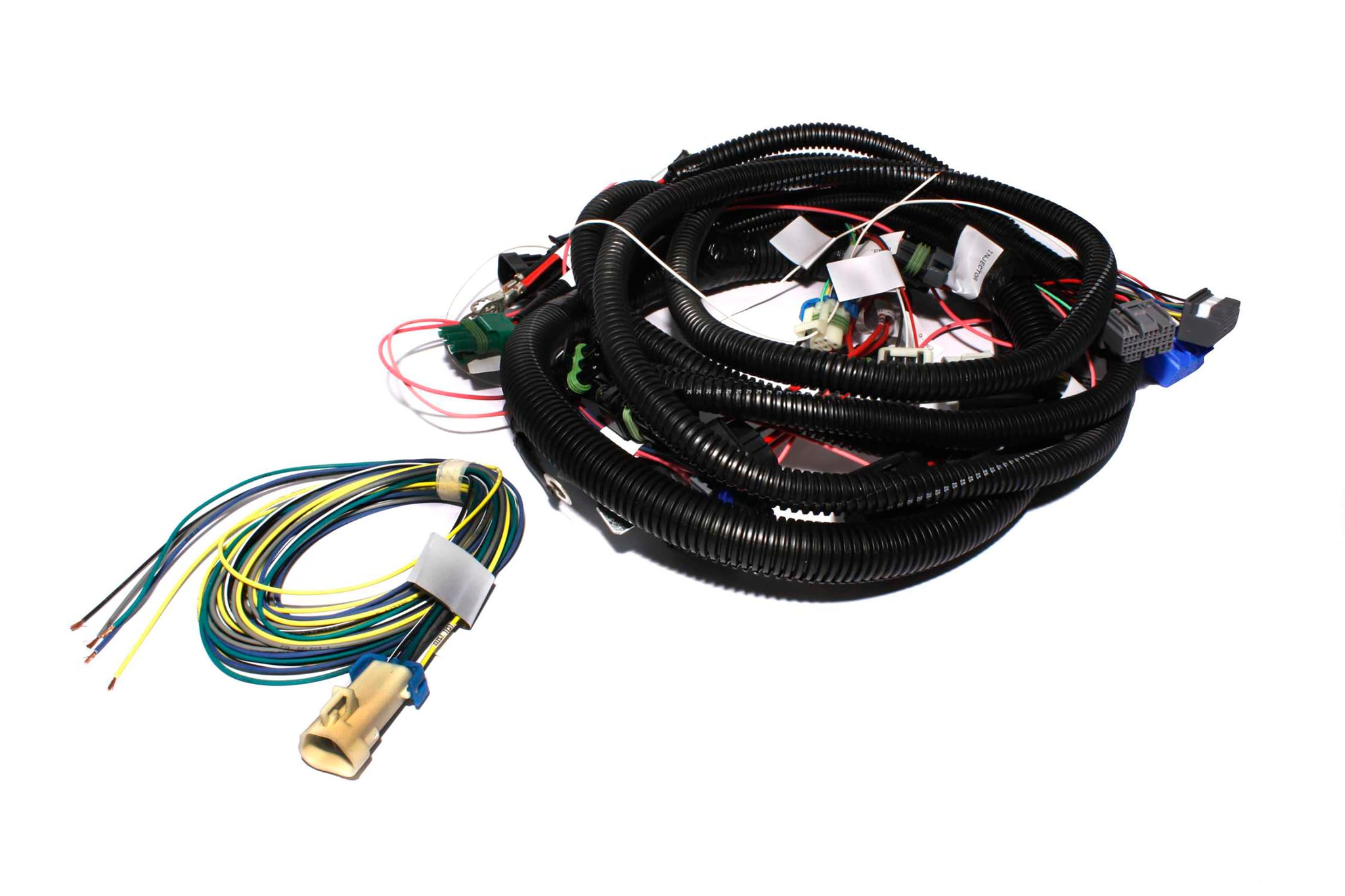

FAST XFI Main Harnesses features clearly labeled connectors and pre-terminated ends with Weather Pack connectors for a perfect fit to your application. Environmentally sealed and Weather Pack connectors were originally designed and to be able to withstand exposure to extreme temperatures, moisture, and harsh engine compartment fluids and chemicals. They are heavily used by OEM Automobile/Truck, Construction, Off-Road, and Farm Equipment manufactures due to their high quality and excellent fitment. Harness Part Number 301106: Rear Engine Dragster/Boat wiring harness.
Sensor Kits for 301106 Harness:All below kits include: MAP, CTS, ATS, and TPS
Ford

• 1 Bar - 14.5psi Max and - Part# 307049
• 2 Bar - 29.0 PSI Max - Part# 307050
• 3 Bar - 43.5psi Max - Part# 307051
• 5 Bar - 72.5psi Max - Part# 307052

GM

• 1 Bar - 14.5psi Max - Part# 307053
• 2 Bar - 29.0 PSI Max - Part# 307054
• 3 Bar - 43.5psi Max - Part# 307055
• 5 Bar - 72.5psi Max - Part# 307056

Individual Sensors for 301106 Harness:
Throttle Position Sensor (TPS)

• GM TPI style Sensor - Part# 30088 and
• Ford Sensor withGM TPI style Connector Part# 307005
• GM Late TPS Adaptor Harness - Part# 308023 Allows and below and TPS to be used with 301100 Harness
• GM LS1 style Sensor Part# 54020
• GM LT1 style Sensor Part# 307028

Manifold Absolute Pressure (MAP)

• 1 Bar MAP (14.5psi Max) Part# 307007
• 2 Bar MAP(29.0 PSI Max) and Part# 307008
• 3 Bar MAP(43.5psi Max) and Part# 307009
• 5 Bar MAP(72.5psi Max) and Part# 307047

Coolant Temp. Sensor (CTS): FAST Part# 307003
Air Temp. Sensor (ATS): FAST Part# 307004
Idle Air Control (IAC)

• TPI - Part# 307014
• Remote IAC Valve Adaptor withFilter - Part# 307016
• GM Late IAC Adaptor Harness - Part# 308023 Allows and below and IAC motors to be used with 301100 Harness
• LS1 Part# 307059
• LT1 - Part# 307015
