Eibach 24-25 Ford Ranger 4WD Stage 2 Pro-Truck Lift Kit - E86-35-062-03-22

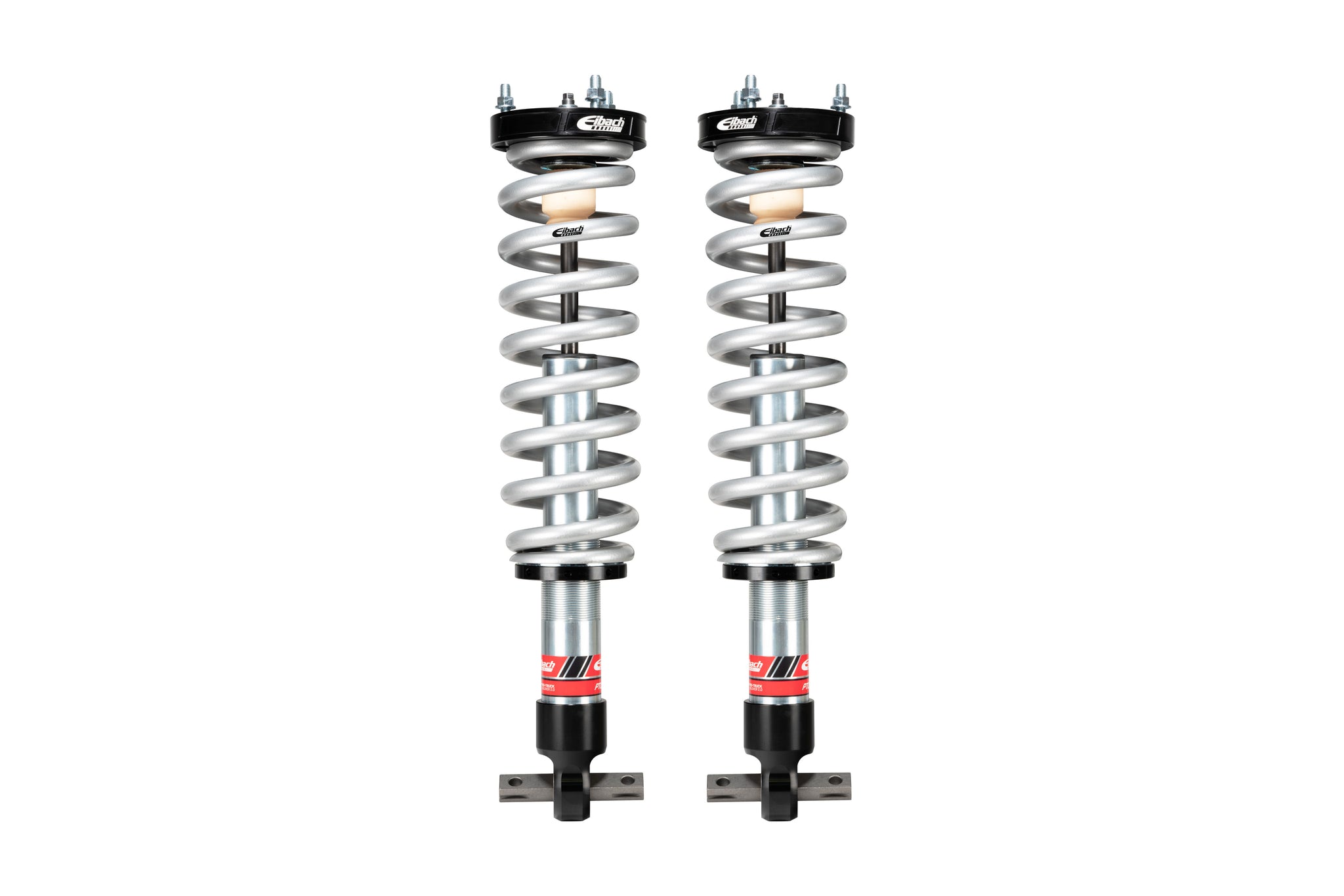

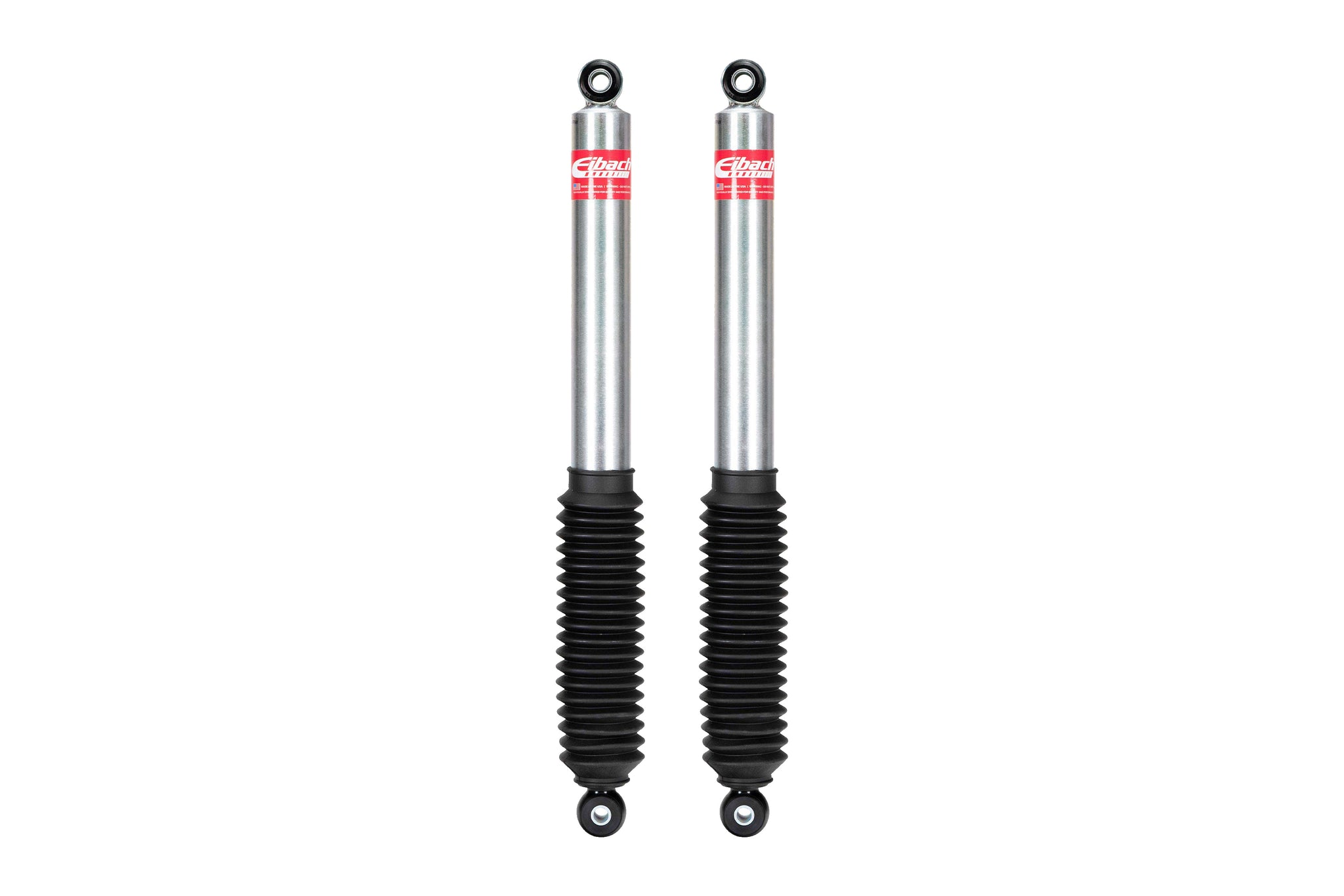

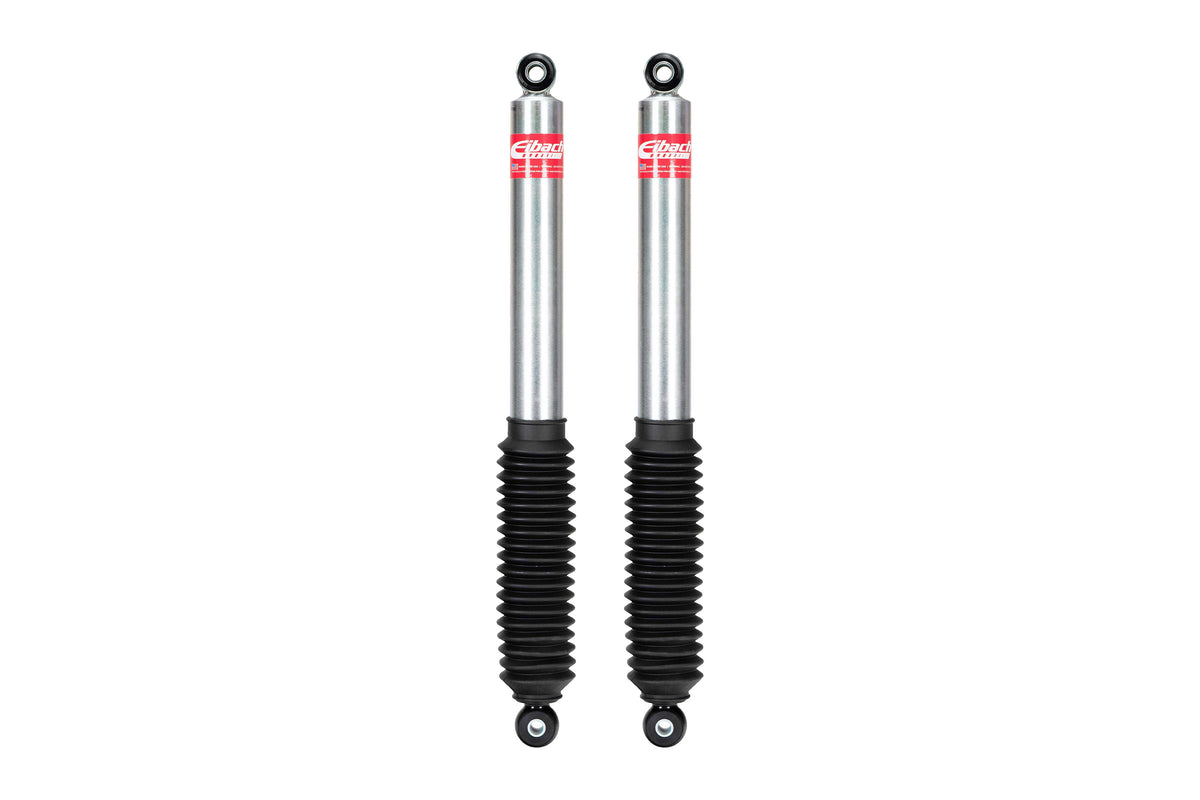

The PRO-TRUCK-LIFT STAGE 2 System shares the same rear components (lift springs, sport shocks, air bag delete) as our STAGE 1 system with an upgrade in adjustability up front. The front 2.0 coilovers were developed utilizing our extended-travel mono tube design and variable force valving that delivers control during on-road transit and compliance for maximum traction on the trails.

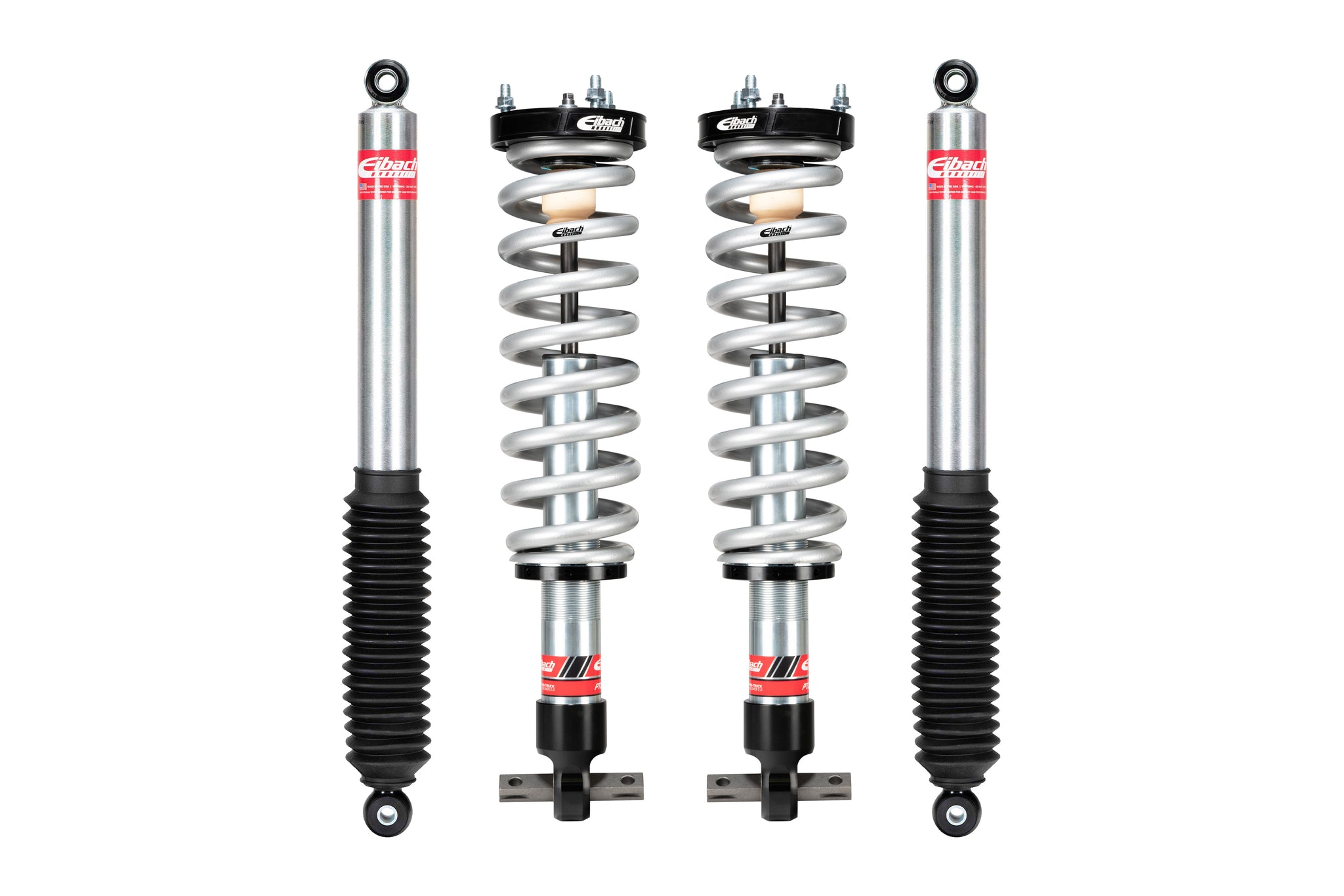

• Stage 2 system featuring Pro-Truck-Coilover 2.0's + Rear Sport Shocks
• Front Adjustable Threaded Spring Perch to Accommodate Increased Loads and Maximum Clearance. ERO Off-Road Race Spring Equipped and Compatible.
• Anodized 6061-T6 Billet Aluminum Coilover Mounts, 46mm Piston, Monotube Design with Nitrogen Filled Variable Force Valving.
• Individually Dyno Tested for Matched Performance and Reliability. Heavy Duty Bushing System also Cycle Tested.
• Engineered, Tested and Manufactured by Eibach in the U.S.A.

Notes:

• Exact lift heights may vary depending on exact packages and weight distributions of vehicle
• Out of the box coil-over height is set to be level with OE rear height.
• Do not exceed the max called out lift height, poor ride quality will result.
• 2.7L V6 Ecoboost: Adjust lower spring perch to a preload of 115mm/4.5". Measure from the top of the bottom mount to the bottom of the spring perch.
