Edelbrock Supercharger Stage 1 - Street Kit 2011-2014 Ford Mustang 5 0L w/ Tuner - 1588

SKU: SKU: EDE1588

<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>
This item is classified as Oversized and may incur an additional handling fee at checkout depending on your shipping location. No additional fees apply for pickup orders. You may be contacted for additional fees.
Oversize Debug
Tier code
Tier priority
Tier max weight (lb)
Tier max girth (in)
Product weight (lb)
L × W × H (in)
Girth L + 2×(W+H)
Requires acktrue

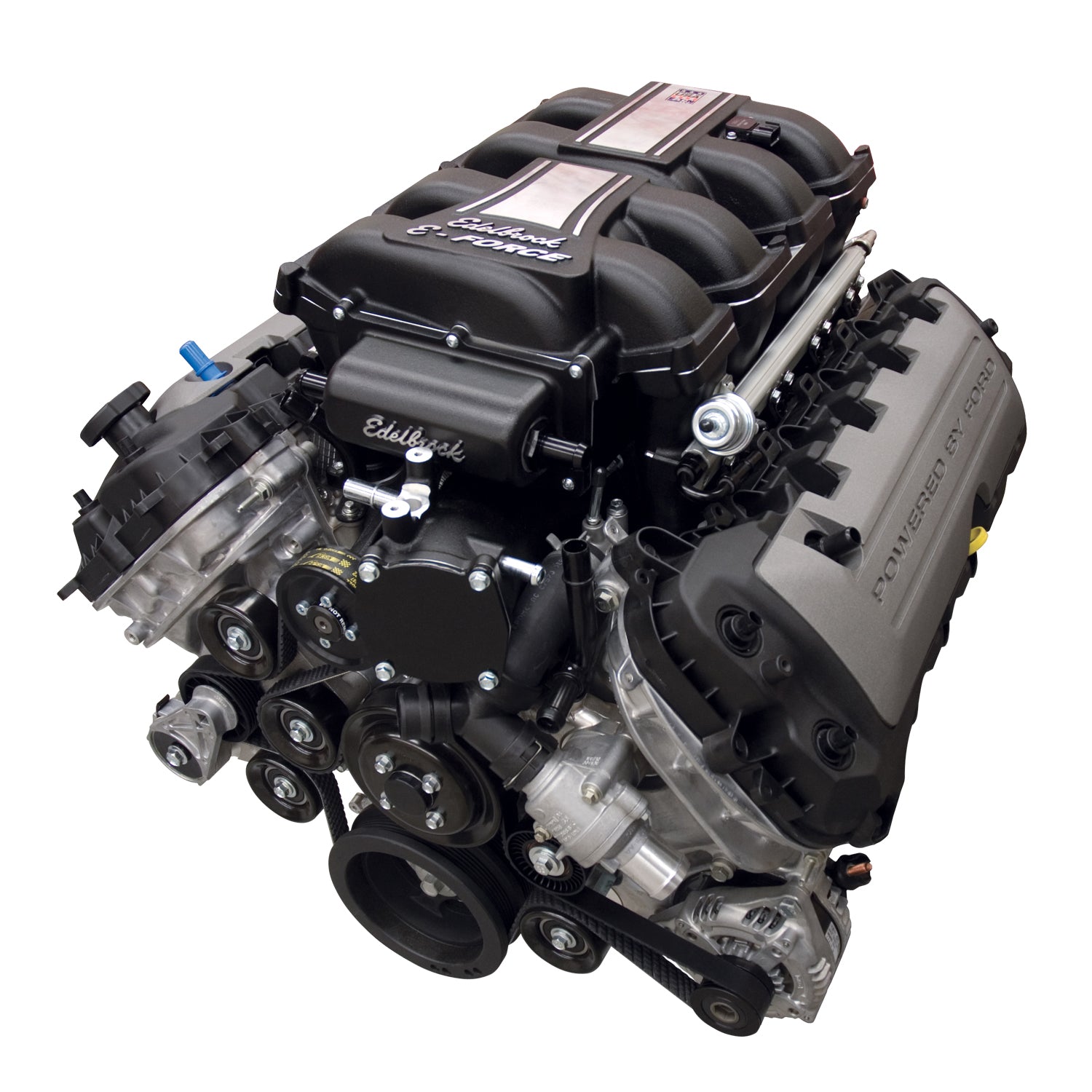

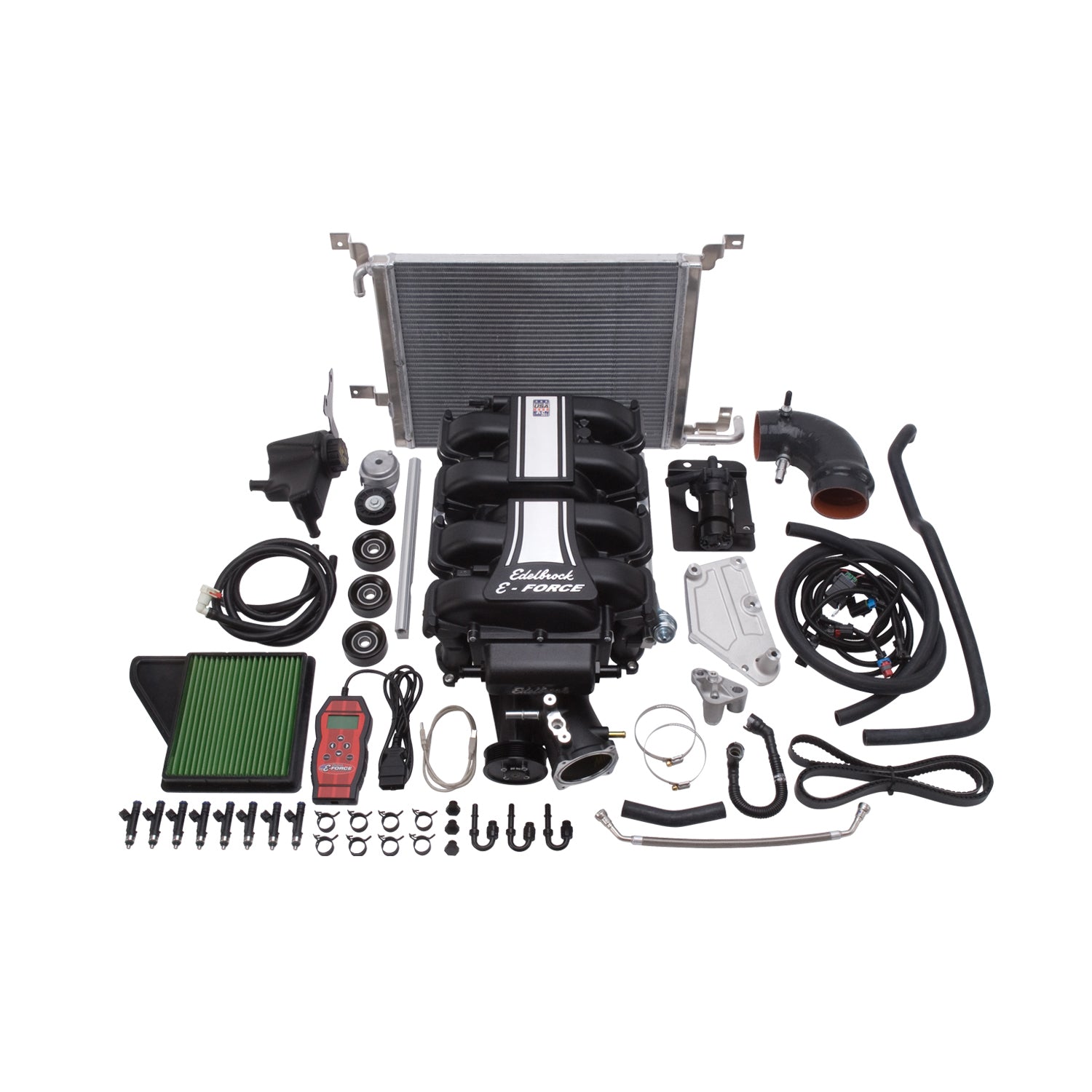

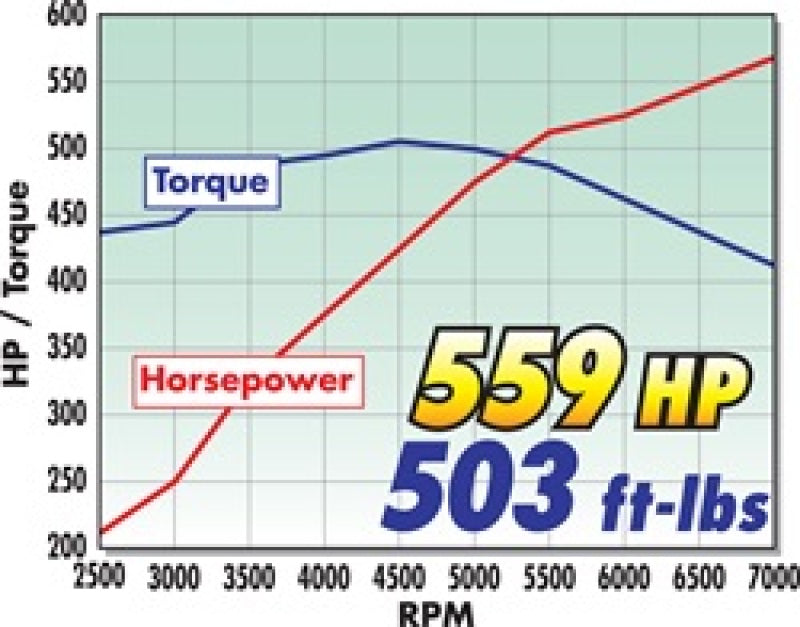

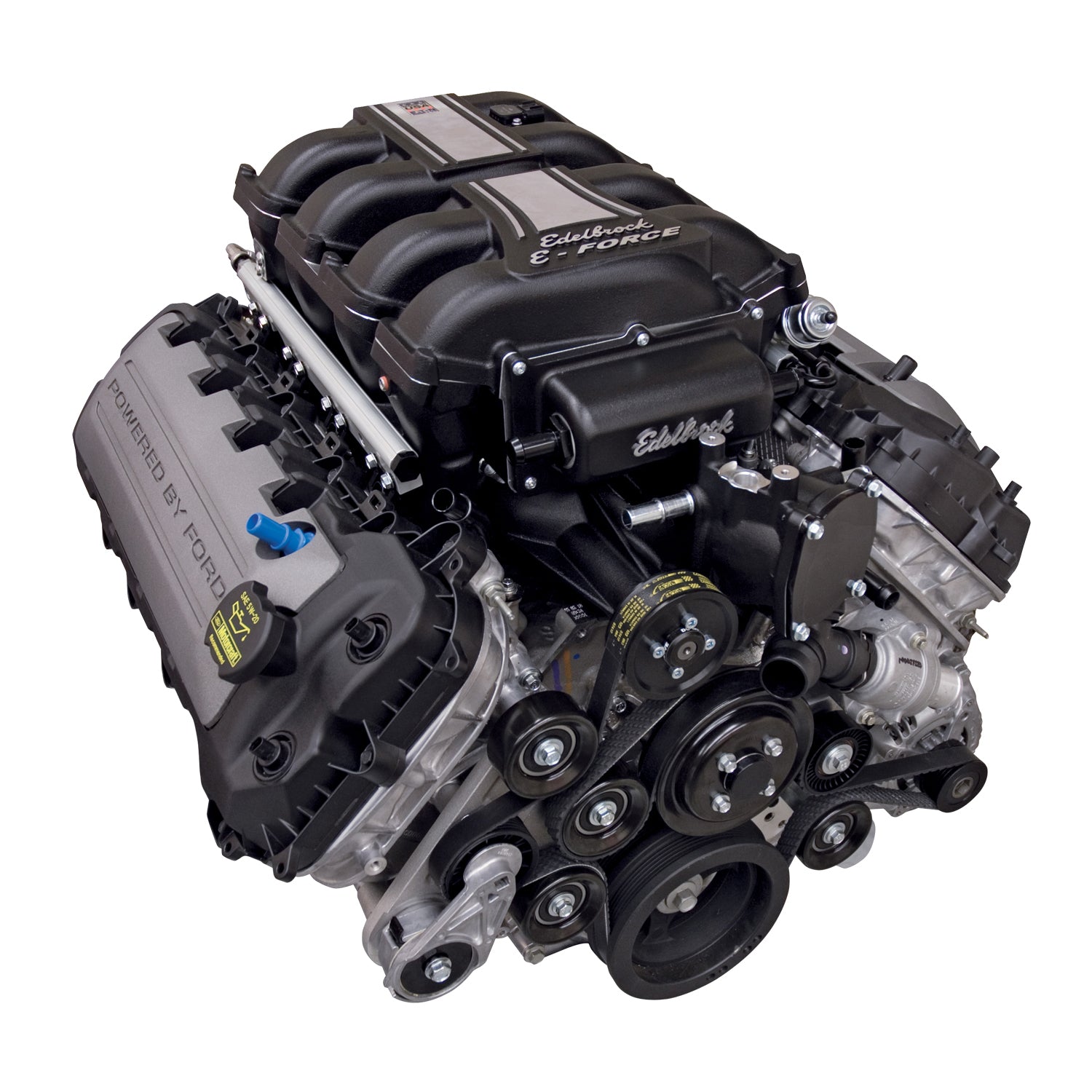

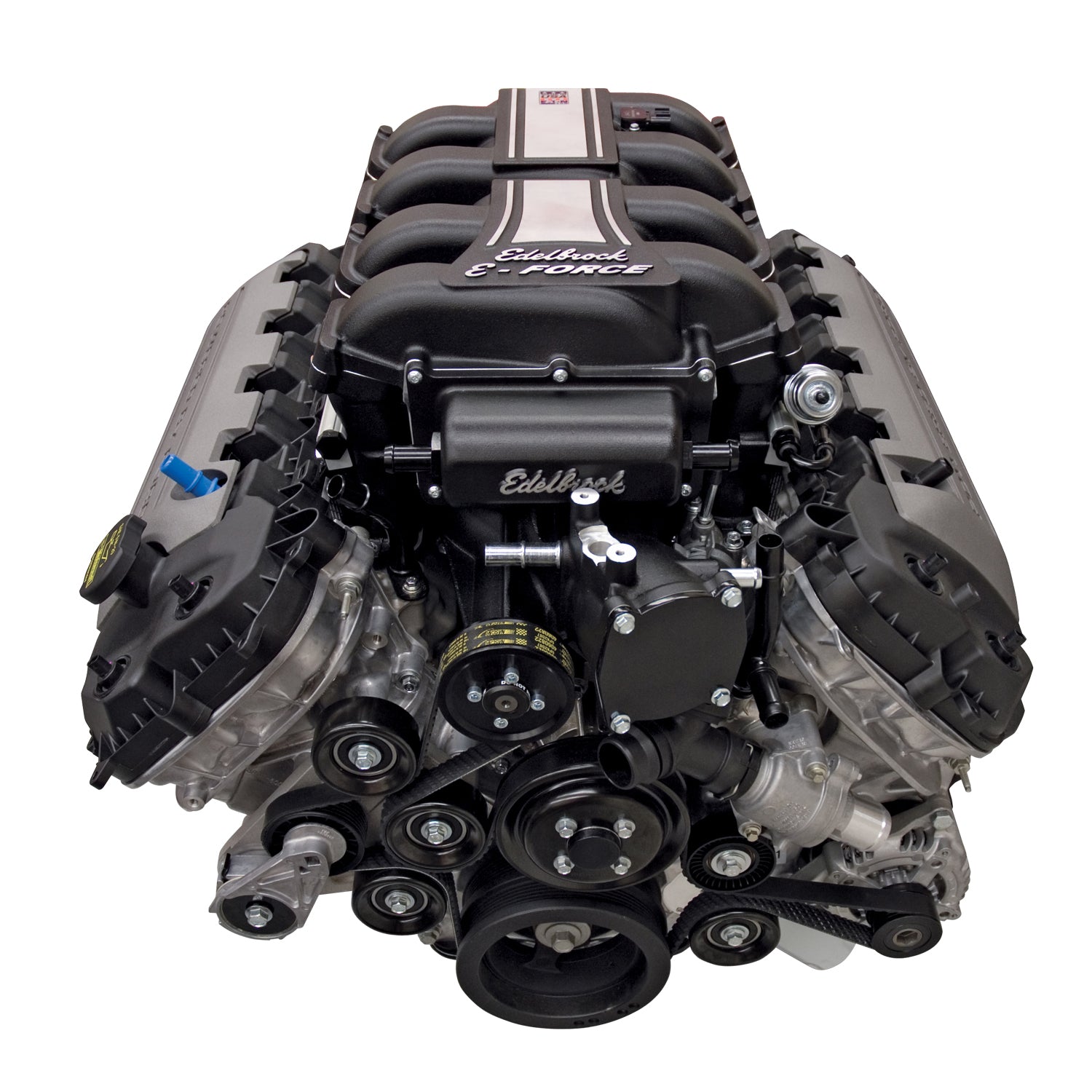

The Edelbrock supercharger Stage 1 Street system part #1588 for 2011-14 Mustangs increases the performance of your Coyote 5.0L 4V engine to 559 horsepower and 503 ft-lbs of torque at the crank. The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. The Edelbrock #1588 system is 50-state emissions legal. The supplied tune is intended for completely stock vehicles with the exception of a cat-back exhaust.

The Edelbrock Supercharger System part #1588 is for the 2011-14 Ford Mustang 5.0L 4V . This kit produces 559 horsepower and 503 ft-lbs of torque.

Specifications

Vehicle Model Mustang
Calibration Yes
Maximum Horsepower 559
Outside Pulley Diameter 3.75 IN
Air Filter Included Yes
Harmonic Balancer Diameter 6.67 IN
Mounting Hardware Included Yes
Maximum Pressure Reading 4.75 PS
System Type Stage 1 - Street System
Tensioner Included Yes
9040 D-215-89
Finish Black Powder Coated
Pulley Belt Width 6-Rib
Gasket Or Seal Included Yes
Hose Included Yes
Center Housing Cooling Type Intercooler
Universal Or Specific Fit Specific
Maximum Boost Pressure 4.75 PS
Mounting Bracket Included Yes
Rotor Type Eaton TVS 2300
Housing Material Cast Aluminum
Fuel Injector Type 50 4U
Internal Step Up Yes
Quantity Kit
Maximum Torque 503 85
Oil Capacity 150 ML

California Prop 65 Warning: WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
