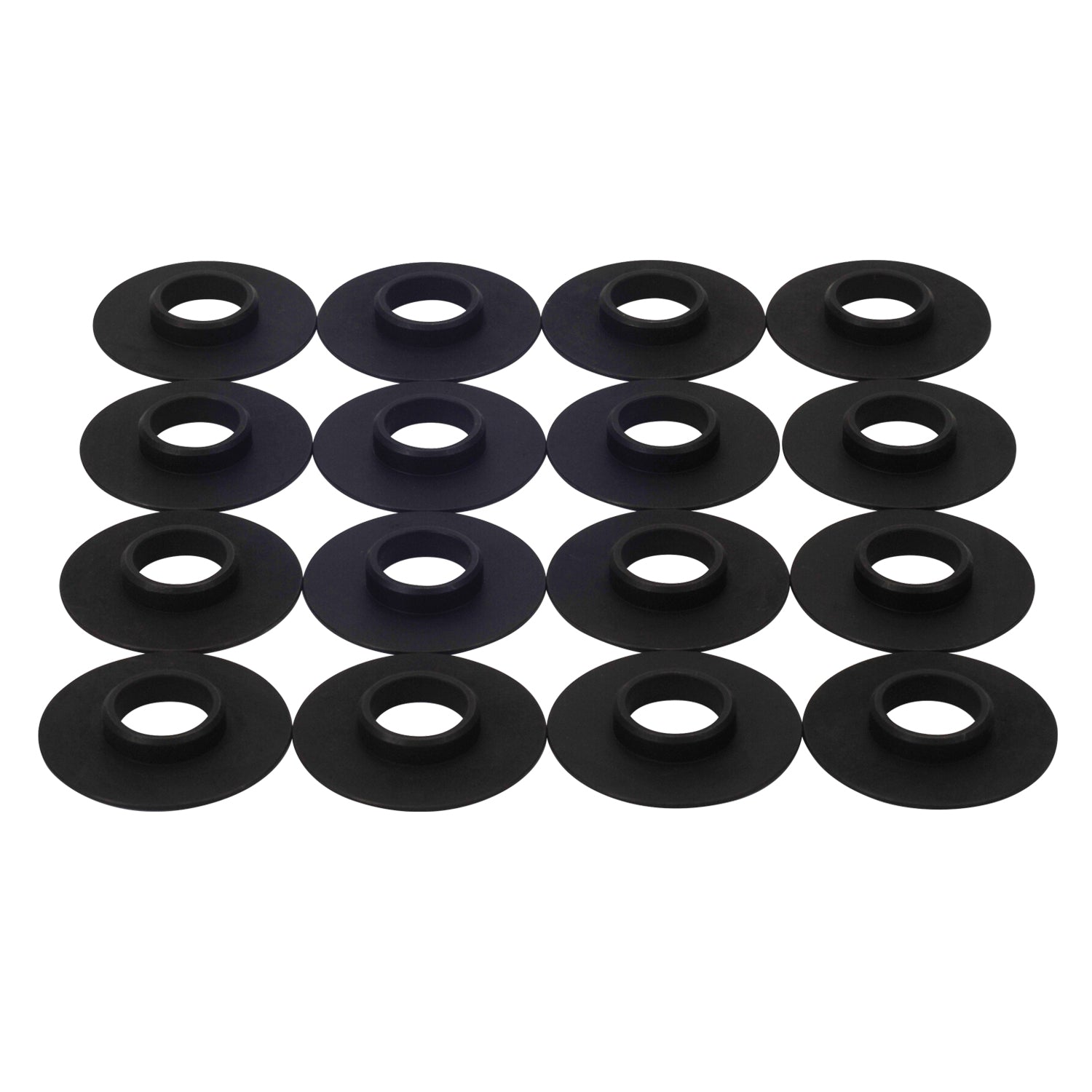

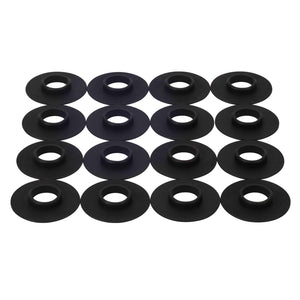

The new Edelbrock Spring Seat Locator Kit #5799 (set of 16) is intended for applications that require the use of hardened valve spring seat locators. This includes all of the complete Edelbrock cylinder heads that use the 1.54-inch Dual Valve Springs #5823 for solid roller lifter camshafts such as the Big-Block Chevy Performer RPM and the 460 Ford Performer RPM cylinder heads. These valve spring seat locators have a thickness of .060 inch and will provide a hardened barrier between the valve springs and the aluminum cylinder heads while positively locating the base of the valve spring.
The Edelbrock Spring Seat Locator Kit #5799 (set of 16) is intended for cylinder head applications that require the use of hardened valve spring seat locators.
Specifications
| Recommended Use |
Use With Valve Seal Kit #9758 and Valve Spring Kit #5823 |
| Material |
Steel |
| Outside Diameter |
1.520 IN |
| Finish |
Black Oxide |
| Grade Type |
Performance |
| Thickness |
0.60 IN |
| Inside Diameter |
0.570 IN |
| Quantity |
Set of 16 |
California Prop 65 Warning: WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
