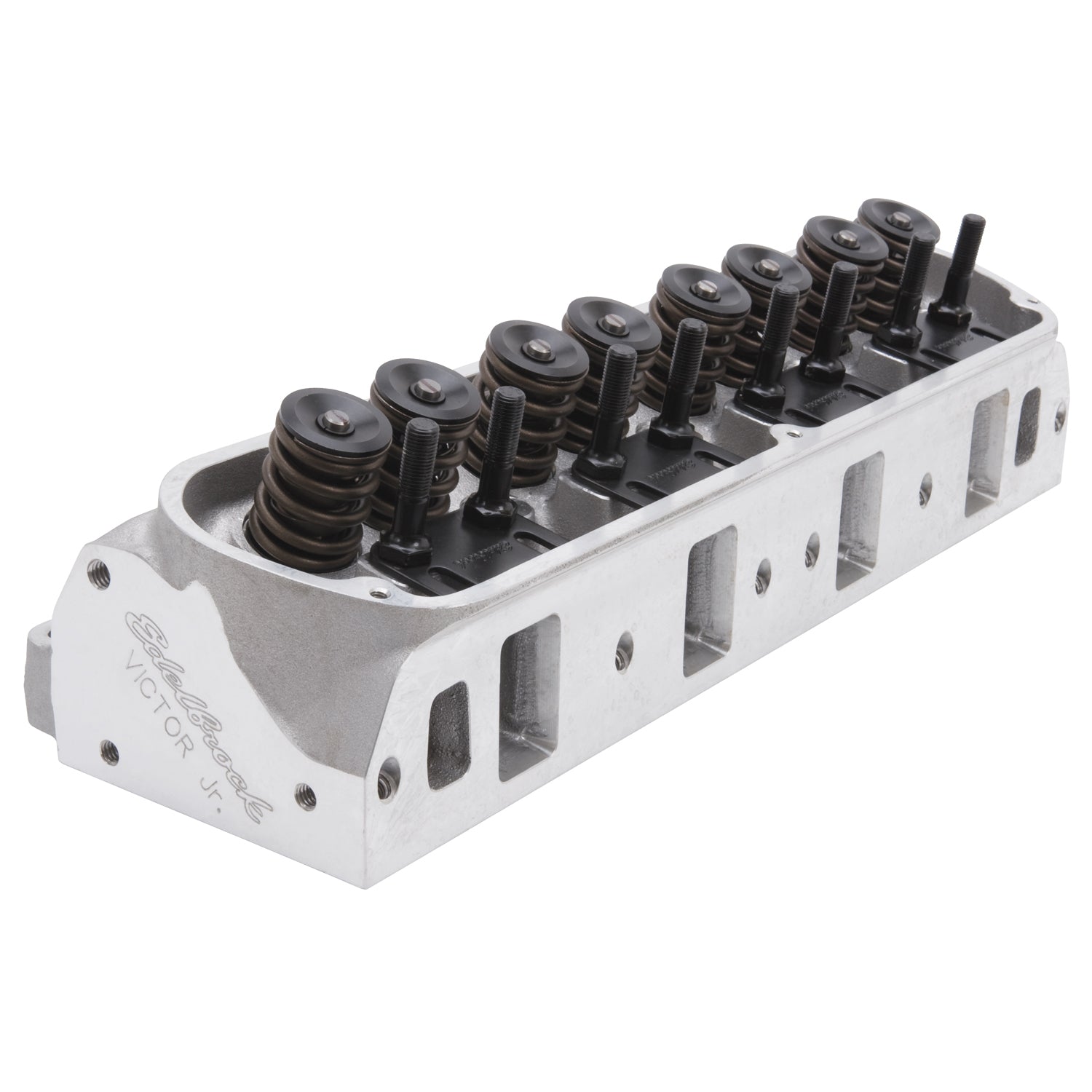

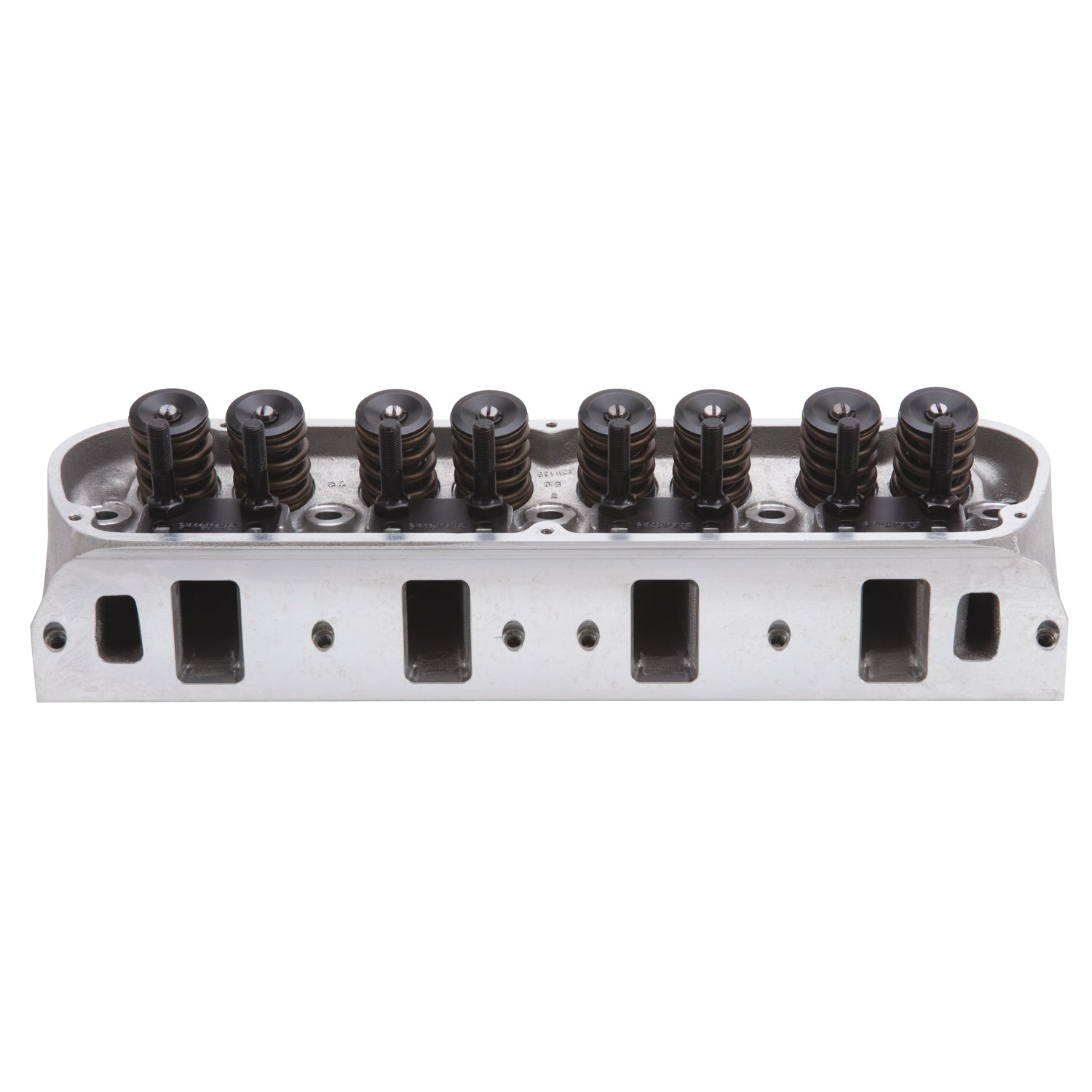

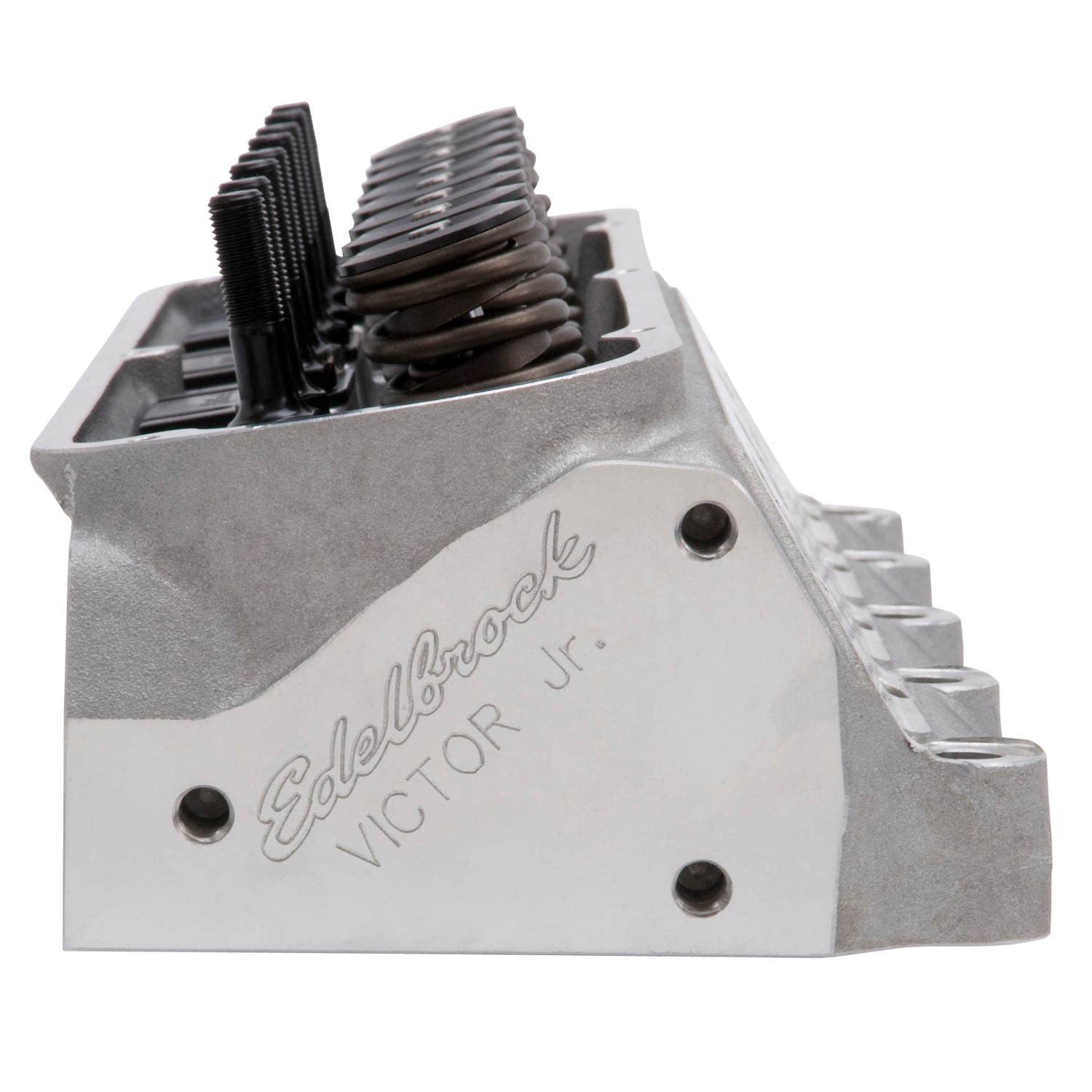

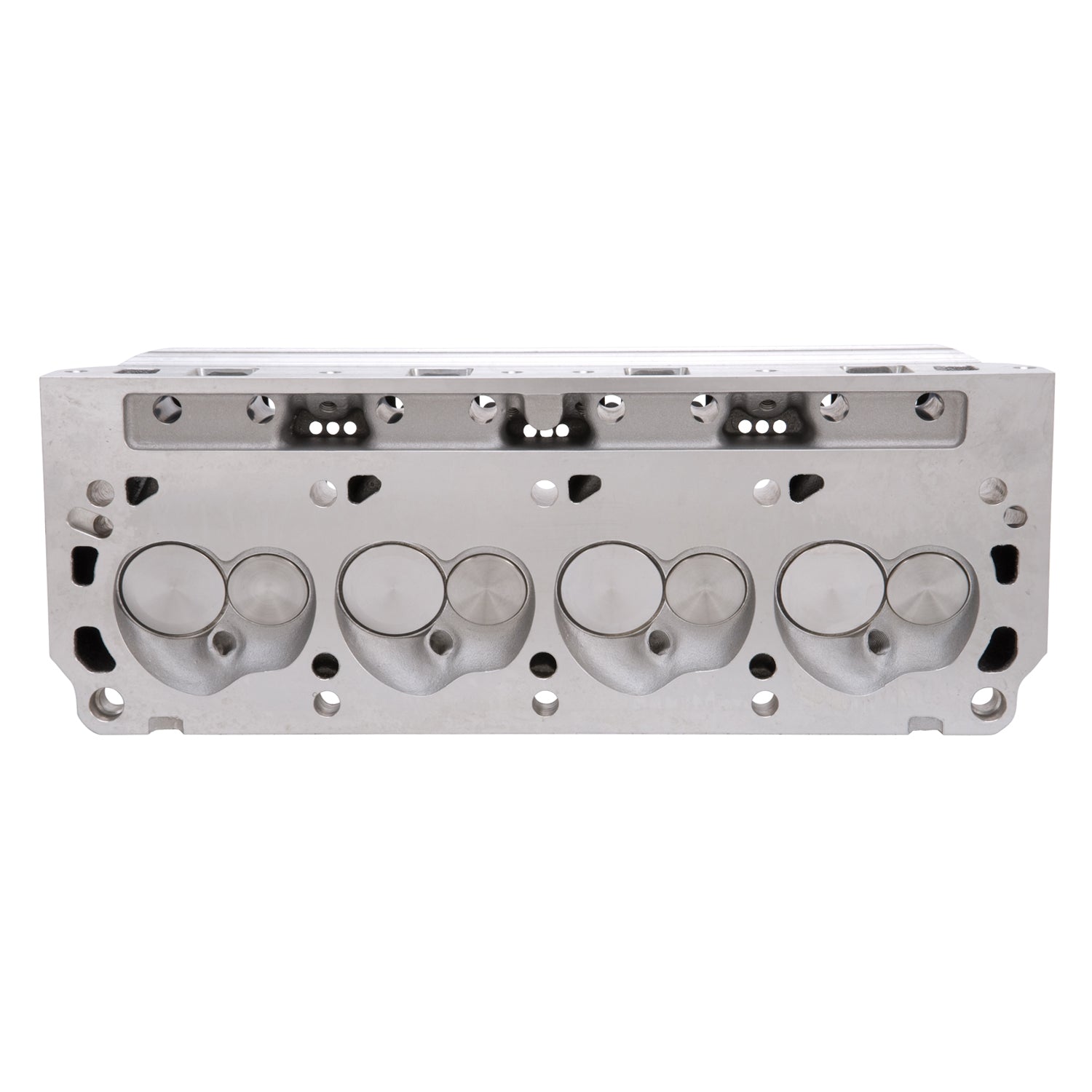

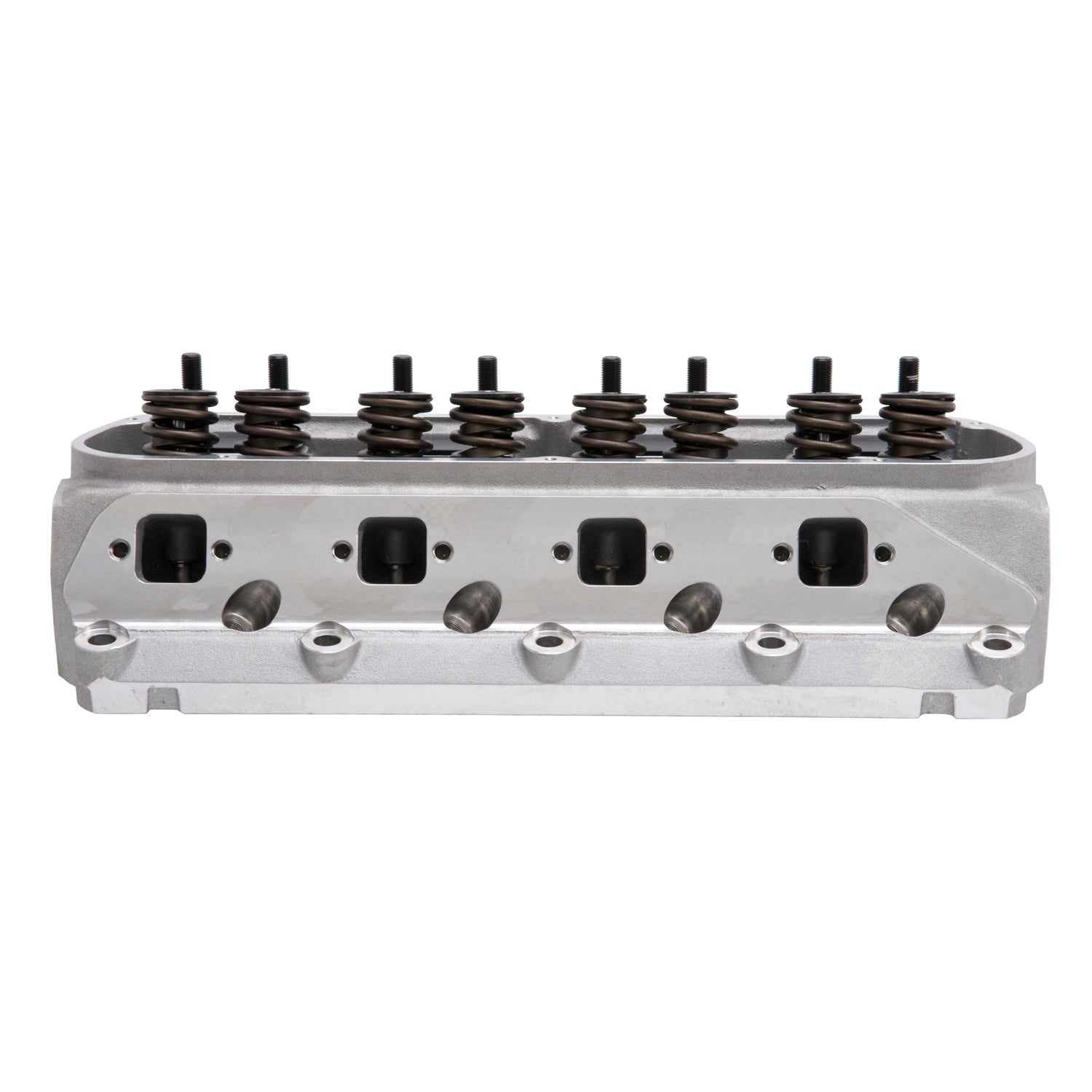

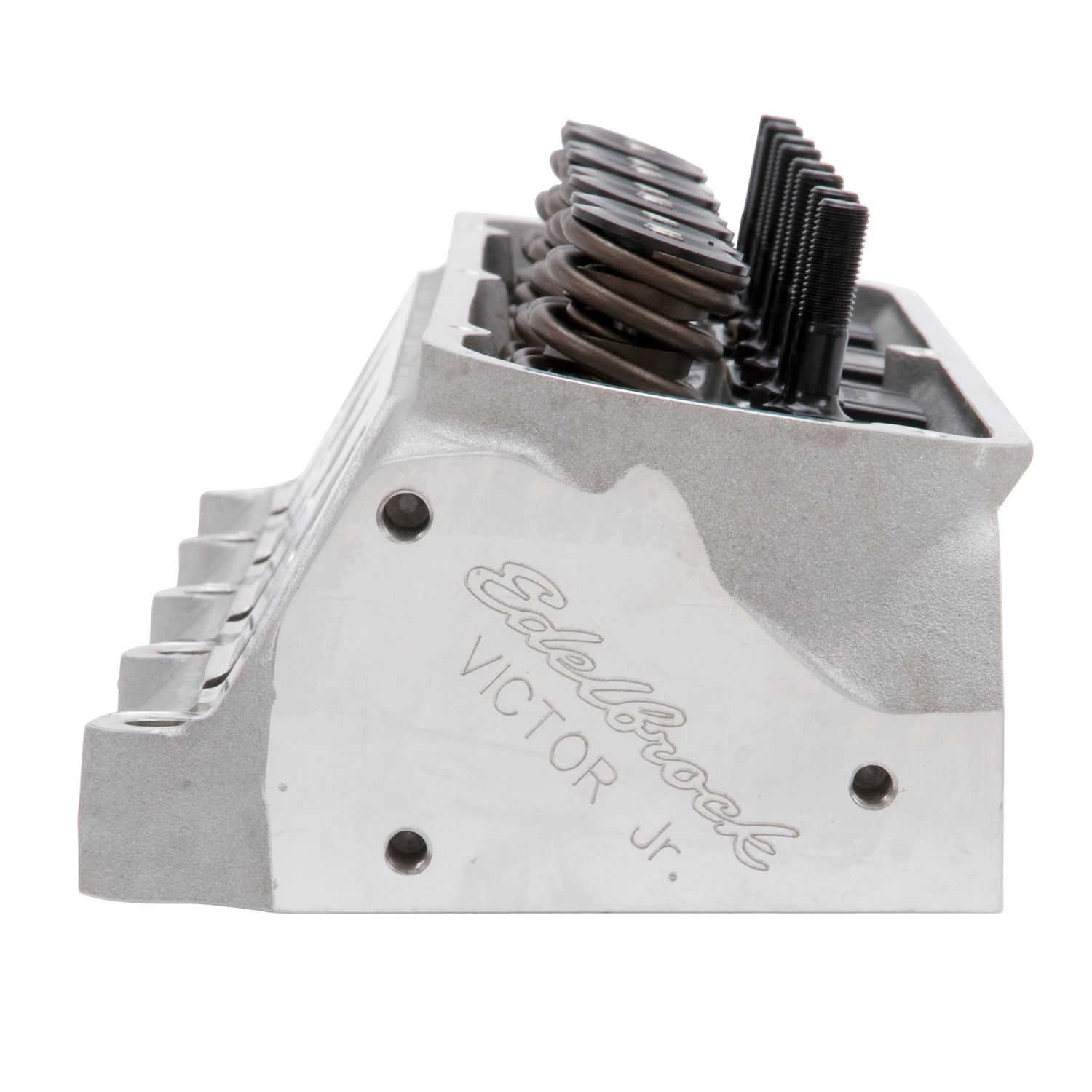

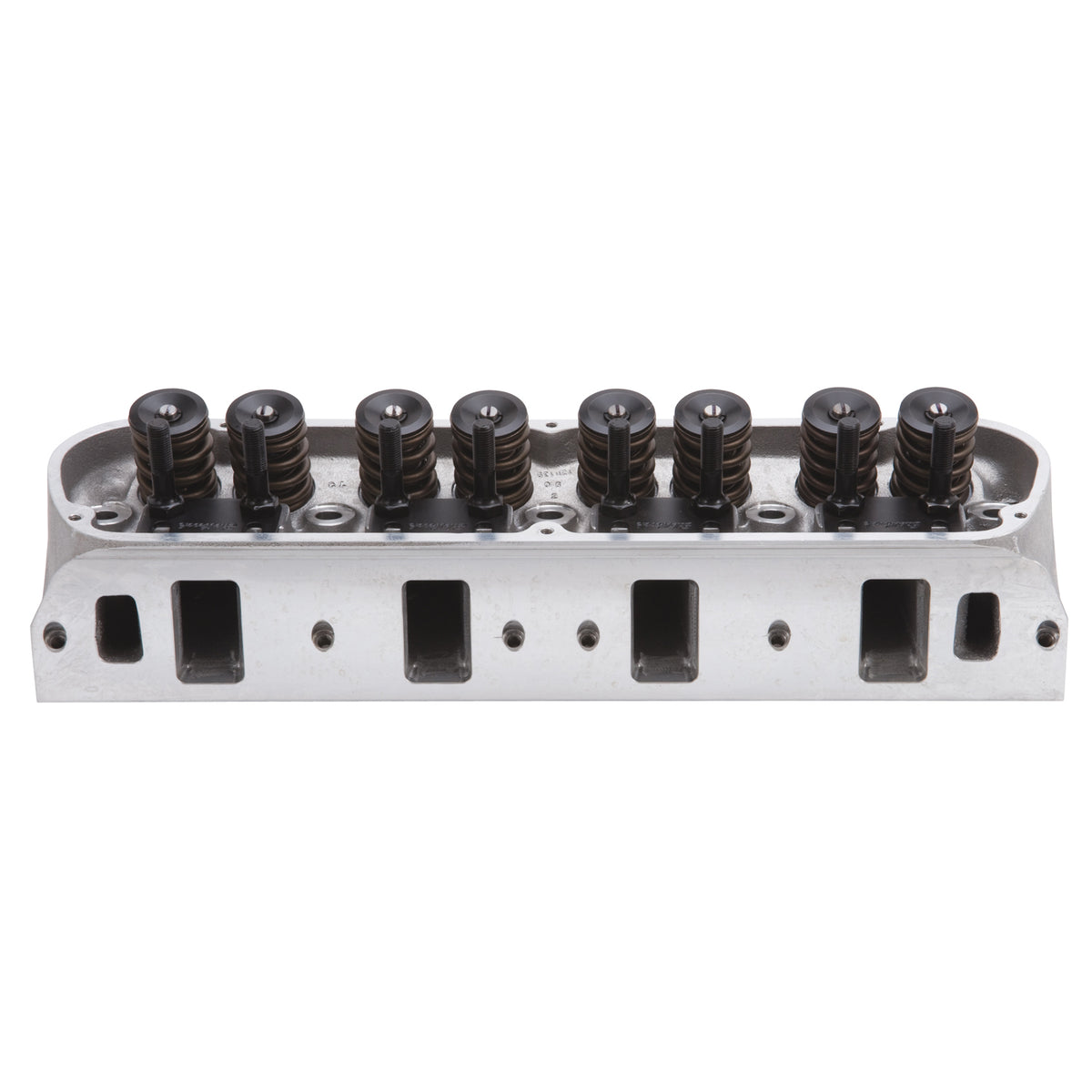

The Edelbrock 77199 Victor Jr. Small Block Ford cylinder head offers high horsepower potential on competition level engines and are compatible with OE valve train and pistons for bolt-on convenience. VICTOR JR. 20deg - 210cc FEATURES: 500+ horsepower potential out-of-the-box using stock valve train geometry High-flowing 210cc intake ports and .130" raised 75cc exhaust ports Available with 60cc or 70cc combustion chambers 70cc combustion chambers are ideal for turbocharged and supercharged applications CNC gasket-matched port entries/exits with blended valve bowls Spark plug holes and valves are in the stock location Valve cover rail raised .150" A relief in the head allows most roller lifters to be changed without removing the head
Edelbrock part #77199 Victor Jr. 20 Degree is a complete cylinder head designed for S/B Ford 289-351W engines. This head has the potential of 500+ Horsepower out-of-the-box using a stock valve train geometry.
Specifications
| 10025 |
Yes |
| 10252 |
Chromoly Steel |
| 10583 |
No |
| 10261 |
No |
| 10671 |
Yes |
| 10 |
Aluminum |
| 306 |
Yes |
| 6627 |
210 CCM |
| 6635 |
31-7716 |
| 6634 |
Yes |
| 6636 |
Chromoly Steel |
| 3390 |
Performance |
| 6621 |
9.5 IN |
| 10582 |
No |
| 6626 |
60 CCM |
| 9799 |
Yes |
| Valve Lock Material |
Steel |
| Guide Plate Material |
Hardened Steel |
| Valve Stem Diameter |
0.3438 IN |
| Seat Material |
Ductile Iron |
| Push Rod Diameter |
(Suggested) 0.3125 IN |
| Exhaust Valve Diameter |
1.60 IN |
| EGR Port |
No |
| Family |
Victor Jr. |
| Construction Type |
Complete |
| Rocker Arm Stud Diameter |
0.4375 IN |
| Quantity |
Sold Individually |
| Camshaft Type |
Mechanical Roller |
| Retainer Included |
Yes |
| Deck Thickness |
0.625 IN |
| Valve Angle |
20 DD |
| CNC Ported |
No |
| Exhaust Port Location |
+.125 |
| Horsepower |
400-600 HJ |
| Exhaust Runner Volume |
75 CCM |
| Series |
Victor Jr. |
| Intake Valve Diameter |
2.05 IN |
| Guide Material |
Manganese Bronze |
| Valve Spring Diameter |
1.55 IN |
| Valve Spring Maximum Lift |
0.670 IN |
| Seat Angle |
Exhaust 45 deg/Intake 45 DD |
| 30 |
No |
| 8788 |
Yes |
| 10024 |
Yes |
| 8789 |
Yes |
