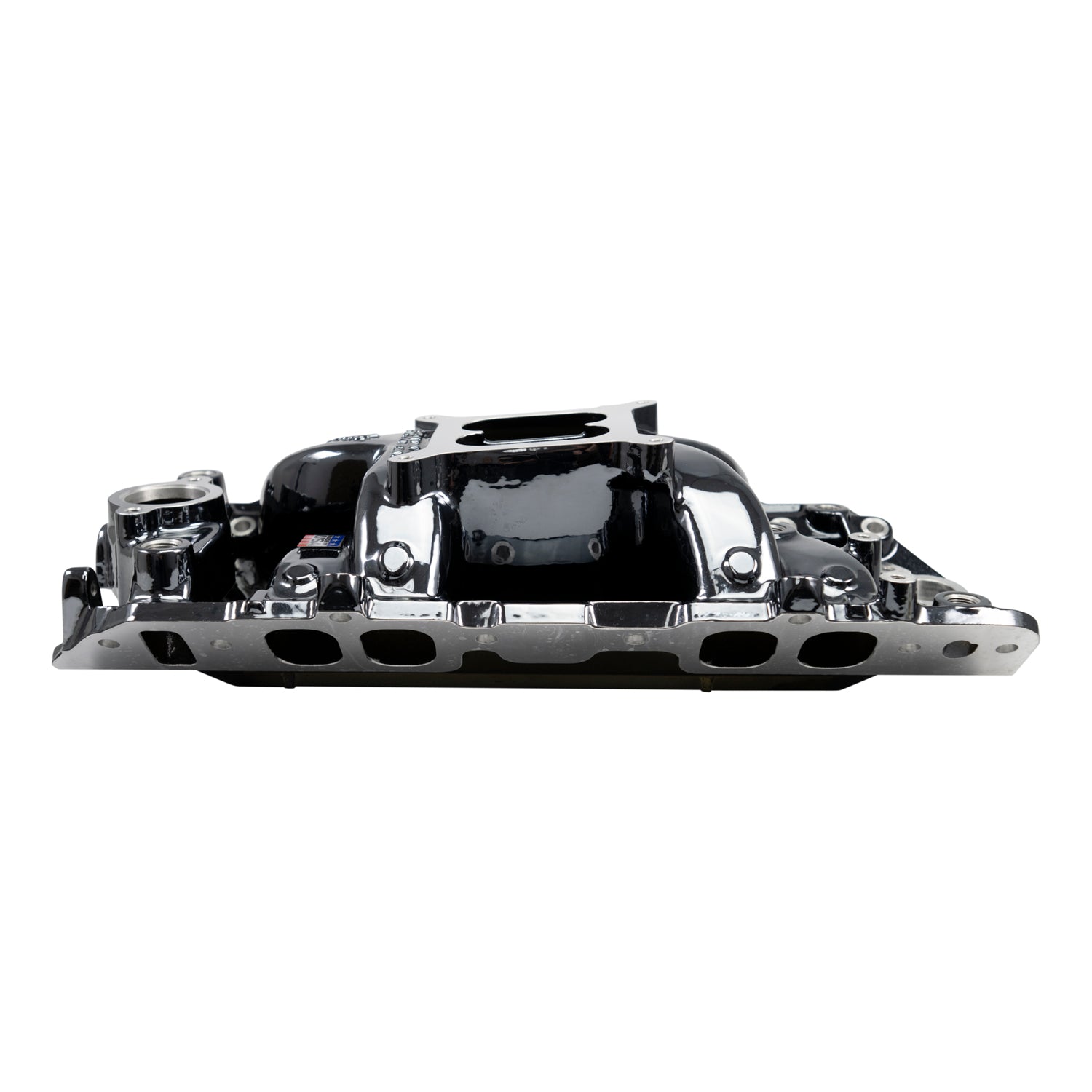

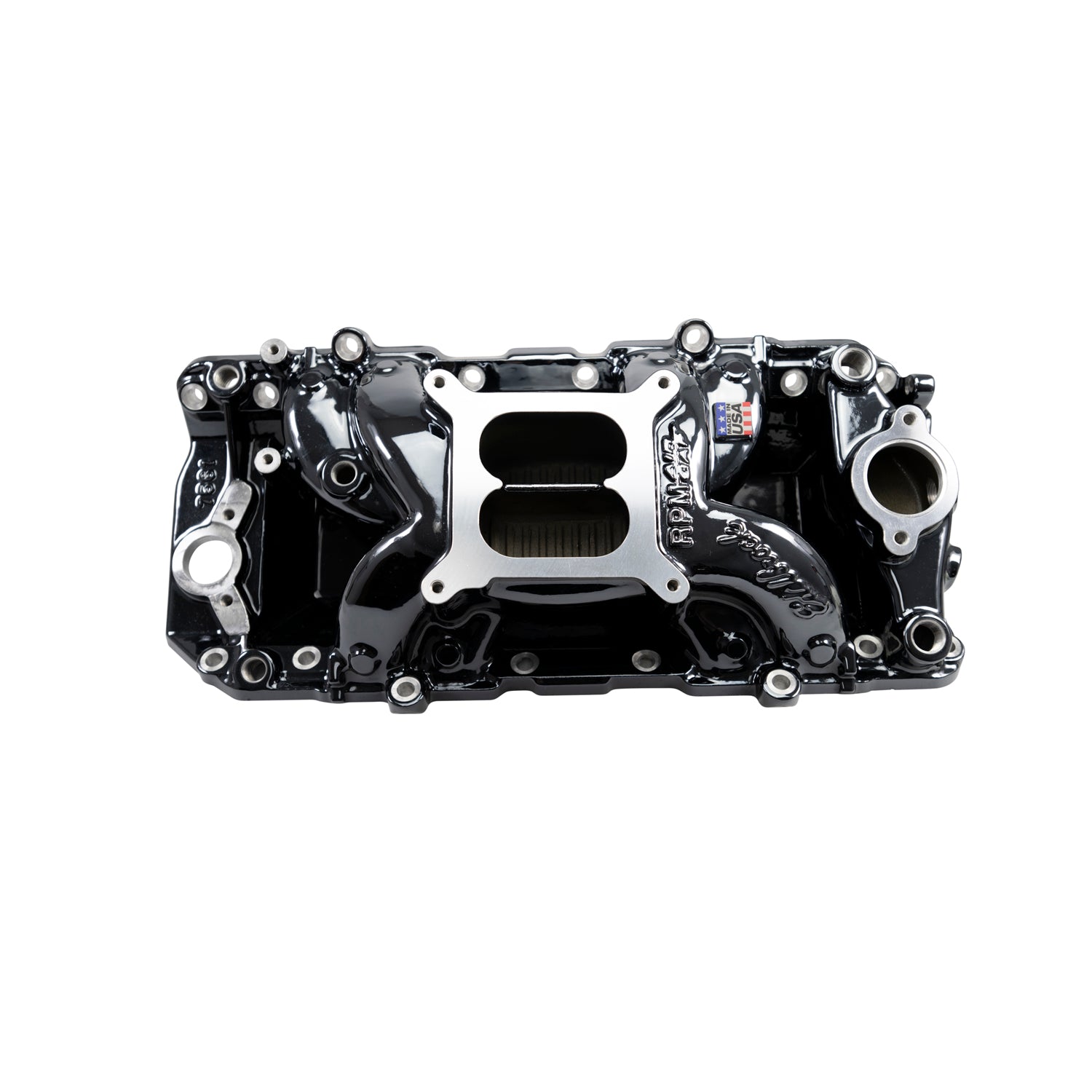

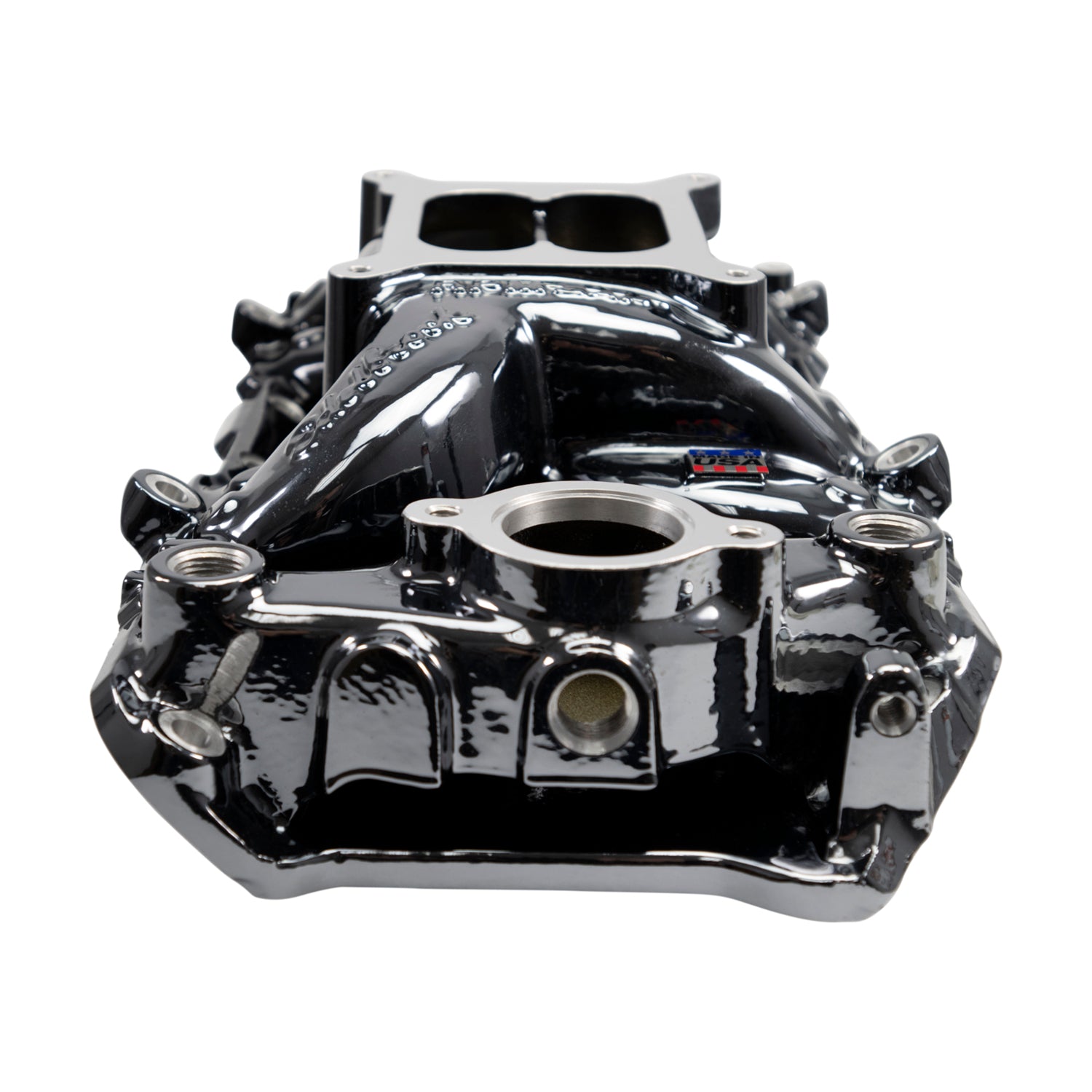

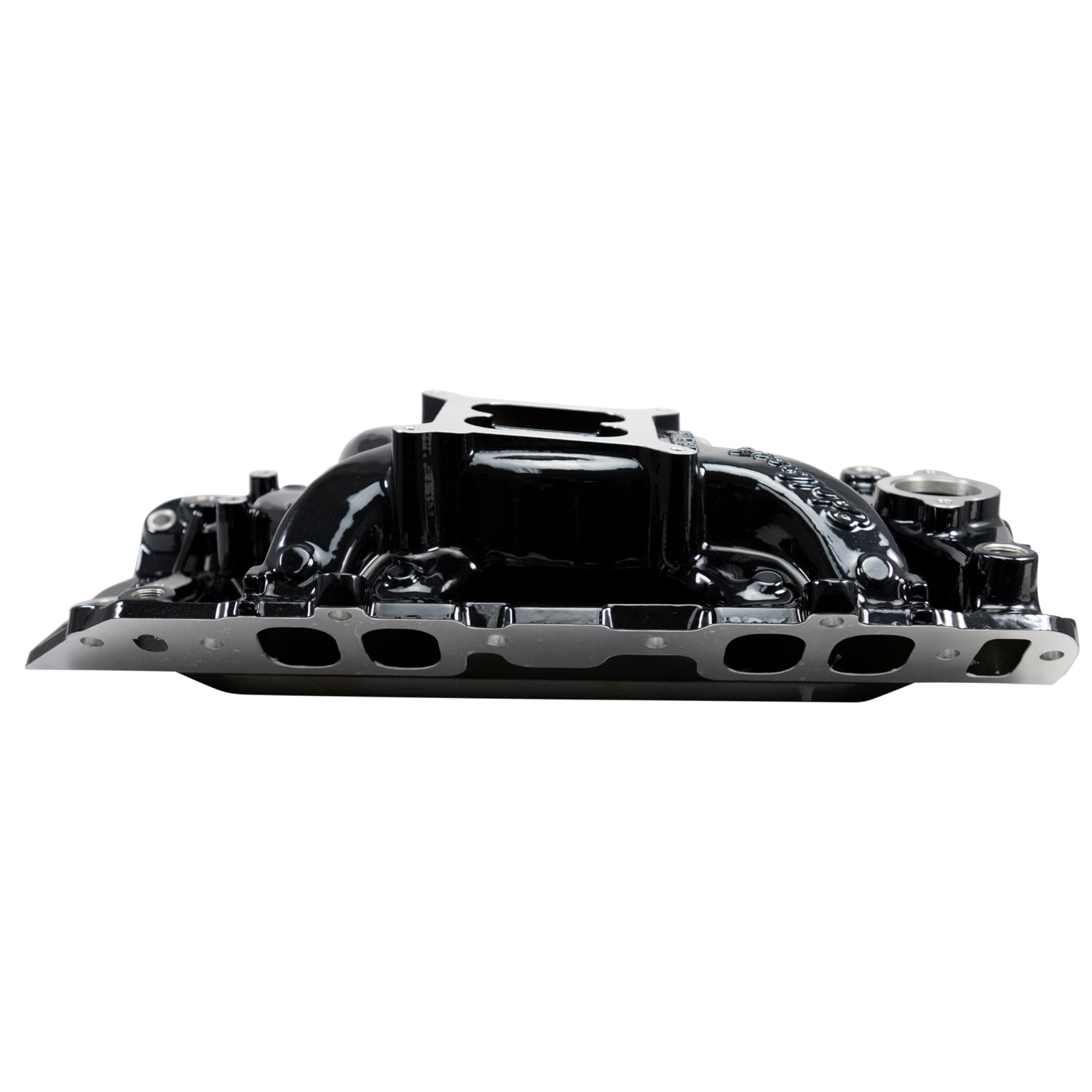

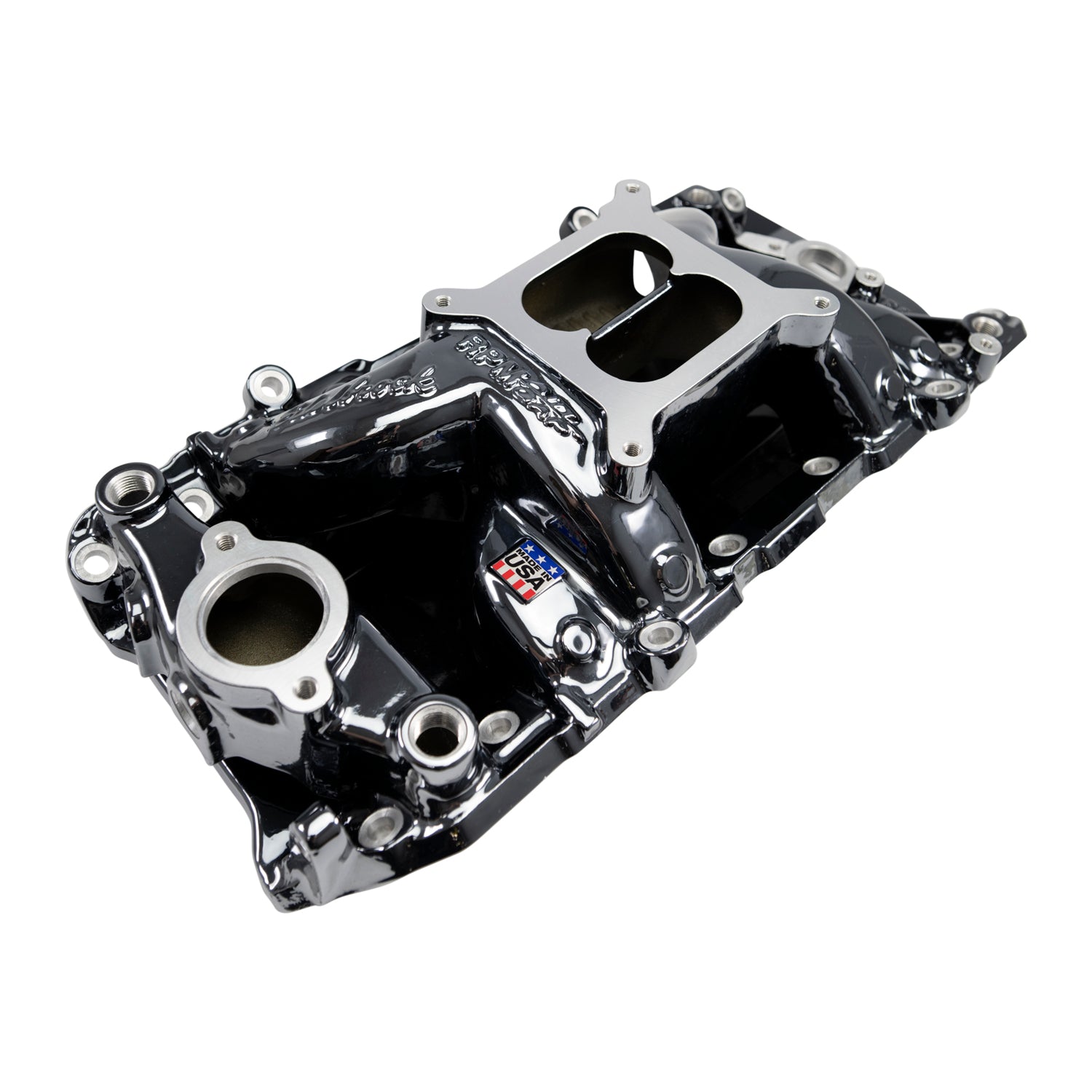

Edelbrock RPM Air-Gap Intake Manifold for Big-Block Chevy Oval Port - Black Plasma Finish - 7561-BP

SKU: SKU: EDE7561-BP

<p>Earn%20[points_amount]%20when%20you%20buy%20this%20item.</p>

Edelbrock PN 7561-CP Air-Gap RPM Oval Port intake manifold is designed for high performance 396-502 c.i.d. Chevy V8's with large oval-port cylinder heads (1975 and earlier) or Edelbrock Performer/Performer RPM heads. This RPM Air-Gap incorporates the same race-winning technology that's been used on our Victor Series competition intakes for decades. The Air-Gap design features an open air space that separates the runners from the hot engine oil resulting in a cooler, denser charge for more power. Includes rear water outlets, two distributor clamp locations and nitrous bosses. Accepts all late model alternator and A/C brackets for the street. For square bore carburetors only. Will not fit under stock hood of Corvette, 1964-67 Chevelle or 1967-81 Camaro. Use with electric or manual choke carburetors sized for 750-850 cfm. This PN 7561-CP version comes with a brilliant Chrome plasma finish that is durable and easy to maintain.

Edelbrock RPM Air-Gap Oval Port Intake Manifold for Chevrolet 396-502 Big-Block V8 with Chrome Plasma finish

Specifications

Vehicle Model Chevrolet
CNC Ported No
Basic Operating RPM Range 1500-6500 R3
Front Maximum Height 4.45 IN
Grade Type Performance
EGR Port No
Material Aluminum
Flange Type 4150
Rear Maximum Height 6.00 IN
Series Performer
Finish Chrome Plasma PVD
Gasket Or Seal Included No
Center Maximum Height 5.22 IN
Single Or Dual Plane Type Dual

California Prop 65 Warning: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
