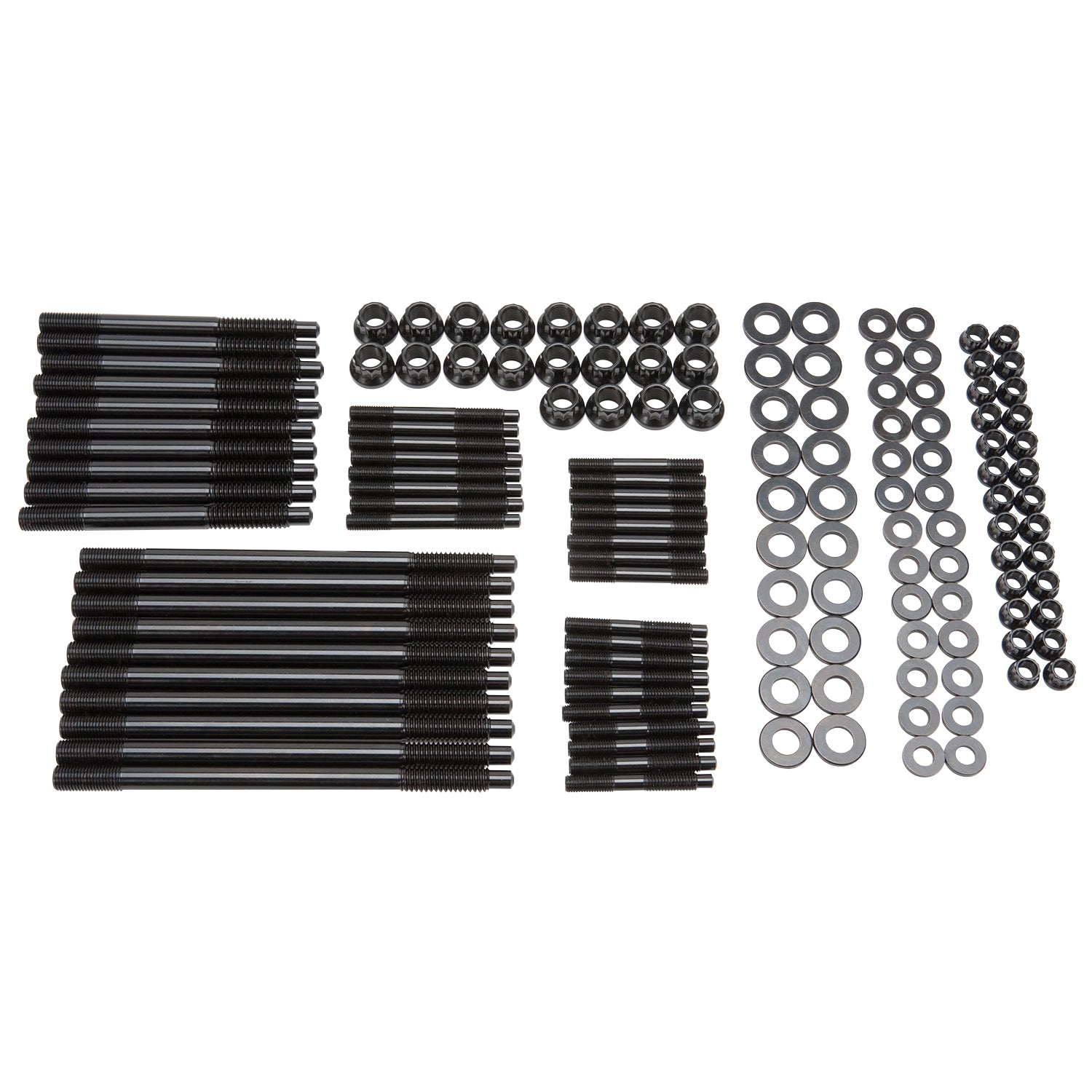

This head stud kit is required when using Edelbrock LS-R cylinder heads #770468 and #770469 on GM LSX engine blocks. Includes 10 7/16" long studs, 10 7/16" short studs, 8 5/16" exhaust studs, 10 5/16" intake flange studs, 8 5/16" valley studs, 20 7/16" washers with nuts and 26 5/16" washers with nuts.
Edelbrock #8510 is a cylinder head stud kit for our LSR cylinder heads #770468 & #770469. This head stud kit is required when using our LSR heads on GM LSX engine blocks.
Specifications
| End 1 Thread Diameter |
0.4375 IN |
| Length |
(8-Valley) 2.35 in, (10-Intake) 2.40 in, (8-Outside) 3.00 in, (10-Short) 4.95 in, (10-Long) 7.37 IN |
| Finish |
Black Oxide |
| Quantity |
Kit |
| End 2 Thread Diameter |
0.3125 IN |
| Washers Included |
Yes |
| End 2 Thread Type |
Fine |
| Material |
Chromoly |
| Grade |
Performance |
| Recommended Use |
With Part #770468, #770469 |
| End 1 Thread Type |
Fine |
