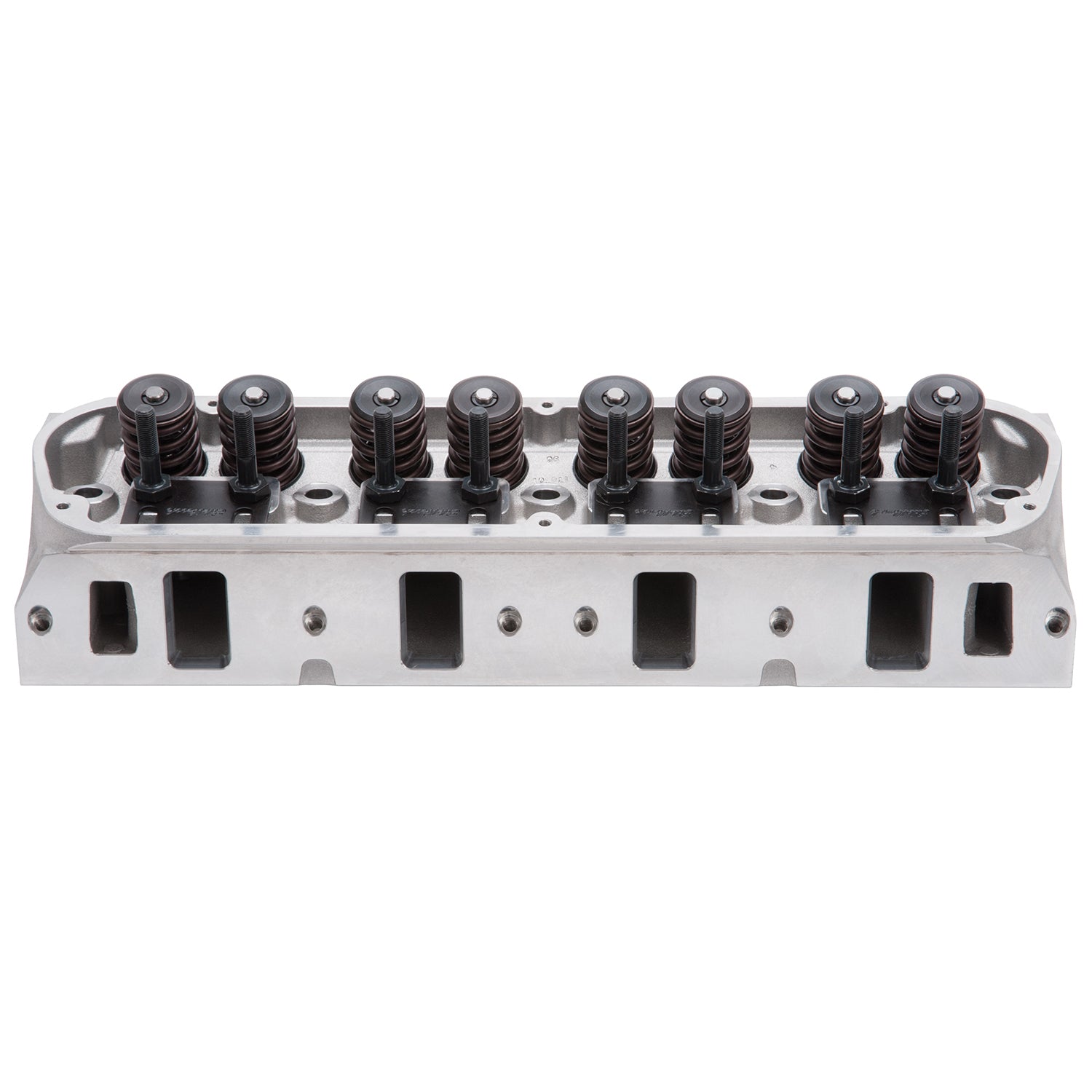

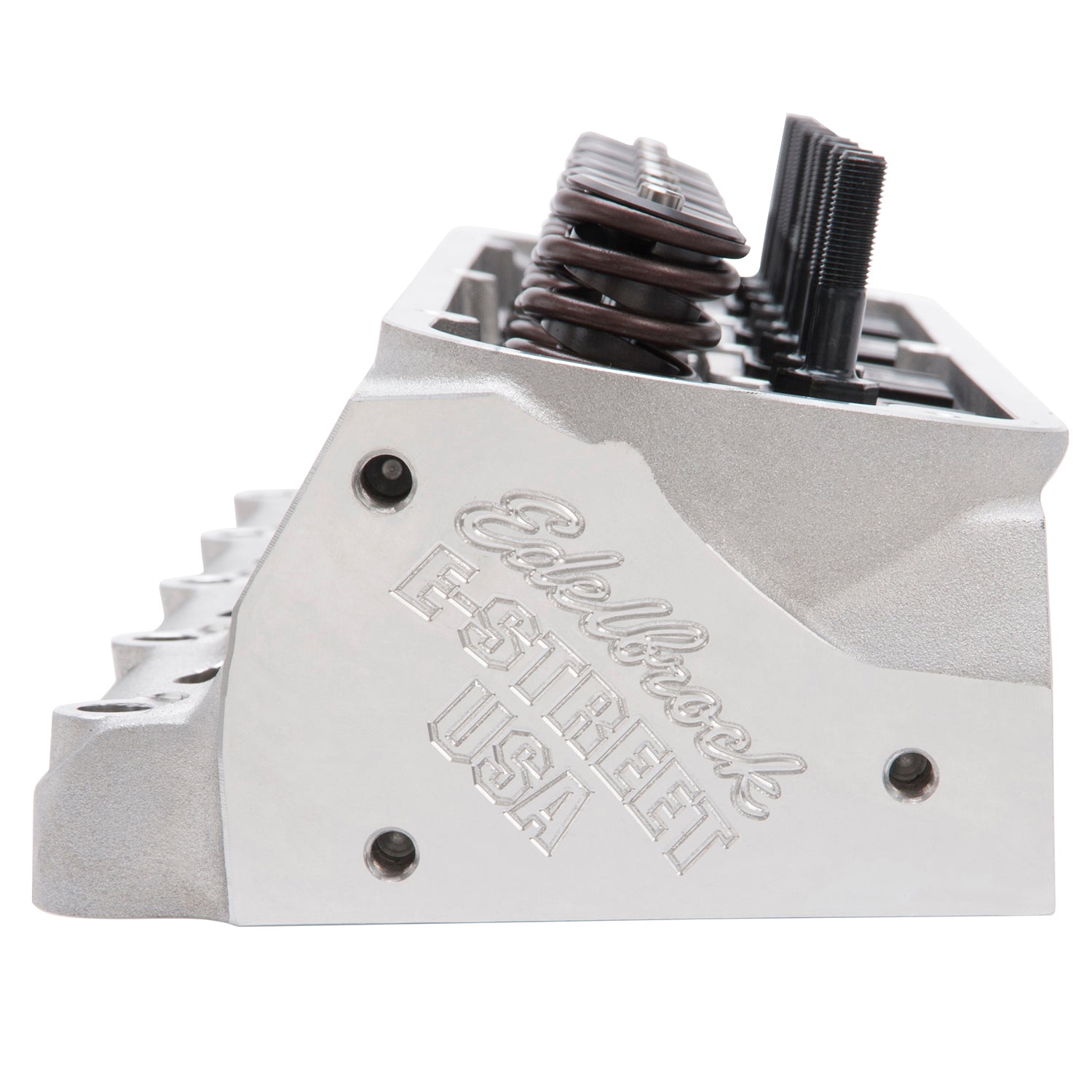

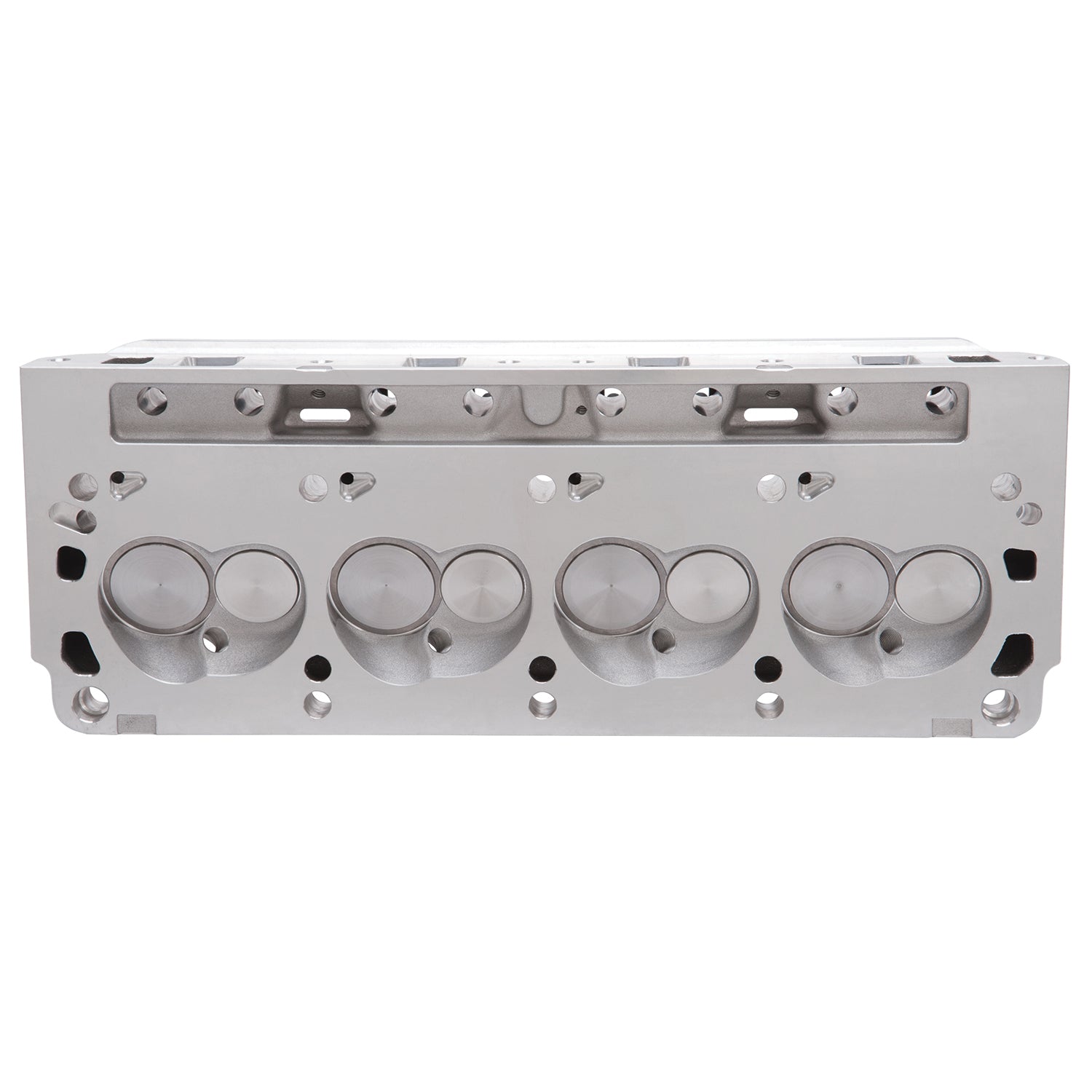

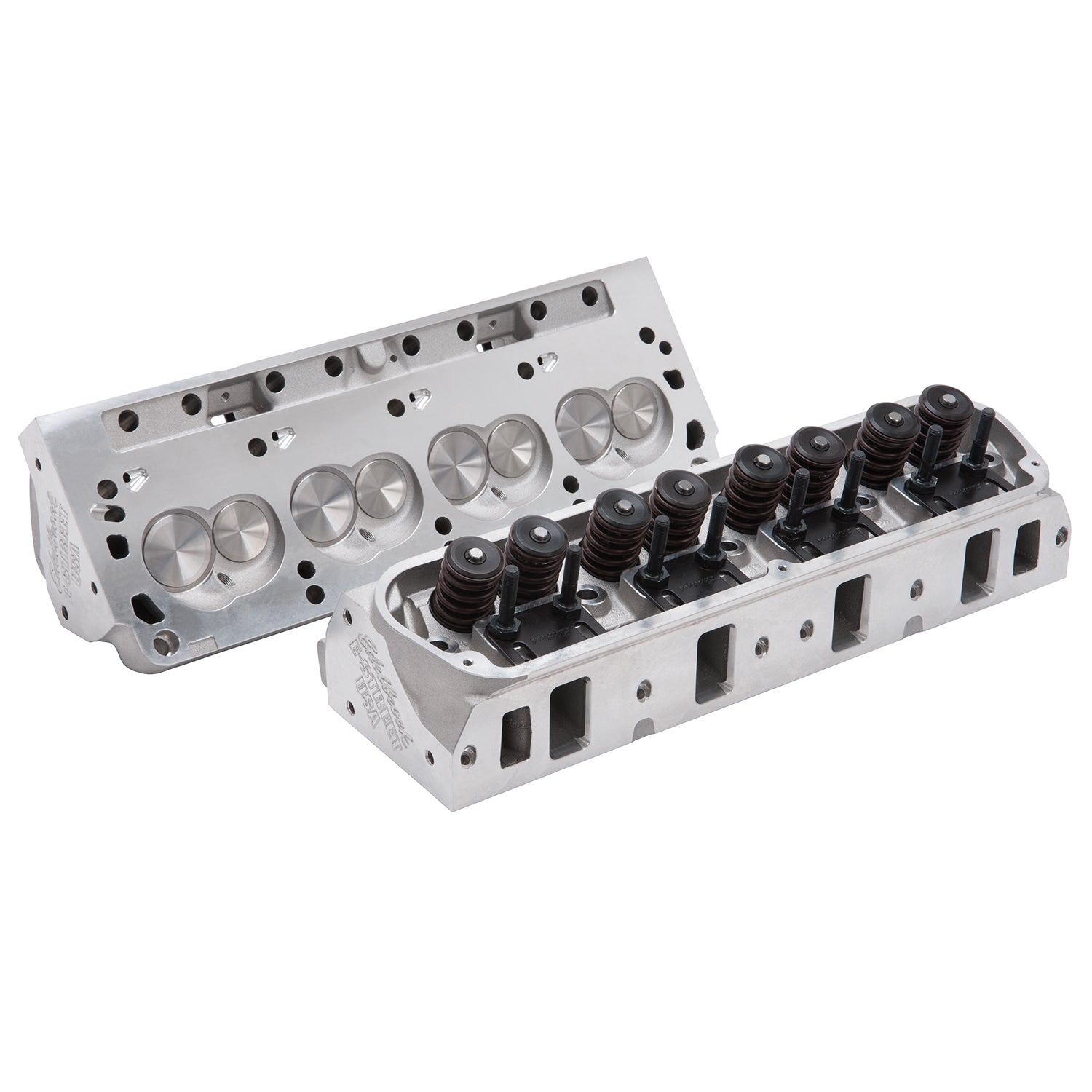

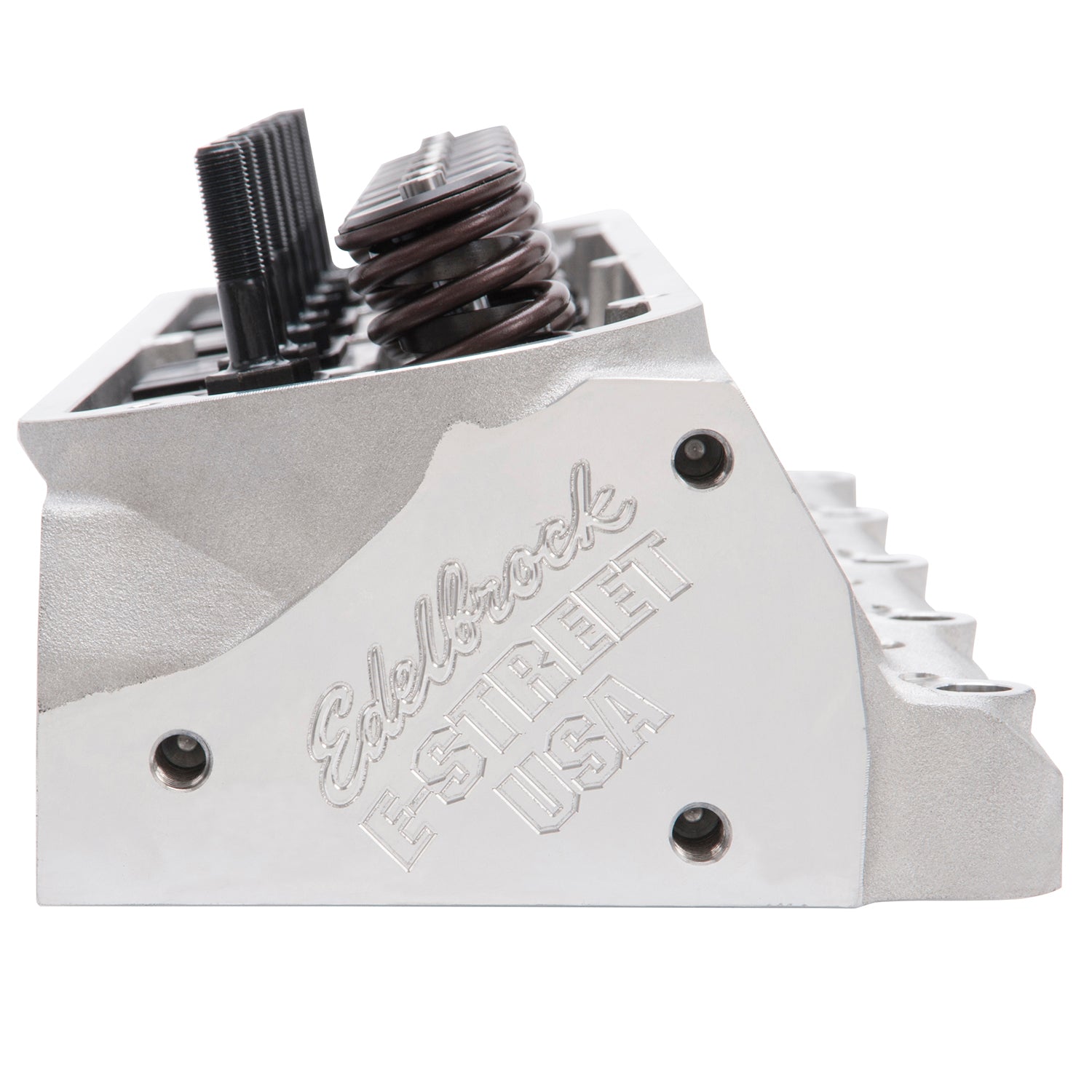

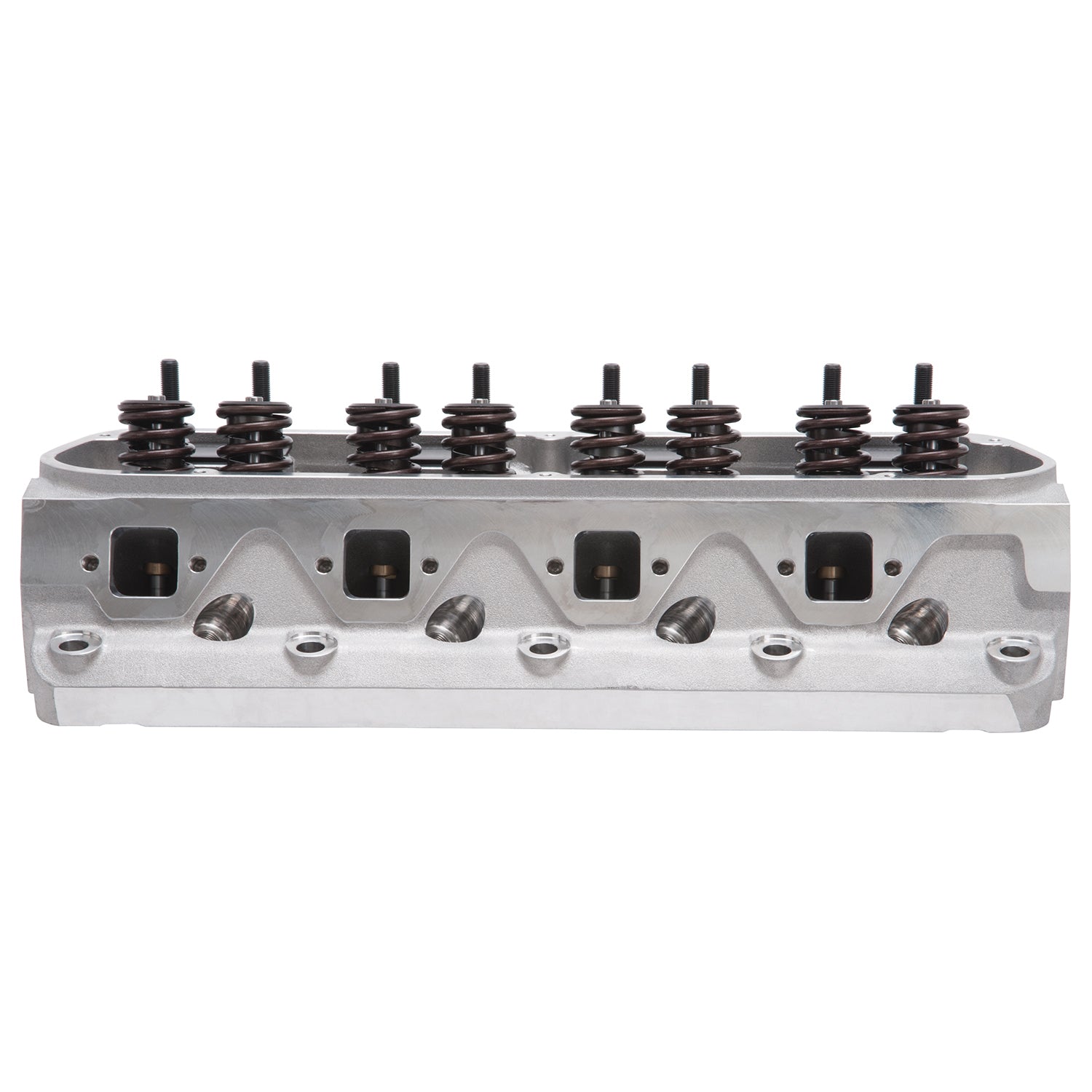

The Edelbrock #5023 E-Street cylinder heads are designed for Ford 289-351 W V8 applications. The Edelbrock E-Street cylinder heads offer American made quality and affordable performance. E-Street cylinder heads feature as-cast ports and are designed for entry-level street performance applications operating in the idle-to-5500 rpm range. The modern combustion chamber designs improve the combustion process and larger than stock intake and exhaust ports move more air through your engine for improve efficiency. For use on pre-pollution controlled vehicles only.
The Edelbrock #5023 E-Street cylinder heads are designed for Ford 289-351W applications. American made quality and affordable performance. E-Street heads feature as-cast ports and are designed for street performance applications.
| Family | E-Street |
| Horsepower | 200-400 HJ |
| Valve Spring Diameter | 1.46 IN |
| Valve Spring Maximum Lift | 0.550 IN |
| Series | E-Street |
| Seat Material | Ductile Iron |
| Retainer Included | Yes |
| Seat Angle | Exhaust 45 deg/Intake 45 DD |
| Exhaust Port Location | Standard |
| Guide Material | Manganese Bronze |
| Exhaust Runner Volume | 60 CCM |
| Quantity | Set of 2 |
| Camshaft Type | Flat Tappet |
| CNC Ported | No |
| Valve Angle | 12 DD |
| Valve Stem Diameter | 0.341 IN |
| Push Rod Diameter | (Suggested) 0.3125 IN |
| Deck Thickness | 0.625 IN |
| Rocker Arm Stud Diameter | 0.375 IN |
| EGR Port | No |
| Construction Type | Complete |
| Intake Valve Diameter | 1.90 IN |
| Exhaust Valve Diameter | 1.60 IN |
| 30 | No |
| 8788 | Yes |
| 10024 | Yes |
| 8789 | Yes |
| 10025 | Yes |
| 10252 | Chromoly Steel |
| 10583 | No |
| 10261 | No |
| 10671 | Yes |
| 10 | Aluminum |
| 306 | Yes |
| 6627 | 170 CCM |
| 6635 | 6025P |
| 6634 | Yes |
| 6636 | Chromoly Steel |
| 3390 | Performance |
| 6621 | 9.5 IN |
| 10582 | No |
| 6626 | 60 CCM |
| 9799 | Yes |
| Valve Lock Material | Steel |
| Guide Plate Material | Hardened Steel |
