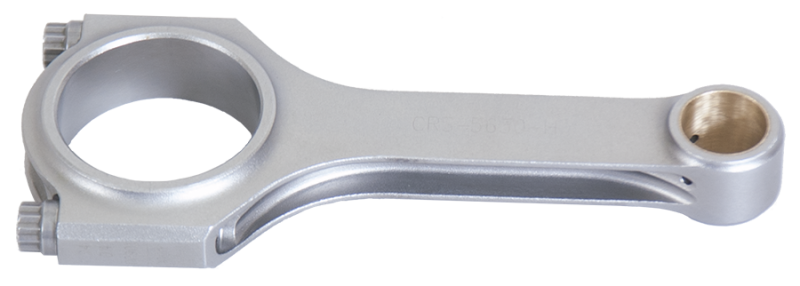

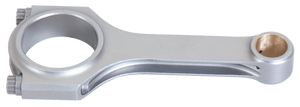

Eagle Honda H22 Engine H-Beam Connecting Rod (SINGLE ROD) - CRS5630H3D-1

Forged 4340 steel H-Beam connecting rods are forged from a two-piece forging and feature a fully machined and shot-peened surface. Sizing is held to exact tolerances. Recommended for competition use.

Specifications

• Bolts: 3/8" ARP 2000
• Material: forged 4340 steel
• Center To Center Length: 5.63"
• Pin Size: 0.866"
• Pin End Width: 0.94"
• Rod Journal: 1.889"
• Housing Bore: 2.008"
• Big End Width: 0.935"
• Typical Weight: 550g
• bushed for full-floating piston pin
