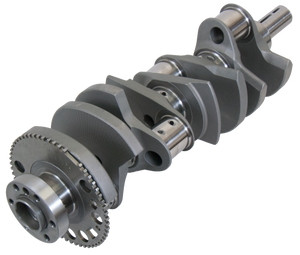

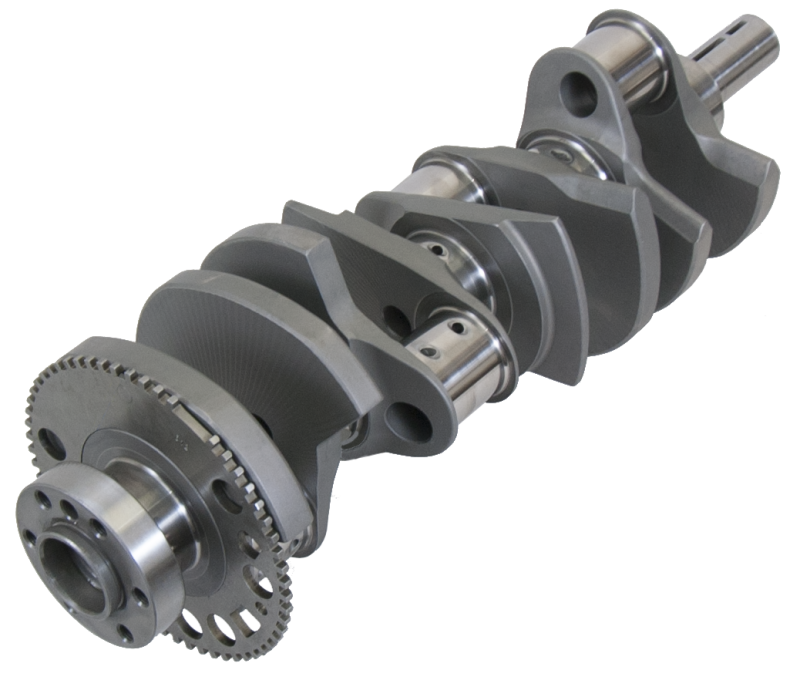

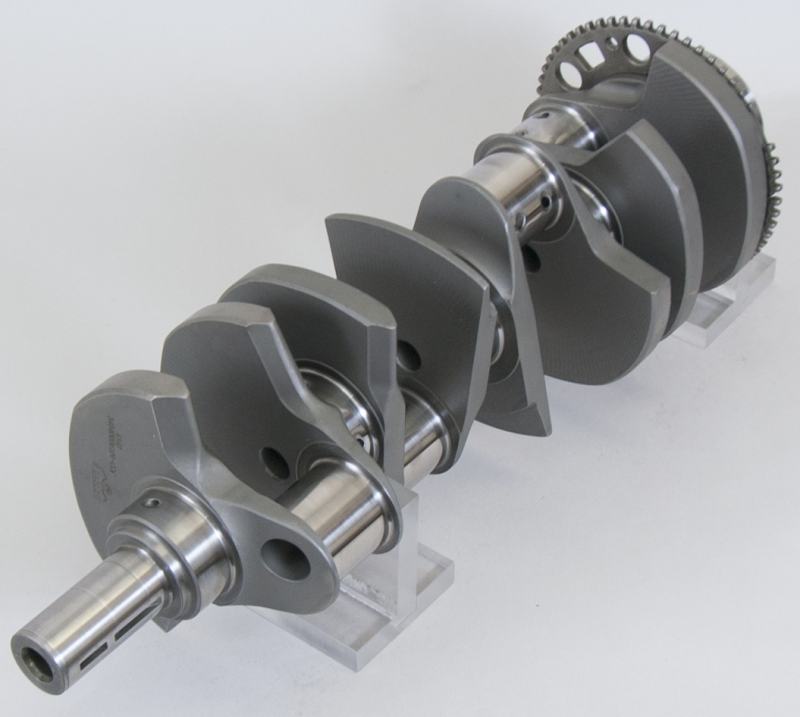

Eagle Chevy LS2 58 Tooth Reluctor 4340 Billet Crankshaft - 334740016100

$3,488.66 CAD $3,646.99 CAD
<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>
Oversized item
May incur an oversize handling fee at checkout, depending on your location. No fee for pickup orders.
Oversize Debug
Tier code
Tier priority
Tier max weight (lb)
Tier max girth (in)
Product weight (lb)
L × W × H (in)
Girth L + 2×(W+H)
Requires acktrue
Customers also viewed

Eagle billet 4340 steel crankshafts feature .125' fillet radiuses for superior strength so chamfered / narrowed bearings required, center counterweight design provides superior stability at high rpm and power levels, nitrided surface, & micropolished to < 2 ra.

Specifications

  • Material: billet 4340 steel
  • Intended Balance: internal
  • Target Bobweight: 1800
  • Stroke: 4.000"
  • Rod Journal: 2.100"
  • Rod Journal Width: 1.900"
  • Main Journals: 2.559"
  • Minimum Rod Length: 6.125"
  • Typical Weight: 56 lbs.
  • Snout Diameter: 1.480"
  • Flywheel Bolts: 6
  • Reluctor: 58 tooth
