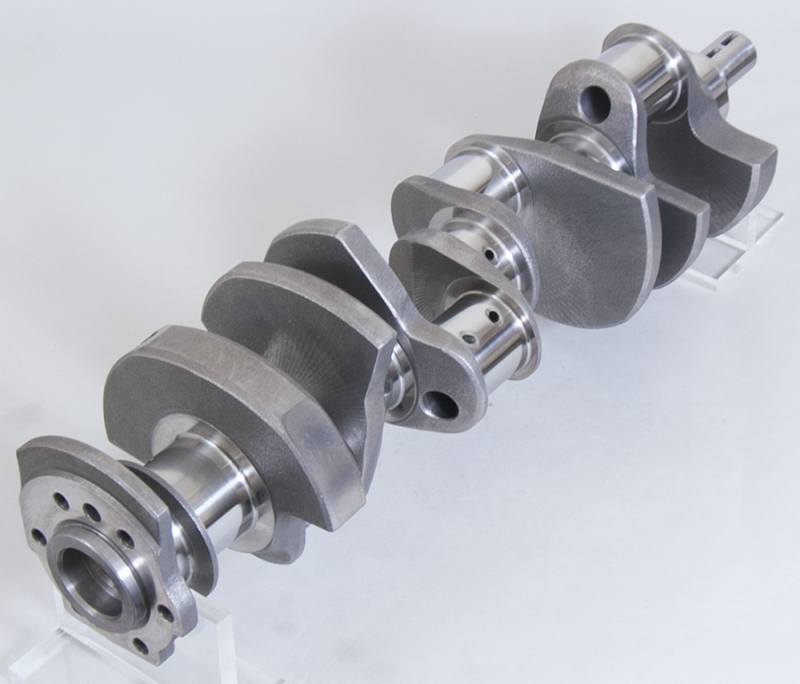

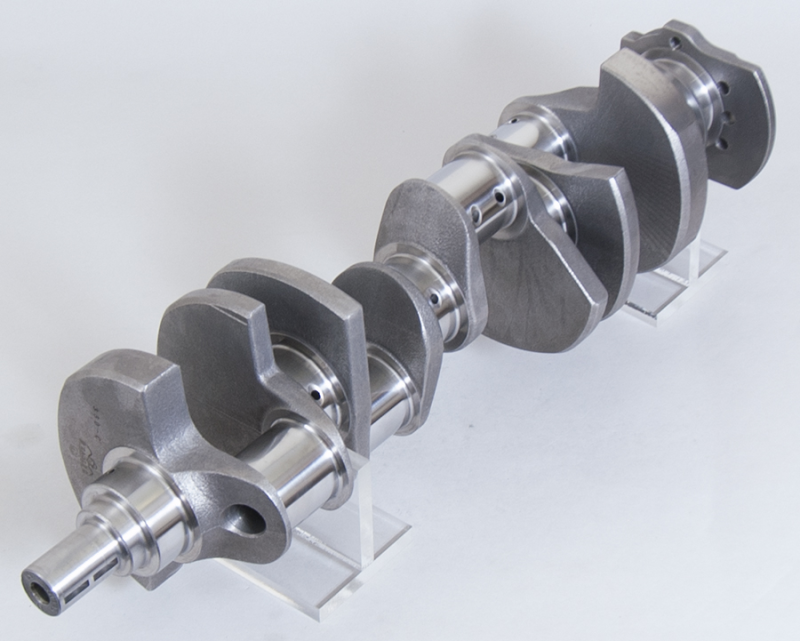

Eagle Chevrolet 305/350 Small Block 2pc Rear Seal 3.48in Stroke Internal Balance Cast MS Crank Shaft - 103503480

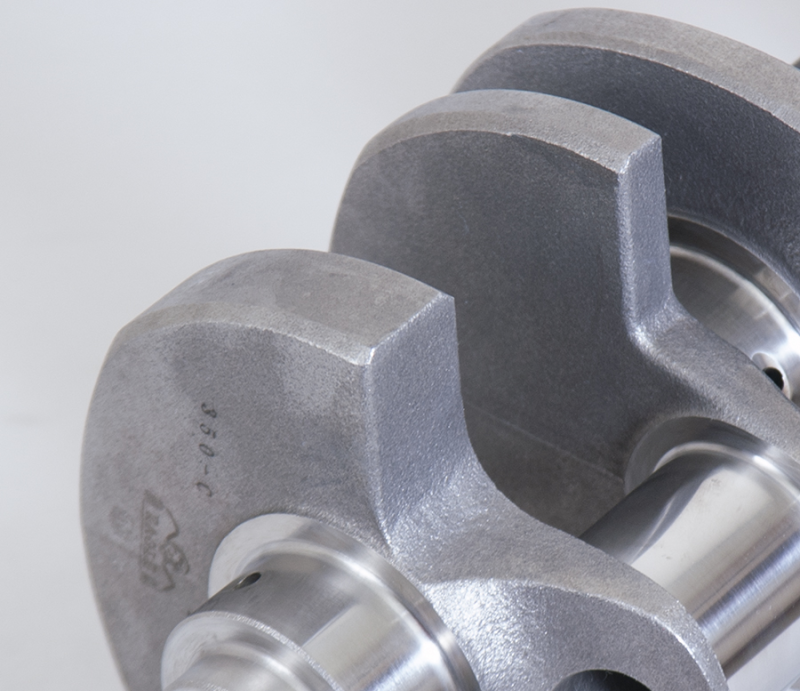

Eagle cast crankshaft is great alternative to and an upgrade from an O.E. crankshaft. .092" fillet radiuses mean in increase in strength, but O.E. Replacement bearings can still be used. Recommended for use in pump-gas, naturally-aspirated, non-competition road cars.

Specifications

• Material: cast mild steel
• Intended Balance: internal
• Target Bobweight: 1855g
• Stroke: 3.480"
• Rod Journal: 2.1"
• Rod Journal Width: 1.900"

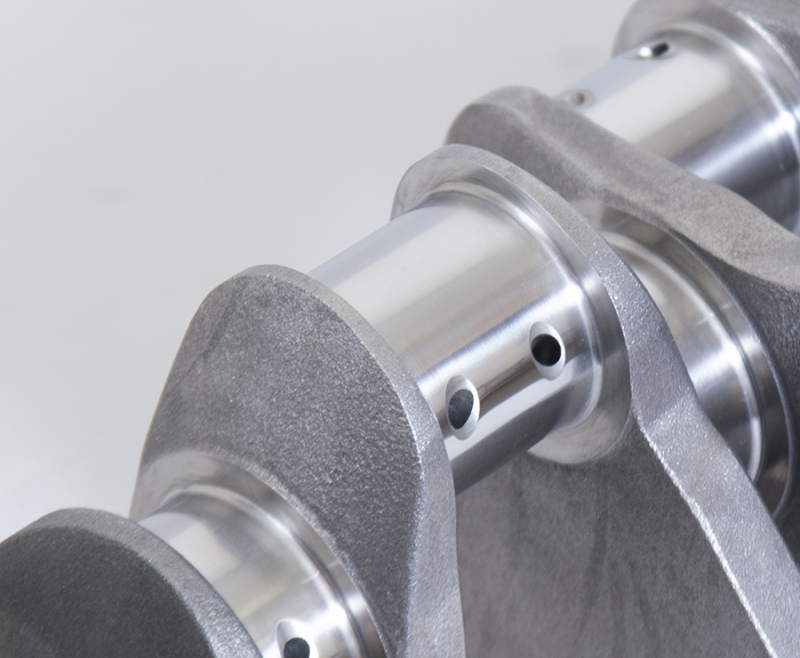

• Main Journals: 2.449"
• Minimum Rod Length: 5.700"
• Typical Weight: 49 lbs.
• Rear Seal Diameter: 2.431"
• Snout Diameter: 1.245"
• Flywheel Bolts: 6
