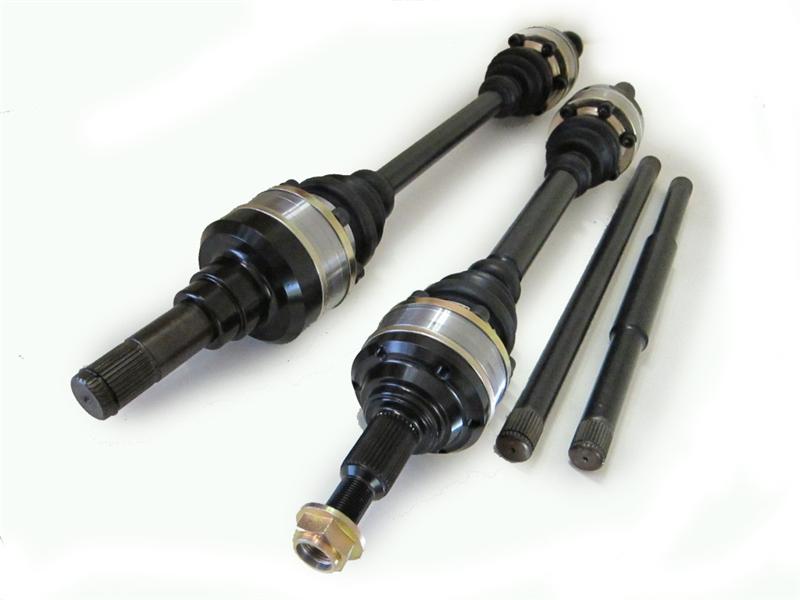

DSS 04-06 Pontiac GTO 1000HP 300m Anti-Wheel Hop Axle Kit w/ 300m 108mm Bolt-on Inner Stubs GM44 - 510209

PONTIAC 2004-2006 GTO 1000HP 300m Anti-Wheelhop Axle Kit with 300m 108mm Bolt-on Inner Stubs (Pair)

Our skinny bar is smaller in diameter than a standard 28 spline a stock 108mm CV would use. It’s made from 300m! We have rolled the spline onto a ground piece of the material that raises the spline above the center diameter of the bar. This also allows us to make the axle without any internal snap ring (no internal groove for a square-edged stress riser during torsional shock loading). We then make the big bar using our 300m material out of Sweden and it’s made with a 1-1/2 diameter to balance out the strength. This, like the other bar, has the rolled splines so at the edge where the race will meet the spline (area of most failures). It is much stronger due to the re-forming of the same material instead of taking away grain structure/material like a cut spine. If your running a car around the 1000hp range (keep in mind auto and 6-speed cars will have different effects on Hp ratings) and want to reduce some of the wheel hop, this just might be the axle set for you!

PART# GM44

Category: 2004-2006 GTO / Monaro / GTO / Monaro / Pontiac Axles
