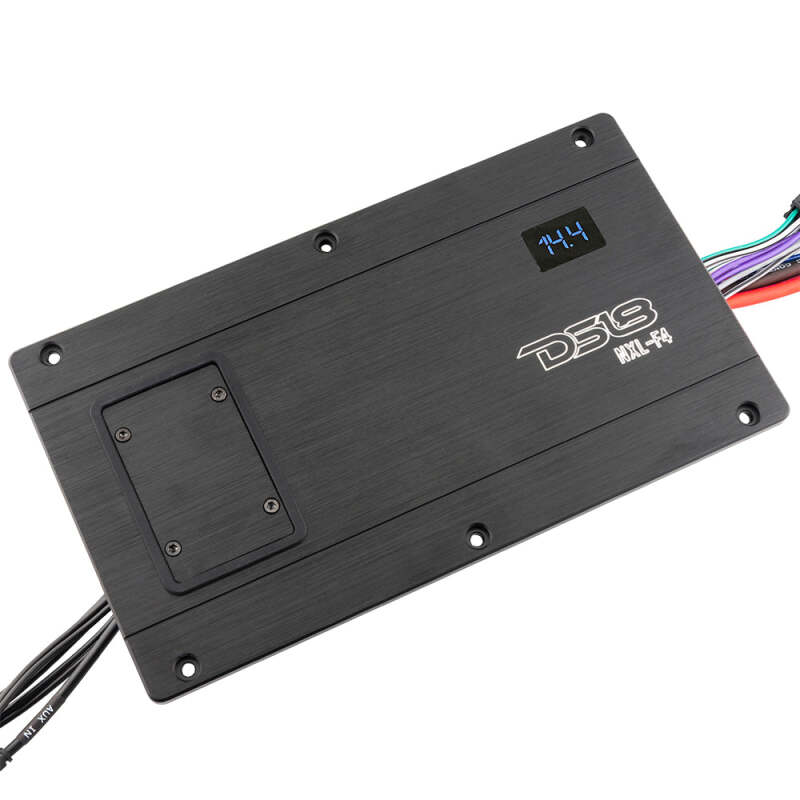

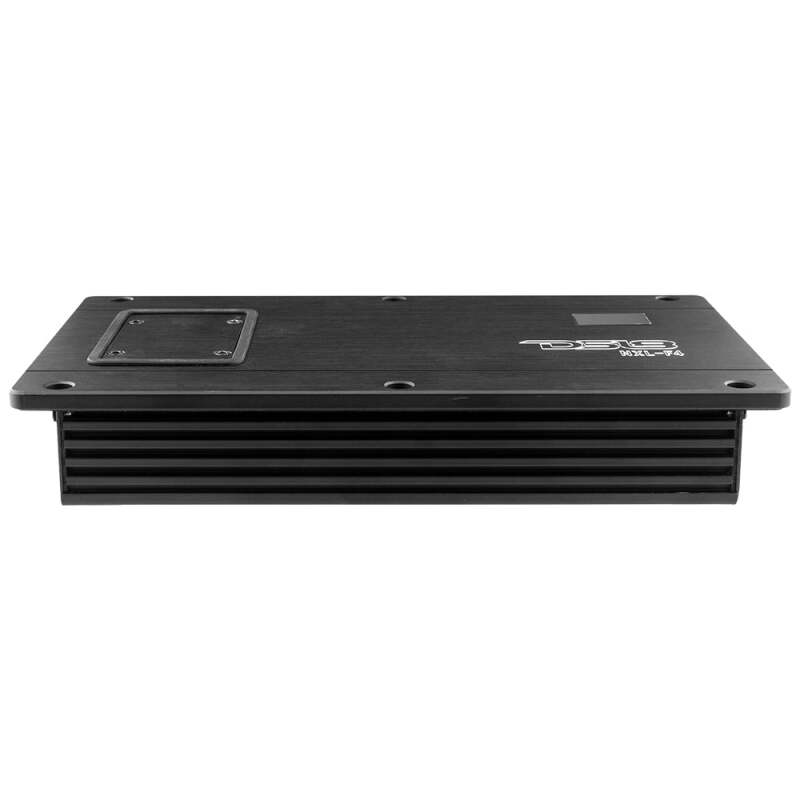

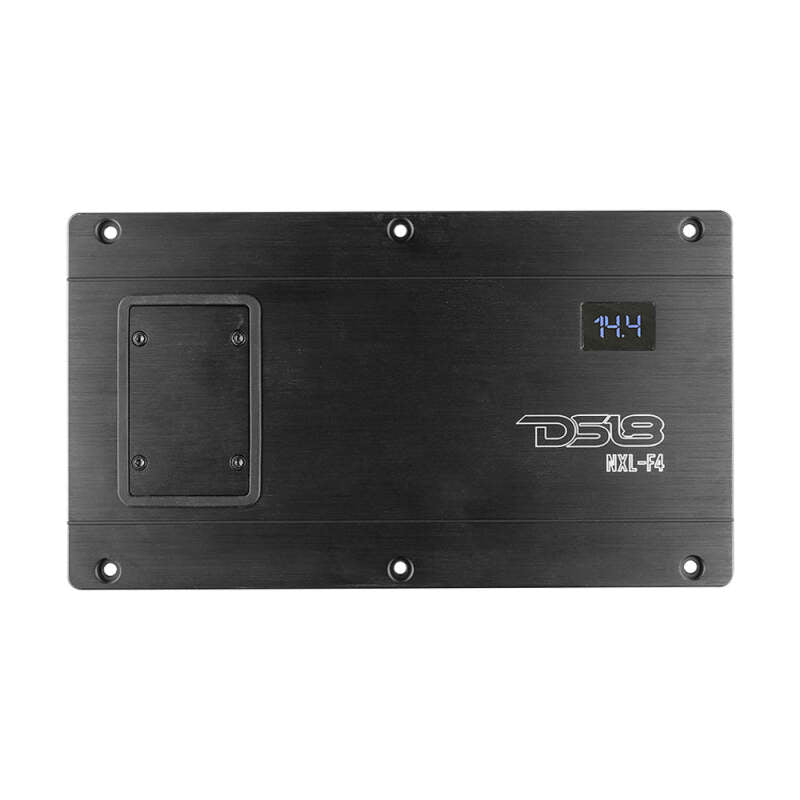

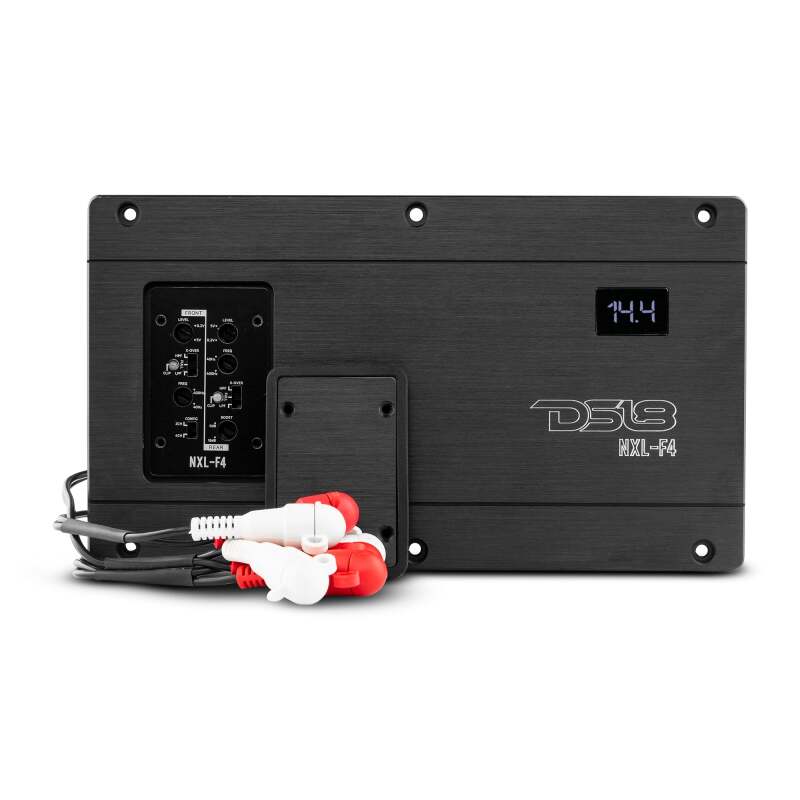

DS18 HYDRO NXL-F4 Flush Mount Class D Full-Range Marine 4-Channel Boat, ATV, UTV Amplifier with Voltmeter 1200 Watts
The F4 is an exact duplicate of the very popular NXL-400.4 but now offered in flat mount configuration so you can keep a flush and clean look to your install. This 4 channel amplifier is the go to source to power all your DS18 marine speakers as all are an amazing fit with this sleek and powerful hydro amp.
Highlights
- Flush / Flat mount design so you can keep your install looking clean and flush.
- Great to power all DS18 NXL series speakers with great loudness and efficiency.
- Full Range configuration so it can be used for virtually any speaker within its power recommendations.
Technical Details
| Power Output @ 2 ohms |
160Wx4CH |
| Power Output @ 4 ohms |
100Wx4CH |
| Bridge Power Output @ 4 ohms |
320Wx2CH |
| Total Harmonic Distortion |
<0.1% |
| S/N Ratio Red 1W @ 4 ohms |
90dB |
| Gain Range |
0.2-6V |
| Crossover Range |
40 - 400Hz |
| Frequency Range |
20Hz - 20KHz |
| Bass Boost |
0-18dB (Rear CHs) |
| Forced Cooling System |
N/A |
| Bass Remote Control |
N/A |
| Topology Operation |
Full Range Digital |
| Dimensions (MM) |
238 x 135 x 41 |
