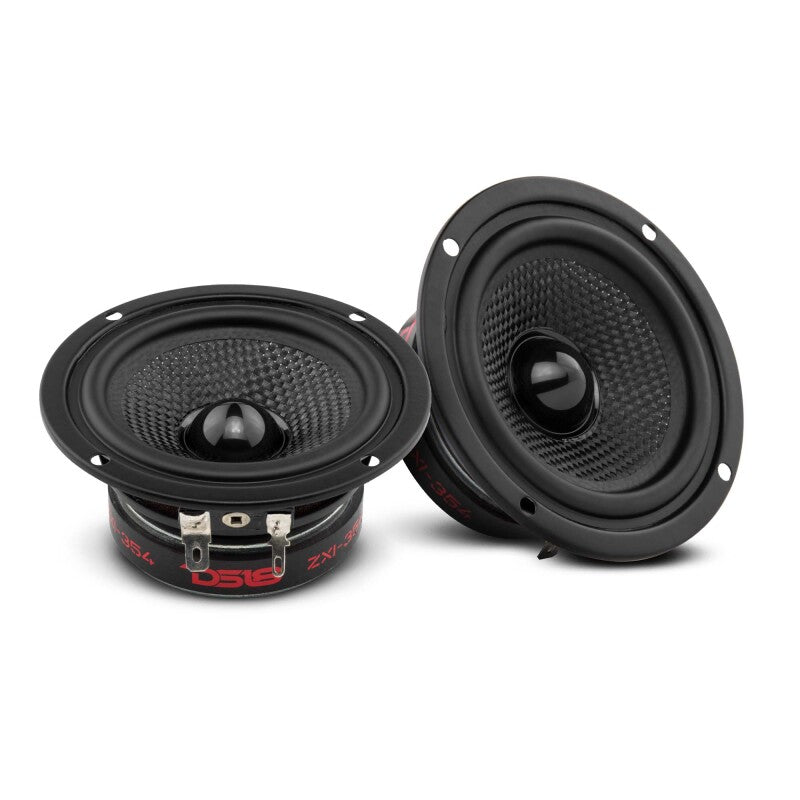

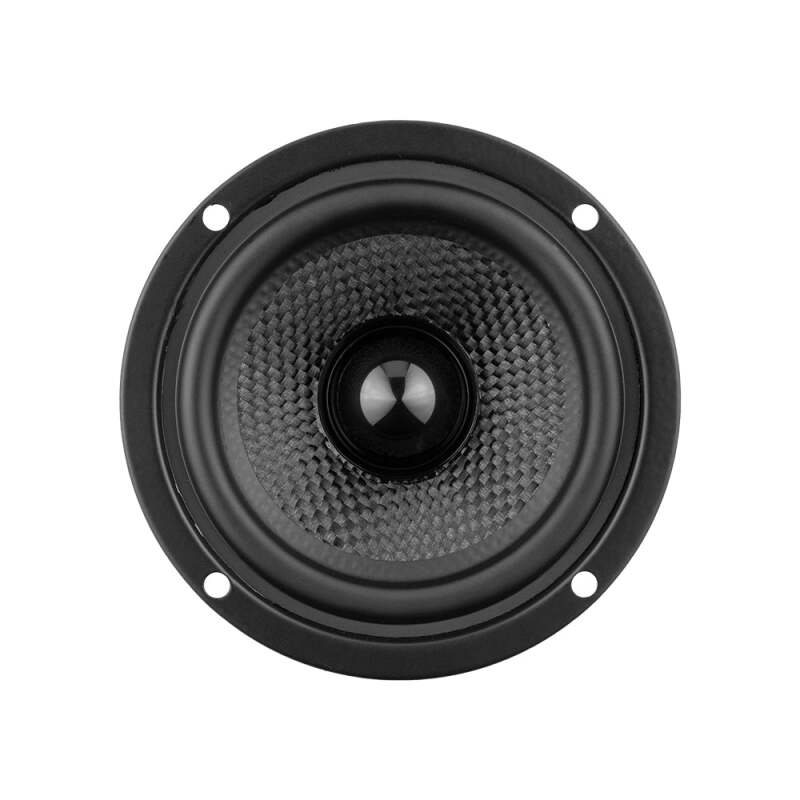

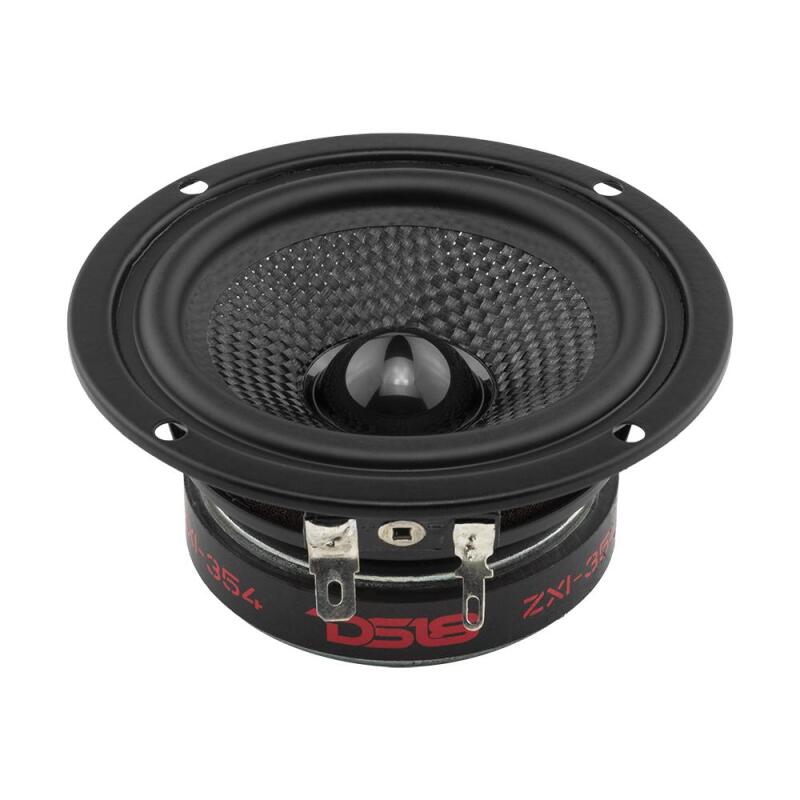

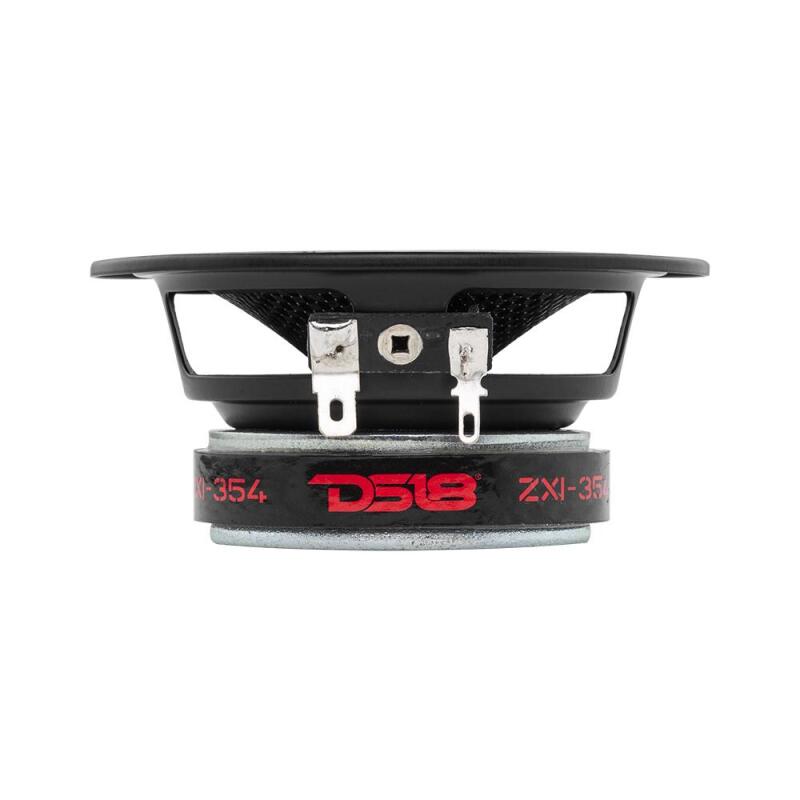

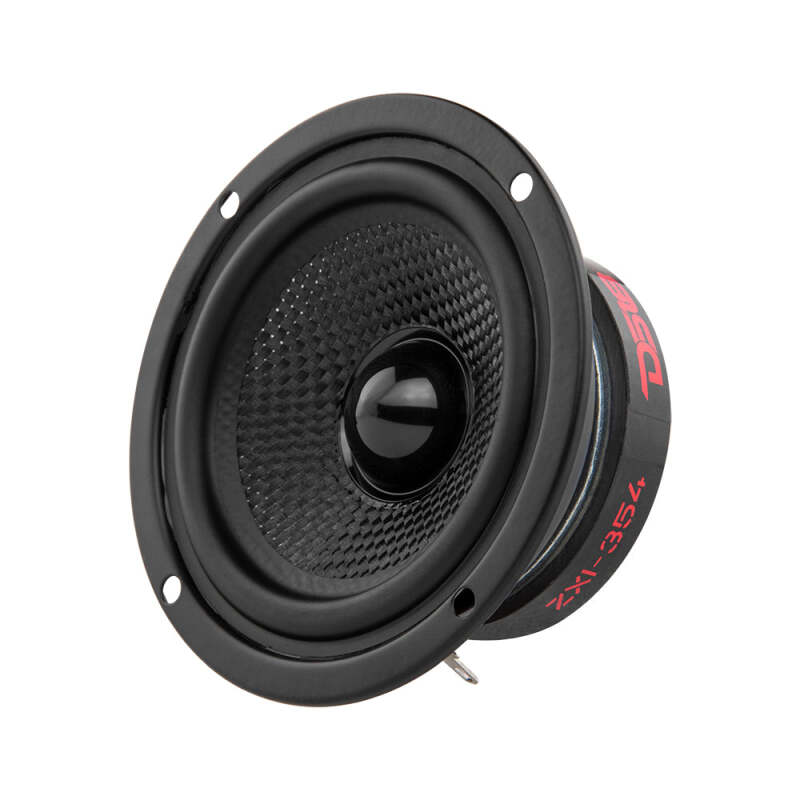

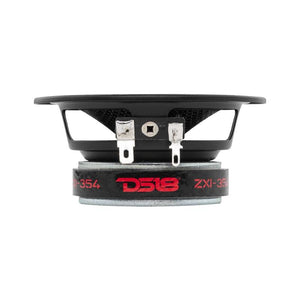

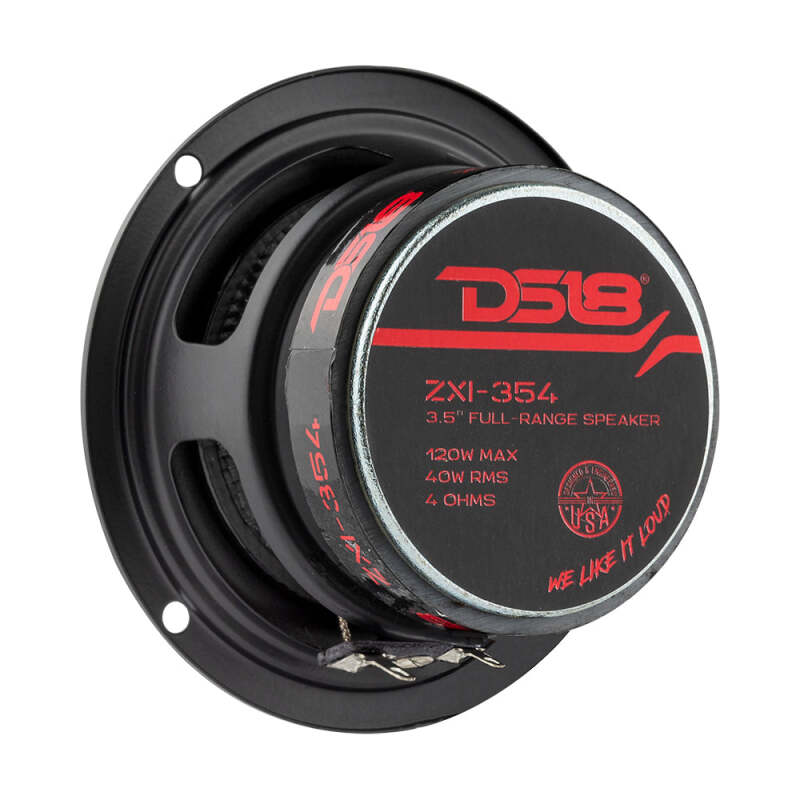

DS18 3.5in 40 Watts RMS 4 ohm 1-Way Full Range Speaker w/ Kevlar Cones - ZXI-354

DS18 ZXI-354 Glass Fiber Cone 3.5" Full-Range Car Speaker with Bullet 120 Watts 4-Ohm

The ZXI series is the go to DS18 line for great sounding audio that not only has very high volume, but also amazing sound quality for an amazing price.

The ZXI- 354 is 3.5", 4 ohms coaxial speaker designed for mid tier audio enthusiasts to the extreme as they have an amazing range of frequencies and loudness.

The 1 - way design will ensure that you receive a full range of frequencies for an audio experience that you will truly remember.

Highlights

• The ZXi line is a complete line of amps, subs, mids, and tweeters so you can match all your equipment up to be the same for an amazing show quality look.
• 3.5"  1- way 4 ohms speaker requiring 40w RMS and 120w Max power handling that gives amazing sound from low to extremely high volume.
• 1 -Way design will be sure to give you a full range of frequencies for an amazing audio experience to remember.

Technical Details

Download ZXI-354 Product Manual

Nominal Diameter	3.5”
Nominal Impedance	4 ohms
RMS Power Handling	40W
MAX Power Handling	120W
Sensitivity (1w/1m)	86dB
Frequency Response	120Hz-20KHz
Recommended HI Pass Crossover	140Hz
Midrange:
Voice Coil Diameter	1” / 25.5mm
Voice Coil Former Material	KSV
Winding Material	EISV
Cone Material	Glass fiber
Surround Material	Rubber
Basket Material	Steel
Magnet Material.	Barium Ferrite
Magnet Weight	10.9 oz / 310g
Thiele & Small Parameters
Equivalent Volume	0.55L
Excursion (one way)	1.4mm
Free Air Resonance	140Hz
Mechanical Factor	7.08
Electrical Factor	1.37
Total Factor	1.15
Mechanical Mass	3.2g
Mechanical Compliance	402mm/N
BL Factor	2.938
Cone Area	32cm2
DC Resistance	4.2 ohm
Mechanical Mass w/o air	3.0g

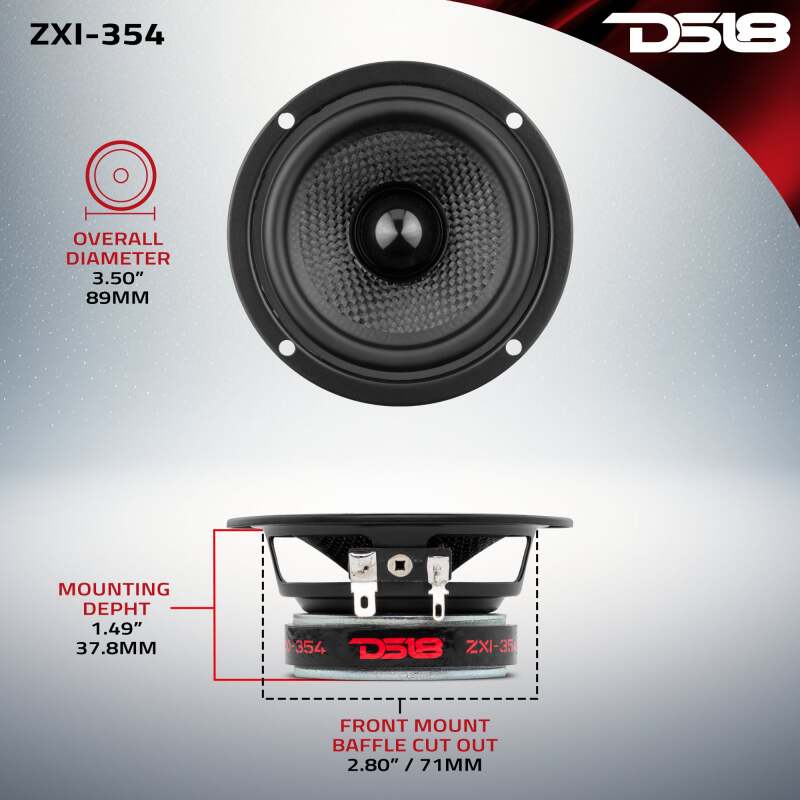

Measurements
Overall Diameter	3.50” / 89mm
Overall Depth	1.65” / 42mm
Front Mount Baffle Cutout	2.80” / 71mm
Mouting Depth	1.49” / 37.8mm
Motor Diameter	2.36” / 60mm
