DS18 2-Way Passive Crossover To Filter Frequency For Better Speaker Performance - PRO-CFX

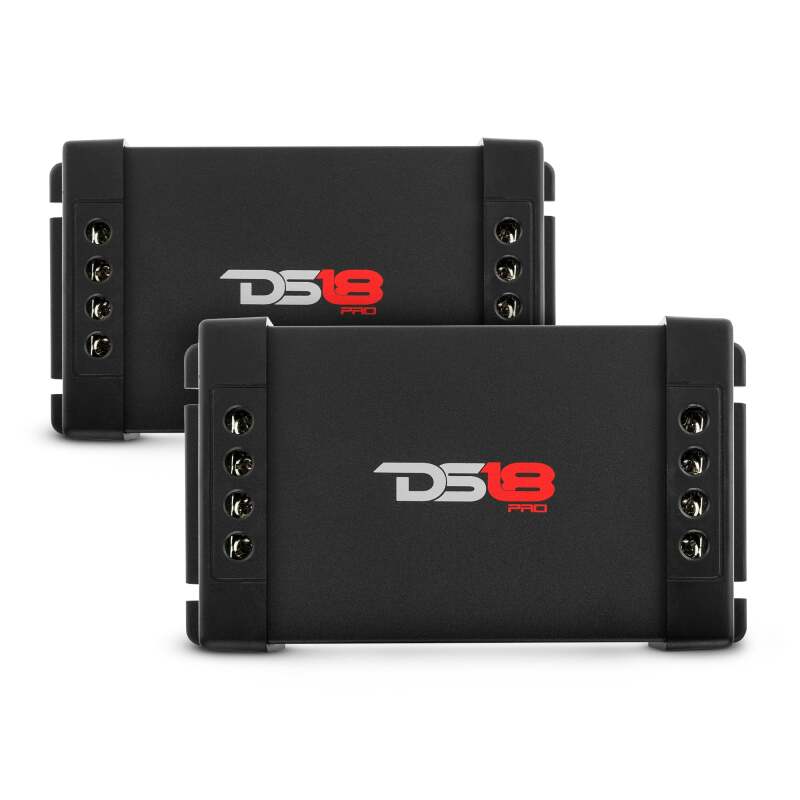

DS18 PRO-CFX 2-Way Passive Crossover (Pair)

With DS18's PRO CFX, you can make your own passive setup and use the speakers of your choosing for an amazingly full sound. This is a 2 way passive crossover that lets you choose a mid woofer 8" and under for the midrange and a tweeter for the high range. The crossover is rated for 300w RMS so you will be able to get great sound at a high volume with great frequency crossover point accuracy. These are the perfect addition for anyone looking to add a passive crossover utilizing only 1 channel on your amp and separate a full range signal for both components.

Highlights

• 2 way design that allows you to add a midrange and tweeter while it passively filters the frequencies for both.
• Utilize 2 speakers on 1 channel of your amplifier while filtering out unneeded frequencies and help each speaker complement overall sound quality.
• Rated for high power speakers for a total of 300w RMS so you will also have loudness with great sound quality.

Technical Details

                         PRO-CFX Product Manual

• Passive Crossover Ways / Vias de Crossover Pasivo: 2-Ways (High and Low Frequency)
• Frequency Crossover Point / Punto de Cruce de Frecuencia: 3.5KHz (@ 4 Ohms)
• Power Handling / Manejo de Potencia: Up to 300 Watts / Hasta 300 Watts

• Capacitor Type / Tipo de capacitador: NP
• Mylar Coil Type / Tipo de Embobinado: KSV Terminal Type

• Overall Length / Largo Total: 6.3” / 160 mm
• Overall Depth / Profundidad Total: 3.5” / 88 mm
• Overall Height / Altura Total: 1.5” / 38 mm
