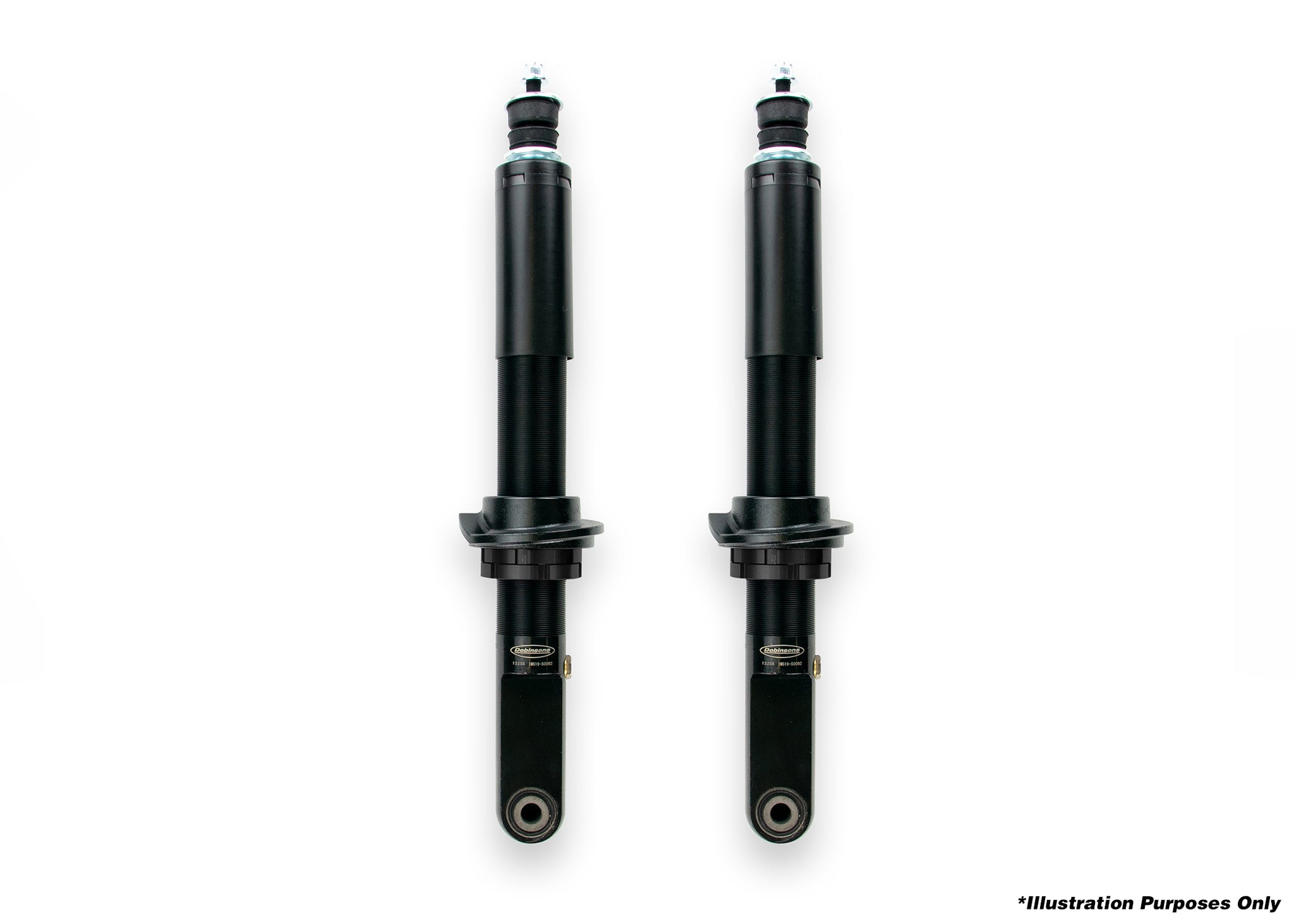

Name: Dobinsons - 2.2" IMS Monotube Strut - IMS19-50096
Brand: Dobinsons
SKU: DOBIMS19-50096
Price: 539.0 CAD
Availability: InStock

Built on the back of the race winning Monotube Remote Reservoir (MRR) shock absorbers, Dobinsons new range of IMS shock absorbers combine the best in high performance race-bred Monotube technology. Each component of the IMS shock absorber has been refined and improved to offer a higher level of ride quality, vehicle control and shock absorber performance.

Vehicle Fitment
- Ford Ranger USA

Fully re-buildable and re-valvable
Zero shock fade in all terrains with full load
Direct, bolt-on replacement for easy fitment
Corrosion resistant (EDP Surface Protection)
Heavy duty single piece lower leg
Enormous oil capacity
Heavy Duty 3 Stage FKM HNBR Sealing System for the ultimate in reliability
Race inspired hi-flow CNC 6061 Billet alloy piston 50mm bore – for the ultimate in offroad handling
56mm/2.2” Bodied Series

****Coil seat should be set at 186mm front the strut bushing eye. Picture black and white on the listing is to reference how to measure. Please check our instructions section or reach out if you have any questions. If done incorrectly you can damage the shocks, springs and vehicle.*****

The new 6063 honed aluminium reservoir, revised light-weight floating piston, Carbon Fibre/PTFE/ Disulphide composite wear band, improved 3-stage sealing system and the ability to run lower gas pressure with the addition of the reservoir compression adjuster, have combined to provide massive reductions in shock absorber friction, resulting in an improved vehicle ride and damping performance. The revised sealing design now provides a 3 stage FKM-HNBR shaft seal system that, when combined with the reduced operating frictions, provides a vastly increased service life with reduced wear.

The Micro-polished, hard chromed and heat treated shock shaft, revised CNC aluminium high flow race piston, and DOM Seamless tubing body provides the ultimate in performance and off-road durability. The 3-way adjustment design reduces the main piston working load, distributing heat more evenly between the main piston and the reservoir piston for reduced operating temperatures, and allows quick and easy damping changes for the ultimate in shock tunability in varying terrain and vehicle loads, to keep you controlled and comfortable. Enjoy the ride...
